HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114463

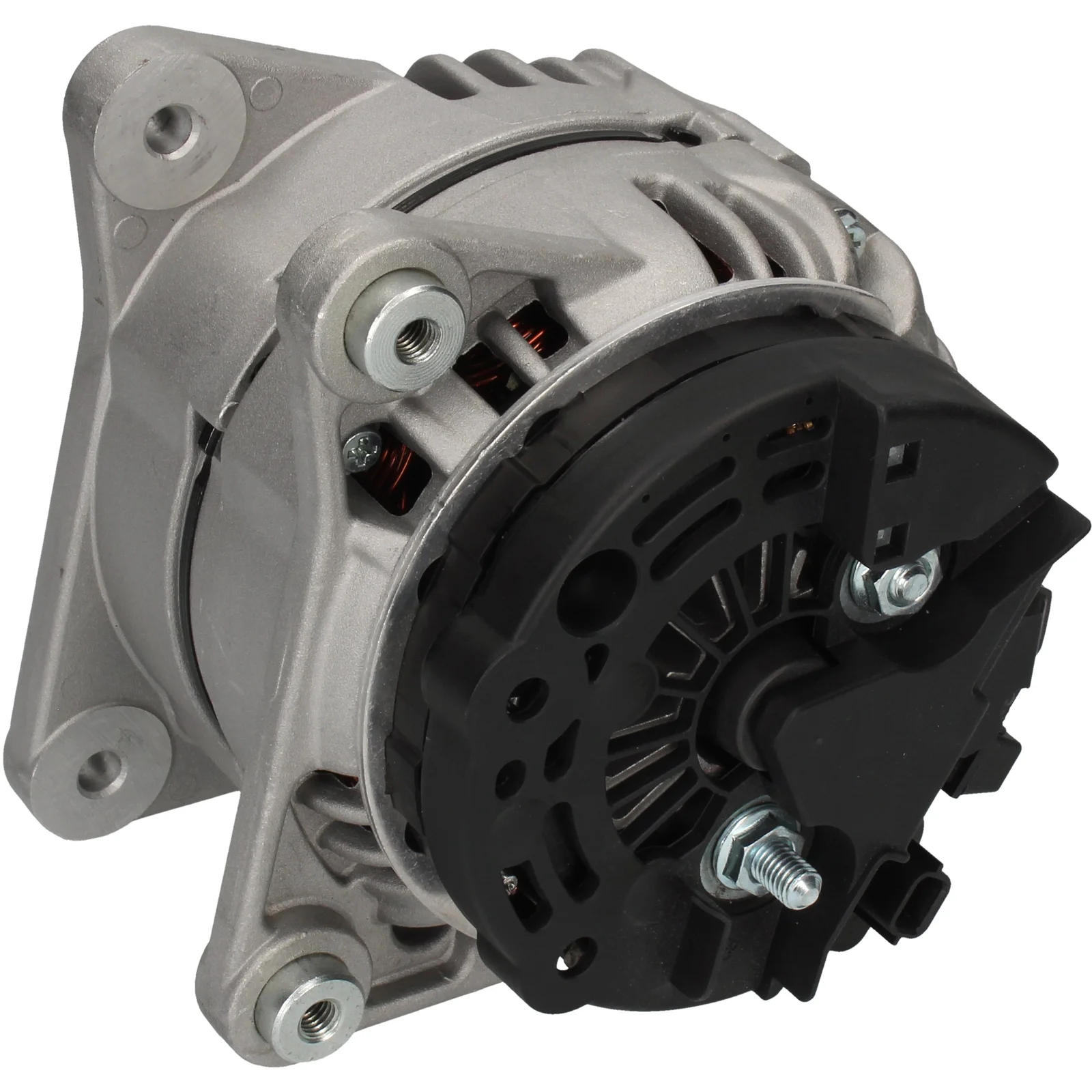

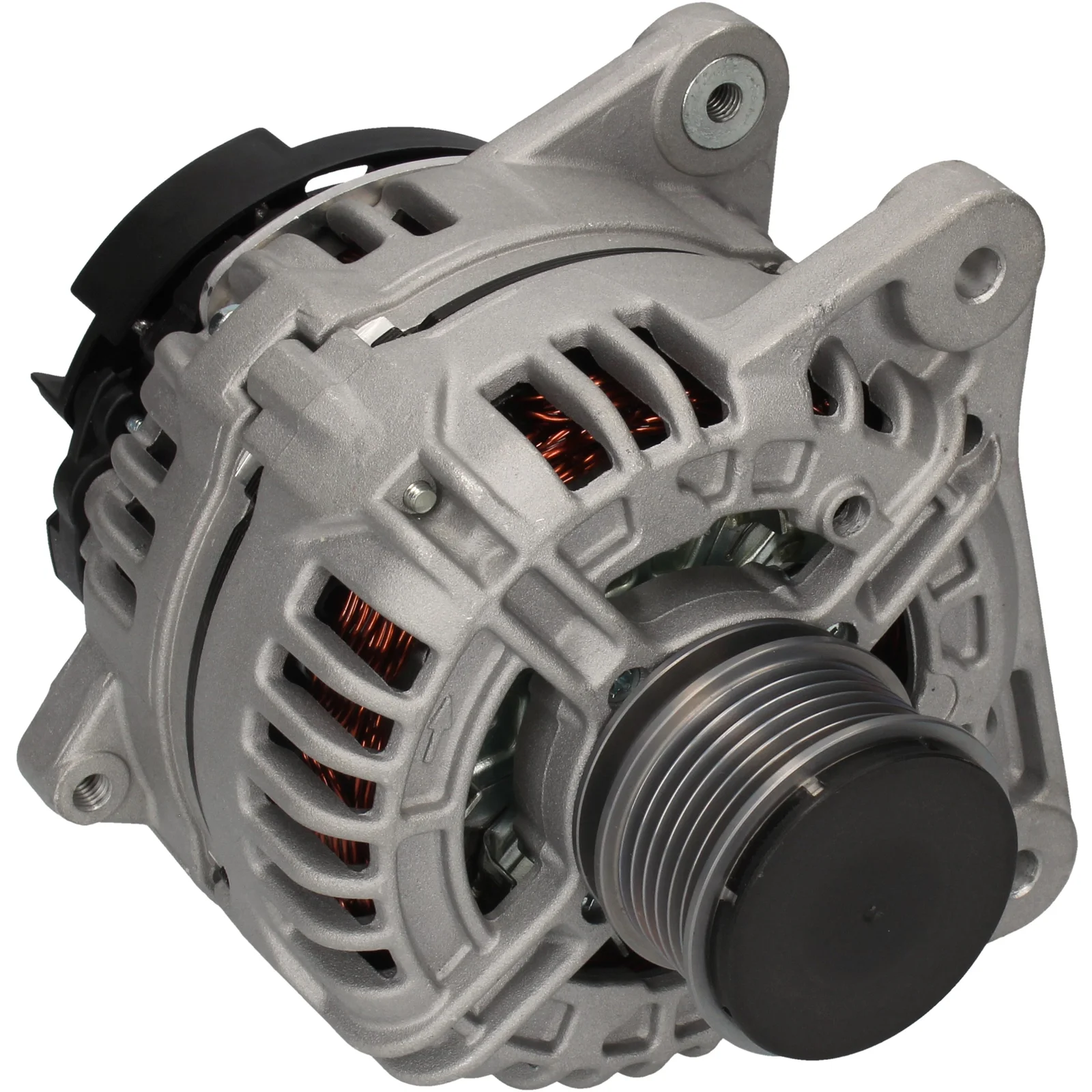

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distance: 61.00

Description

Voltage: 14
Amp: 120
Pulley diameter: 38.50
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.20
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: 8.20
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug number: PL124
Total length mm: 165.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Servicing: Renault
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0213, A0213PR, A0679PR, A0763S, CAL10315, CAL10387, DRB7340, DRB9030, F032114463, F042A01235, R95VW10300NA, 8EL011360-851, 8EL012428-801, 28-4937, 28-5645, 95VV10300NA, 95VW10300AAA, 95VW10300NA, 95VW10300RA, 230.199.1202, 230.308.1202, 230.337.1202, 1860ir, 1986A00835, 4694, 23100-8578R, 23819N, 24015N, 111820, 112791, 200133, 209071, 209071A, 209224, 209224A, 209376, 209376A, 301860RI, 554046RI, 746159, 746959, 1012449, 1031896, 7203201, 9212497, 12047340, 12049030, 021903017A, 028903018A, 028903018AX, 028903025Q, 028903025QX, 028903027B, 028903027L, 028903028G, 32047340, 32049030, 037903023E, 037903023G, 037903023GX, 037903023QX, 037903025C, 074903023B, 074903023C, 074903023Q, 0124425012, 0124425013, 0124425029, 0124425037, 0124425071, 0124425093, 0124425108, 0124425111, 0124425115, 231000027R, 231002151R, 231004864R, 231006247, 231006247R, 231007519, 231007519R, 231008578, 0986047340, 0986049030, 7701475896, 7701476812, 7711368103, 7711368380, 7711368719, 7711497103, 8200325013, 8200325823, 8200360480, 8200390675, 8200410681, 8200459711, 8200660033, 8200667614, 8200772726, 8800772726

  • Normalised article numbler
    a0213, a0213pr, a0679pr, a0763s, cal10315, cal10387, drb7340, drb9030, f032114463, f042a01235, r95vw10300na, 8el011360851, 8el012428801, 95vv10300na, 95vw10300aaa, 95vw10300na, 95vw10300ra, 1860ir, 1986a00835, 4694, 23819n, 24015n, 111820, 112791, 200133, 209071, 209071a, 209224, 209224a, 209376, 209376a, 284937, 285645, 301860ri, 554046ri, 746159, 746959, 1012449, 1031896, 7203201, 9212497, 12047340, 12049030, 021903017a, 028903018a, 028903018ax, 028903025q, 028903025qx, 028903027b, 028903027l, 028903028g, 32047340, 32049030, 037903023e, 037903023g, 037903023gx, 037903023qx, 037903025c, 074903023b, 074903023c, 074903023q, 0124425012, 0124425013, 0124425029, 0124425037, 0124425071, 0124425093, 0124425108, 0124425111, 0124425115, 231000027r, 231002151r, 231004864r, 231006247, 231006247r, 231007519, 231007519r, 231008578, 231008578r, 0986047340, 0986049030, 2301991202, 2303081202, 2303371202, 7701475896, 7701476812, 7711368103, 7711368380, 7711368719, 7711497103, 8200325013, 8200325823, 8200360480, 8200390675, 8200410681, 8200459711, 8200660033, 8200667614, 8200772726, 8800772726
  • Description
    Voltage: 14
    Amp: 120
    Pulley diameter: 38.50
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.20
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: 8.20
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 20
    Rotation: CW
    Plug number: PL124
    Total length mm: 165.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Servicing: Renault
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0213, A0213PR, A0679PR, A0763S, CAL10315, CAL10387, DRB7340, DRB9030, F032114463, F042A01235, R95VW10300NA, 8EL011360-851, 8EL012428-801, 28-4937, 28-5645, 95VV10300NA, 95VW10300AAA, 95VW10300NA, 95VW10300RA, 230.199.1202, 230.308.1202, 230.337.1202, 1860ir, 1986A00835, 4694, 23100-8578R, 23819N, 24015N, 111820, 112791, 200133, 209071, 209071A, 209224, 209224A, 209376, 209376A, 301860RI, 554046RI, 746159, 746959, 1012449, 1031896, 7203201, 9212497, 12047340, 12049030, 021903017A, 028903018A, 028903018AX, 028903025Q, 028903025QX, 028903027B, 028903027L, 028903028G, 32047340, 32049030, 037903023E, 037903023G, 037903023GX, 037903023QX, 037903025C, 074903023B, 074903023C, 074903023Q, 0124425012, 0124425013, 0124425029, 0124425037, 0124425071, 0124425093, 0124425108, 0124425111, 0124425115, 231000027R, 231002151R, 231004864R, 231006247, 231006247R, 231007519, 231007519R, 231008578, 0986047340, 0986049030, 7701475896, 7701476812, 7711368103, 7711368380, 7711368719, 7711497103, 8200325013, 8200325823, 8200360480, 8200390675, 8200410681, 8200459711, 8200660033, 8200667614, 8200772726, 8800772726

    • Normalised article numbler
      a0213, a0213pr, a0679pr, a0763s, cal10315, cal10387, drb7340, drb9030, f032114463, f042a01235, r95vw10300na, 8el011360851, 8el012428801, 95vv10300na, 95vw10300aaa, 95vw10300na, 95vw10300ra, 1860ir, 1986a00835, 4694, 23819n, 24015n, 111820, 112791, 200133, 209071, 209071a, 209224, 209224a, 209376, 209376a, 284937, 285645, 301860ri, 554046ri, 746159, 746959, 1012449, 1031896, 7203201, 9212497, 12047340, 12049030, 021903017a, 028903018a, 028903018ax, 028903025q, 028903025qx, 028903027b, 028903027l, 028903028g, 32047340, 32049030, 037903023e, 037903023g, 037903023gx, 037903023qx, 037903025c, 074903023b, 074903023c, 074903023q, 0124425012, 0124425013, 0124425029, 0124425037, 0124425071, 0124425093, 0124425108, 0124425111, 0124425115, 231000027r, 231002151r, 231004864r, 231006247, 231006247r, 231007519, 231007519r, 231008578, 231008578r, 0986047340, 0986049030, 2301991202, 2303081202, 2303371202, 7701475896, 7701476812, 7711368103, 7711368380, 7711368719, 7711497103, 8200325013, 8200325823, 8200360480, 8200390675, 8200410681, 8200459711, 8200660033, 8200667614, 8200772726, 8800772726
