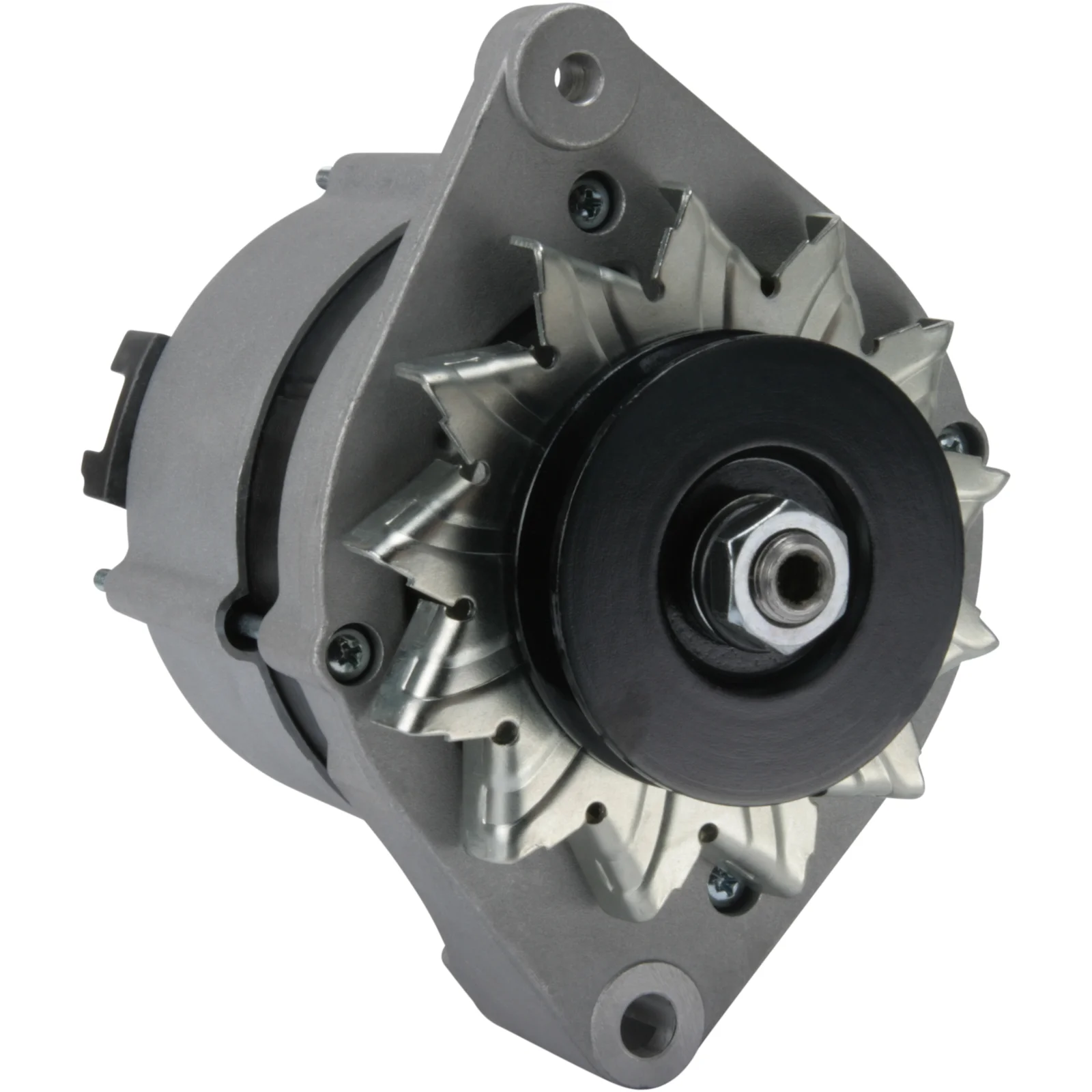

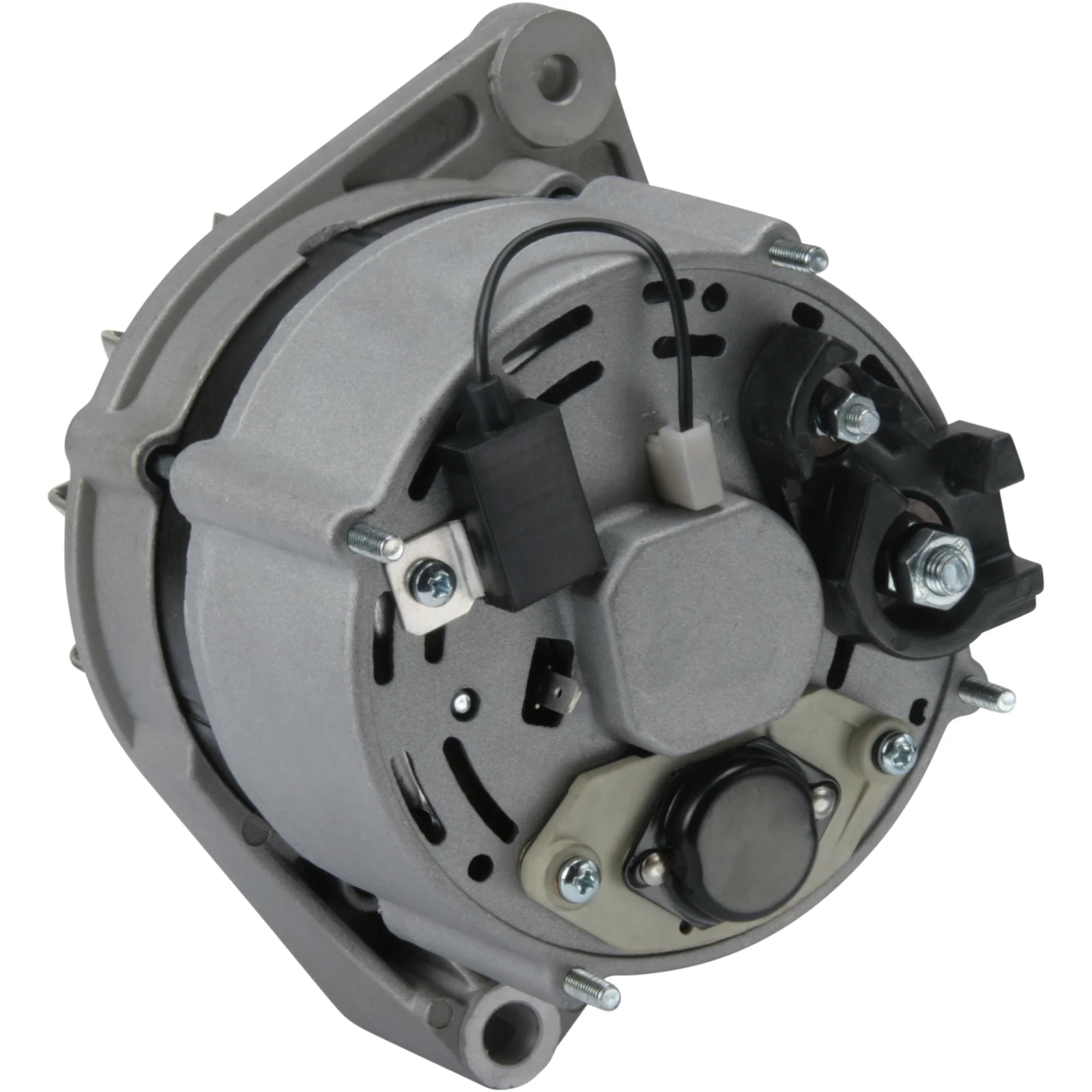

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114465

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 82.00

Description

Generator 12V-90A fits Volvo BM 12V - 90A, single pulley 12.5mm, D-82mm Alternator = UD 82mm, Pulley 12.5mm. Option 90-604-7055 The pulley differs from 90-605-7723 which is 100A, insulated return. Original Iskra/Mahle alternative 12V-70A = 90-604-0856. For Yourproduct order 90-604-7056

Voltage: 14
Amp: 70
Pulley dist.: 76.00
Width/holder arm: 51.00
Bracket hole: 11.50
Belt. adj. bracket hole position: 57
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 82.00
Grooves/pulley: 1
Radius: 86.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 15
D+ Size: M5
Rotation: CW
W plug type: 6.30
Terminal type: L-W
Pulley: P
Fan: EF
Regulator type: IR
Remarks: Dustproof

Files

  • OEM
    A13N 66, AAK 3305, AAK 3339, AAK3305, AAK3339, F032114465, 11.201.856, 11.201.945, 0856, 11201 856, 11201 945

  • Normalised article numbler
    a13n66, a9197, aak3305, aak3339, f032114465, ia0856, lea1136, mg230, 0856, 553886ri, 11201856, 11201945, 815027070
  • Description
    Generator 12V-90A fits Volvo BM 12V - 90A, single pulley 12.5mm, D-82mm Alternator = UD 82mm, Pulley 12.5mm. Option 90-604-7055 The pulley differs from 90-605-7723 which is 100A, insulated return. Original Iskra/Mahle alternative 12V-70A = 90-604-0856. For Yourproduct order 90-604-7056

    Voltage: 14
    Amp: 70
    Pulley dist.: 76.00
    Width/holder arm: 51.00
    Bracket hole: 11.50
    Belt. adj. bracket hole position: 57
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 82.00
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Terminal type: L-W
    Pulley: P
    Fan: EF
    Regulator type: IR
    Remarks: Dustproof

    Files

  • Suitable for these vehicles

    • OEM
      A13N 66, AAK 3305, AAK 3339, AAK3305, AAK3339, F032114465, 11.201.856, 11.201.945, 0856, 11201 856, 11201 945

    • Normalised article numbler
      a13n66, a9197, aak3305, aak3339, f032114465, ia0856, lea1136, mg230, 0856, 553886ri, 11201856, 11201945, 815027070
