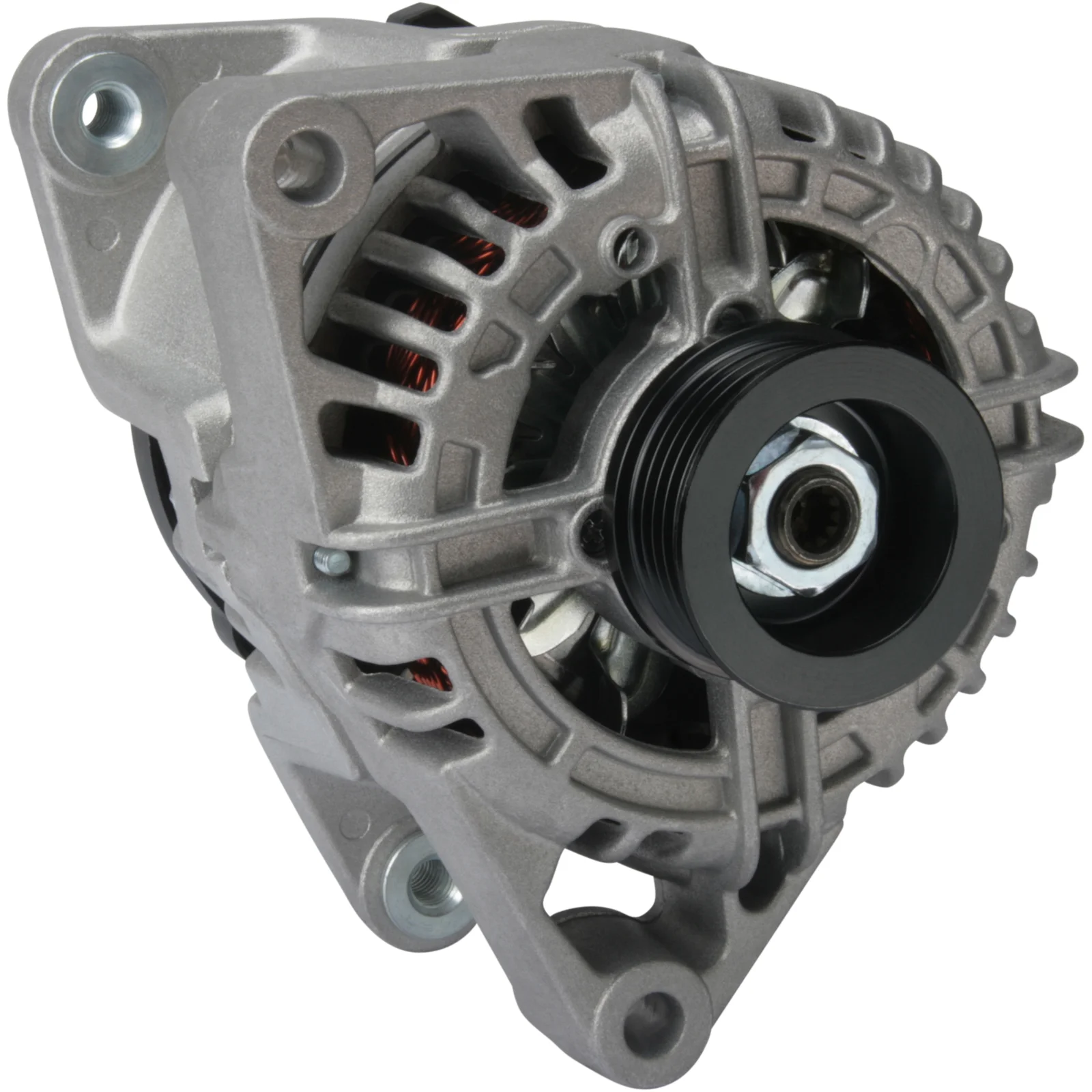

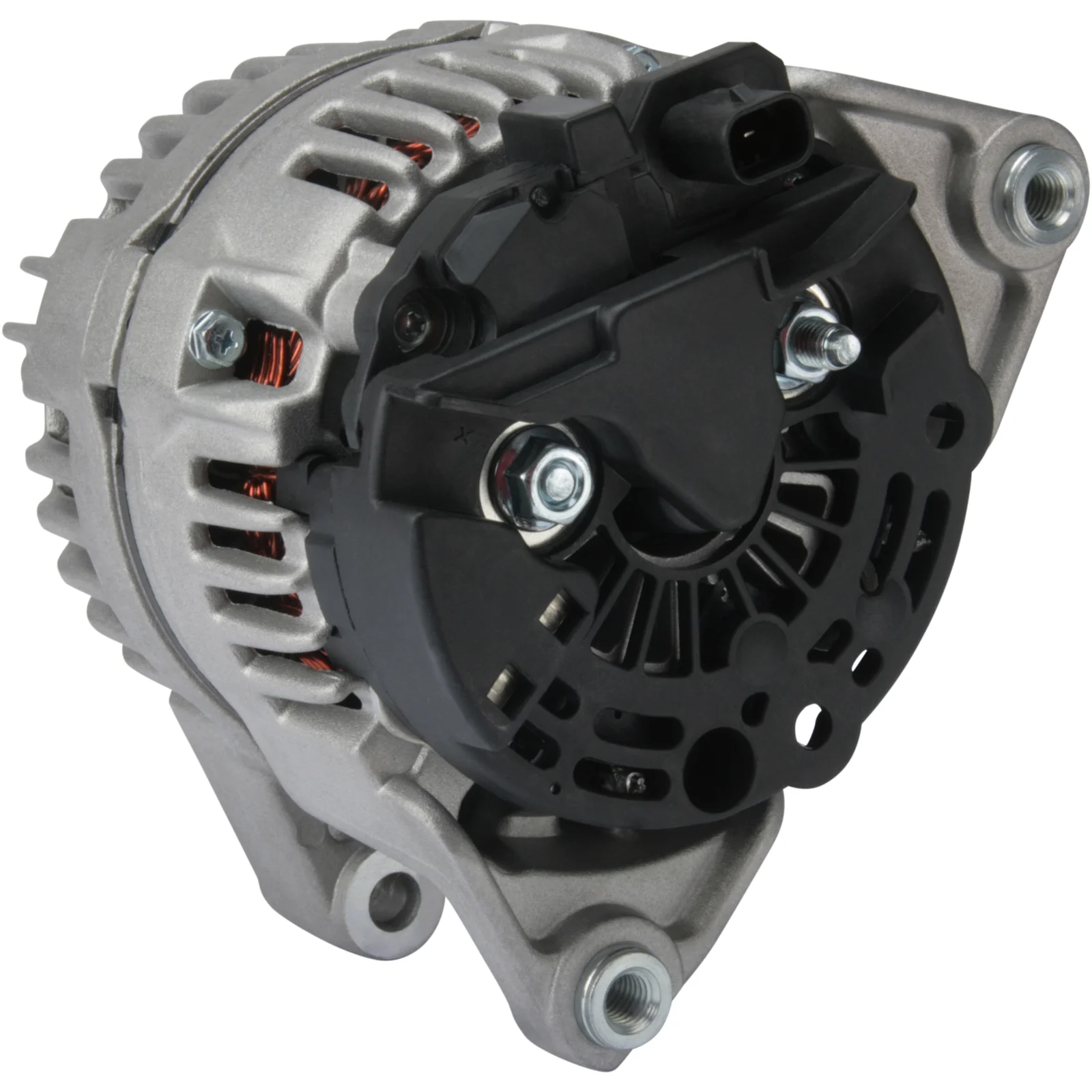

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114492

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distance: 57.00

Description

HC-Cargo Alternator 14V - 100A, 5 gr

Voltage: 14
Amp: 100
Pulley dist.: 54.00
Width/holder arm: 33.50
Mount. bracket dist.: 57.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL75
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    C101972810, F032114492, 0124 325 171, 1940IR, 1940ir, 1986A00729, 1986A01141, 114492, 6204265, 13222930, 93190138, 0124325171

  • Normalised article numbler
    a0414, a0414pr, a6377denso, a6377s, c101972810, cal10364, dan1340, dra0037, f032114492, 8el012426681, 1940ir, 1986a00729, 1986a01141, 23961n, 23961r, 112892, 114492, 210834, 210834a, 285572, 301940ri, 443102, 6204265, 12049020, 13222930, 32049020, 93190138, 0124325171, 0986049020
  • Description
    HC-Cargo Alternator 14V - 100A, 5 gr

    Voltage: 14
    Amp: 100
    Pulley dist.: 54.00
    Width/holder arm: 33.50
    Mount. bracket dist.: 57.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL75
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      C101972810, F032114492, 0124 325 171, 1940IR, 1940ir, 1986A00729, 1986A01141, 114492, 6204265, 13222930, 93190138, 0124325171

    • Normalised article numbler
      a0414, a0414pr, a6377denso, a6377s, c101972810, cal10364, dan1340, dra0037, f032114492, 8el012426681, 1940ir, 1986a00729, 1986a01141, 23961n, 23961r, 112892, 114492, 210834, 210834a, 285572, 301940ri, 443102, 6204265, 12049020, 13222930, 32049020, 93190138, 0124325171, 0986049020
