HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114493

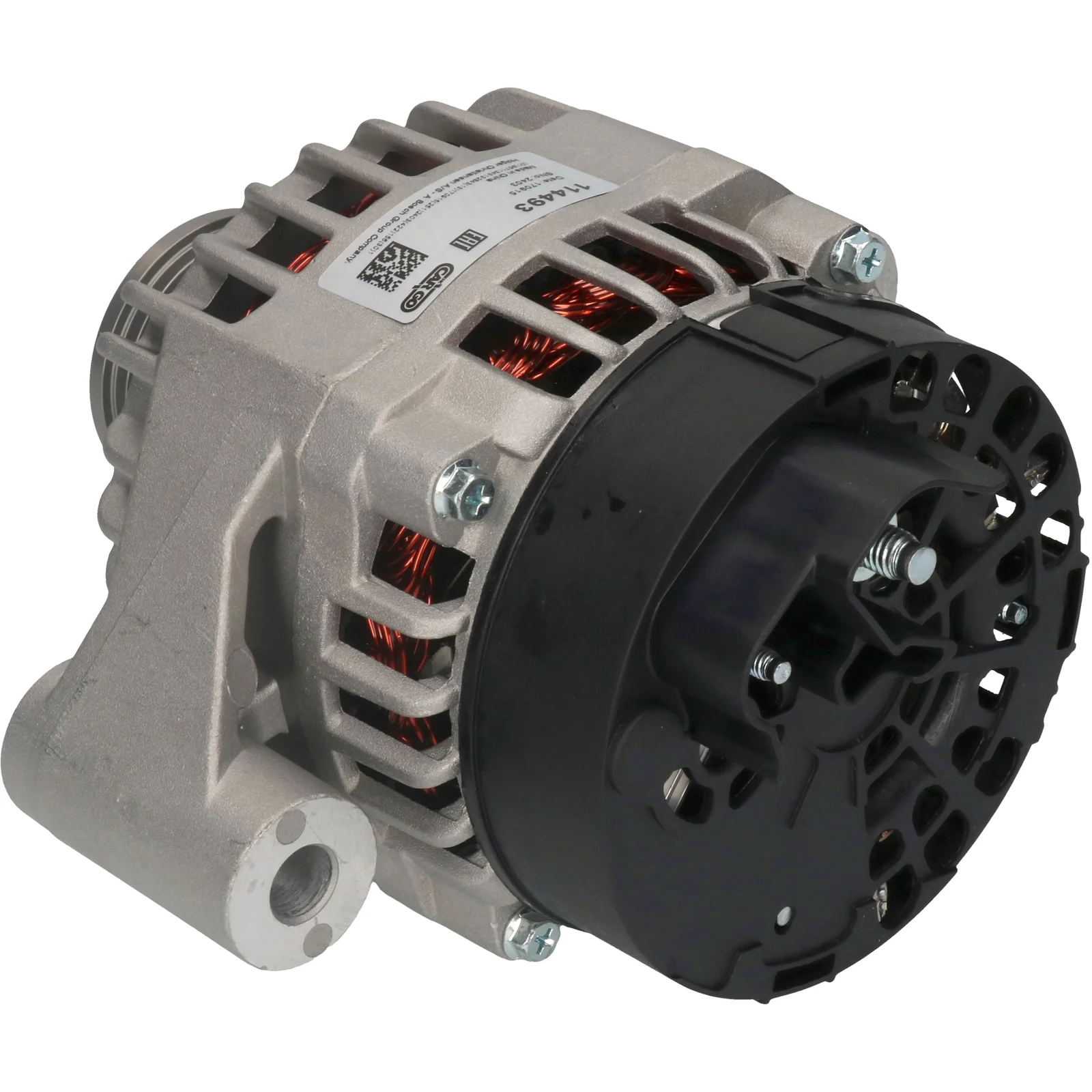

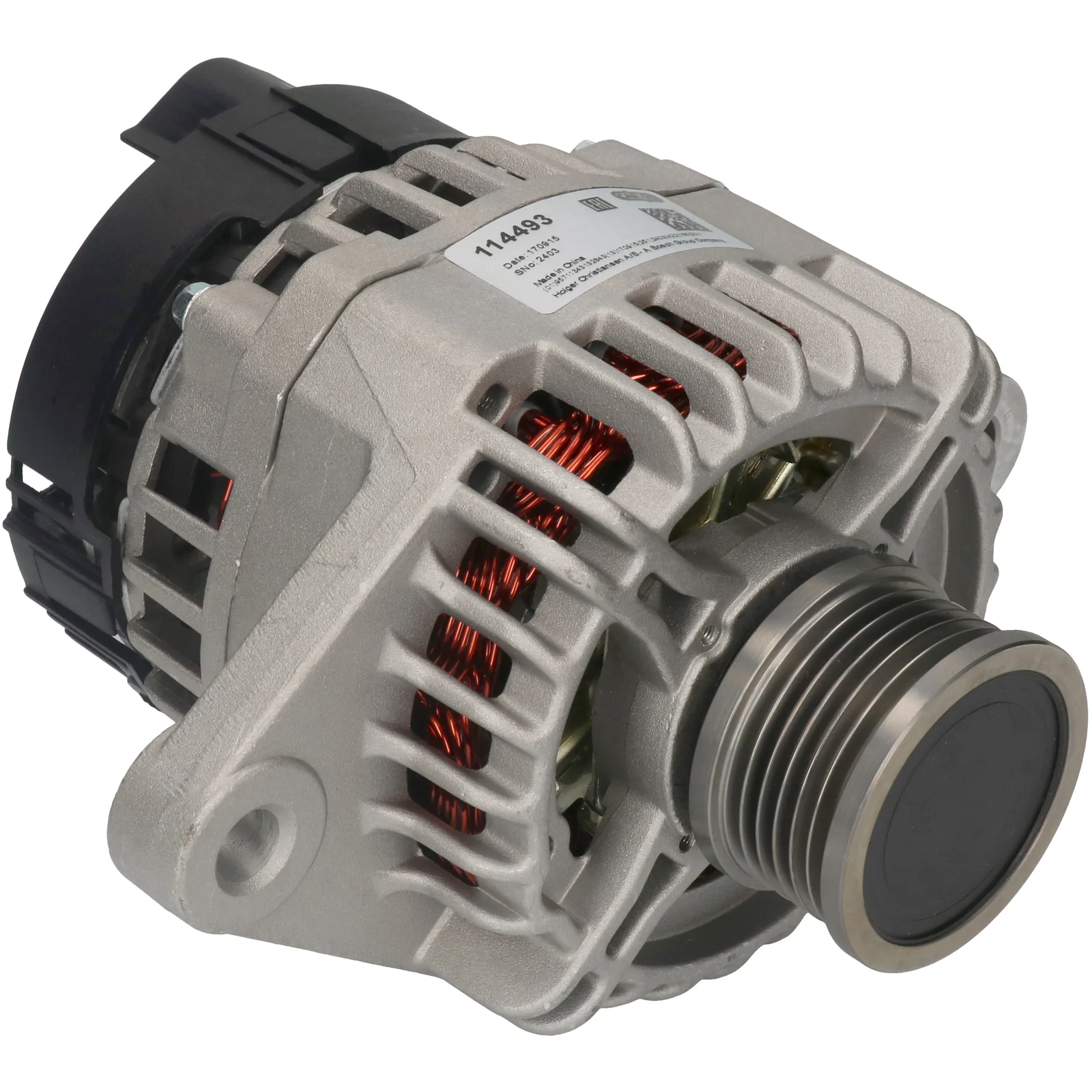

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Pulley diameter: 53.50

Description

Voltage: 14
Amp: 100
Pulley dist.: 112.50
Width/holder arm: 61.20
Bracket hole: 12.00
Belt. adjust. bracket hole position.: 60
Belt. adjust. bracket hole 1: 12.00
Pulley dia.: 53.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 47
D+ Size: M5
Rotation: CW
Total length mm: 188.00
Alternator: SP/FW
Regulator type: IR
Servicing: Fiat

Files

  • OEM
    A4042PR, A4042SR, A6074, A6074(DENSO), CAL30221, DAN1147, dan994, DAN994, DENDAN994, DRA0536, F032114493, MAN7017, R1530098, R1530100, YM13117340, 8EL011713-931, 28-5905, 218.314.1002, 2049ir, 20361N, 101210-1090, 101210-1091, 101210-1430, 210720, 210720A, 210747, 210747A, 440995, 443162, 849107, 849191, 849208, 1202272, 1202274, 1204433, 1204436, 1204456, 1204457, 6204187, 6204188, 6204293, 6204294, 9562207, 12090314, 13117340, 13117341, 13117341AA, 32083210, 51764265, 51793678, 51817369, 51820623, 51820624, 51854901, 51854902, 51884886, 52003506, 52003507, 52003615, 52003616, 63377017, 71755143, 71769230, 71769232, 71773263, 71794570, 71794573, 71795830, 71797185, 71797189, 71797694, 73503235, 75814308, 93169028, 93169029, 93169032, 93169033, 93169257, 93169258, 93180098, 93180102, 95511968, 95512068, 95520024, 95520025, 95520873, 95523483, 95523484, 95524556, 95524557, 0986083210, 063377017010

  • Normalised article numbler
    a4042pr, a4042sr, a6074, a6074denso, cal30221, dan1147, dan994, dendan994, dra0536, f032114493, man7017, r1530098, r1530100, ym13117340, 8el011713931, 2049ir, 20361n, 210720, 210720a, 210747, 210747a, 285905, 440995, 443162, 849107, 849191, 849208, 1202272, 1202274, 1204433, 1204436, 1204456, 1204457, 6204187, 6204188, 6204293, 6204294, 9562207, 12090314, 13117340, 13117341, 13117341aa, 32083210, 51764265, 51793678, 51817369, 51820623, 51820624, 51854901, 51854902, 51884886, 52003506, 52003507, 52003615, 52003616, 63377017, 71755143, 71769230, 71769232, 71773263, 71794570, 71794573, 71795830, 71797185, 71797189, 71797694, 73503235, 75814308, 93169028, 93169029, 93169032, 93169033, 93169257, 93169258, 93180098, 93180102, 95511968, 95512068, 95520024, 95520025, 95520873, 95523483, 95523484, 95524556, 95524557, 0986083210, 1012101090, 1012101091, 1012101430, 2183141002, 063377017010
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 112.50
    Width/holder arm: 61.20
    Bracket hole: 12.00
    Belt. adjust. bracket hole position.: 60
    Belt. adjust. bracket hole 1: 12.00
    Pulley dia.: 53.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 47
    D+ Size: M5
    Rotation: CW
    Total length mm: 188.00
    Alternator: SP/FW
    Regulator type: IR
    Servicing: Fiat

    Files

  • Suitable for these vehicles

    • OEM
      A4042PR, A4042SR, A6074, A6074(DENSO), CAL30221, DAN1147, dan994, DAN994, DENDAN994, DRA0536, F032114493, MAN7017, R1530098, R1530100, YM13117340, 8EL011713-931, 28-5905, 218.314.1002, 2049ir, 20361N, 101210-1090, 101210-1091, 101210-1430, 210720, 210720A, 210747, 210747A, 440995, 443162, 849107, 849191, 849208, 1202272, 1202274, 1204433, 1204436, 1204456, 1204457, 6204187, 6204188, 6204293, 6204294, 9562207, 12090314, 13117340, 13117341, 13117341AA, 32083210, 51764265, 51793678, 51817369, 51820623, 51820624, 51854901, 51854902, 51884886, 52003506, 52003507, 52003615, 52003616, 63377017, 71755143, 71769230, 71769232, 71773263, 71794570, 71794573, 71795830, 71797185, 71797189, 71797694, 73503235, 75814308, 93169028, 93169029, 93169032, 93169033, 93169257, 93169258, 93180098, 93180102, 95511968, 95512068, 95520024, 95520025, 95520873, 95523483, 95523484, 95524556, 95524557, 0986083210, 063377017010

    • Normalised article numbler
      a4042pr, a4042sr, a6074, a6074denso, cal30221, dan1147, dan994, dendan994, dra0536, f032114493, man7017, r1530098, r1530100, ym13117340, 8el011713931, 2049ir, 20361n, 210720, 210720a, 210747, 210747a, 285905, 440995, 443162, 849107, 849191, 849208, 1202272, 1202274, 1204433, 1204436, 1204456, 1204457, 6204187, 6204188, 6204293, 6204294, 9562207, 12090314, 13117340, 13117341, 13117341aa, 32083210, 51764265, 51793678, 51817369, 51820623, 51820624, 51854901, 51854902, 51884886, 52003506, 52003507, 52003615, 52003616, 63377017, 71755143, 71769230, 71769232, 71773263, 71794570, 71794573, 71795830, 71797185, 71797189, 71797694, 73503235, 75814308, 93169028, 93169029, 93169032, 93169033, 93169257, 93169258, 93180098, 93180102, 95511968, 95512068, 95520024, 95520025, 95520873, 95523483, 95523484, 95524556, 95524557, 0986083210, 1012101090, 1012101091, 1012101430, 2183141002, 063377017010
