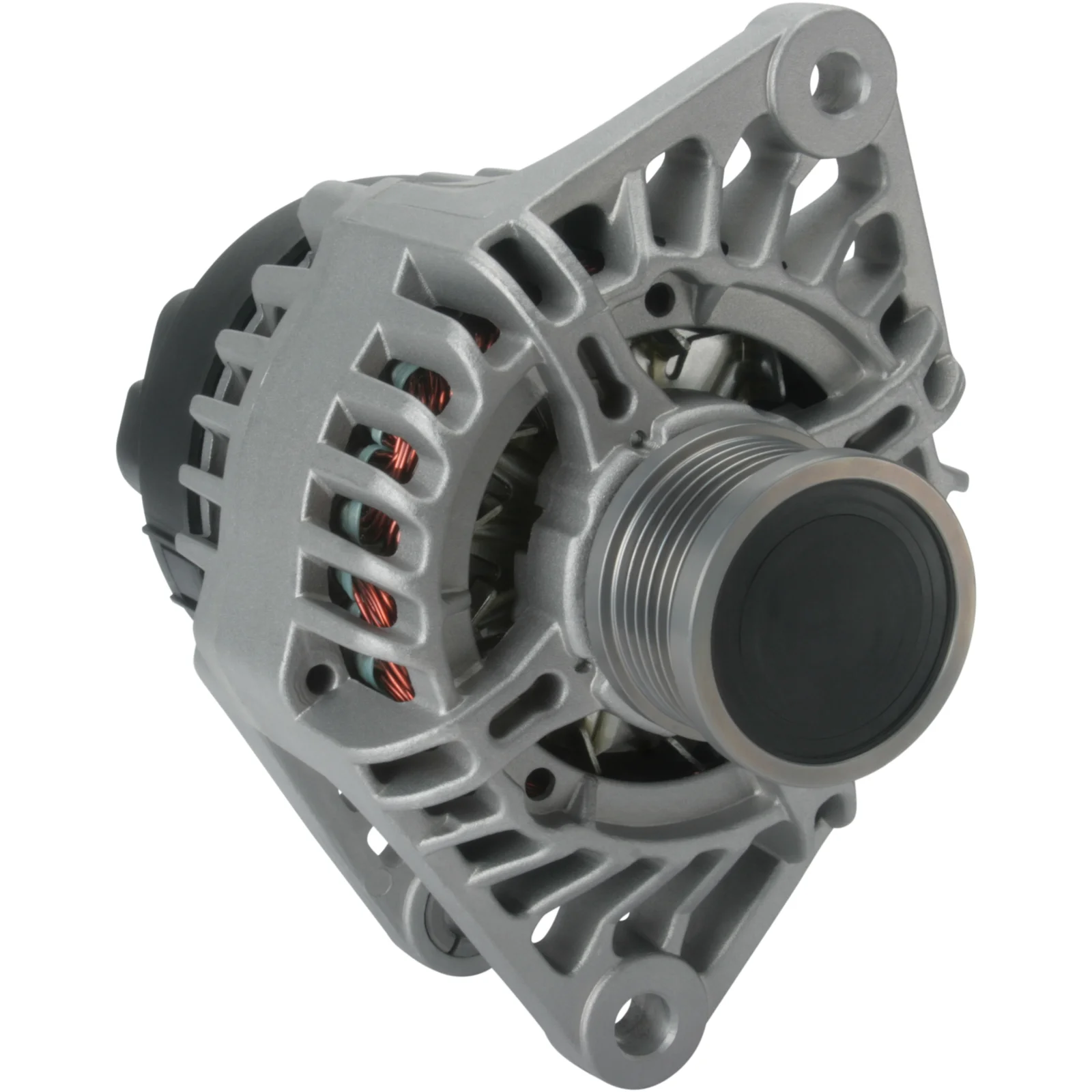

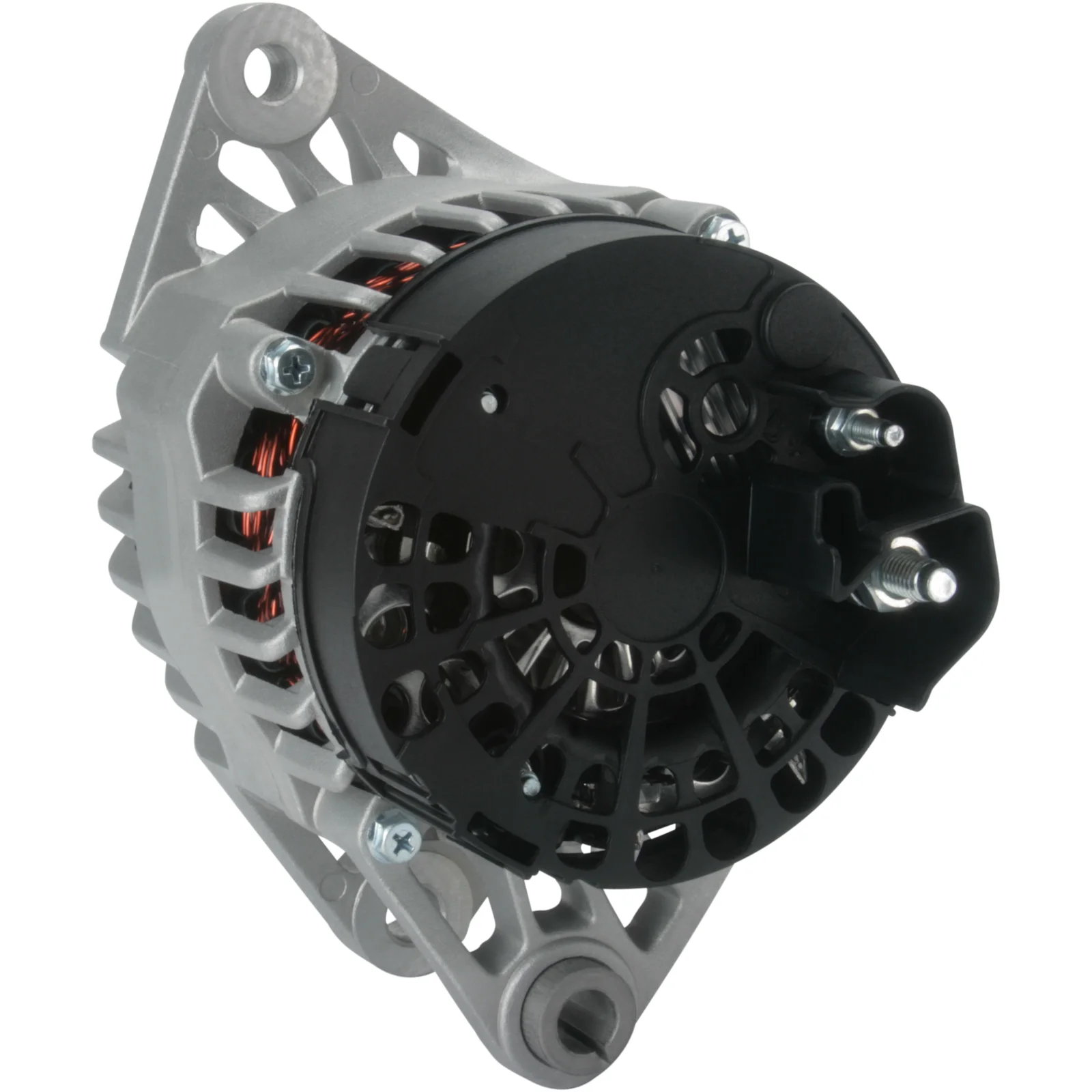

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114494

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 54.50

Description

Voltage: 14
Amp: 90
Pulley dist.: 45.00
Width/holder arm: 17.00
Mounting bracket dist.: 54.50
Bracket hole: 12.20
Belt adjustment bracket hole position.: 3
Belt adjustment bracket hole 1: 11.00
Pulley dia.: 52.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 15
D+ Size: M5
Rotation: CW
Total length mm: 201.00
Pulley: SP/FW
Regulator type: IR
Product info: BN

Files

  • OEM
    F032114494, 2048ir, 101210-0870, 101210-0871, 51727338, 51859058, 63377016

  • Normalised article numbler
    a6370, a6370denso, cal30227, dan1365, dra0713, f032114494, 8el738213311, 2048ir, 210751, 210751a, 301697ri, 12049230, 51727338, 51859058, 63377016, 105513090, 218311902, 0986084580, 1012100870, 1012100871, 063377016010
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 45.00
    Width/holder arm: 17.00
    Mounting bracket dist.: 54.50
    Bracket hole: 12.20
    Belt adjustment bracket hole position.: 3
    Belt adjustment bracket hole 1: 11.00
    Pulley dia.: 52.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: M5
    Rotation: CW
    Total length mm: 201.00
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114494, 2048ir, 101210-0870, 101210-0871, 51727338, 51859058, 63377016

    • Normalised article numbler
      a6370, a6370denso, cal30227, dan1365, dra0713, f032114494, 8el738213311, 2048ir, 210751, 210751a, 301697ri, 12049230, 51727338, 51859058, 63377016, 105513090, 218311902, 0986084580, 1012100870, 1012100871, 063377016010
