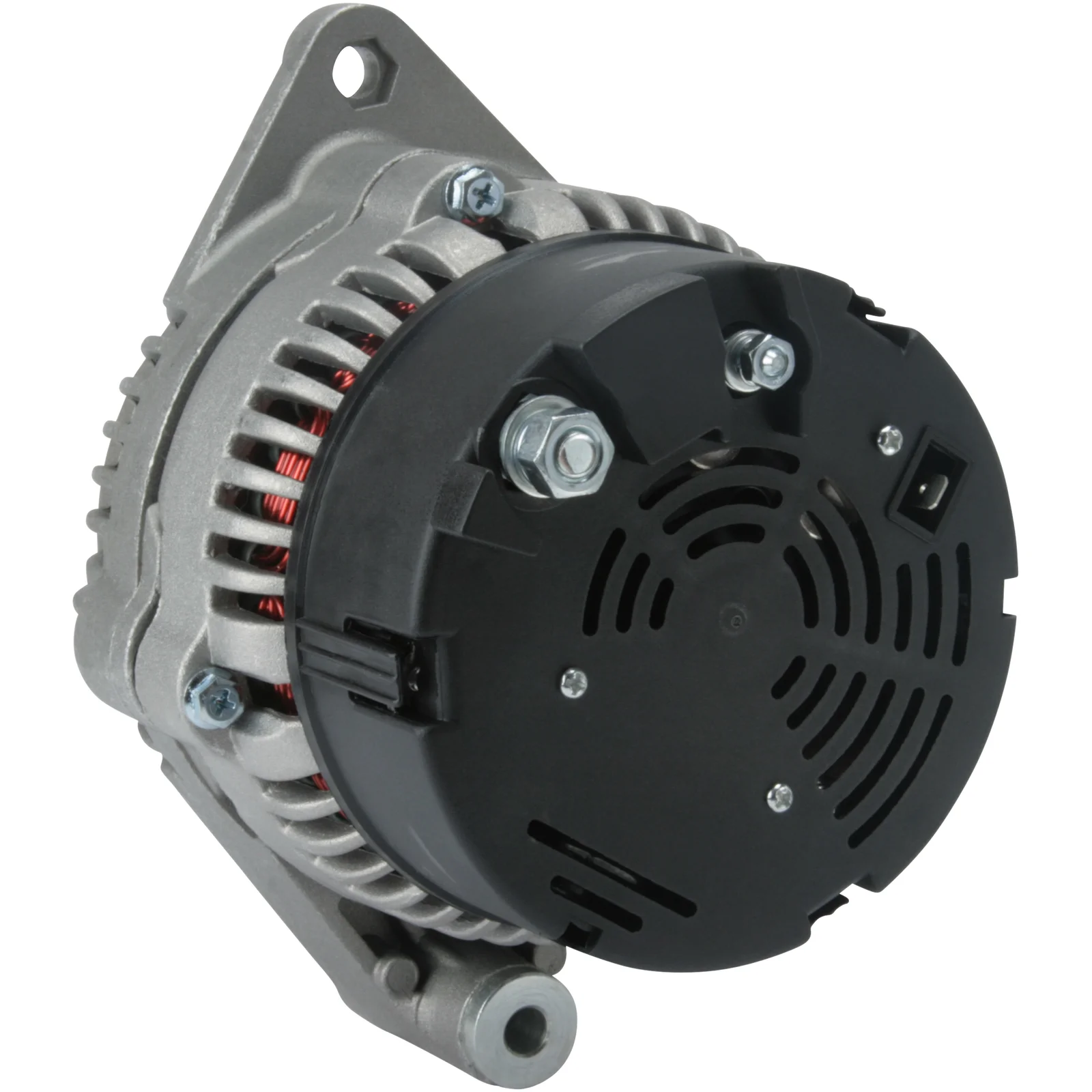

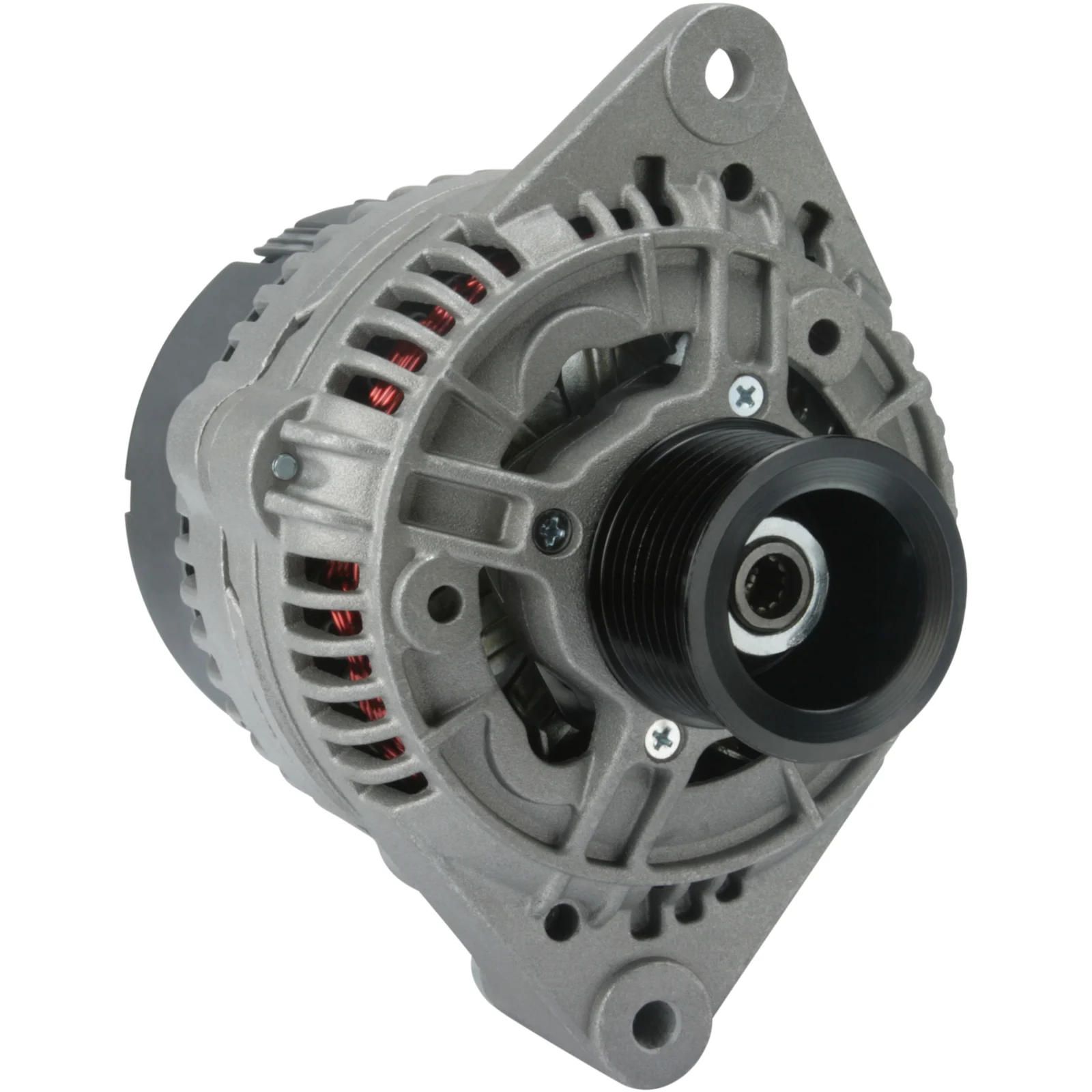

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114513

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 95, Rotation: CW, Pulley diameter: 50.00

Description

Voltage: 14
Amp: 95
Terminal: W
Pulley dist.: 83.00
Width/holder arm: 56.00
Bracket hole: 8.50
Belt. adj. bracket hole position.: 58
Belt. adj. bracket hole 1: 9.00
Pulley diameter: 50.00
Grooves/pulley: 8
Radius: 86.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 50
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 183.00
Pulley: SP
Regulator type: ILmamassamittari

Files

  • OEM
    aak5125, CT7700046783, F032114513, 11.201.738, 7700036536, 7700042474, 7700046783

  • Normalised article numbler
    a9176, a9260s, aak5125, cal21116, cal21137, ct7700046783, f032114513, ia0738, mg435, 8el015643061, 12547n, 202008, 210995, 210995a, 439987, 444438, 11201738, 7700036536, 7700042474, 7700046783
  • Description
    Voltage: 14
    Amp: 95
    Terminal: W
    Pulley dist.: 83.00
    Width/holder arm: 56.00
    Bracket hole: 8.50
    Belt. adj. bracket hole position.: 58
    Belt. adj. bracket hole 1: 9.00
    Pulley diameter: 50.00
    Grooves/pulley: 8
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 183.00
    Pulley: SP
    Regulator type: ILmamassamittari

    Files

  • Suitable for these vehicles

    • OEM
      aak5125, CT7700046783, F032114513, 11.201.738, 7700036536, 7700042474, 7700046783

    • Normalised article numbler
      a9176, a9260s, aak5125, cal21116, cal21137, ct7700046783, f032114513, ia0738, mg435, 8el015643061, 12547n, 202008, 210995, 210995a, 439987, 444438, 11201738, 7700036536, 7700042474, 7700046783
