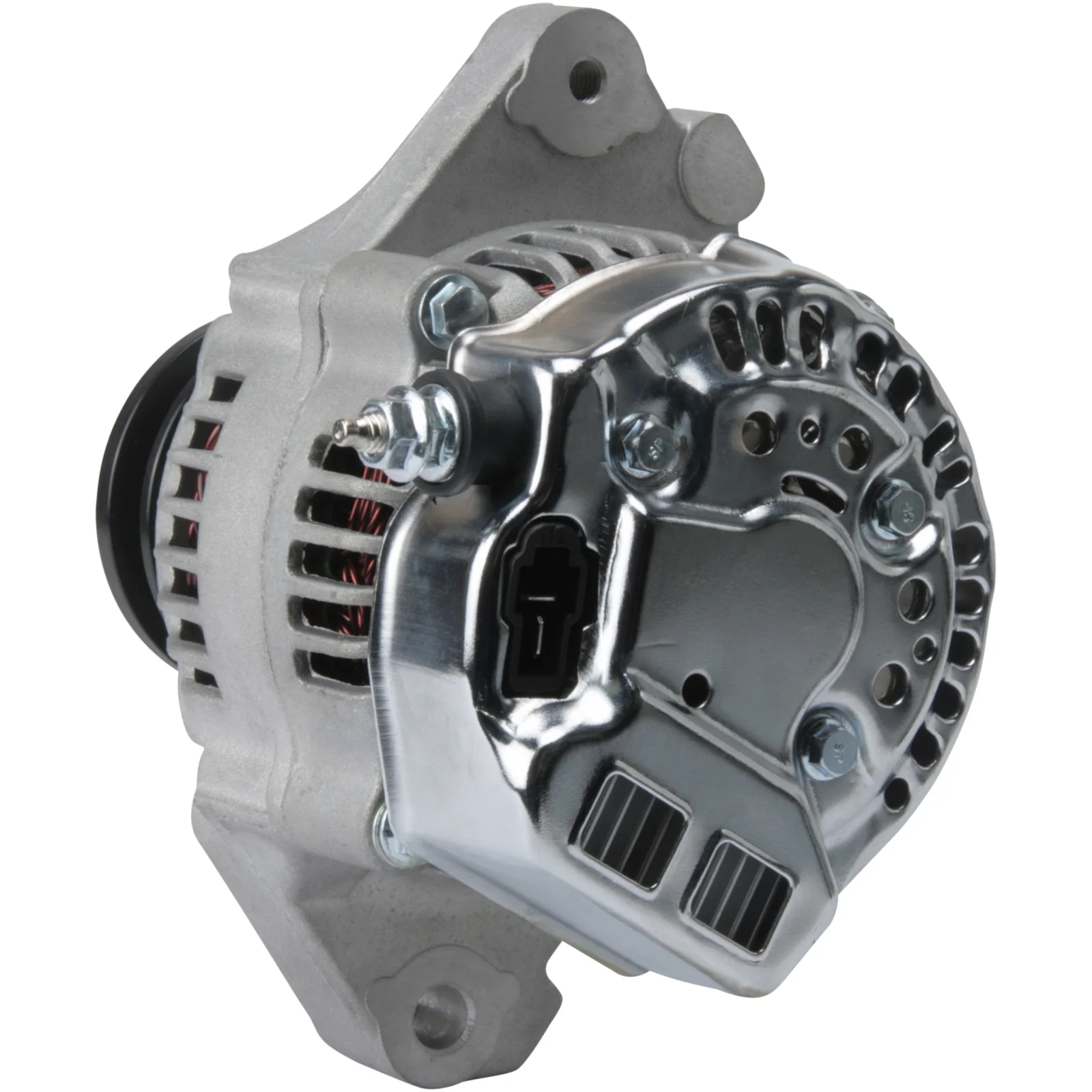

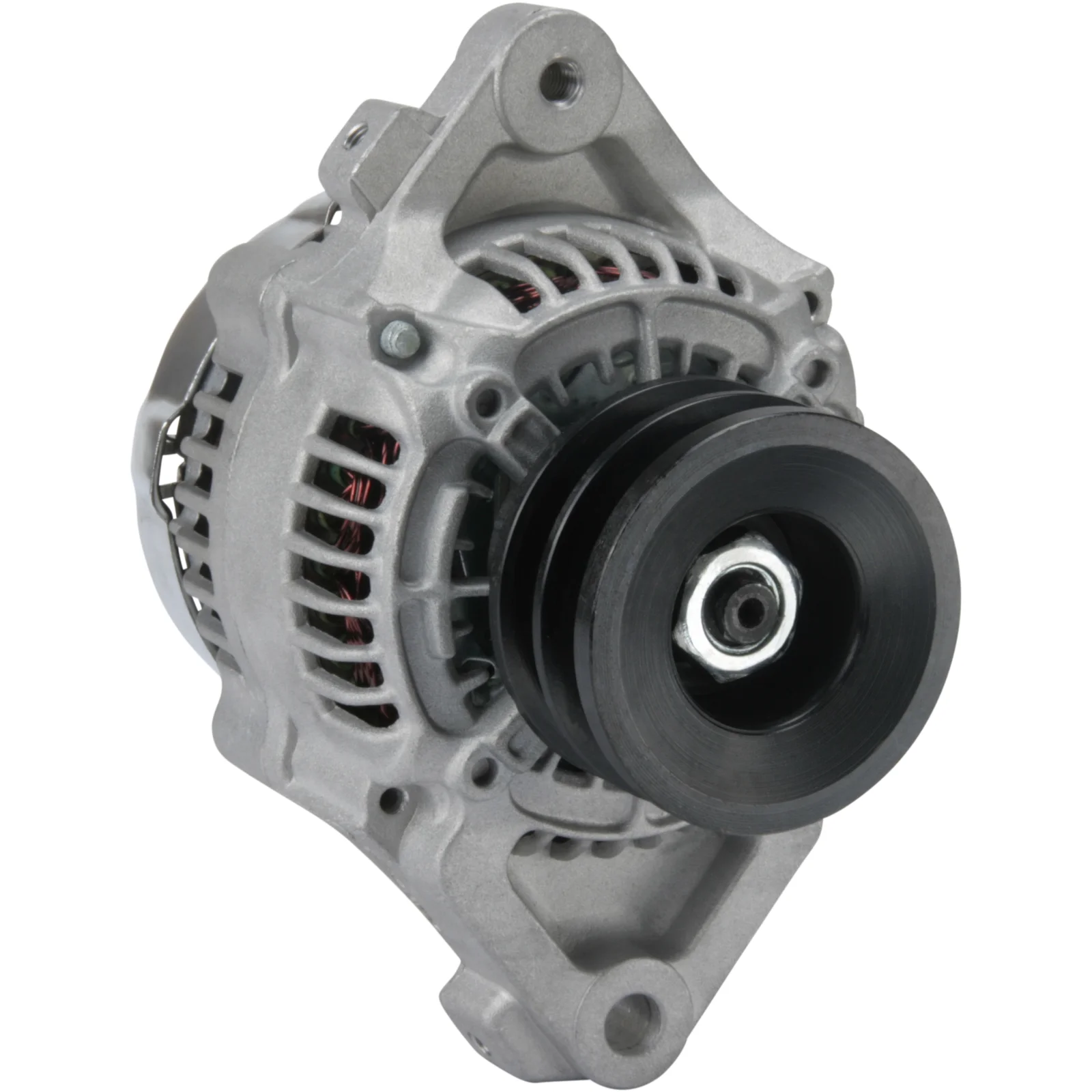

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114515

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 45, Rotation: CW, Pulley diameter: 67.00

Description

Voltage: 14
Amp: 45
Pulley dist.: 42.50
Width/holder arm: 24.00
Bracket hole: 10.30
Belt. adj. bracket hole position: 57
Belt. adj. bracket hole 1: M8
Pulley diameter: 67.00
Grooves/pulley: 2
Radius: 77.50
Radius 2: 76.00
B+: M6
Position/B+ in minutes: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 154.00
Pulley: DP
Voltage regulator type: IR
Servicing: Kubota

Files

  • Description
    Voltage: 14
    Amp: 45
    Pulley dist.: 42.50
    Width/holder arm: 24.00
    Bracket hole: 10.30
    Belt. adj. bracket hole position: 57
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 67.00
    Grooves/pulley: 2
    Radius: 77.50
    Radius 2: 76.00
    B+: M6
    Position/B+ in minutes: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 154.00
    Pulley: DP
    Voltage regulator type: IR
    Servicing: Kubota

    Files

  • Suitable for these vehicles
