HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114518

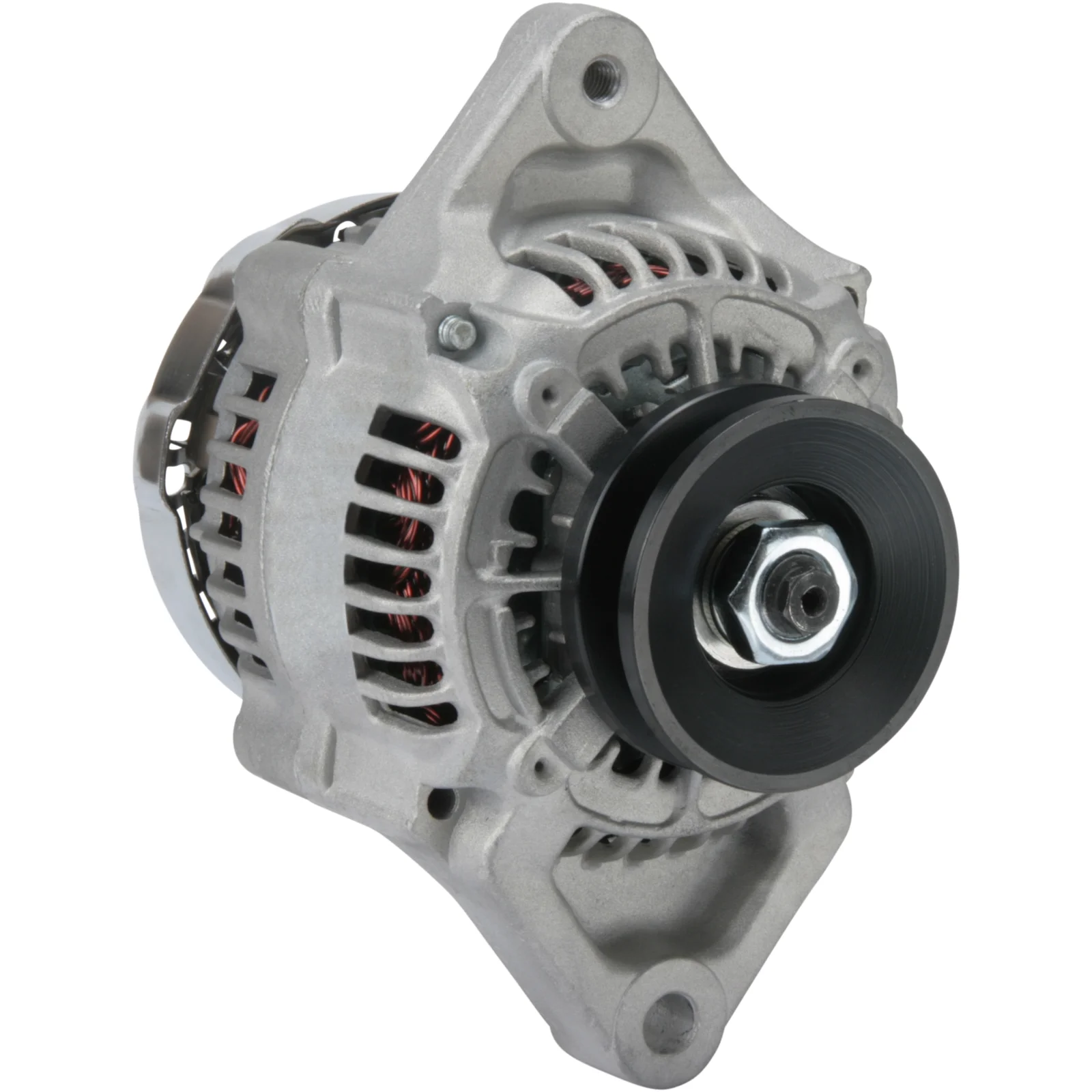

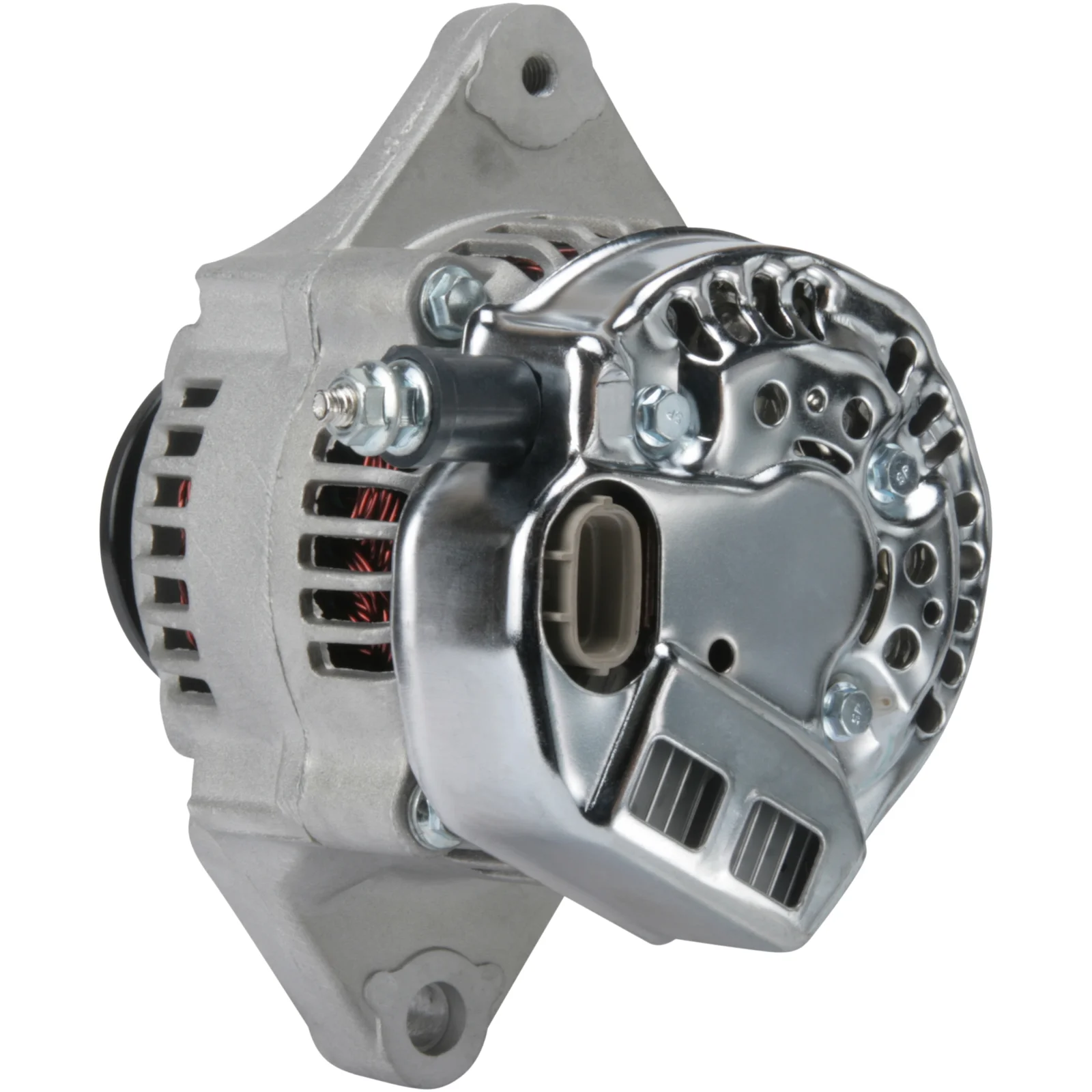

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Pulley diameter: 63.00

Description

Voltage: 14
Amp: 55
Pulley dist.: 43.00
Width/holder arm: 21.00
Bracket hole: 10.20
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Pulley diameter: 63.00
Grooves/pulley: 1
Radius: 77.50
Radius 2: 75.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL128
Total length mm: 150.00
Pulley: P
Servicing: John Deere

Files

  • OEM
    AM809216, F032114518, LVA12467, M809216, TY25242, 101211-2950, 101211-2951, 119626-77210, 123951-77200, 14520588

  • Normalised article numbler
    a6637s, a6680denso, am809216, cal40234, dan2029, dra0407, f032114518, lva12467, m809216, ty25242, 8el015643081, 2503, 12352, 12651n, 12651r, 111482, 285709, 553115ri, 14520588, 1012112950, 1012112951, 11962677210, 12395177200
  • Description
    Voltage: 14
    Amp: 55
    Pulley dist.: 43.00
    Width/holder arm: 21.00
    Bracket hole: 10.20
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 63.00
    Grooves/pulley: 1
    Radius: 77.50
    Radius 2: 75.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    Total length mm: 150.00
    Pulley: P
    Servicing: John Deere

    Files

  • Suitable for these vehicles

    • OEM
      AM809216, F032114518, LVA12467, M809216, TY25242, 101211-2950, 101211-2951, 119626-77210, 123951-77200, 14520588

    • Normalised article numbler
      a6637s, a6680denso, am809216, cal40234, dan2029, dra0407, f032114518, lva12467, m809216, ty25242, 8el015643081, 2503, 12352, 12651n, 12651r, 111482, 285709, 553115ri, 14520588, 1012112950, 1012112951, 11962677210, 12395177200
