HC-Cargo Alternator

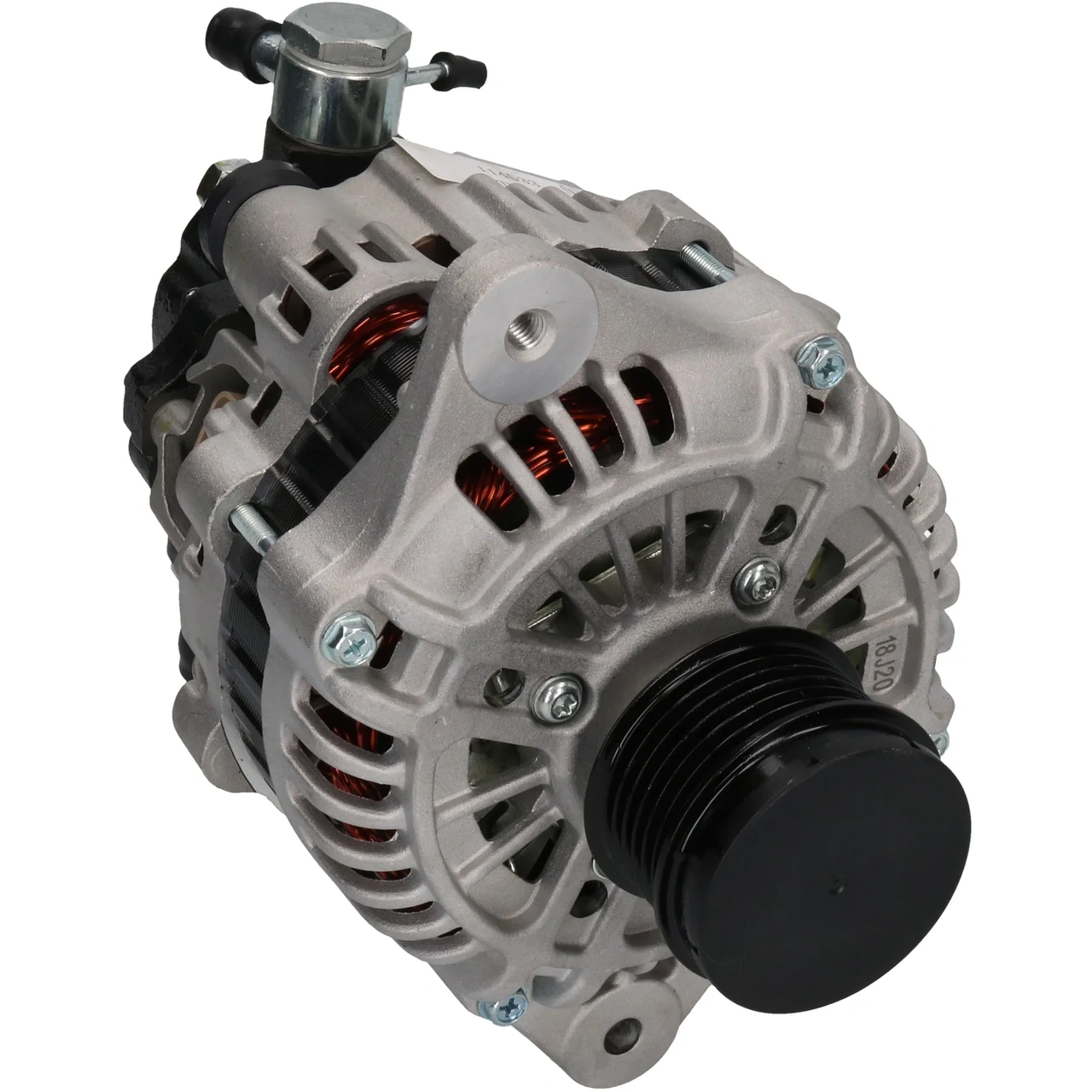

HC-Cargo Alternator
Article no.: F032114533

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 100, Rotation: clockwise, Mounting bracket distributor: 82.00

Description

Voltage: 14
Amp: 100
Pulley dist.: 45.00
Width/holder arm: 13.00
Mount. bracket dist.: 82.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: M8
Pulley dia.: 53.70
Grooves/pulley: 6
Radius: 86.00
Radius 2: 86.00
B+: M8
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 231.00
Pulley: SP/FW
Alternator type: IR
Vacuum pump: Yes
Info: Pulley: HC-CARGO 235877.

Files

  • OEM
    A003TN2581A, a3tn2581a, A3TN2581AT, F032114533, 31400-84a10, 31400-84A11, 31400-84A12

  • Normalised article numbler
    a003tn2581a, a3tn2581a, a3tn2581at, a5082, cal35201, dra0232, f032114533, 20387n, 210959, 210959a, 285785, 3140084a10, 3140084a11, 3140084a12, 12060925
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 45.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 82.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 53.70
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 231.00
    Pulley: SP/FW
    Alternator type: IR
    Vacuum pump: Yes
    Info: Pulley: HC-CARGO 235877.

    Files

  • Suitable for these vehicles

    • OEM
      A003TN2581A, a3tn2581a, A3TN2581AT, F032114533, 31400-84a10, 31400-84A11, 31400-84A12

    • Normalised article numbler
      a003tn2581a, a3tn2581a, a3tn2581at, a5082, cal35201, dra0232, f032114533, 20387n, 210959, 210959a, 285785, 3140084a10, 3140084a11, 3140084a12, 12060925
