HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114663

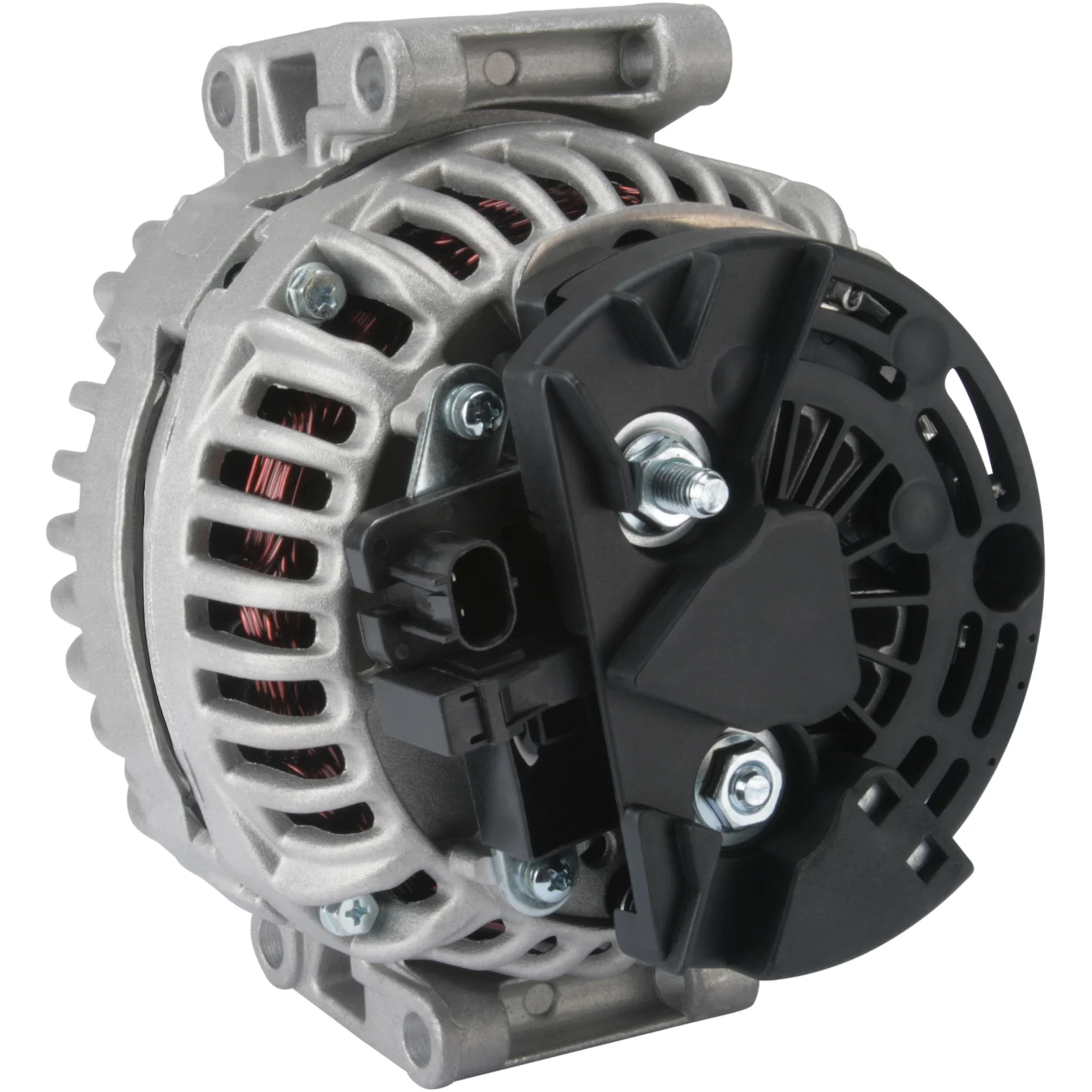

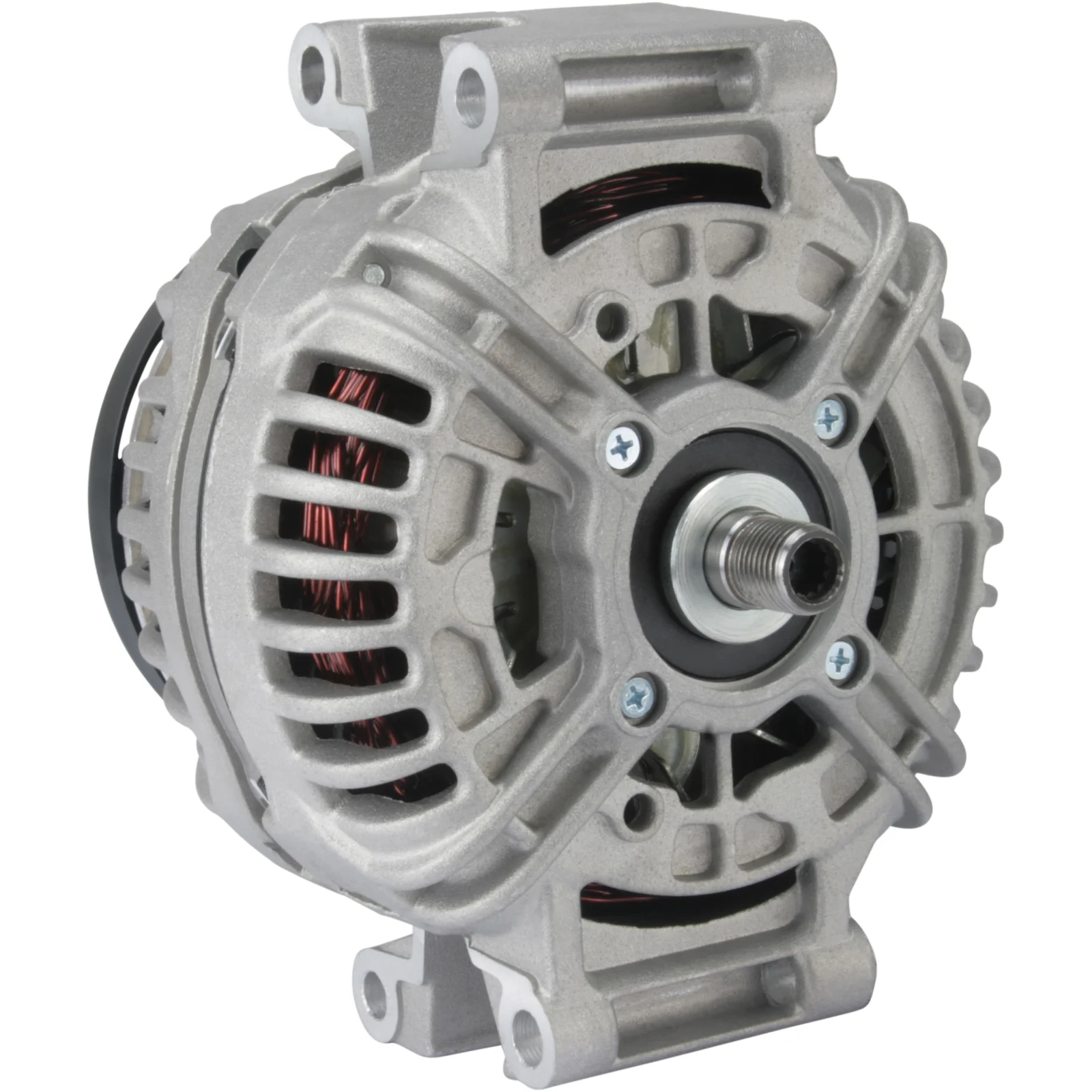

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 150
Pulley dist.: 31.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Bracket hole 2: 8.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 10.20x8.00
Belt. adj. bracket hole 2: 9.00
Pulley dia.: 50.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 30
Rotation: CW
Plug no.: PL135
Total length mm: 197.00
Pulley: without
Info: Freewheel Pulley: HC-CARGO 332302.

Files

  • OEM
    A0121546302, a0131540702, A01315407020080, A013154070280, F032114663, RL073920AC, RL080464AD, 05080464AB, 05080464AC, 05080464AD, 5080464AB, 5080464AC, 5080464AD, 0121546302, 0124615013, 0124615018, 0124615032, 0131540702, 013154070280, 01315407020080

  • Normalised article numbler
    a0121546302, a0131540702, a01315407020080, a013154070280, a0342, cal10133, drb7460, f032114663, lra02547, rl073920ac, rl080464ad, 23547n, 274891, 284535, 444314, 553184ri, 05080464ab, 05080464ac, 05080464ad, 5080464ab, 5080464ac, 5080464ad, 9047460, 12047460, 32047460, 0121546302, 0124615013, 0124615018, 0124615032, 0131540702, 835519150, 835520150, 0986047460, 0986047463, 2251561502, 013154070280, 01315407020080
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 31.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Bracket hole 2: 8.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 10.20x8.00
    Belt. adj. bracket hole 2: 9.00
    Pulley dia.: 50.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 30
    Rotation: CW
    Plug no.: PL135
    Total length mm: 197.00
    Pulley: without
    Info: Freewheel Pulley: HC-CARGO 332302.

    Files

  • Suitable for these vehicles

    • OEM
      A0121546302, a0131540702, A01315407020080, A013154070280, F032114663, RL073920AC, RL080464AD, 05080464AB, 05080464AC, 05080464AD, 5080464AB, 5080464AC, 5080464AD, 0121546302, 0124615013, 0124615018, 0124615032, 0131540702, 013154070280, 01315407020080

    • Normalised article numbler
      a0121546302, a0131540702, a01315407020080, a013154070280, a0342, cal10133, drb7460, f032114663, lra02547, rl073920ac, rl080464ad, 23547n, 274891, 284535, 444314, 553184ri, 05080464ab, 05080464ac, 05080464ad, 5080464ab, 5080464ac, 5080464ad, 9047460, 12047460, 32047460, 0121546302, 0124615013, 0124615018, 0124615032, 0131540702, 835519150, 835520150, 0986047460, 0986047463, 2251561502, 013154070280, 01315407020080
