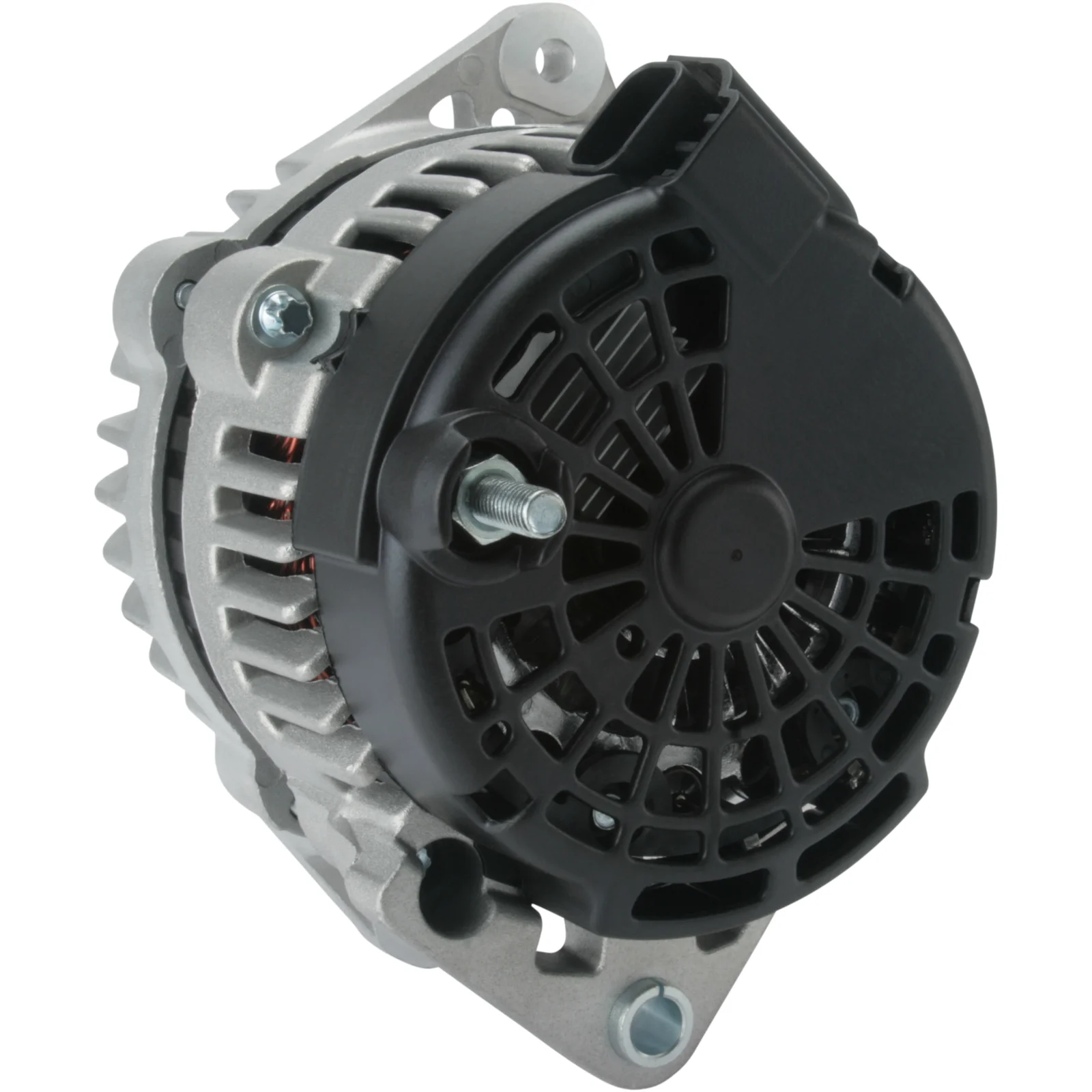

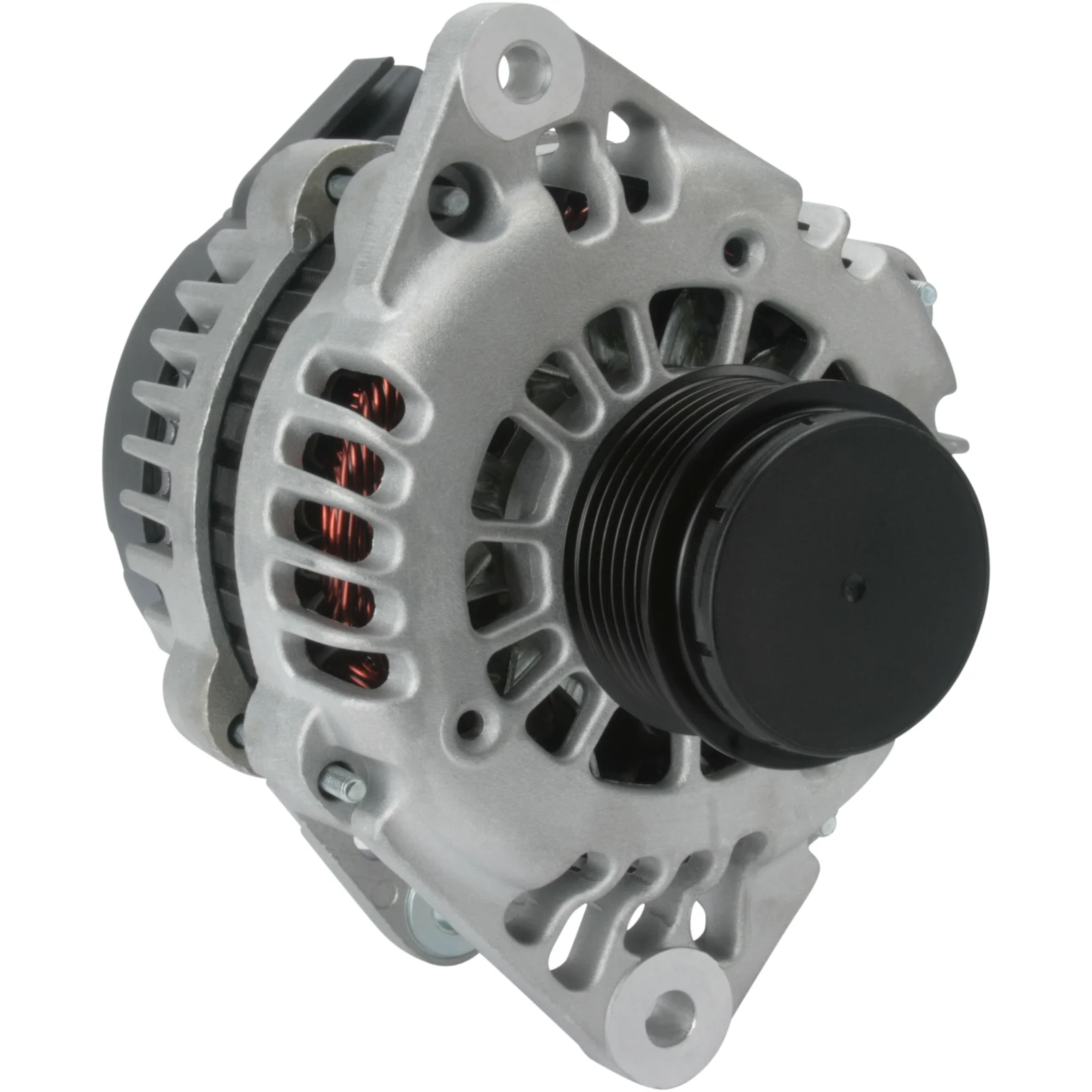

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114665

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distributor: 67.40

Description

Voltage: 14
Amp: 100
Pulley dist.: 35.60
Width/holder arm: 13.00
Mount. bracket dist.: 67.40
Bracket hole: 10.50
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: 10.60
Pulley dia.: 60.00
Grooves/pulley: 6
Radius: 85.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 47
Rotation: CW
Plug no.: PL127
Total length mm: 198.00
Terminal type: L-DFM
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032114665, 1986A01201, 2010ir, 1202424, 1204424, 6204274, 8400157, 8400159, 8400219, 95519862, 98031154, 98042872, 8980311541, 8980428720, 89804287200

  • Normalised article numbler
    a1020, a1020pr, a1020sr, cal60114, cal60115, dra2074, dra2074n, dra4294, dra4294n, f032114665, lra03096, 8el012426121, 8el738212401, 1986a01201, 2010ir, 4741, 24092r, 24094n, 113384, 210845, 210845a, 285708, 302010ri, 440907, 443092, 1202424, 1204424, 6204274, 8400157, 8400159, 8400219, 9090656, 12090329, 32081150, 95519862, 98031154, 98042872, 135566100, 0986081150, 2281771002, 8980311541, 8980428720, 89804287200
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 35.60
    Width/holder arm: 13.00
    Mount. bracket dist.: 67.40
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 57
    Belt. adj. bracket hole 1: 10.60
    Pulley dia.: 60.00
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 47
    Rotation: CW
    Plug no.: PL127
    Total length mm: 198.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114665, 1986A01201, 2010ir, 1202424, 1204424, 6204274, 8400157, 8400159, 8400219, 95519862, 98031154, 98042872, 8980311541, 8980428720, 89804287200

    • Normalised article numbler
      a1020, a1020pr, a1020sr, cal60114, cal60115, dra2074, dra2074n, dra4294, dra4294n, f032114665, lra03096, 8el012426121, 8el738212401, 1986a01201, 2010ir, 4741, 24092r, 24094n, 113384, 210845, 210845a, 285708, 302010ri, 440907, 443092, 1202424, 1204424, 6204274, 8400157, 8400159, 8400219, 9090656, 12090329, 32081150, 95519862, 98031154, 98042872, 135566100, 0986081150, 2281771002, 8980311541, 8980428720, 89804287200
