HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114672

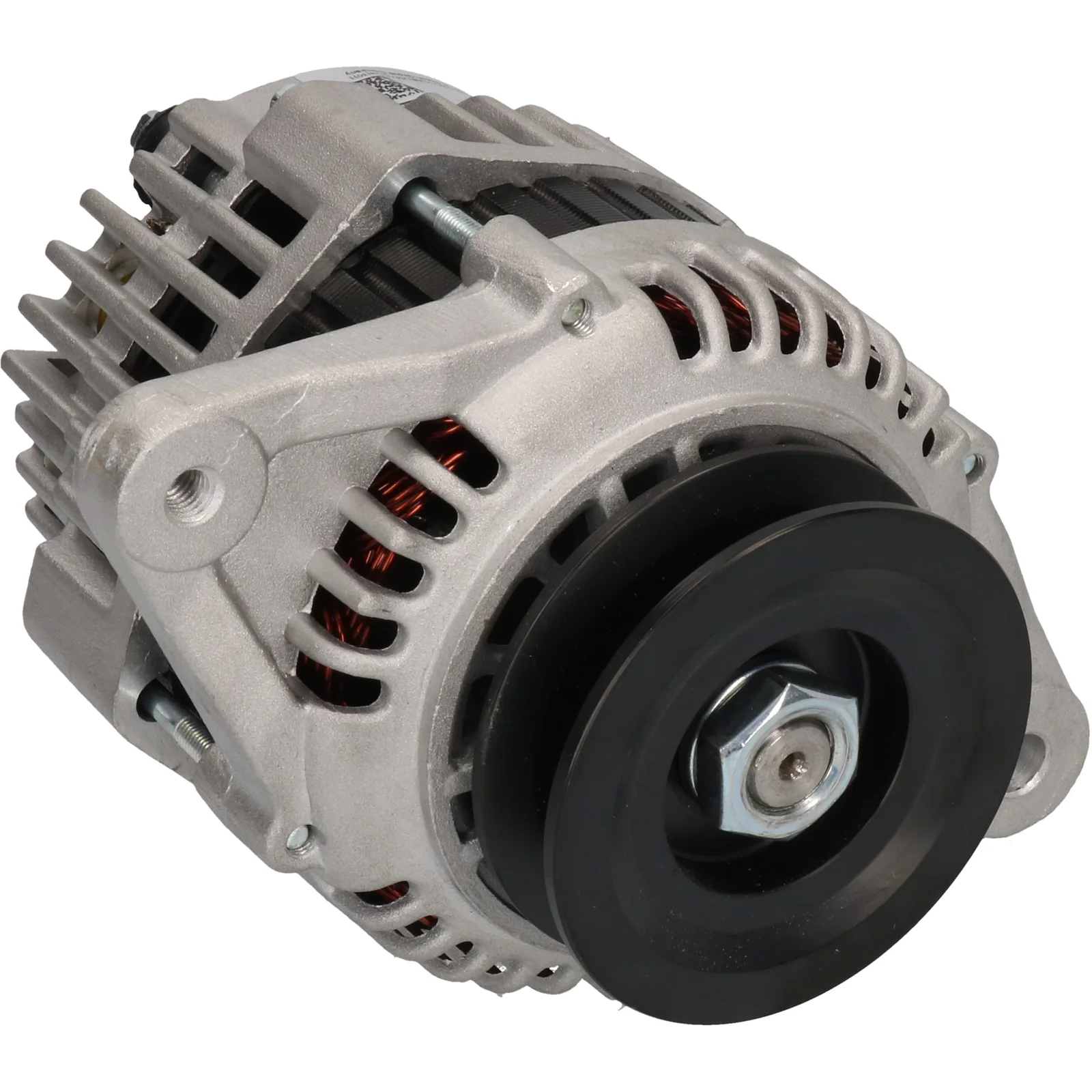

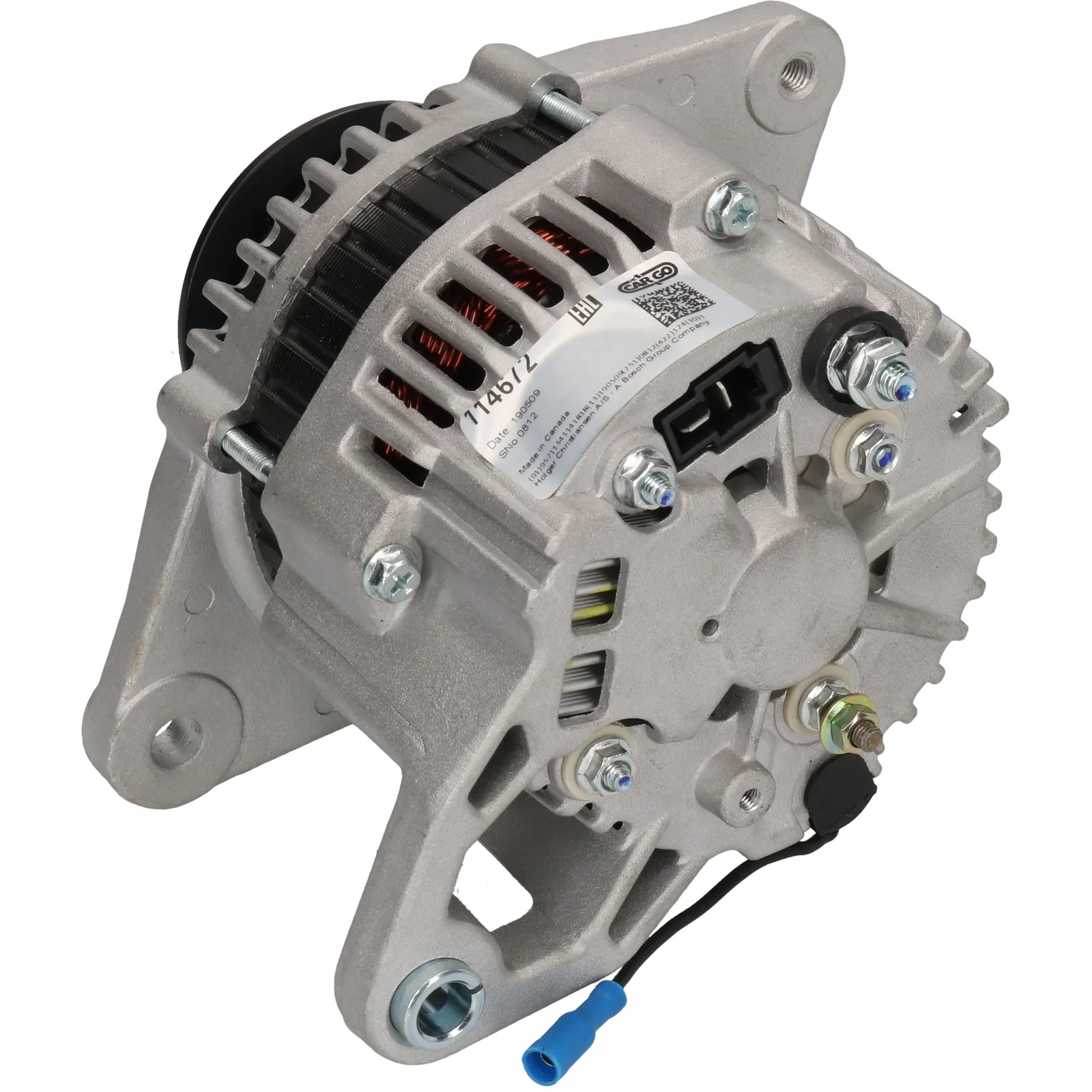

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 60, Rotation: CW, Mount. bracket dist.: 82.00

Description

Voltage: 14
Amp: 60
Insulated return: Yes
Pulley diameter: 45.00
Width/holder arm: 13.00
Mounting bracket diameter: 82.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 82.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL10
Total length mm: 160.00
Pulley: P
Fan: IF
Voltage regulator type: IR
Remarks: with W terminal.

Files

  • Description
    Voltage: 14
    Amp: 60
    Insulated return: Yes
    Pulley diameter: 45.00
    Width/holder arm: 13.00
    Mounting bracket diameter: 82.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 82.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 55
    Rotation: CW
    Plug no.: PL10
    Total length mm: 160.00
    Pulley: P
    Fan: IF
    Voltage regulator type: IR
    Remarks: with W terminal.

    Files

  • Suitable for these vehicles
