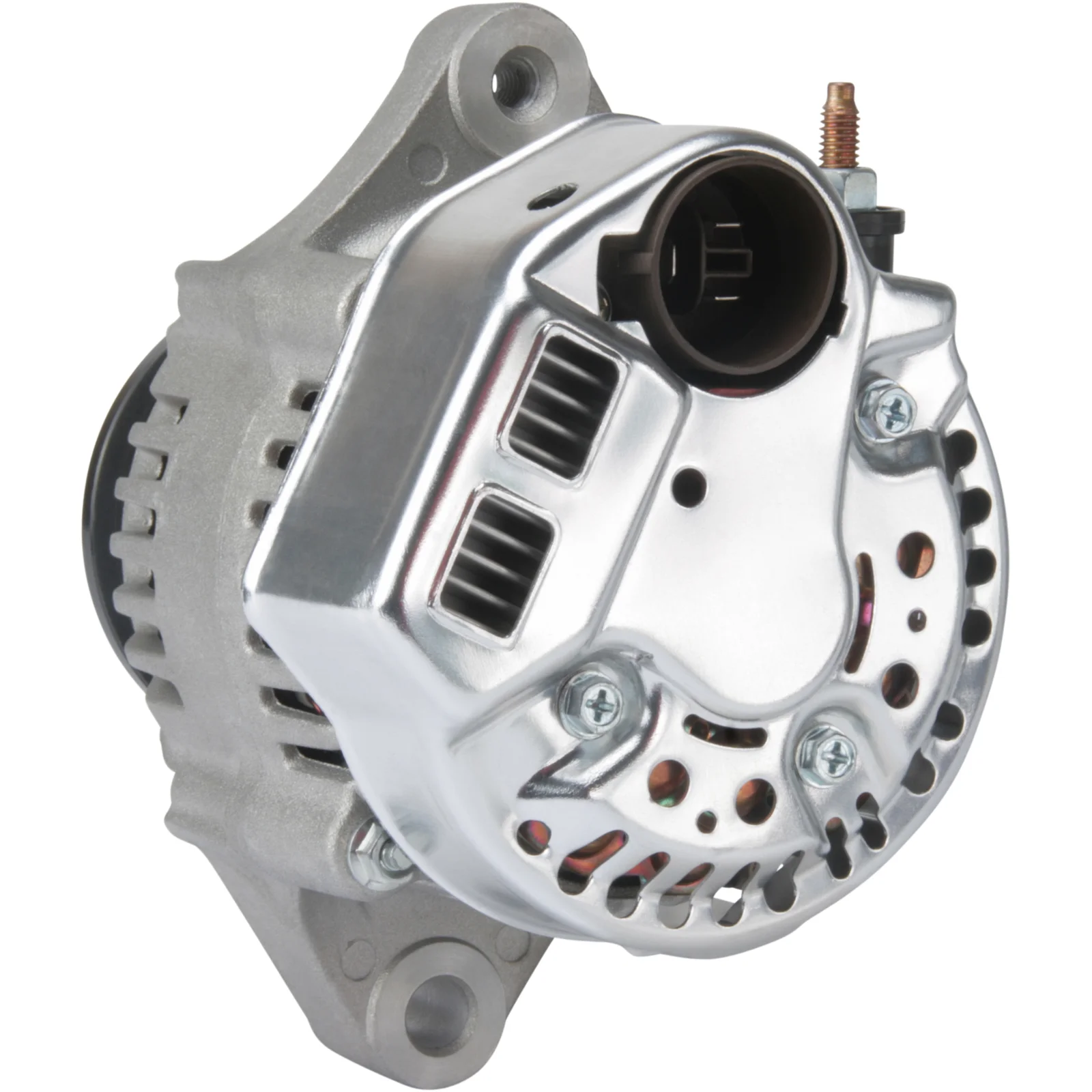

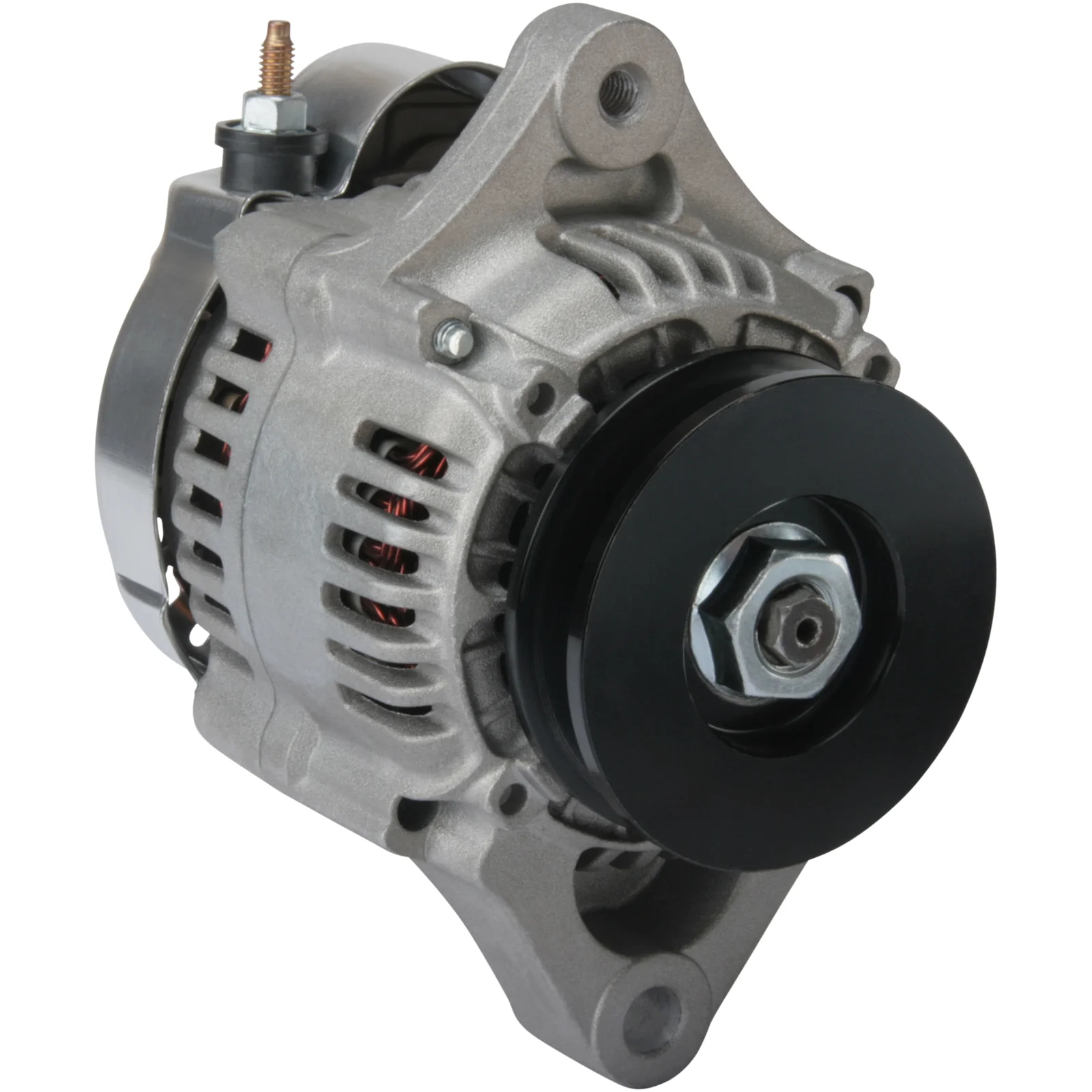

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114679

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 35, Rotation: CW, Pulley diameter: 75.60

Description

Voltage: 14
Amp: 35
Pulley dist.: 40.00
Width/holder arm: 24.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Belt. adj. bracket hole 2: 30.00
Pulley dia.: 75.60
Grooves/pulley: 1
Radius: 69.50
Radius 2: 67.50
B+: M6
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL12
Total length mm: 140.00
Pulley: P
Regulator type: IR
Prod. info: BN

Files

  • OEM
    AT195649, F032114679, 100211-4710, 101211-1240, 101211-1242, 8970489681, 8972251170

  • Normalised article numbler
    a6704s, at195649, cal40159, dan2023, dra1345, f032114679, 12653, 12653n, 283791, 553175ri, 135565035, 543123352, 1002114710, 1012111240, 1012111242, 8970489681, 8972251170
  • Description
    Voltage: 14
    Amp: 35
    Pulley dist.: 40.00
    Width/holder arm: 24.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Belt. adj. bracket hole 2: 30.00
    Pulley dia.: 75.60
    Grooves/pulley: 1
    Radius: 69.50
    Radius 2: 67.50
    B+: M6
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL12
    Total length mm: 140.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      AT195649, F032114679, 100211-4710, 101211-1240, 101211-1242, 8970489681, 8972251170

    • Normalised article numbler
      a6704s, at195649, cal40159, dan2023, dra1345, f032114679, 12653, 12653n, 283791, 553175ri, 135565035, 543123352, 1002114710, 1012111240, 1012111242, 8970489681, 8972251170
