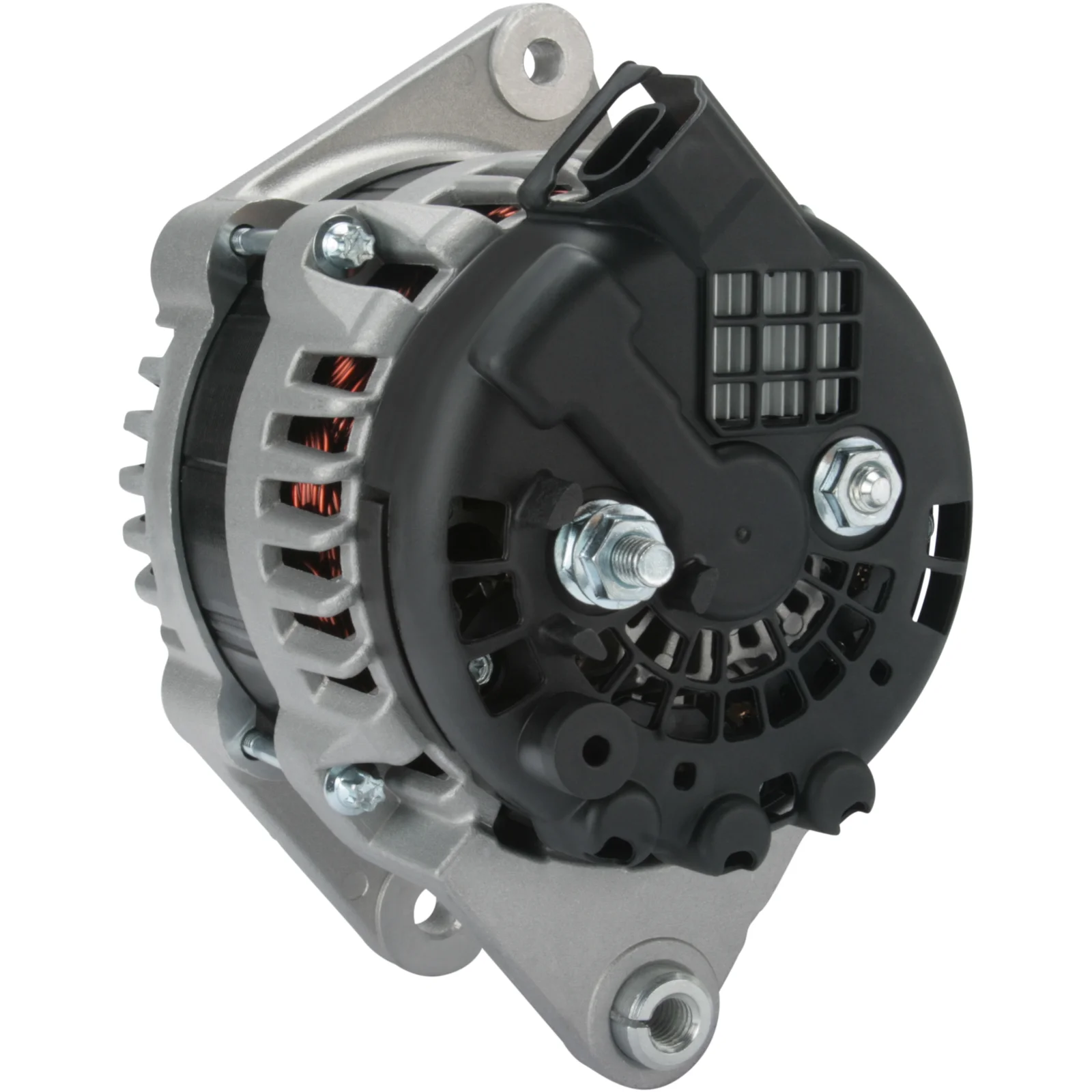

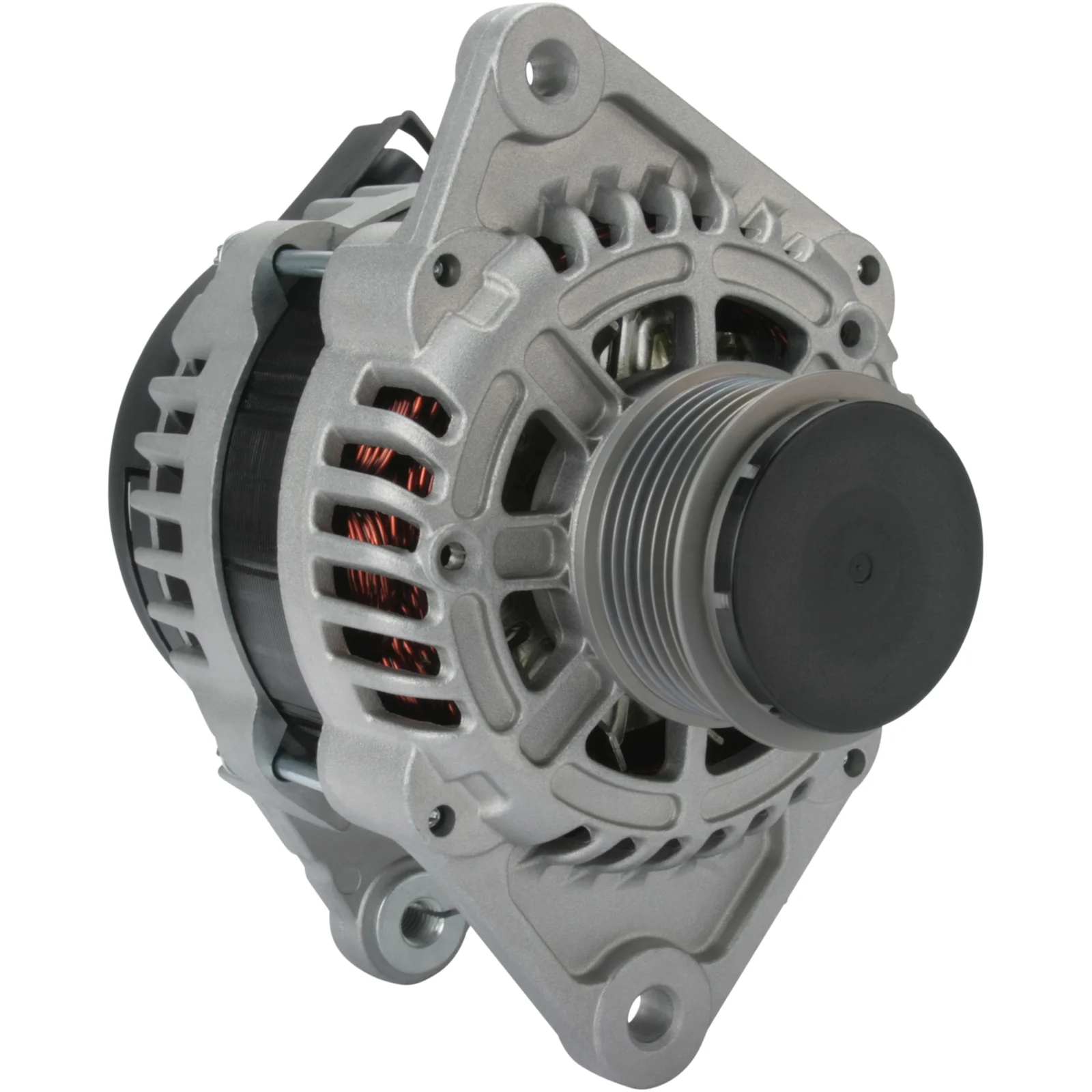

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114726

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 66.00

Description

Voltage: 14
Amp: 100
Pulley diameter: 35.00
Width/holder arm: 13.00
Mounting bracket diameter: 66.00
Bracket hole: 10.00
Belt adjustment bracket hole position: 57
Belt adjustment bracket hole 1: 8.00
Pulley diameter: 60.00
Grooves/pulley: 6
Radius: 88.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL180
Total length mm: 187.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114726, 1202117, 1202261, 1202427, 13500186, 13579662, 95519864

  • Normalised article numbler
    a1025, a1025p, cal42106, dra1127, dra1127n, f032114726, 20046n, 209388, 209388a, 286530, 440955, 553496ri, 1202117, 1202261, 1202427, 12090465, 13500186, 13579662, 32083610, 95519864, 135581100, 0986083610
  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 35.00
    Width/holder arm: 13.00
    Mounting bracket diameter: 66.00
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 57
    Belt adjustment bracket hole 1: 8.00
    Pulley diameter: 60.00
    Grooves/pulley: 6
    Radius: 88.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL180
    Total length mm: 187.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114726, 1202117, 1202261, 1202427, 13500186, 13579662, 95519864

    • Normalised article numbler
      a1025, a1025p, cal42106, dra1127, dra1127n, f032114726, 20046n, 209388, 209388a, 286530, 440955, 553496ri, 1202117, 1202261, 1202427, 12090465, 13500186, 13579662, 32083610, 95519864, 135581100, 0986083610
