HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114727

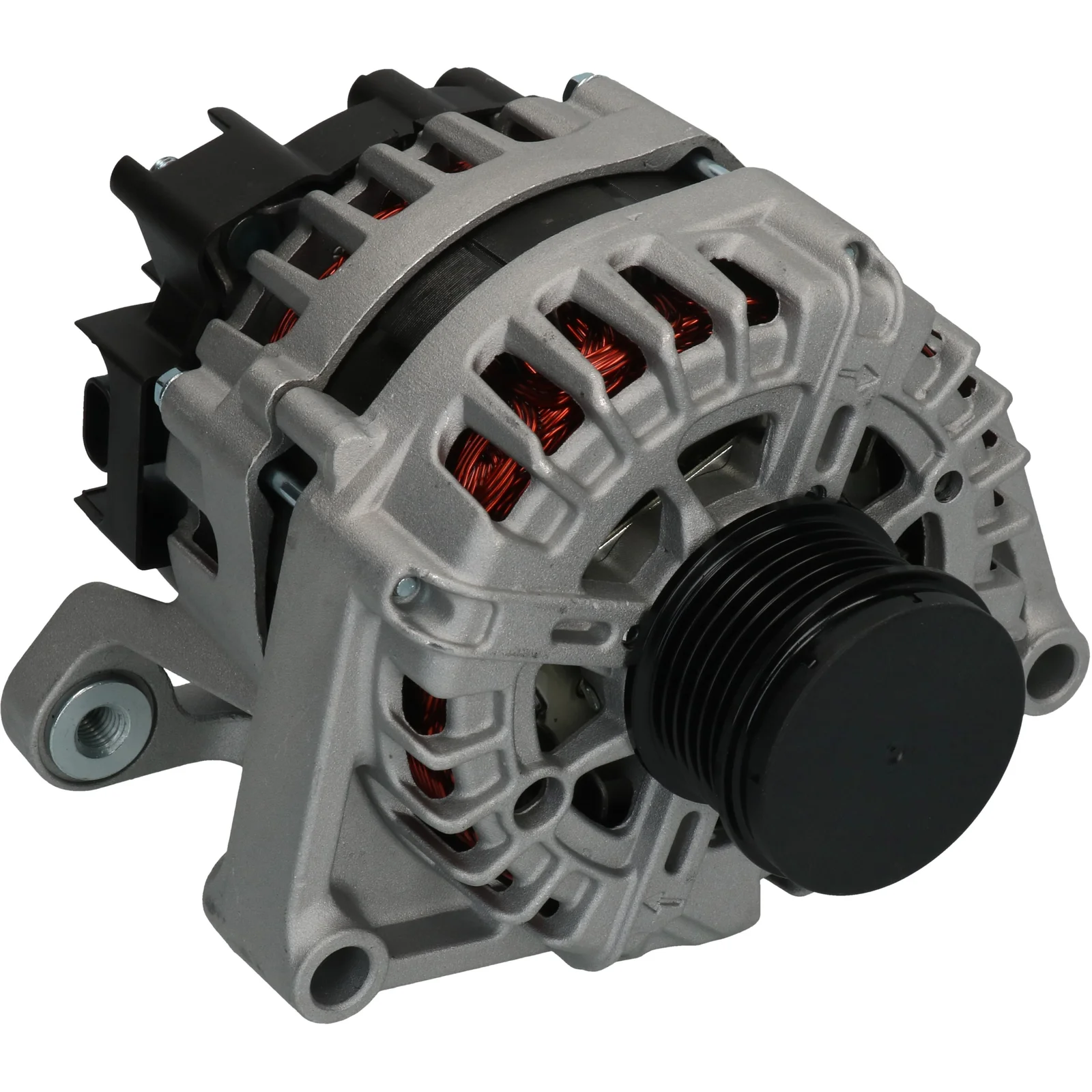

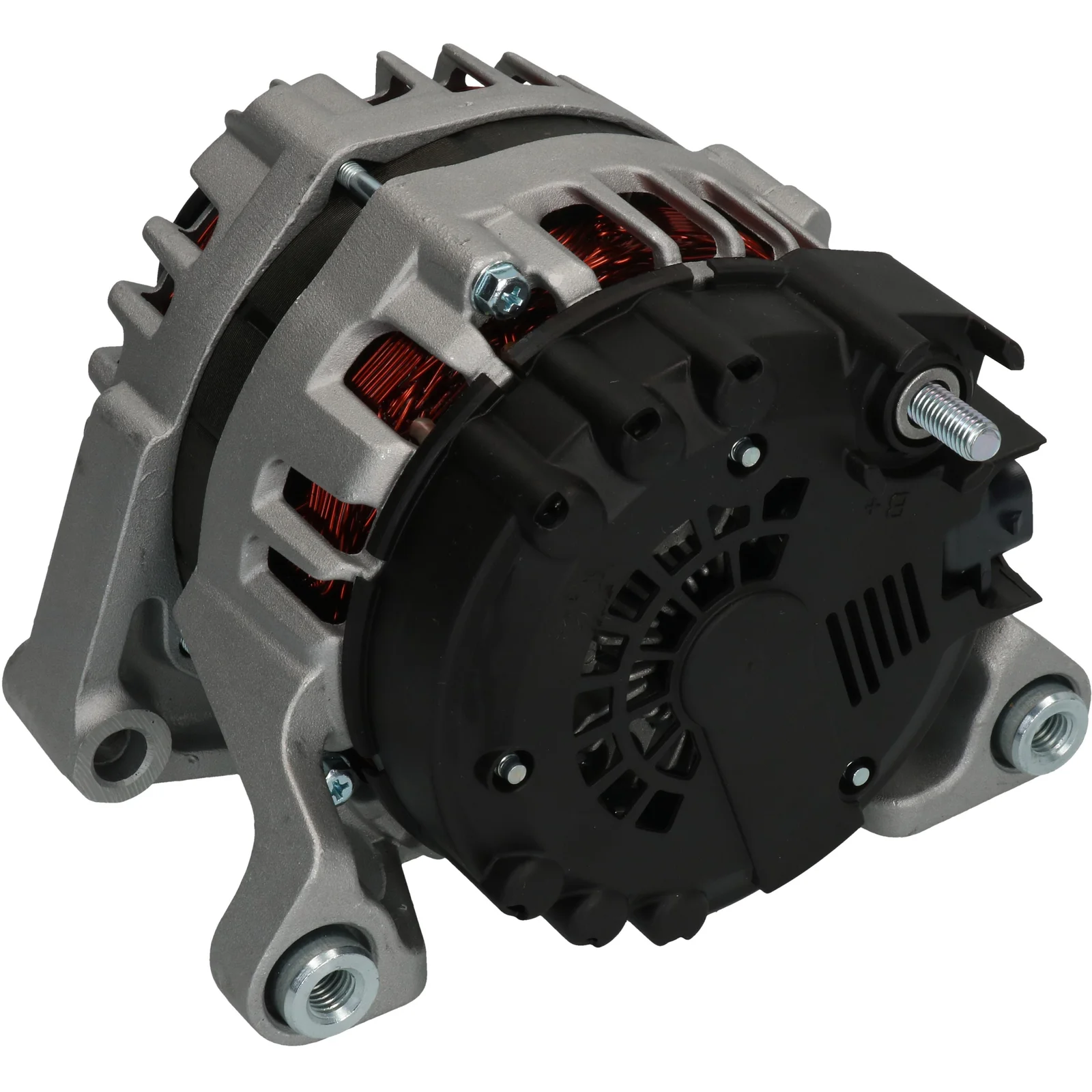

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 130, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 130
Pulley: Pulley
dist.: 55.00
Width/holder arm: 33.50
Mounting bracket dist.: 61.00
Bracket hole: 11.70
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole 1: 11.70
Pulley dia.: 53.70
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 56
Rotation: CW
Plug no.: PL180
Total length mm: 187.00
Terminal type: L-F
Lamp type: Inactive
Communication: PWM
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114727, FG12S031, FG12S064, FGN12S064, FGN12S065, 1986A01735, 1202215, 1202304, 1202309, 13577154, 13588289, 13597226, 13597227

  • Normalised article numbler
    a3488s, a3513s, cal15580, dra0877, dra1405, f032114727, fg12s031, fg12s064, fgn12s064, fgn12s065, 8el011713581, 1986a01735, 11399n, 11399r, 209244, 209244a, 209328, 209328a, 286576, 440637, 554394ri, 849048, 849103, 1202215, 1202304, 1202309, 12090719, 13577154, 13588289, 13597226, 13597227, 135598100, 835585130, 0986083120
  • Description
    Voltage: 14
    Amp: 130
    Pulley: Pulley
    dist.: 55.00
    Width/holder arm: 33.50
    Mounting bracket dist.: 61.00
    Bracket hole: 11.70
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole 1: 11.70
    Pulley dia.: 53.70
    Grooves/pulley: 6
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 56
    Rotation: CW
    Plug no.: PL180
    Total length mm: 187.00
    Terminal type: L-F
    Lamp type: Inactive
    Communication: PWM
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114727, FG12S031, FG12S064, FGN12S064, FGN12S065, 1986A01735, 1202215, 1202304, 1202309, 13577154, 13588289, 13597226, 13597227

    • Normalised article numbler
      a3488s, a3513s, cal15580, dra0877, dra1405, f032114727, fg12s031, fg12s064, fgn12s064, fgn12s065, 8el011713581, 1986a01735, 11399n, 11399r, 209244, 209244a, 209328, 209328a, 286576, 440637, 554394ri, 849048, 849103, 1202215, 1202304, 1202309, 12090719, 13577154, 13588289, 13597226, 13597227, 135598100, 835585130, 0986083120
