HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114781

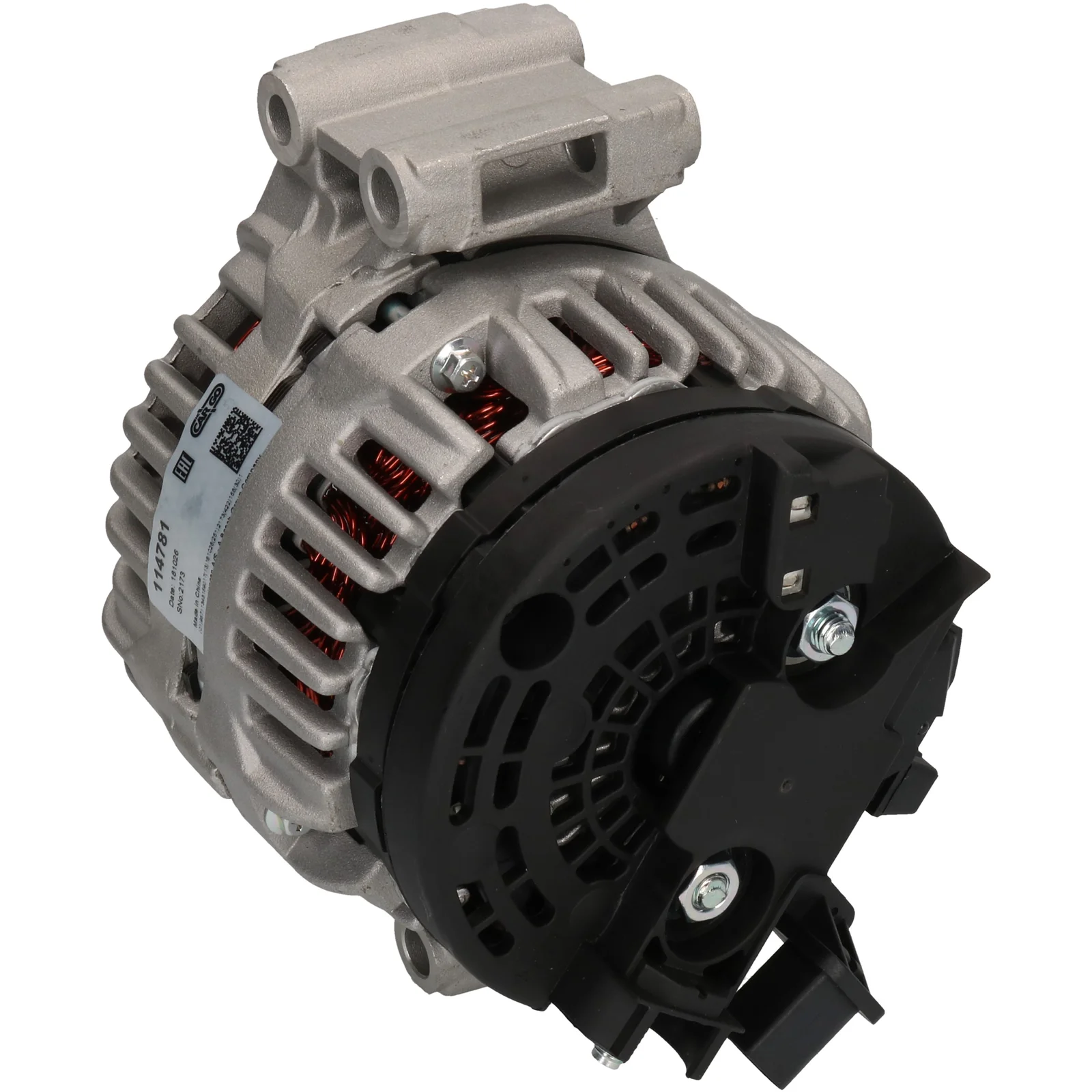

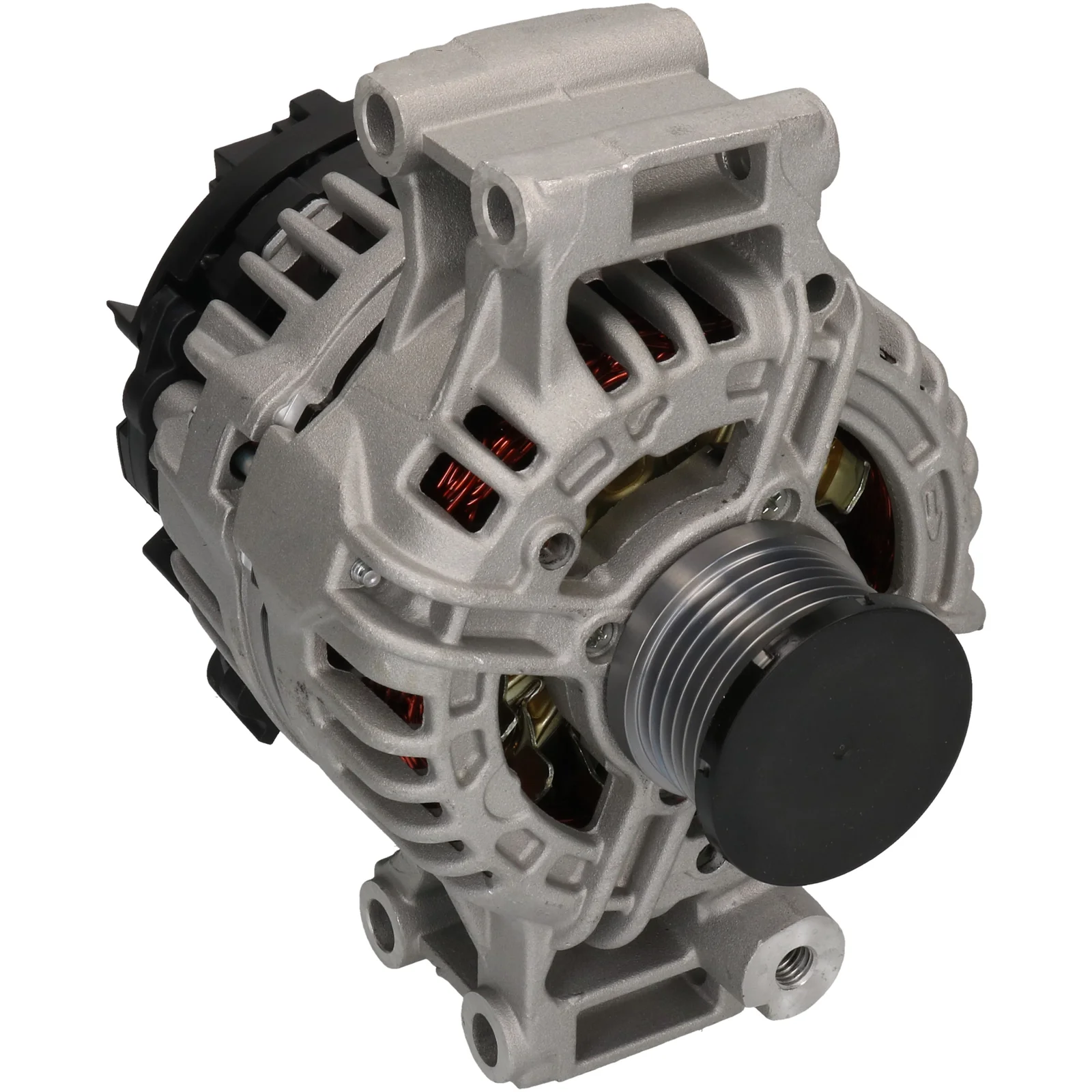

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 41.00

Description

HC-Cargo Alternator 12V - 110A, 6g

Voltage: 14
Amp: 110
Pulley diameter: 30.50
Width/holder arm: 63.00
Mounting bracket diameter: 41.00
Bracket hole: 10.00
Bracket hole 2: 9.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 10.00
Belt adjustment bracket hole 2: 9.00
Pulley diameter: 49.00
Grooves/pulley: 6
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 35
Rotation: CW
Plug number: PL86
Total length mm: 192.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114781, SG11B010, 0124 325 087, 0124 325 116, 1231 7521488, 1231 7521489, 1231 7532964, 1231 7532968, 1231 7533268, 1231 7533272, 1773IR, 1773ir, 114781, 2542749, 2542749A, 2542749B, 2542749C, 7521382, 7521383, 7521488, 7521489, 7532968, 0124325087, 0124325116, 12317521382, 12317521383, 12317521488, 12317521489, 12317532964, 12317532968, 12317533268, 12317533272

  • Normalised article numbler
    a0220, a3159, cal10171, drb6130, drb6270x, f032114781, sg11b010, 8el012426371, 1773ir, 4771, 23251n, 23251r, 111556, 114781, 210985, 210985a, 284729, 301773ri, 443171, 444262, 2542749, 2542749a, 2542749b, 2542749c, 7521382, 7521383, 7521488, 7521489, 7532968, 9046130, 12046130, 32046130, 0124325087, 0124325116, 215908110, 0986046130, 0986046133, 12317521382, 12317521383, 12317521488, 12317521489, 12317532964, 12317532968, 12317533268, 12317533272
  • Description
    HC-Cargo Alternator 12V - 110A, 6g

    Voltage: 14
    Amp: 110
    Pulley diameter: 30.50
    Width/holder arm: 63.00
    Mounting bracket diameter: 41.00
    Bracket hole: 10.00
    Bracket hole 2: 9.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 10.00
    Belt adjustment bracket hole 2: 9.00
    Pulley diameter: 49.00
    Grooves/pulley: 6
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 35
    Rotation: CW
    Plug number: PL86
    Total length mm: 192.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114781, SG11B010, 0124 325 087, 0124 325 116, 1231 7521488, 1231 7521489, 1231 7532964, 1231 7532968, 1231 7533268, 1231 7533272, 1773IR, 1773ir, 114781, 2542749, 2542749A, 2542749B, 2542749C, 7521382, 7521383, 7521488, 7521489, 7532968, 0124325087, 0124325116, 12317521382, 12317521383, 12317521488, 12317521489, 12317532964, 12317532968, 12317533268, 12317533272

    • Normalised article numbler
      a0220, a3159, cal10171, drb6130, drb6270x, f032114781, sg11b010, 8el012426371, 1773ir, 4771, 23251n, 23251r, 111556, 114781, 210985, 210985a, 284729, 301773ri, 443171, 444262, 2542749, 2542749a, 2542749b, 2542749c, 7521382, 7521383, 7521488, 7521489, 7532968, 9046130, 12046130, 32046130, 0124325087, 0124325116, 215908110, 0986046130, 0986046133, 12317521382, 12317521383, 12317521488, 12317521489, 12317532964, 12317532968, 12317533268, 12317533272
