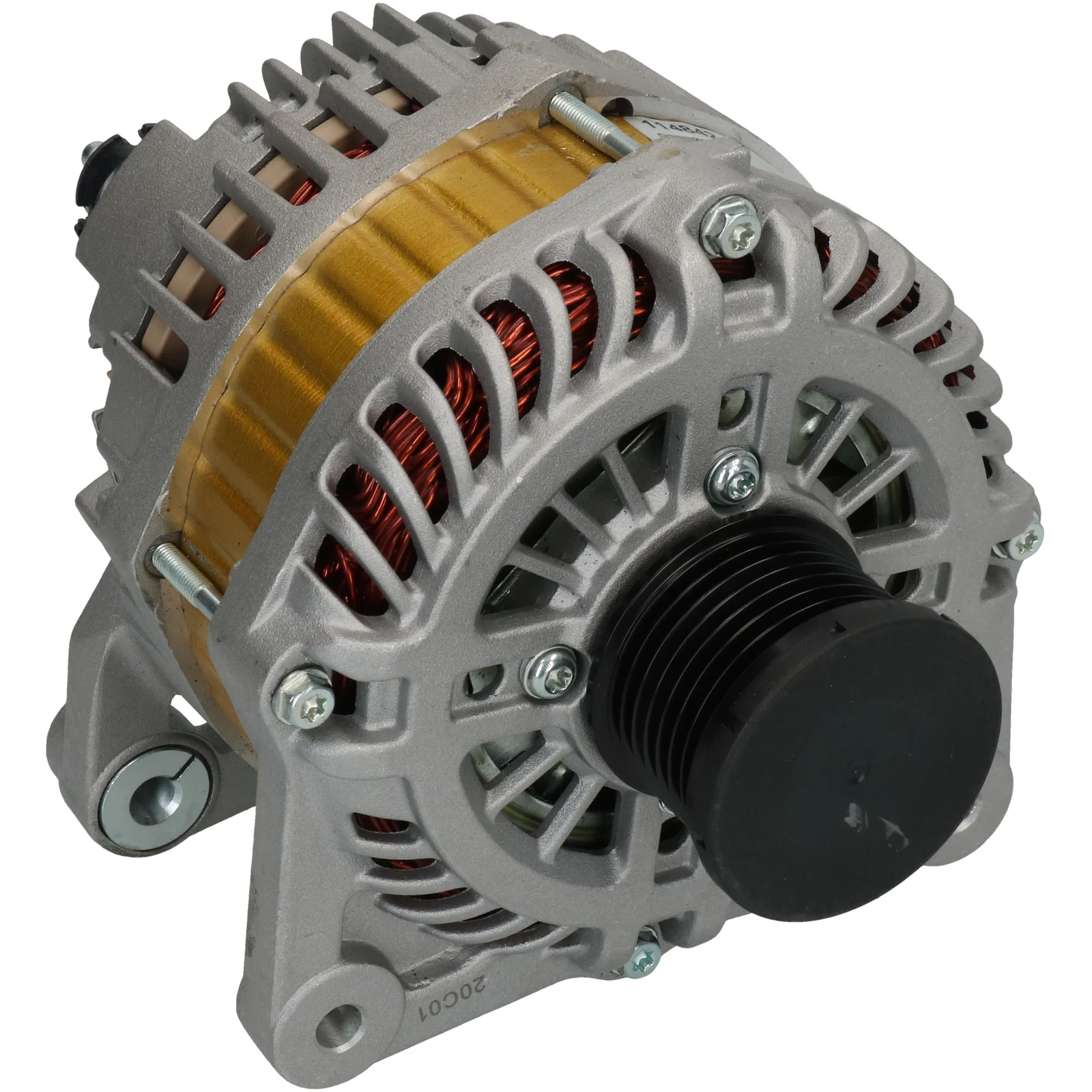

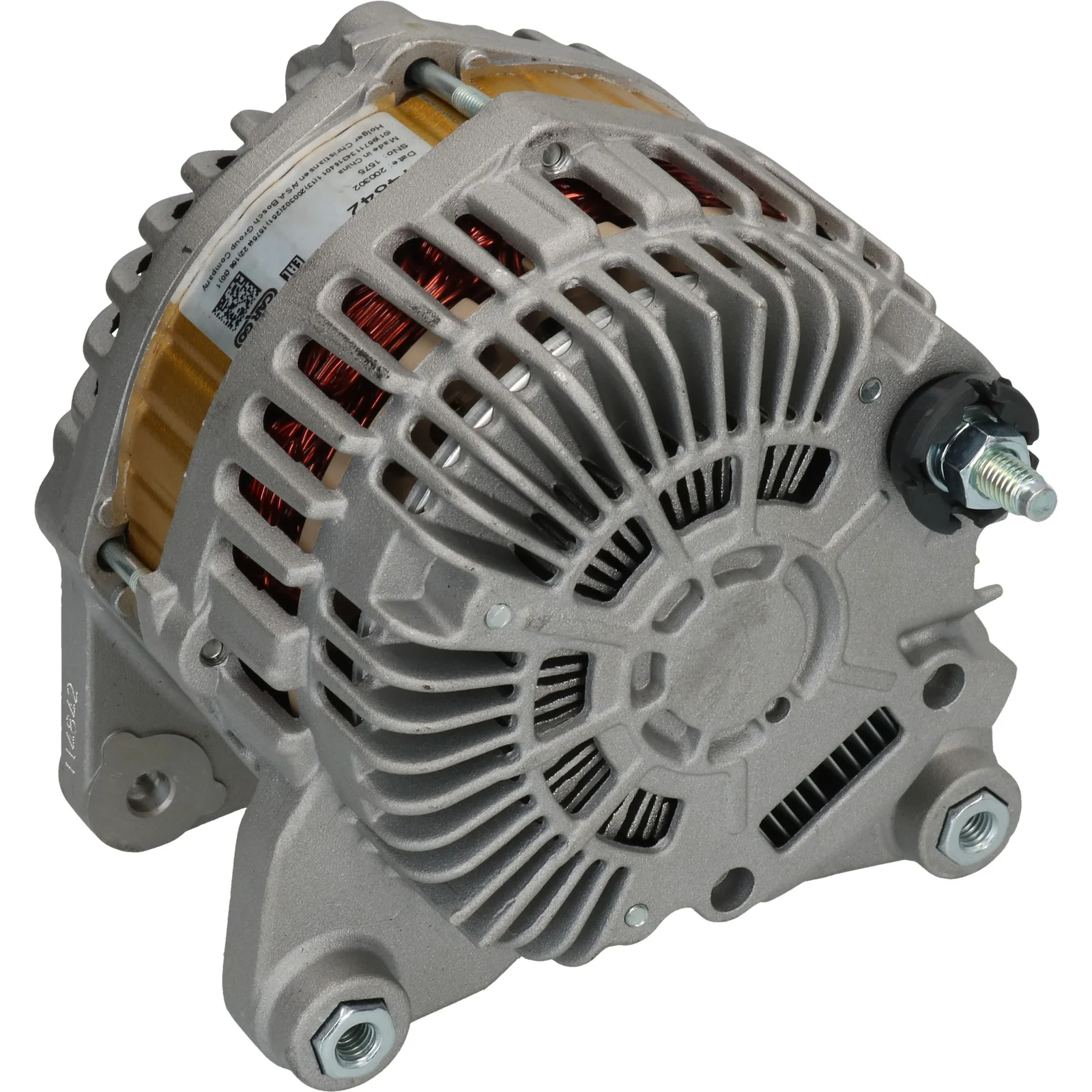

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114842

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 60.50

Description

Voltage: 14
Amp: 150
Pulley dist.: 33.00
Width/holder arm: 14.00
Mount. bracket dist.: 60.50
Bracket hole: 8.50
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Rotation: CW
Plug no.: PL85
Total length mm: 193.00
Terminal type: L-S
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    A003TJ2481, A003TJ2481ZE, A3TJ2481, a3tj2481ze, F032114842, 1979ir, 23100-jd71a, 23100-JG71A

  • Normalised article numbler
    a003tj2481, a003tj2481ze, a3tj2481, a3tj2481ze, a5135, cal35202, dra0309, f032114842, lra03167, 8el012428501, 8el738212961, 1979ir, 20776n, 20776r, 23100jd71a, 23100jg71a, 112680, 285779, 440531, 443528, 12060973, 0986081990, 2273161502
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 33.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.50
    Bracket hole: 8.50
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Rotation: CW
    Plug no.: PL85
    Total length mm: 193.00
    Terminal type: L-S
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A003TJ2481, A003TJ2481ZE, A3TJ2481, a3tj2481ze, F032114842, 1979ir, 23100-jd71a, 23100-JG71A

    • Normalised article numbler
      a003tj2481, a003tj2481ze, a3tj2481, a3tj2481ze, a5135, cal35202, dra0309, f032114842, lra03167, 8el012428501, 8el738212961, 1979ir, 20776n, 20776r, 23100jd71a, 23100jg71a, 112680, 285779, 440531, 443528, 12060973, 0986081990, 2273161502
