HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114844

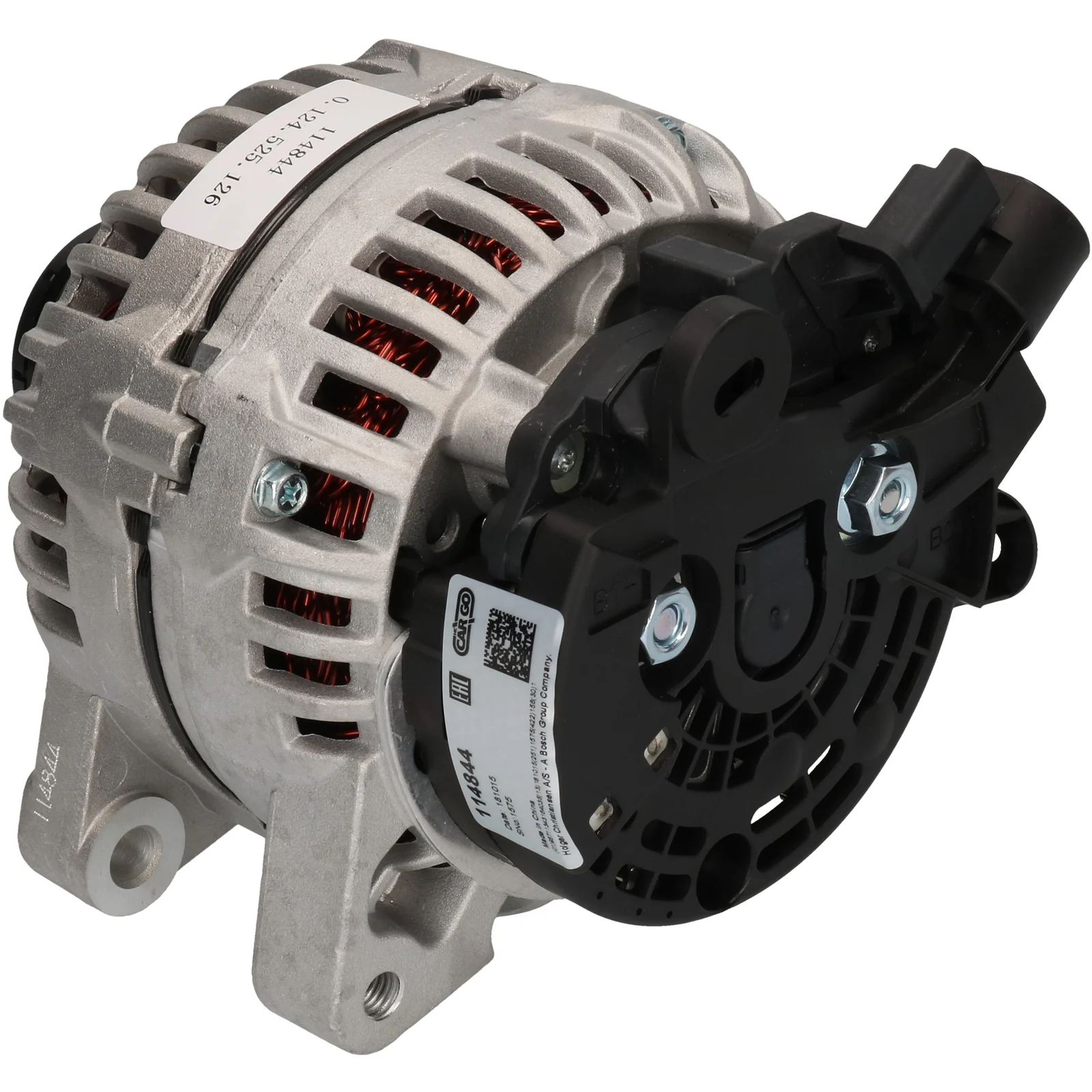

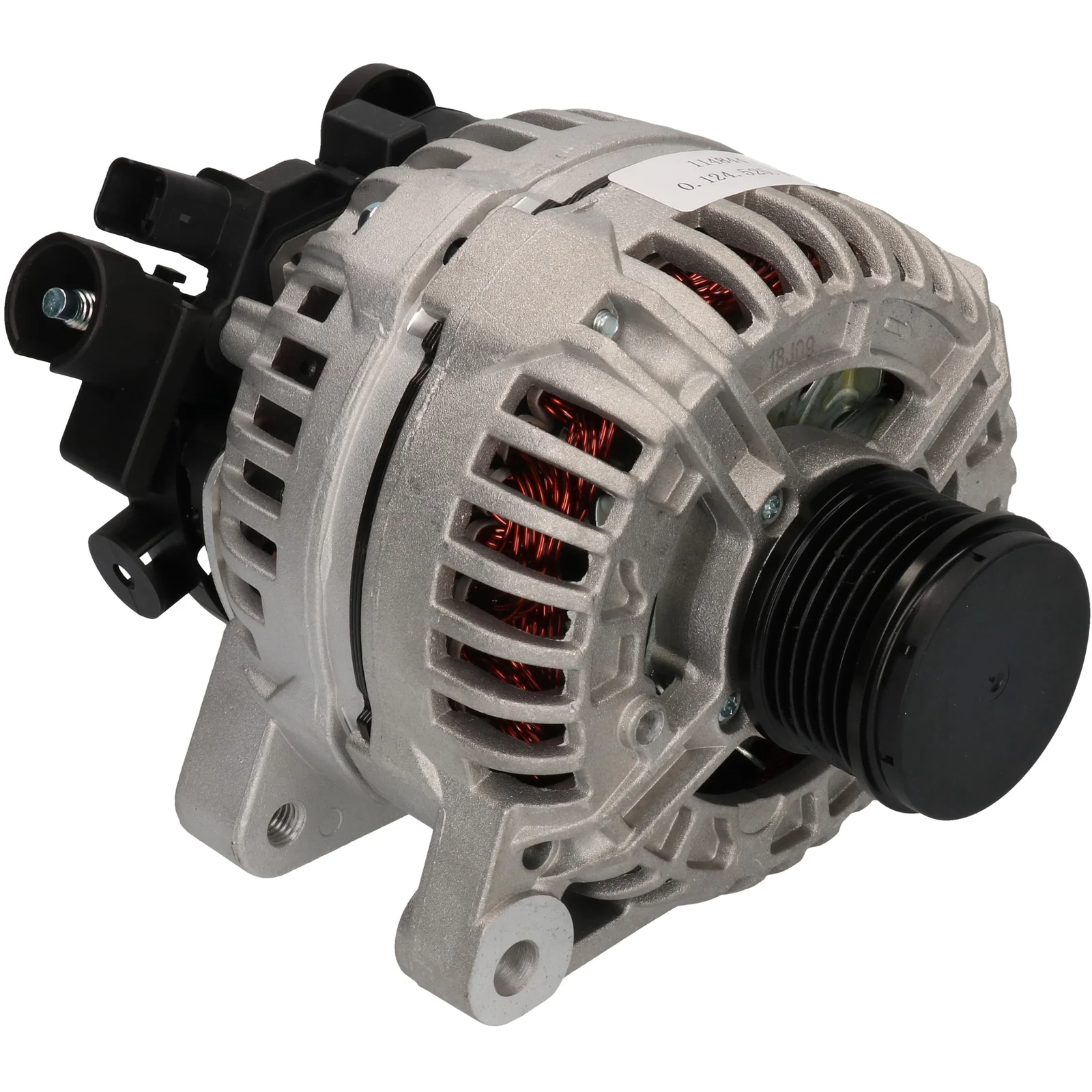

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 145, Rotation: CW, Mounting bracket distance: 45.50

Description

Voltage: 14
Amp: 145
Pulley dist.: 43.50
Width/holder arm: 21.00
Mount. bracket dist.: 45.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 48
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 2
Rotation: CW
Plug no.: PL129
Total length mm: 190.00
Terminal type: COM
ID Code: 31
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114844, 2114ir, 7794970, 7806779, 0124525126, 0124525526, 12317794970, 12317806779

  • Normalised article numbler
    a0368, a0368pr, a0368s, cal10409, dra0686, f032114844, lra03164, 2114ir, 20004n, 113099, 209059, 209059a, 285776, 443043, 443304, 444219, 553559ri, 7794970, 7806779, 12048760, 0124525126, 0124525526, 215571145, 215571150, 0986048760, 0986048763, 12317794970, 12317806779
  • Description
    Voltage: 14
    Amp: 145
    Pulley dist.: 43.50
    Width/holder arm: 21.00
    Mount. bracket dist.: 45.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 48
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 54.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 2
    Rotation: CW
    Plug no.: PL129
    Total length mm: 190.00
    Terminal type: COM
    ID Code: 31
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114844, 2114ir, 7794970, 7806779, 0124525126, 0124525526, 12317794970, 12317806779

    • Normalised article numbler
      a0368, a0368pr, a0368s, cal10409, dra0686, f032114844, lra03164, 2114ir, 20004n, 113099, 209059, 209059a, 285776, 443043, 443304, 444219, 553559ri, 7794970, 7806779, 12048760, 0124525126, 0124525526, 215571145, 215571150, 0986048760, 0986048763, 12317794970, 12317806779
