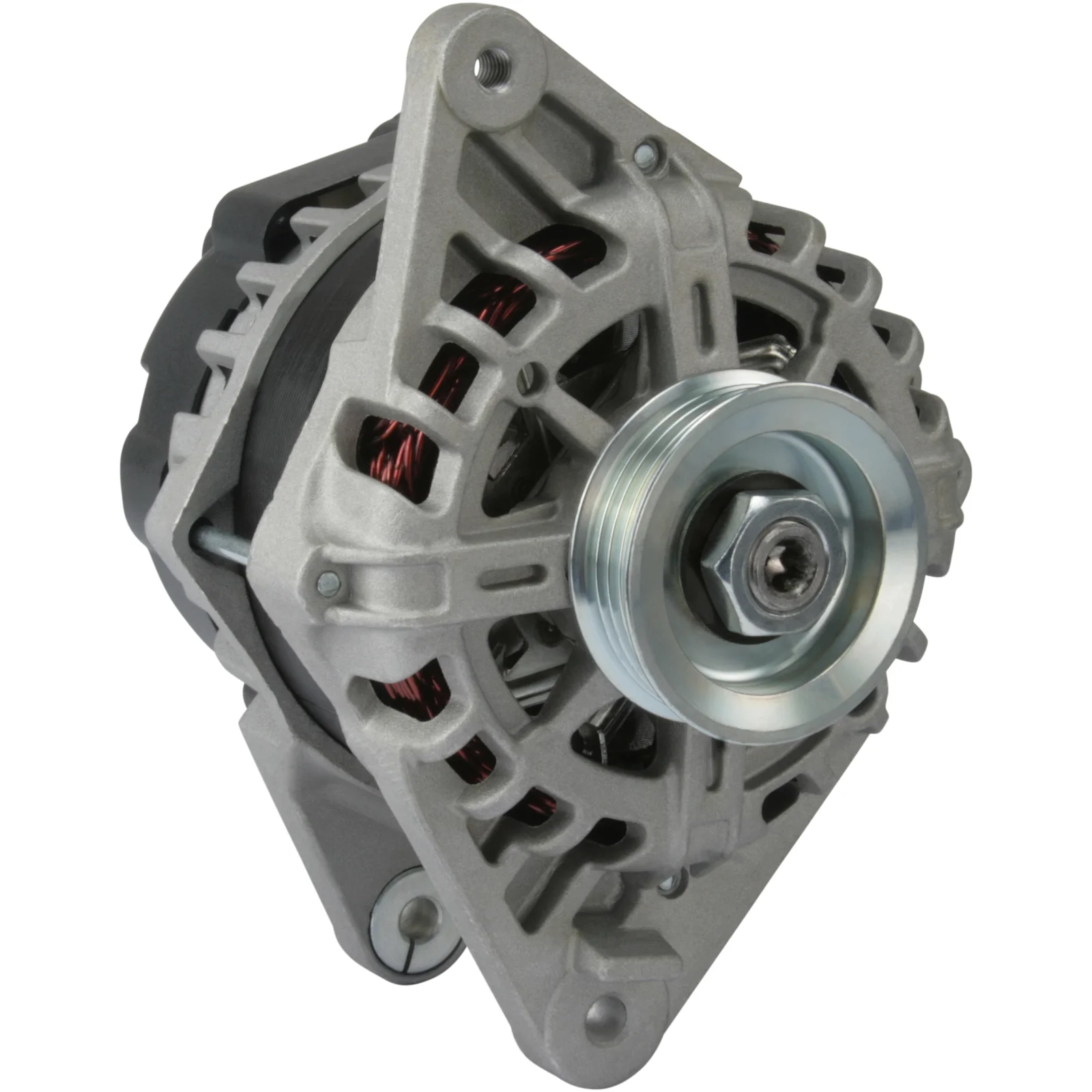

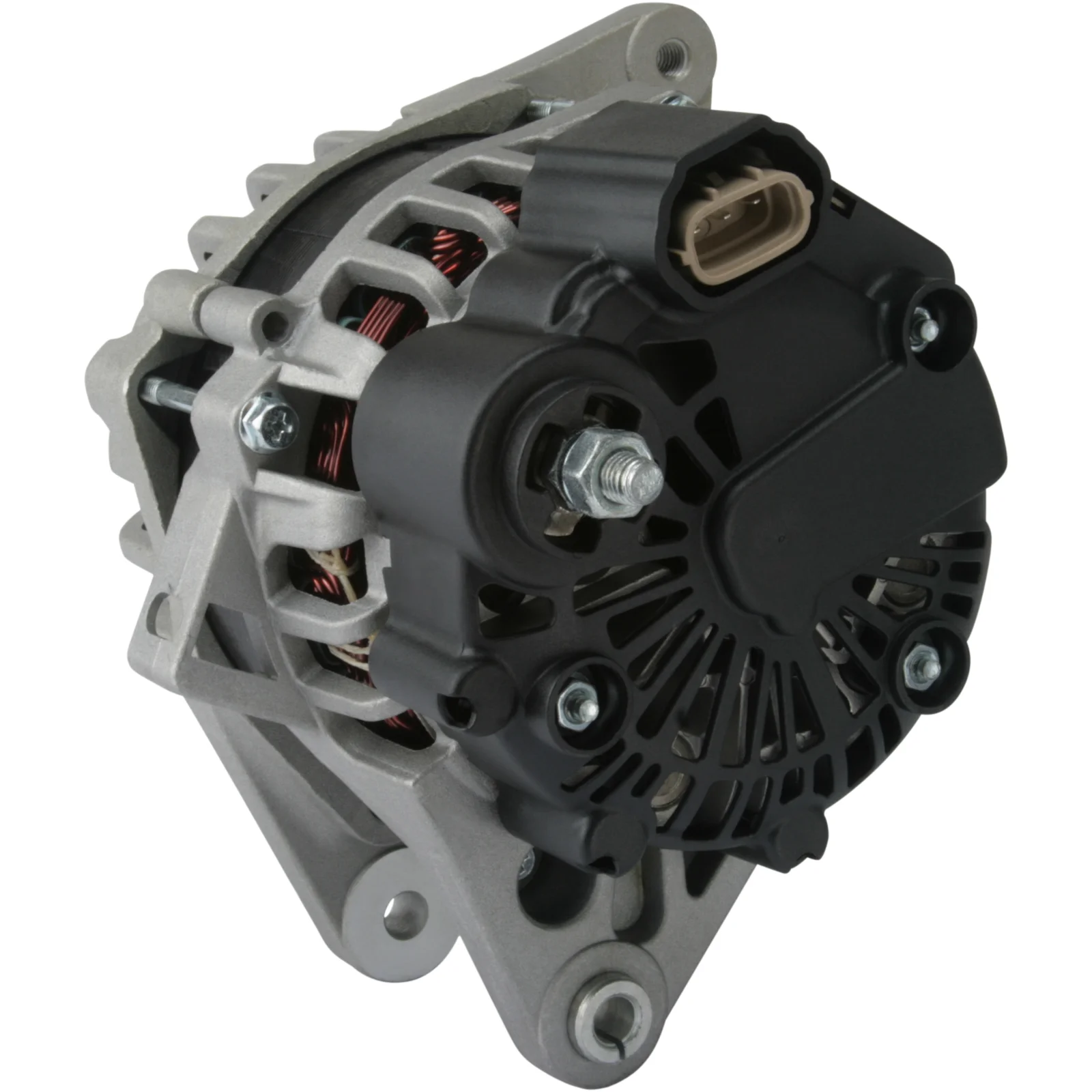

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114857

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 90, Rotation: CW, Mounting bracket distributor: 55.50

Description

Voltage: 14
Amp: 90
Pulley dist.: 35.00
Width/holder arm: 13.00
Mount. bracket dist.: 55.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: M8
Pulley dia.: 57.50
Grooves/pulley: 4
Radius: 90.00
Radius 2: 89.00
B+: M8
Position/B+ in min.: 46
D+ Size: Plug
Rotation: CW
Plug no.: PL133
Total length mm: 178.00
Pulley: SP
Alternator type: IR
Prod. info: BN

Files

  • OEM
    A0002655635, F032114857, 1927ir, 1986A01899, 37300-23650, 2655635

  • Normalised article numbler
    a0002655635, a3233valeo, a9306s, cal32129, dra0225, dra0225n, f032114857, f042205240, f042206019, j5110536, lea0659, lra03052, 8el738211861, 0986ur0803, 1927ir, 1986a01899, 11311, 11311n, 113294, 210652, 210652a, 285663, 301927ri, 444361, 600162, 600737, 2655635, 12060902, 224197902, 0986084220, 3730023650
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 35.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 55.50
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 57.50
    Grooves/pulley: 4
    Radius: 90.00
    Radius 2: 89.00
    B+: M8
    Position/B+ in min.: 46
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL133
    Total length mm: 178.00
    Pulley: SP
    Alternator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A0002655635, F032114857, 1927ir, 1986A01899, 37300-23650, 2655635

    • Normalised article numbler
      a0002655635, a3233valeo, a9306s, cal32129, dra0225, dra0225n, f032114857, f042205240, f042206019, j5110536, lea0659, lra03052, 8el738211861, 0986ur0803, 1927ir, 1986a01899, 11311, 11311n, 113294, 210652, 210652a, 285663, 301927ri, 444361, 600162, 600737, 2655635, 12060902, 224197902, 0986084220, 3730023650
