HC-Cargo Alternator

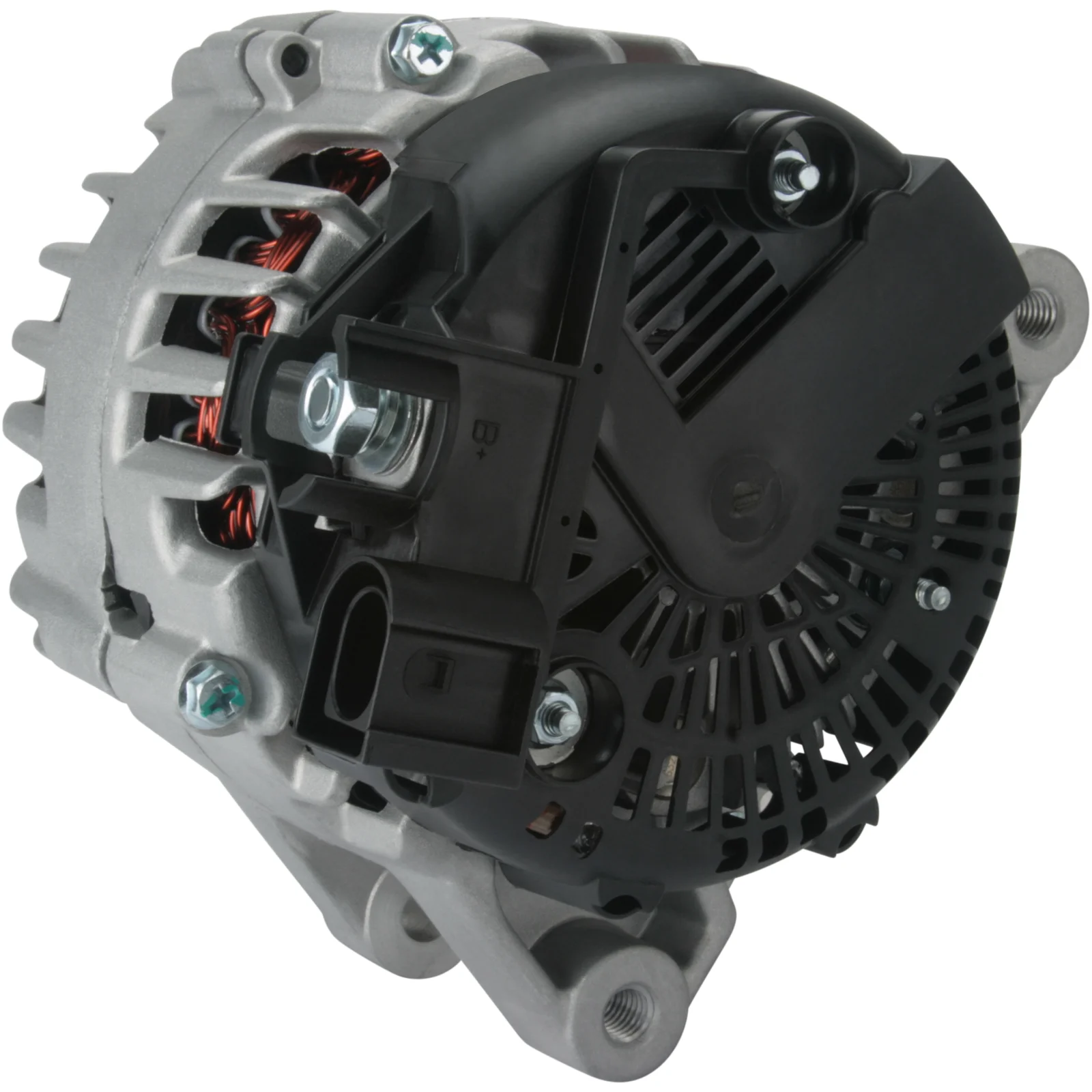

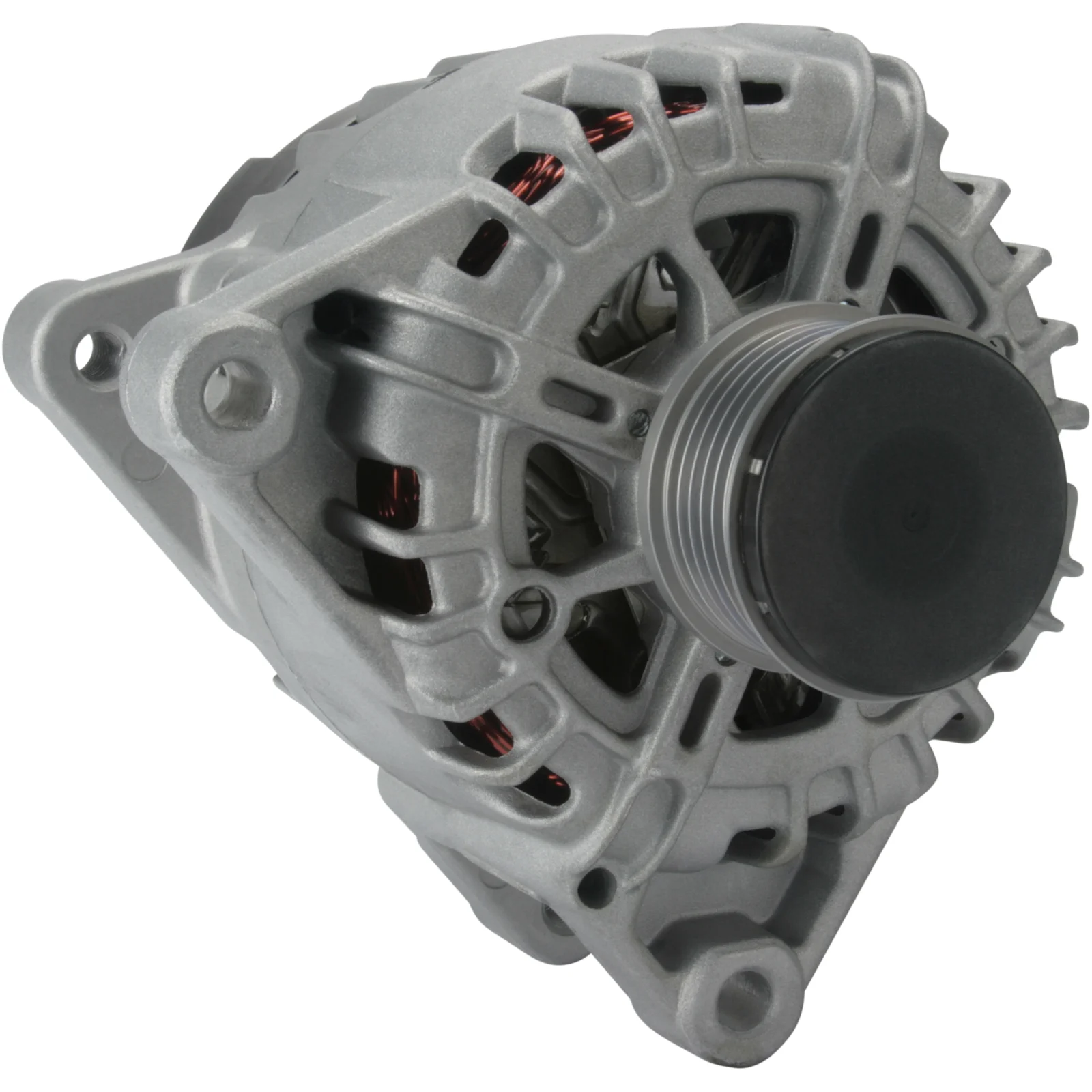

HC-Cargo Alternator
Article no.: F032114866

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 45.70

Description

Voltage: 14
Amperage: 120
Pulley diameter: 42.00
Width/holder arm: 21.00
Mounting bracket distance: 45.70
Bracket hole: 10.00
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug number: PL137
Total length mm: 186.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114866, tg12c038, y405-18-300, 8V2110300AB, 1986A01847, 2091ir, 1506299, 2543427, 2543427A

  • Normalised article numbler
    a3359s, cal15343, dra0226, f032114866, tg12c038, y40518300, 8v2110300ab, 1986a01847, 2091ir, 24052n, 112771, 210436, 210436a, 285664, 439632, 553278ri, 1506299, 2543427, 2543427a, 12090247, 595561120, 0986083290
  • Description
    Voltage: 14
    Amperage: 120
    Pulley diameter: 42.00
    Width/holder arm: 21.00
    Mounting bracket distance: 45.70
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug number: PL137
    Total length mm: 186.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114866, tg12c038, y405-18-300, 8V2110300AB, 1986A01847, 2091ir, 1506299, 2543427, 2543427A

    • Normalised article numbler
      a3359s, cal15343, dra0226, f032114866, tg12c038, y40518300, 8v2110300ab, 1986a01847, 2091ir, 24052n, 112771, 210436, 210436a, 285664, 439632, 553278ri, 1506299, 2543427, 2543427a, 12090247, 595561120, 0986083290
