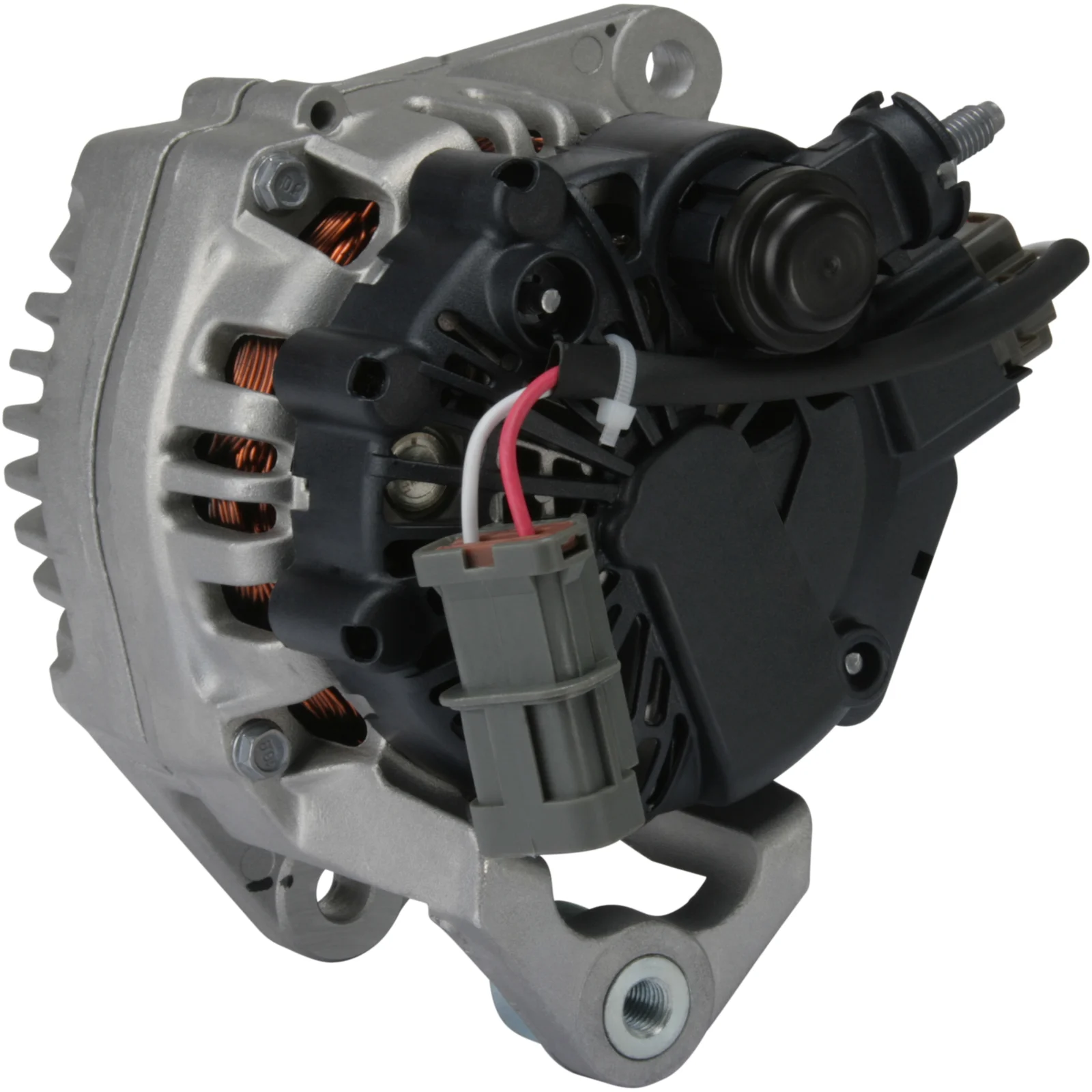

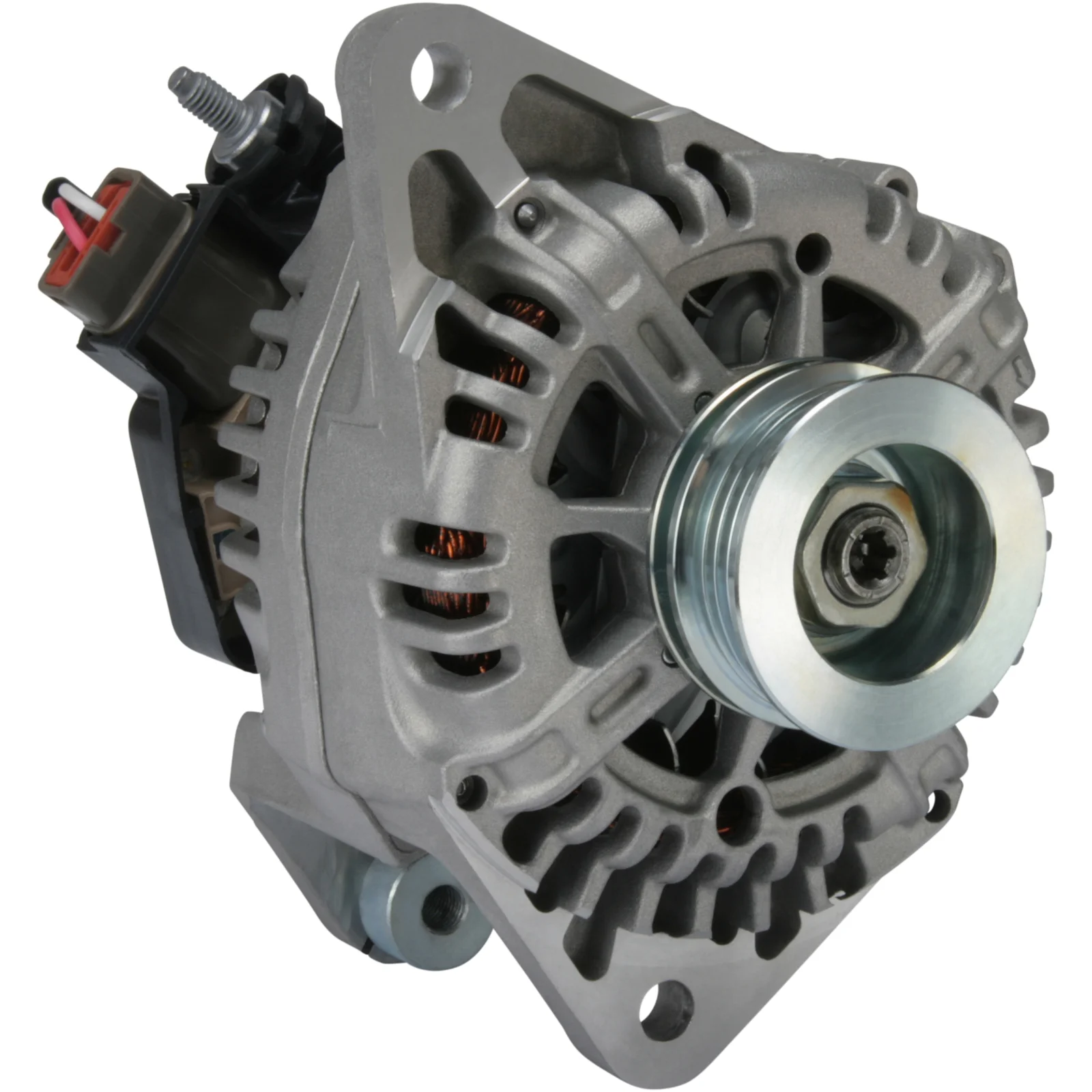

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114877

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 68.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 45.50
Width/holder arm: 13.00
Mount. bracket dist.: 68.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 55.00
Grooves/pulley: 4
Radius: 85.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL100
Total length mm: 180.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114877, ja1725ir, tg8c011, 23100-ax600, 2542694, 2542694A, 2542694B

  • Normalised article numbler
    a3191, a3191pr, cal15293, dra4289, f032114877, j5111105, ja1725ir, lra02353, tg8c011, 8el012429641, 23100ax600, 23353, 23353n, 112162, 210857, 210857a, 284855, 401725ri, 437455, 439490, 2542694, 2542694a, 2542694b, 9213492, 12060812, 227189802, 0986083590, 0986084210, 944390903530
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 45.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 68.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 55.00
    Grooves/pulley: 4
    Radius: 85.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL100
    Total length mm: 180.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114877, ja1725ir, tg8c011, 23100-ax600, 2542694, 2542694A, 2542694B

    • Normalised article numbler
      a3191, a3191pr, cal15293, dra4289, f032114877, j5111105, ja1725ir, lra02353, tg8c011, 8el012429641, 23100ax600, 23353, 23353n, 112162, 210857, 210857a, 284855, 401725ri, 437455, 439490, 2542694, 2542694a, 2542694b, 9213492, 12060812, 227189802, 0986083590, 0986084210, 944390903530
