HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114882

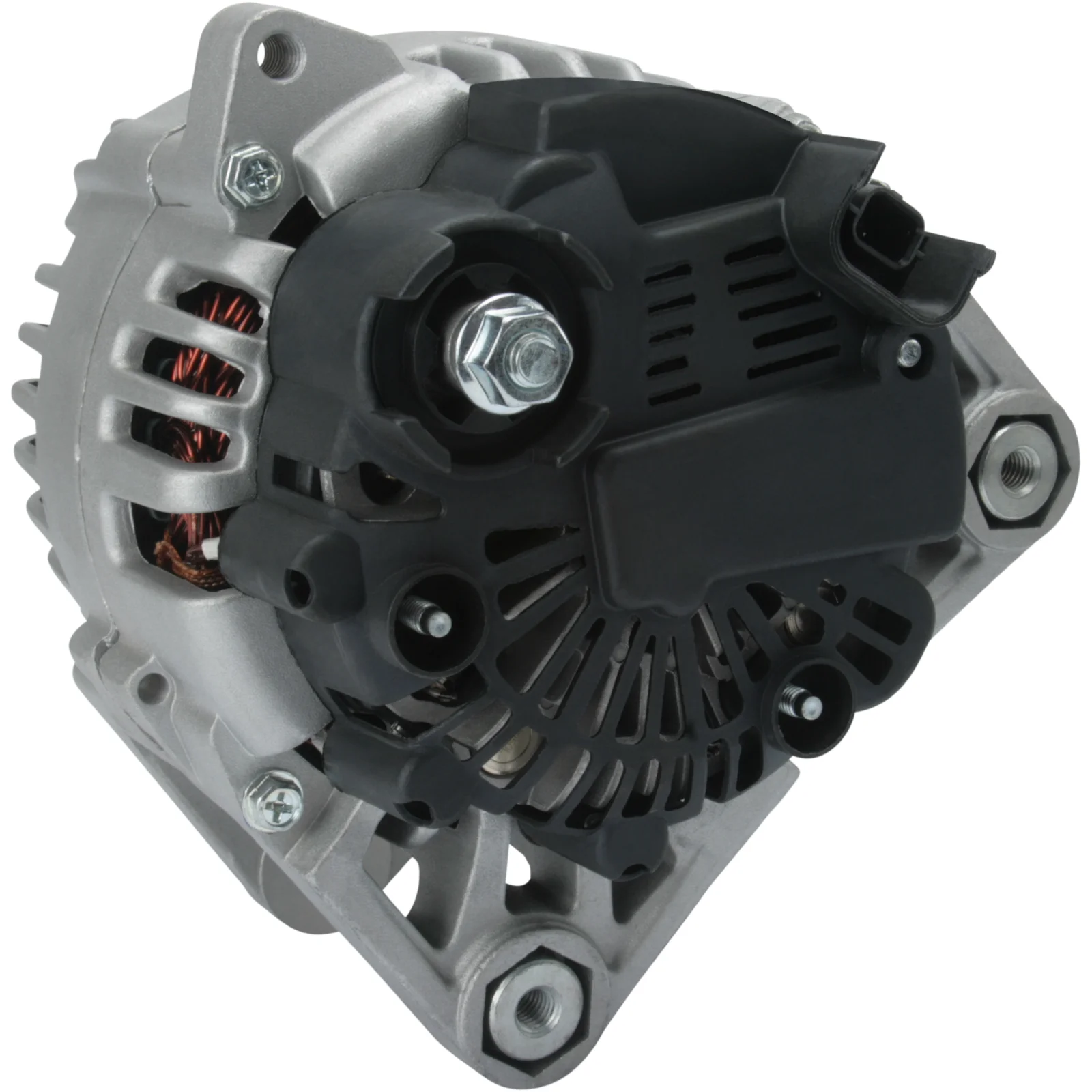

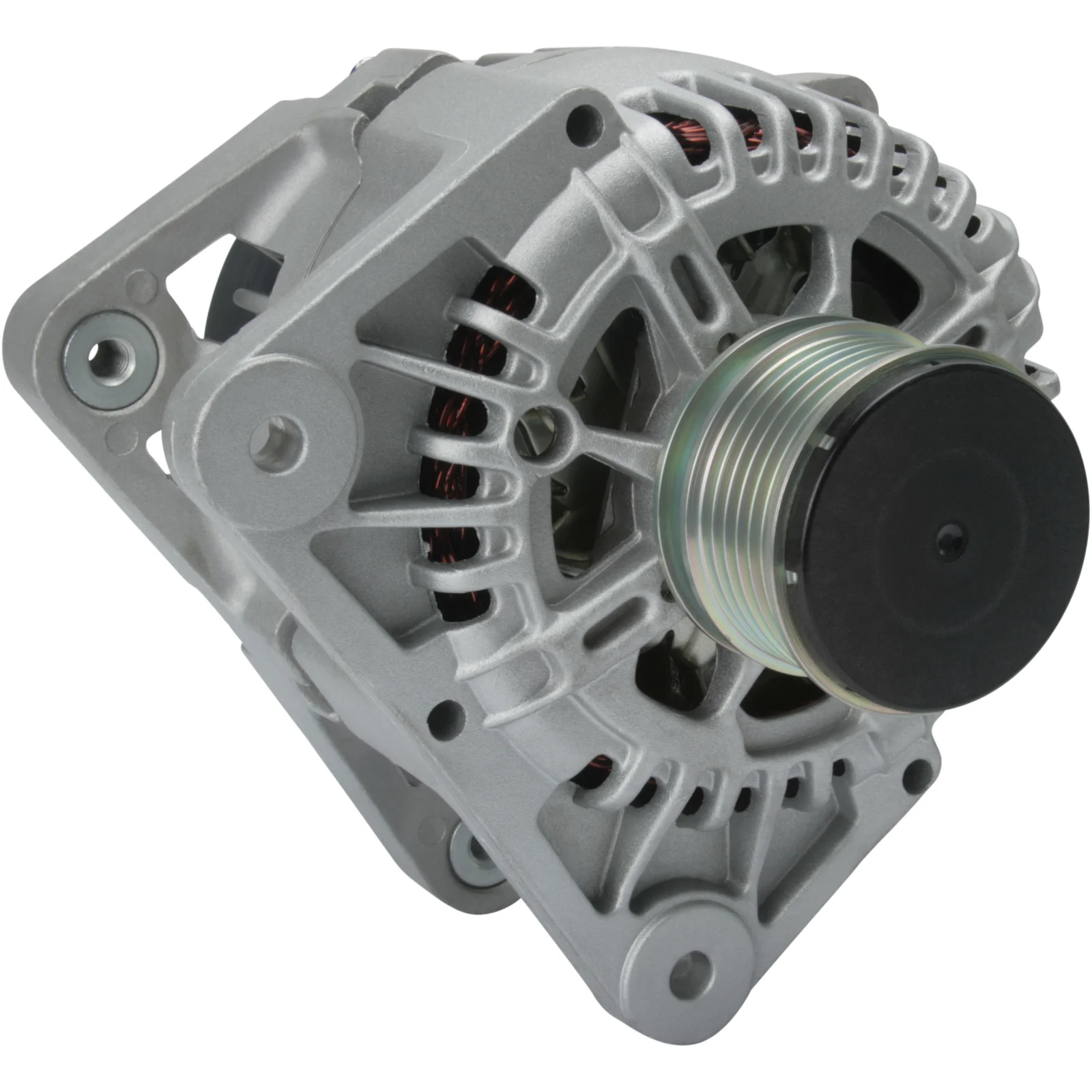

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 61.50

Description

Voltage: 14
Amp: 110
Pulley: Alternator
dist.: 38.50
Width/holder arm: 14.00
Mounting bracket distance: 61.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL131
Total length mm: 191.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Production info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114882, TG11C041, tg11c066, tg11c069, 1975ir, 2543206, 2543206C, 2543206D, 2543564, 2605275, 7711368719, 8200410681, 8200667614, 8200772726

  • Normalised article numbler
    a3103, a3103valeo, cal15336, dra0292, dra0292x, f032114882, tg11c041, tg11c066, tg11c069, 8el015637501, 1975ir, 4697, 20453, 20453n, 112643, 200133, 210477, 210477a, 285767, 301975ri, 440068, 746959, 839077, 2543206, 2543206c, 2543206d, 2543564, 2605275, 12090279, 0986080710, 7711368719, 8200410681, 8200667614, 8200772726
  • Description
    Voltage: 14
    Amp: 110
    Pulley: Alternator
    dist.: 38.50
    Width/holder arm: 14.00
    Mounting bracket distance: 61.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL131
    Total length mm: 191.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Production info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114882, TG11C041, tg11c066, tg11c069, 1975ir, 2543206, 2543206C, 2543206D, 2543564, 2605275, 7711368719, 8200410681, 8200667614, 8200772726

    • Normalised article numbler
      a3103, a3103valeo, cal15336, dra0292, dra0292x, f032114882, tg11c041, tg11c066, tg11c069, 8el015637501, 1975ir, 4697, 20453, 20453n, 112643, 200133, 210477, 210477a, 285767, 301975ri, 440068, 746959, 839077, 2543206, 2543206c, 2543206d, 2543564, 2605275, 12090279, 0986080710, 7711368719, 8200410681, 8200667614, 8200772726
