HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114894

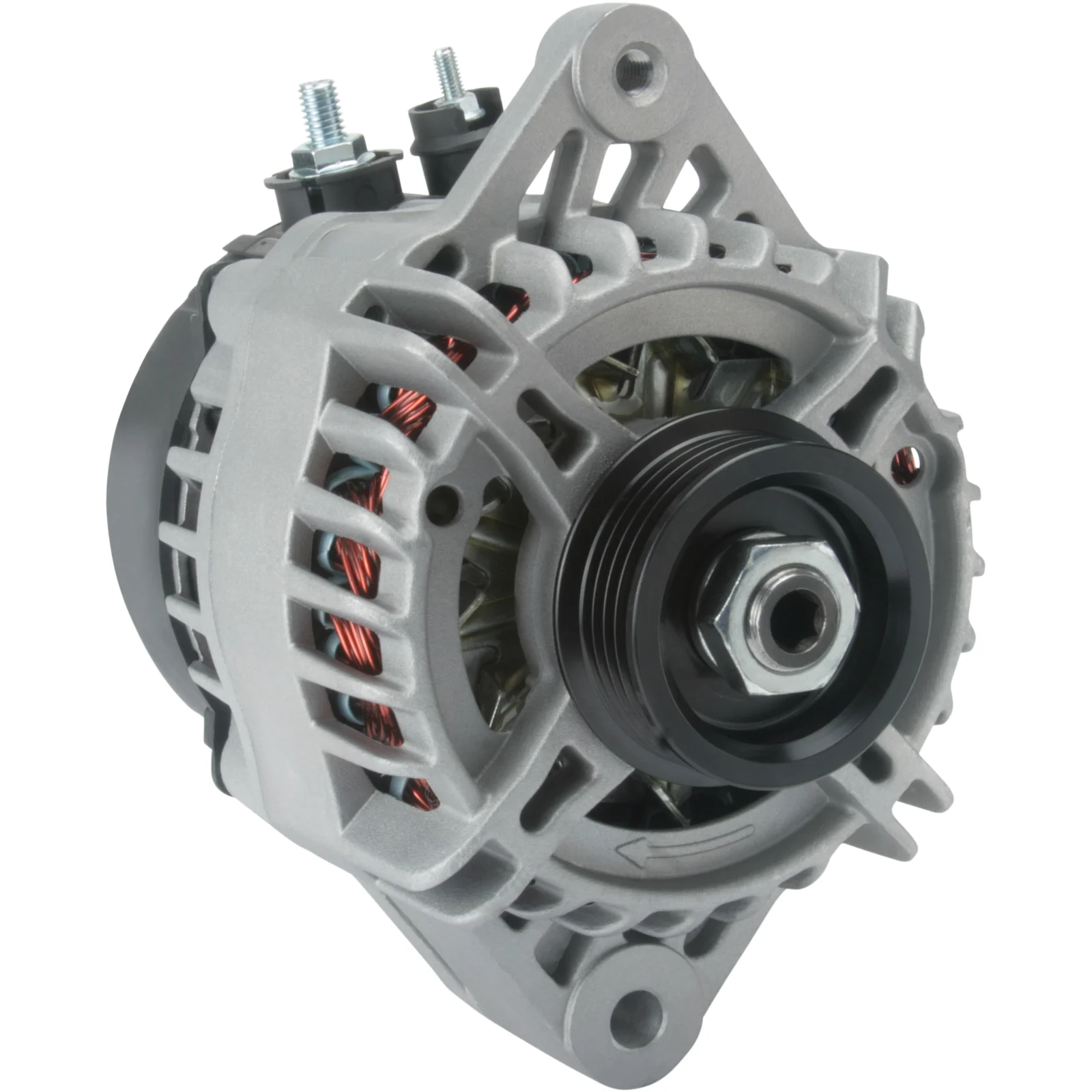

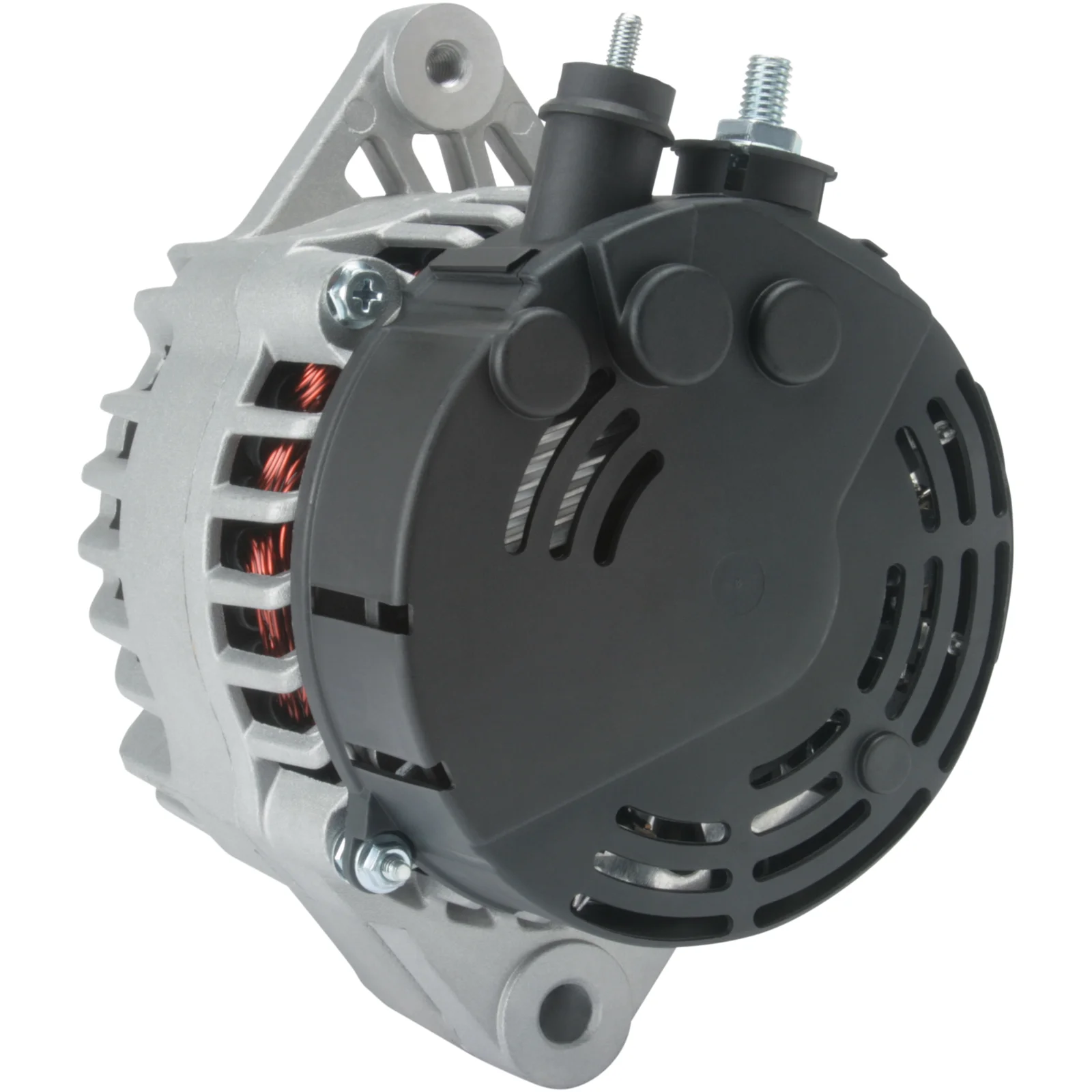

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 60, Rotation: CW, Pulley diameter: 55.00

Description

Voltage: 14
Amp: 60
Pulley distributor: 90.50
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adjustment. bracket hole position: 60
Belt. adjustment. bracket hole 1: M8
Pulley diameter: 55.00
Grooves/pulley: 4
Radius: 80.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 2
D+ Size: M5
Rotation: CW
Total length mm: 172.00
Alternator: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114894, 31400-80E10, 31400-83e10, 63321774, 63321832, 63351774

  • Normalised article numbler
    a4097, f032114894, lra02330, 21240r, 284827, 3140080e10, 3140083e10, 12060976, 63321774, 63321832, 63351774
  • Description
    Voltage: 14
    Amp: 60
    Pulley distributor: 90.50
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adjustment. bracket hole position: 60
    Belt. adjustment. bracket hole 1: M8
    Pulley diameter: 55.00
    Grooves/pulley: 4
    Radius: 80.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 2
    D+ Size: M5
    Rotation: CW
    Total length mm: 172.00
    Alternator: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114894, 31400-80E10, 31400-83e10, 63321774, 63321832, 63351774

    • Normalised article numbler
      a4097, f032114894, lra02330, 21240r, 284827, 3140080e10, 3140083e10, 12060976, 63321774, 63321832, 63351774
