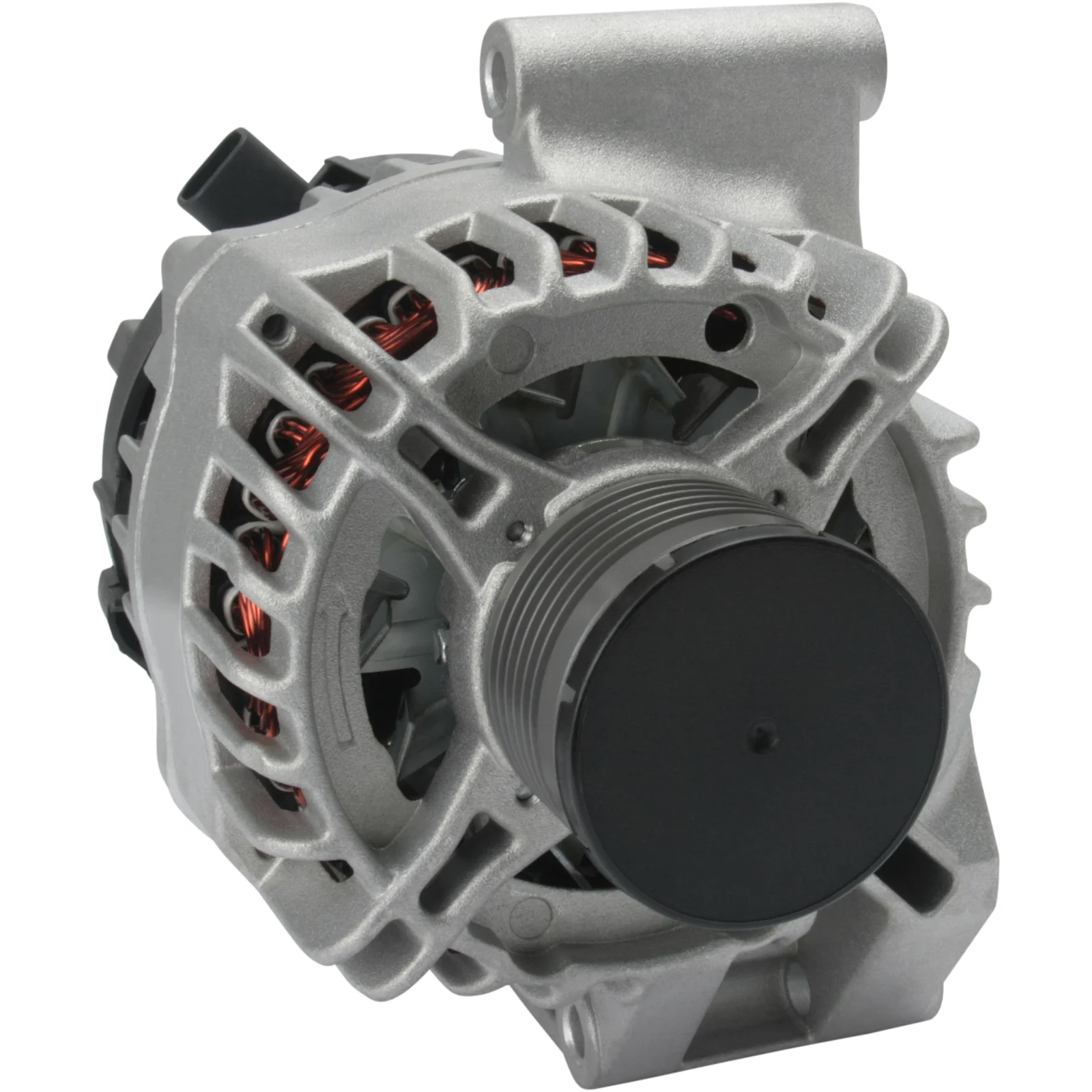

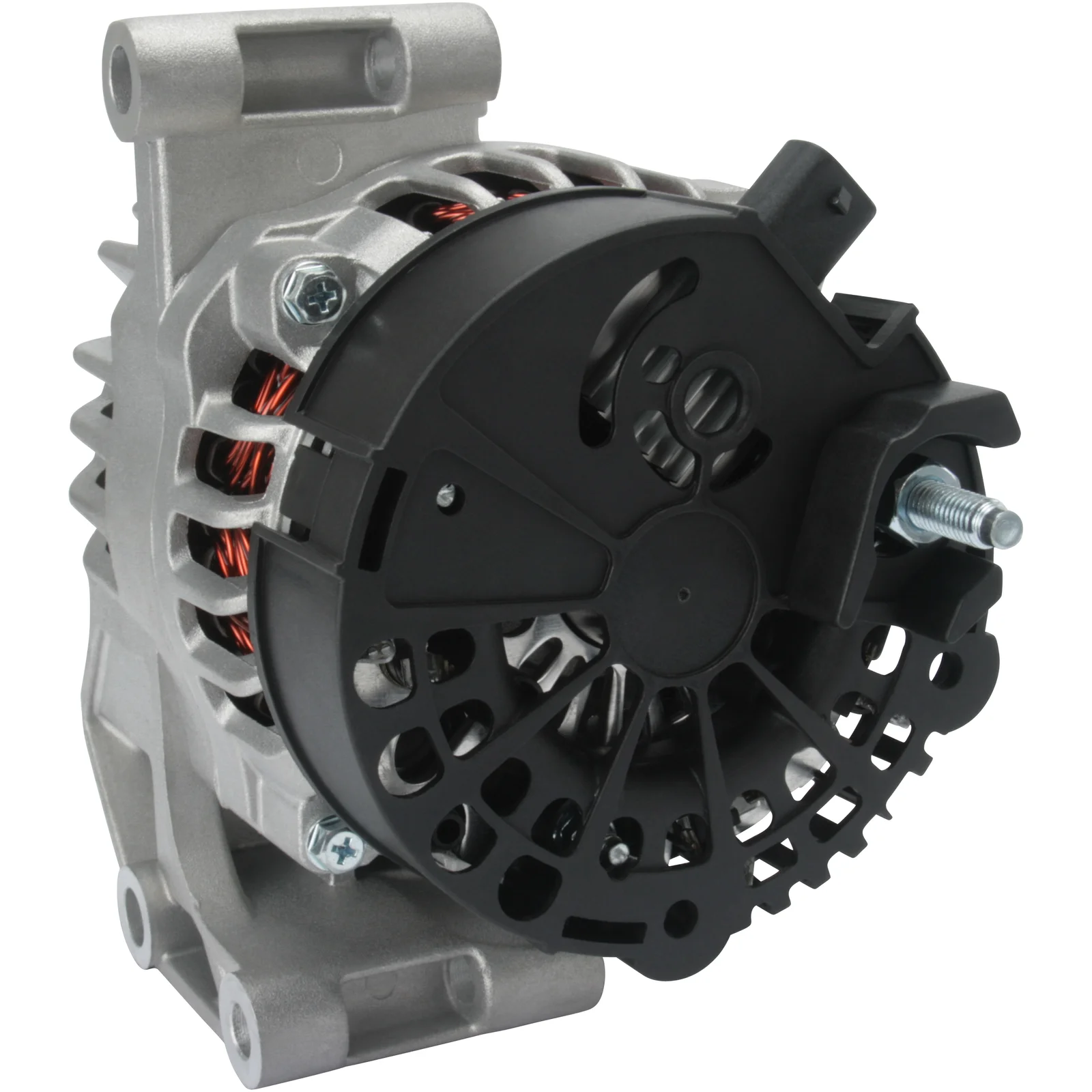

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114895

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 55.00

Description

Voltage: 14
Amp: 70
Pulley distributor: 40.00
Width/holder arm: 64.00
Mounting bracket distance: 55.00
Bracket hole: 9.50
Belt adjustment bracket hole 1: 9.50
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 80.00
Radius 2: 80.00
B+: M8
Position/B+ in minutes: 10
Rotation: CW
Plug number: PL75
Total length mm: 170.00
Pulley: SP/FW
Voltage regulator type: IR
Product information: BN

Files

  • OEM
    F032114895, 1955ir, 101210-0950, 101210-0951, 1204426, 6204257, 13222934, 13256933, 63377423

  • Normalised article numbler
    a6069, a6069denso, a6069pr, cal30206, dan583, dendan583, dra0089, dra0089x, f032114895, lra03064, man7423, 8el011712541, 8el738212891, 1955ir, 24063n, 24063r, 200250, 210734, 210734a, 285676, 301955ri, 440922, 443084, 443263, 1204426, 6204257, 12090335, 13222934, 13256933, 32118950, 063377423, 63377423, 218306702, 228179702, 0986081070, 1012100950, 1012100951, 063377423010
  • Description
    Voltage: 14
    Amp: 70
    Pulley distributor: 40.00
    Width/holder arm: 64.00
    Mounting bracket distance: 55.00
    Bracket hole: 9.50
    Belt adjustment bracket hole 1: 9.50
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in minutes: 10
    Rotation: CW
    Plug number: PL75
    Total length mm: 170.00
    Pulley: SP/FW
    Voltage regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114895, 1955ir, 101210-0950, 101210-0951, 1204426, 6204257, 13222934, 13256933, 63377423

    • Normalised article numbler
      a6069, a6069denso, a6069pr, cal30206, dan583, dendan583, dra0089, dra0089x, f032114895, lra03064, man7423, 8el011712541, 8el738212891, 1955ir, 24063n, 24063r, 200250, 210734, 210734a, 285676, 301955ri, 440922, 443084, 443263, 1204426, 6204257, 12090335, 13222934, 13256933, 32118950, 063377423, 63377423, 218306702, 228179702, 0986081070, 1012100950, 1012100951, 063377423010
