HC-Cargo Alternator

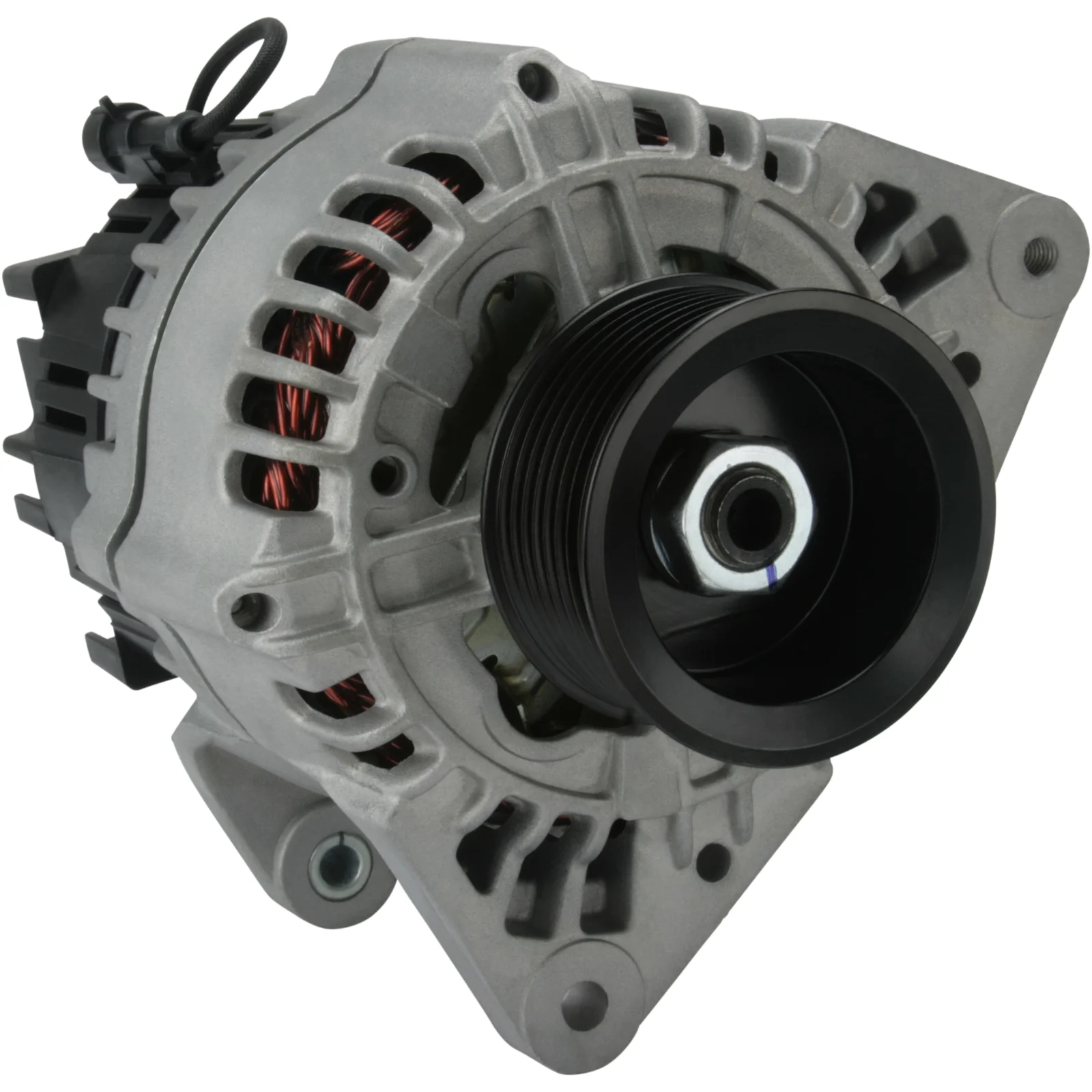

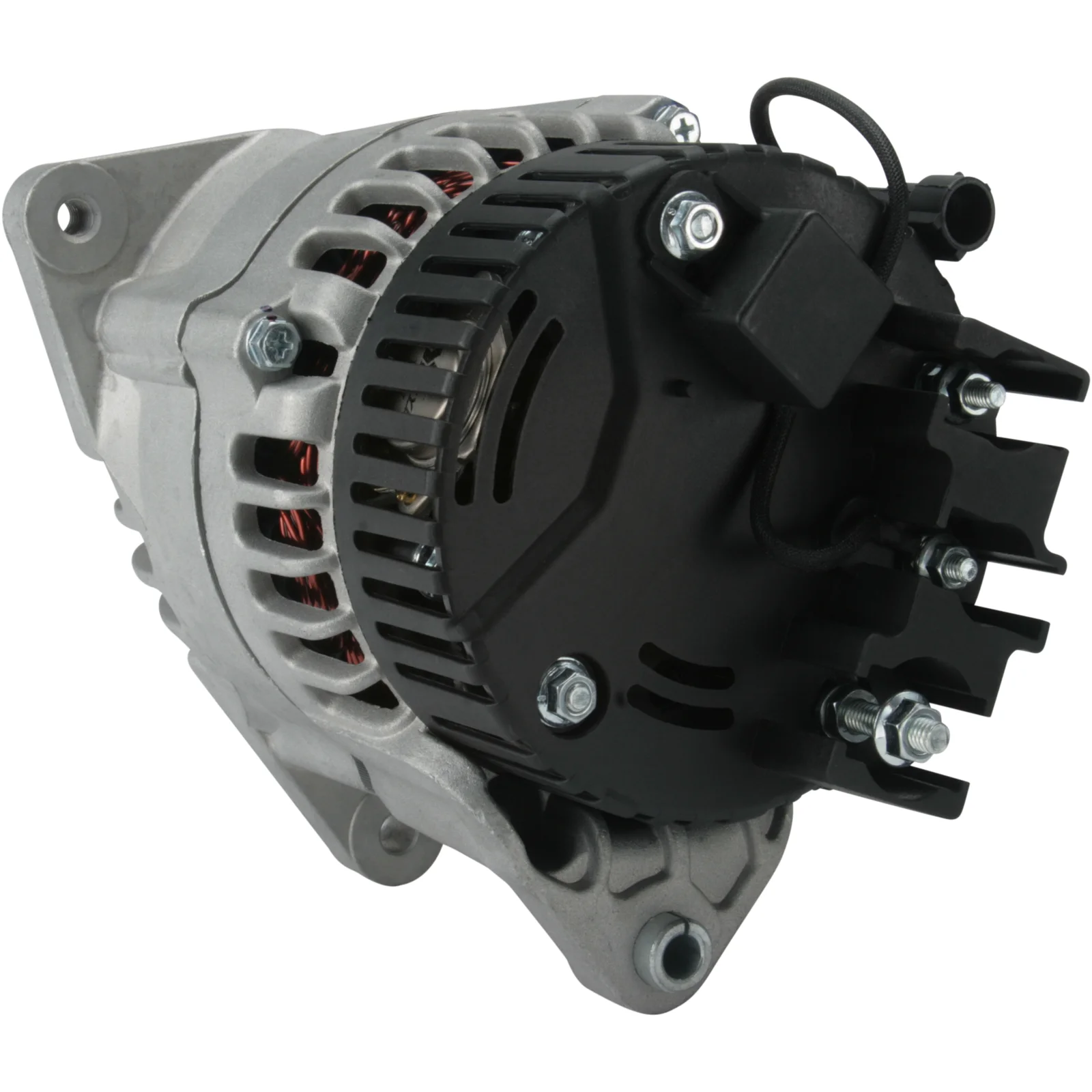

HC-Cargo Alternator
Article no.: F032114896

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 83.60

Description

Voltage: 14
Amp: 120
Terminal: W
Pulley dist.: 32.00
Width/holder arm: 14.00
Mounting bracket dist.: 83.60
Bracket hole: 8.00
Belt adjustment bracket hole position.: 10
Belt adjustment bracket hole 1: M8
Pulley diameter: 67.00
Grooves/pulley: 8
Radius: 85.00
Radius 2: 85.00
B+: M6
Position/B+ in minutes.: 25
D+ Size: M5
Rotation: CW
Plug no.: PL70
W plug type: M5
Total length mm: 203.00
Pulley: SP
Voltage regulator type: IR
Product information: BN

Files

  • OEM
    AAK5591, AAK5745, AAK5760, F032114896, 11.203.493, 11.203.729, 11.203.823, 5840260, 47744887, 87361085, 87652089, 87755553

  • Normalised article numbler
    a9223, aak5591, aak5745, aak5760, cal21150, cal30248, f032114896, ia1225, mg443, 12792n, 202005, 286897, 444435, 5840260, 11203493, 11203729, 11203823, 47744887, 87361085, 87652089, 87755553, 705515120, 5191401202
  • Description
    Voltage: 14
    Amp: 120
    Terminal: W
    Pulley dist.: 32.00
    Width/holder arm: 14.00
    Mounting bracket dist.: 83.60
    Bracket hole: 8.00
    Belt adjustment bracket hole position.: 10
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 67.00
    Grooves/pulley: 8
    Radius: 85.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in minutes.: 25
    D+ Size: M5
    Rotation: CW
    Plug no.: PL70
    W plug type: M5
    Total length mm: 203.00
    Pulley: SP
    Voltage regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      AAK5591, AAK5745, AAK5760, F032114896, 11.203.493, 11.203.729, 11.203.823, 5840260, 47744887, 87361085, 87652089, 87755553

    • Normalised article numbler
      a9223, aak5591, aak5745, aak5760, cal21150, cal30248, f032114896, ia1225, mg443, 12792n, 202005, 286897, 444435, 5840260, 11203493, 11203729, 11203823, 47744887, 87361085, 87652089, 87755553, 705515120, 5191401202
