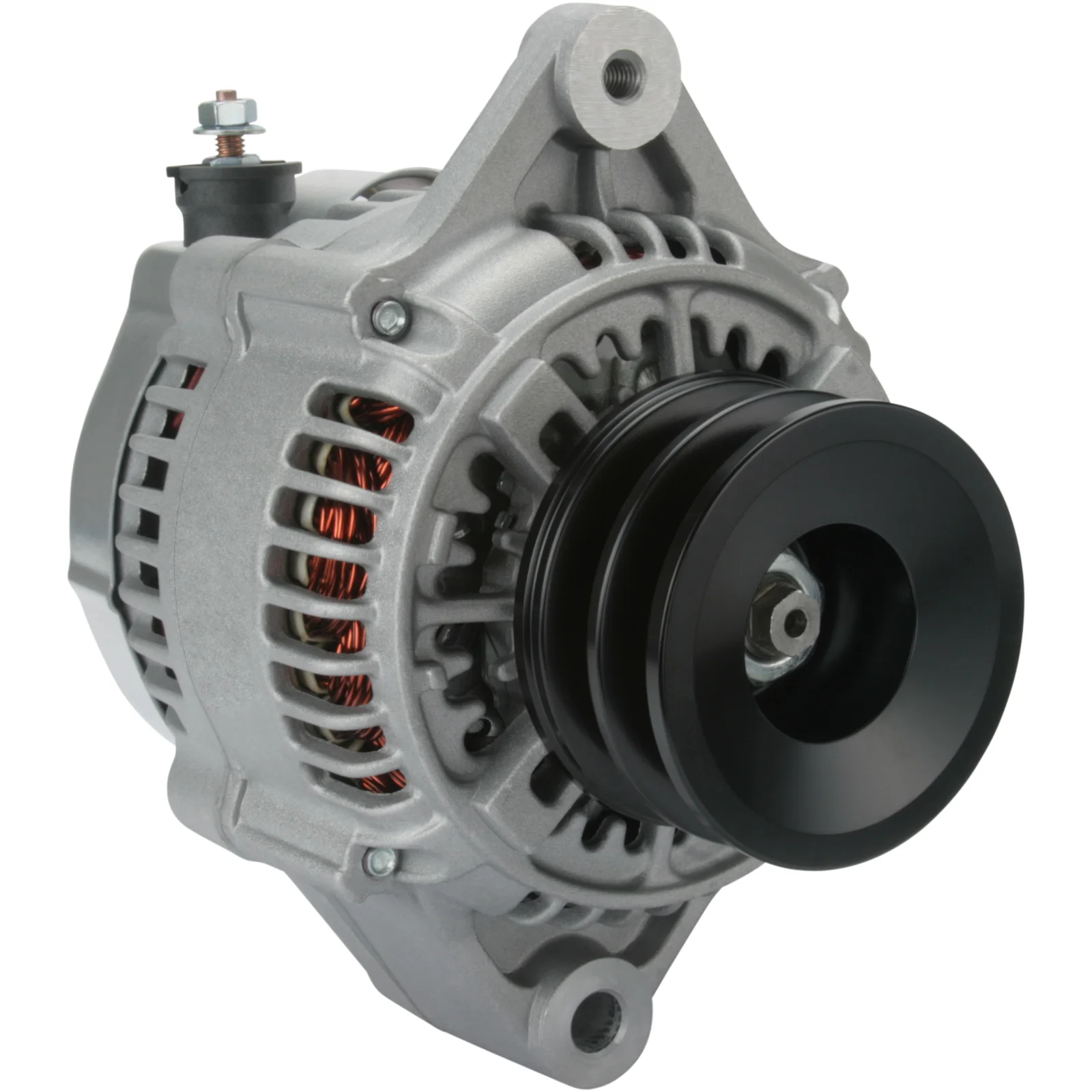

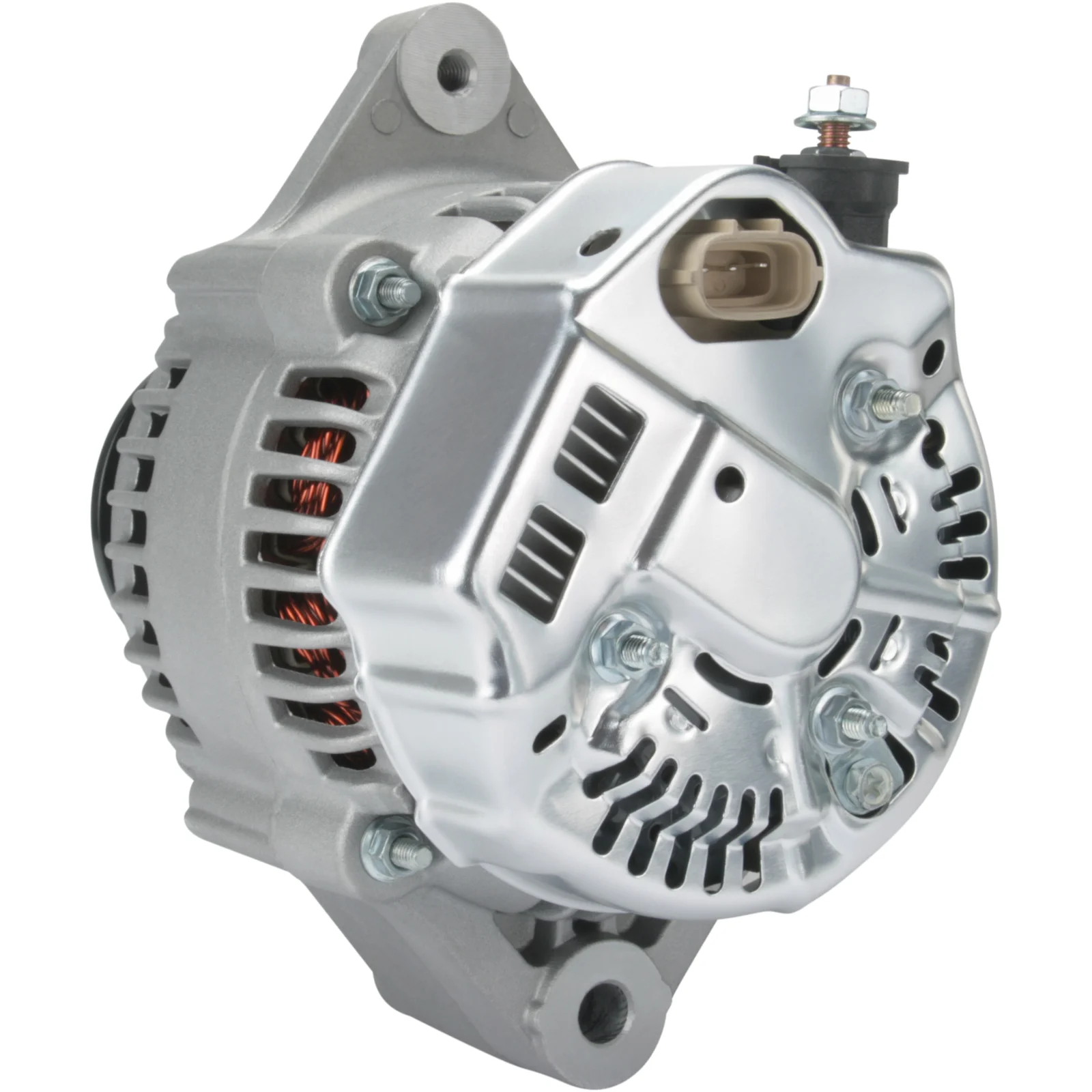

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114902

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley dia.: 70.50

Description

Voltage: 14
Amp: 90
Pulley dist.: 95.50
Width/holder arm: 58.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Alternator pulley dia.: 70.50
Grooves/pulley: 2
Radius: 83.50
Radius 2: 78.50
B+: M8
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL128
W plug type: Plug
Total length mm: 174.00
Alternator: DP
Prod. info: BN

Files

  • OEM
    F032114902, 32868-03201, 102211-1830, 102211-9010

  • Normalised article numbler
    a6679denso, f032114902, 11633, 11633n, 645506090, 1022111830, 1022119010, 3286803201
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 95.50
    Width/holder arm: 58.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Alternator pulley dia.: 70.50
    Grooves/pulley: 2
    Radius: 83.50
    Radius 2: 78.50
    B+: M8
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    W plug type: Plug
    Total length mm: 174.00
    Alternator: DP
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114902, 32868-03201, 102211-1830, 102211-9010

    • Normalised article numbler
      a6679denso, f032114902, 11633, 11633n, 645506090, 1022111830, 1022119010, 3286803201
