HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115303

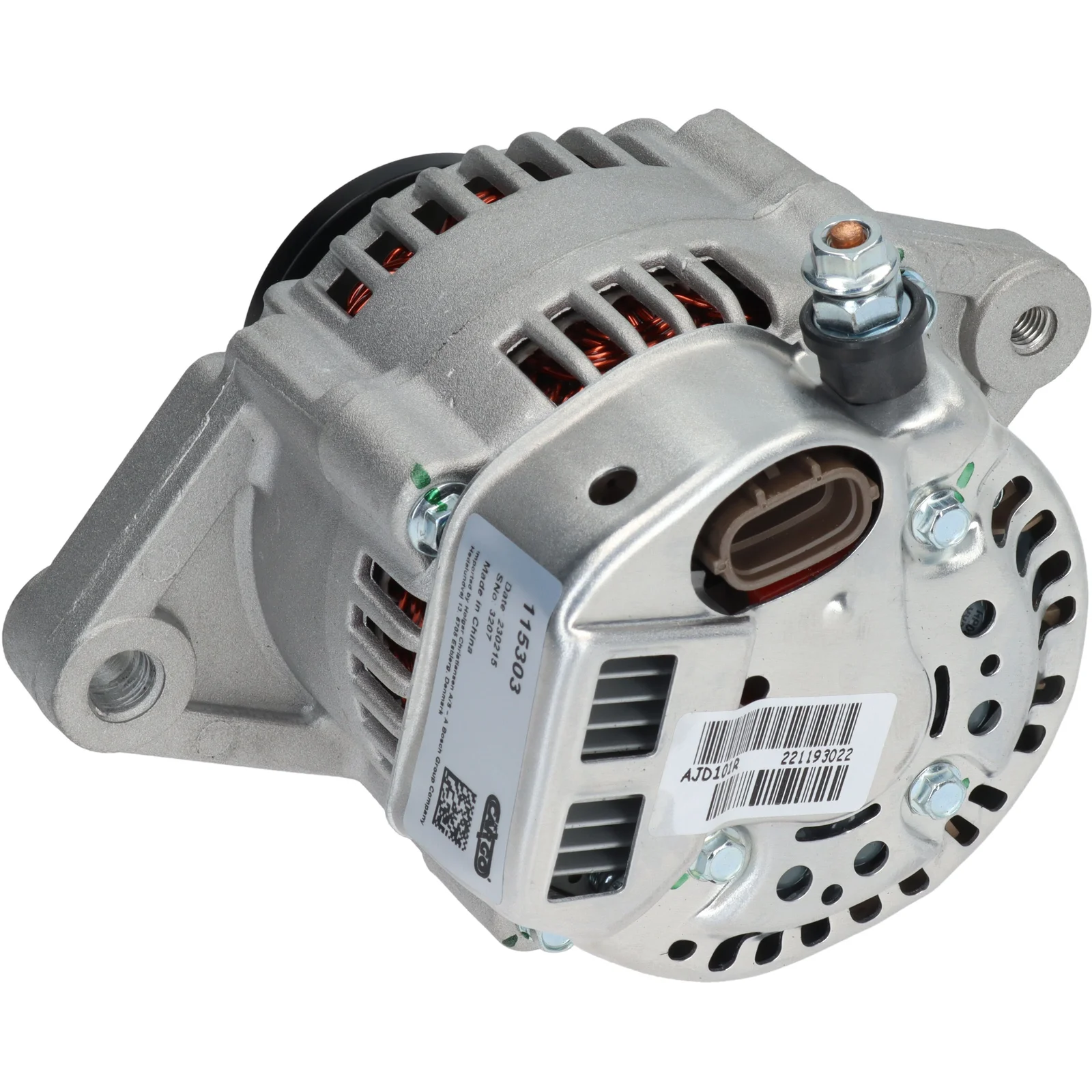

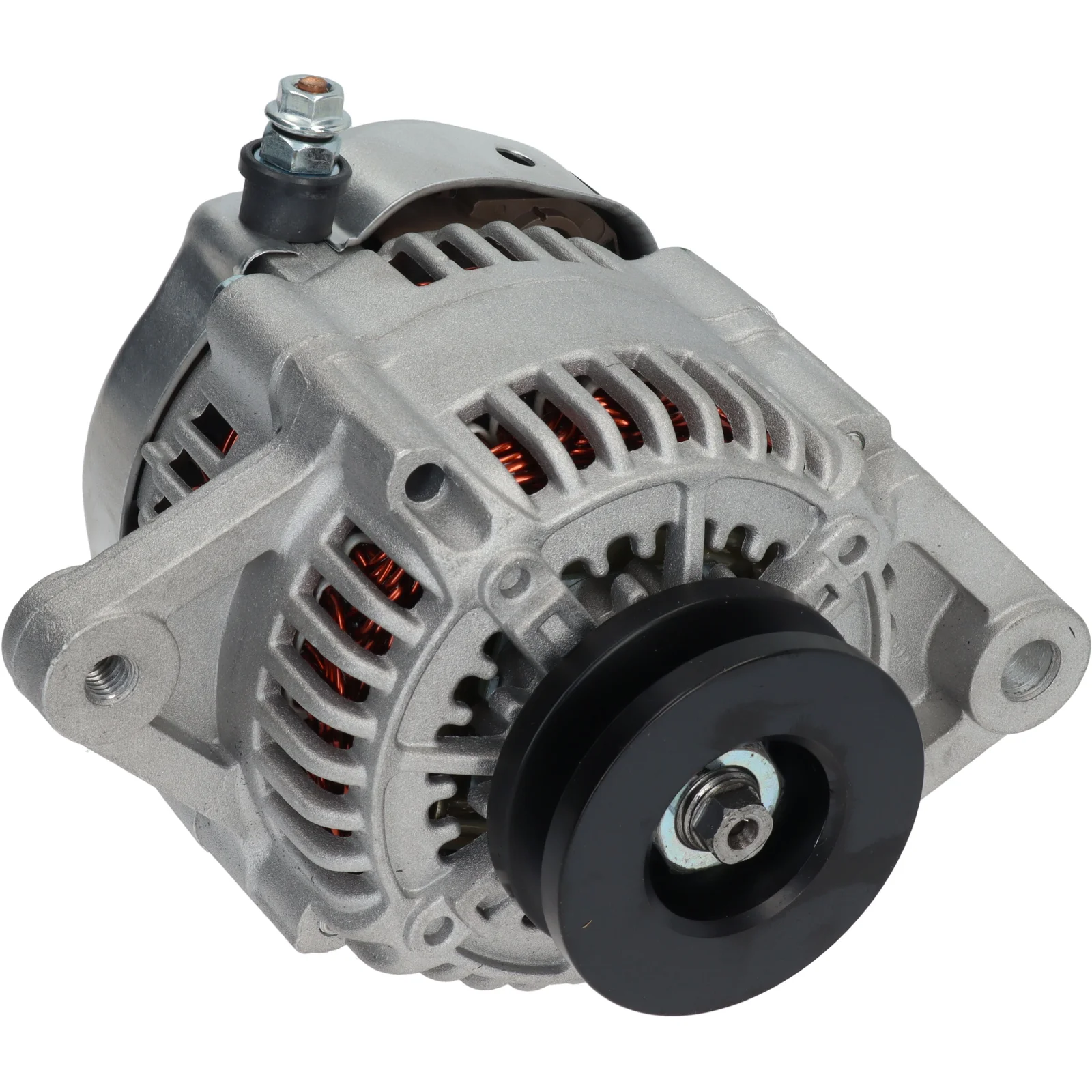

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Pulley diameter: 63.00

Description

Voltage: 14
Amp: 55
Pulley dist.: 45.00
Width/holder arm: 21.00
Belt. adj. brackethole pos.: 12
Belt. adj. bracket hole 1: M8
Pulley dia.: 63.00
Grooves/pulley: 1
Radius: 78.00
Radius 2: 75.50
B+: M6
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL128
Total length mm: 143.00
Pulley: Pulley
Fan: Fan
Regulator type: IR

Files

  • OEM
    F032115303, 19630-64012, 19630-64013, 021080-1190, 101211-2960, 101211-2961, 101211-2962, 101211-2963

  • Normalised article numbler
    a6623denso, a6623sdenso, cal40125, dan2017, f032115303, 12651n, 12651r, 286625, 12060937, 0210801190, 1012112960, 1012112961, 1012112962, 1012112963, 1963064012, 1963064013
  • Description
    Voltage: 14
    Amp: 55
    Pulley dist.: 45.00
    Width/holder arm: 21.00
    Belt. adj. brackethole pos.: 12
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 63.00
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 75.50
    B+: M6
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL128
    Total length mm: 143.00
    Pulley: Pulley
    Fan: Fan
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032115303, 19630-64012, 19630-64013, 021080-1190, 101211-2960, 101211-2961, 101211-2962, 101211-2963

    • Normalised article numbler
      a6623denso, a6623sdenso, cal40125, dan2017, f032115303, 12651n, 12651r, 286625, 12060937, 0210801190, 1012112960, 1012112961, 1012112962, 1012112963, 1963064012, 1963064013
