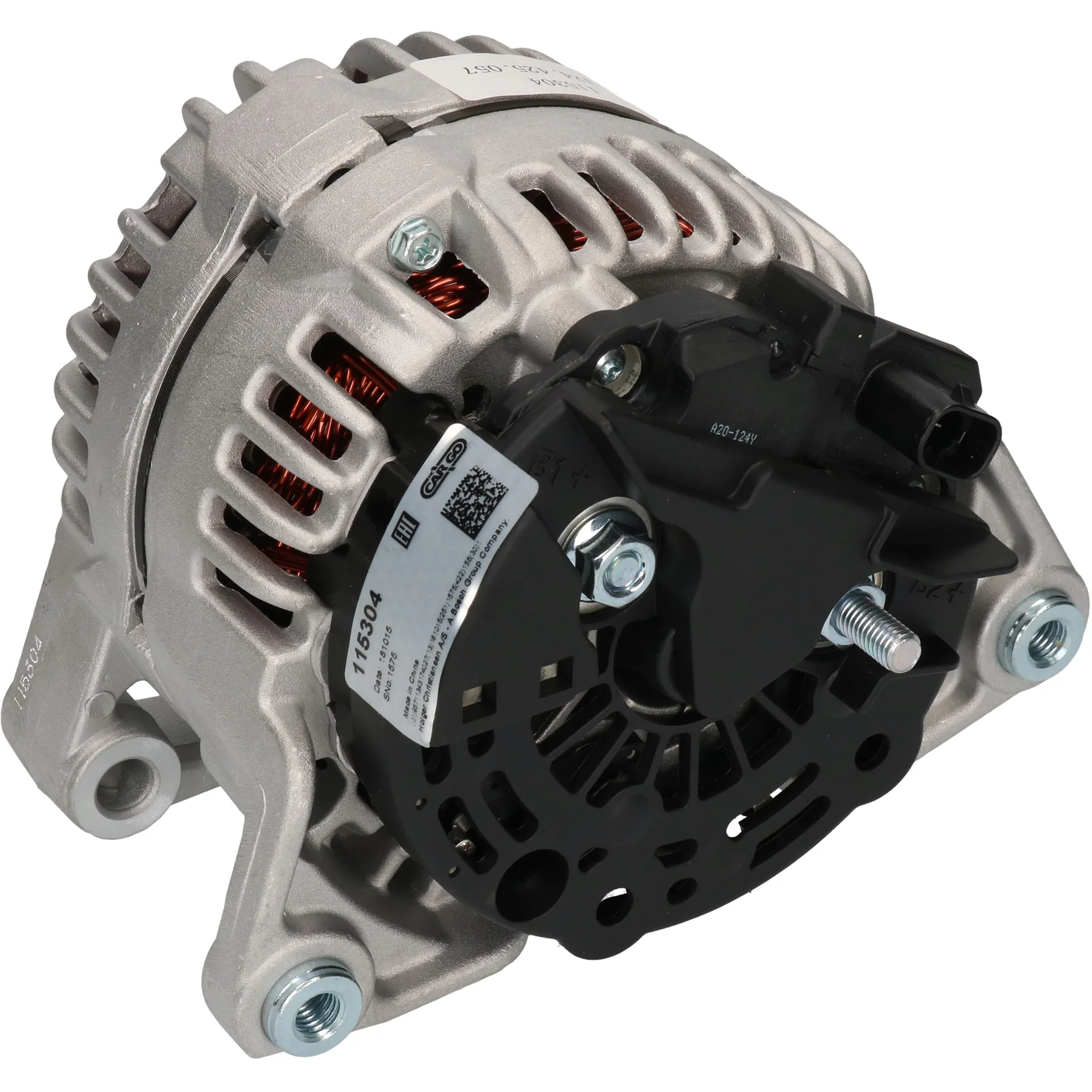

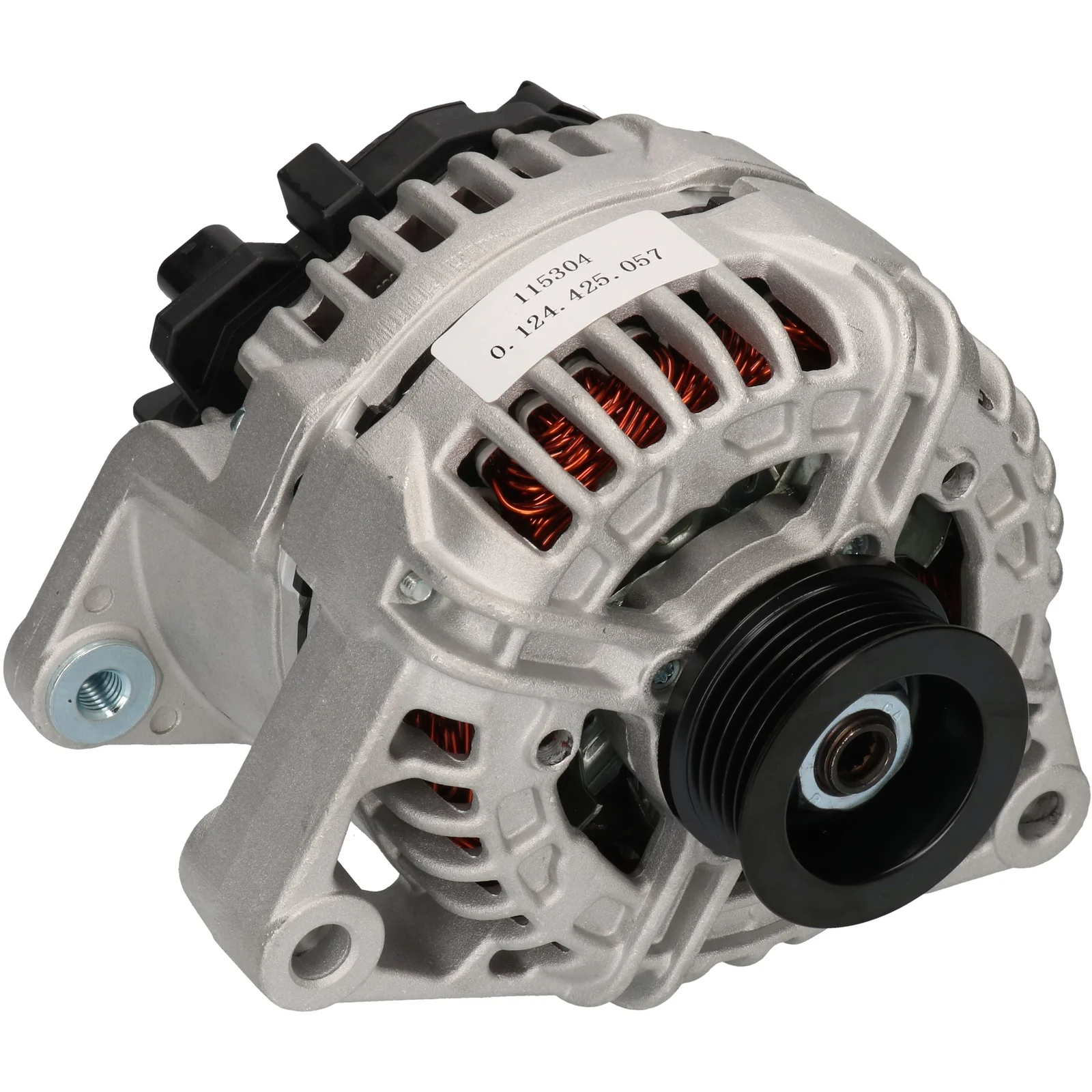

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115304

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Mounting bracket distributor: 59.00

Description

Voltage: 14
Amp: 120
Pulley distance: 54.50
Width/holder arm: 33.50
Mounting bracket distance: 59.00
Bracket hole: 10.30
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole 1: 10.30
Pulley diameter: 54.00
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in minutes: 5
Rotation: CW
Plug number: PL75
Total length mm: 174.00
Terminal type: L-DFM
Pulley: SP
Voltage regulator type: IR

Files

  • OEM
    C101972811, F032115304, 1986A00826, 1986A01107, 6204266, 13222931, 13222931ZZ, 93190139, 95515977, 0124425057

  • Normalised article numbler
    a0348, c101972811, cal10436, dra0534, f032115304, lra03310, man2066, 8el011712831, 1986a00826, 1986a01107, 23962, 23962r, 111408, 210834, 210834a, 285922, 440647, 443102, 6204266, 12090359, 13222931, 13222931zz, 32081380, 93190139, 95515977, 0124425057, 135554120, 0986081380, 2281741202, 063533251710
  • Description
    Voltage: 14
    Amp: 120
    Pulley distance: 54.50
    Width/holder arm: 33.50
    Mounting bracket distance: 59.00
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole 1: 10.30
    Pulley diameter: 54.00
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in minutes: 5
    Rotation: CW
    Plug number: PL75
    Total length mm: 174.00
    Terminal type: L-DFM
    Pulley: SP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      C101972811, F032115304, 1986A00826, 1986A01107, 6204266, 13222931, 13222931ZZ, 93190139, 95515977, 0124425057

    • Normalised article numbler
      a0348, c101972811, cal10436, dra0534, f032115304, lra03310, man2066, 8el011712831, 1986a00826, 1986a01107, 23962, 23962r, 111408, 210834, 210834a, 285922, 440647, 443102, 6204266, 12090359, 13222931, 13222931zz, 32081380, 93190139, 95515977, 0124425057, 135554120, 0986081380, 2281741202, 063533251710
