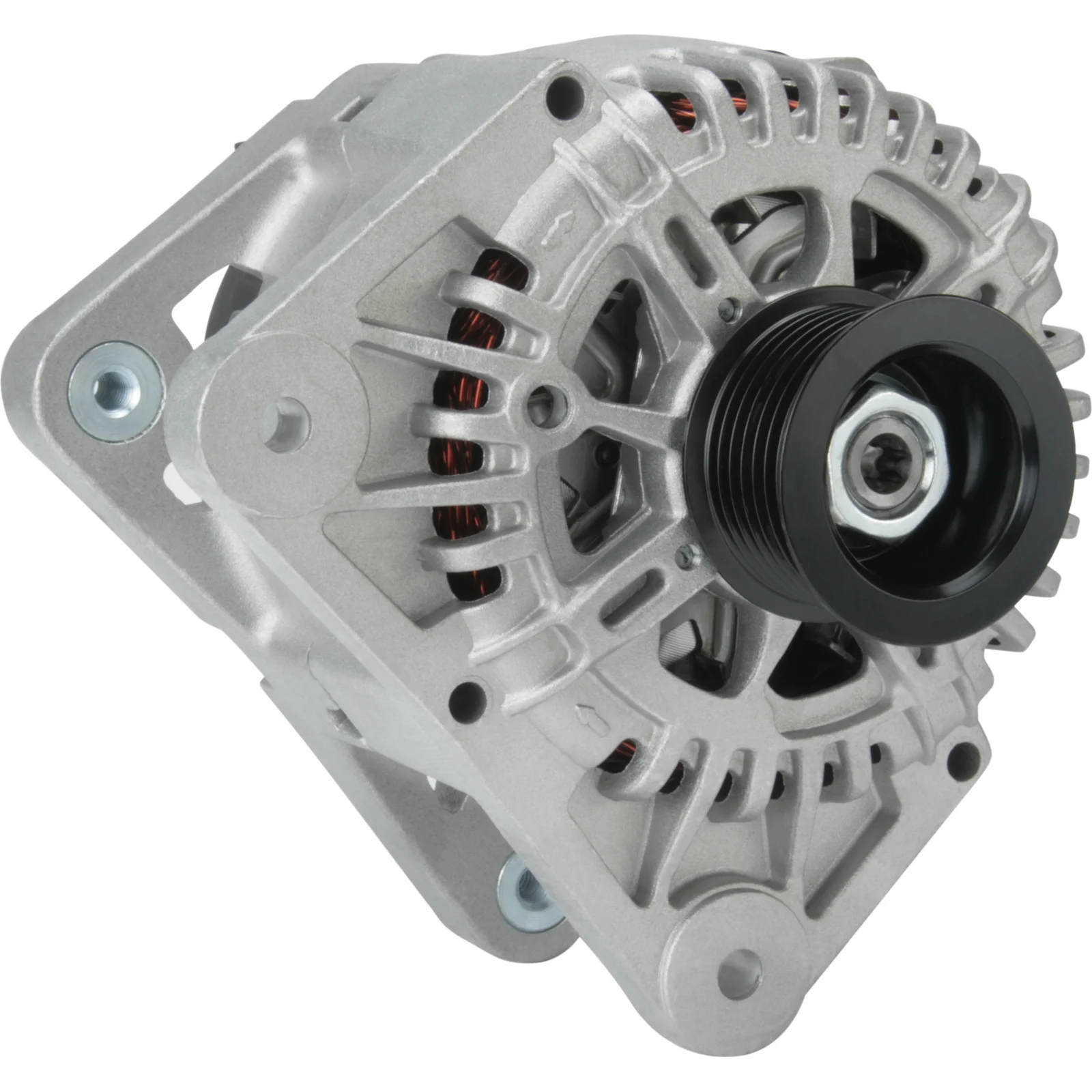

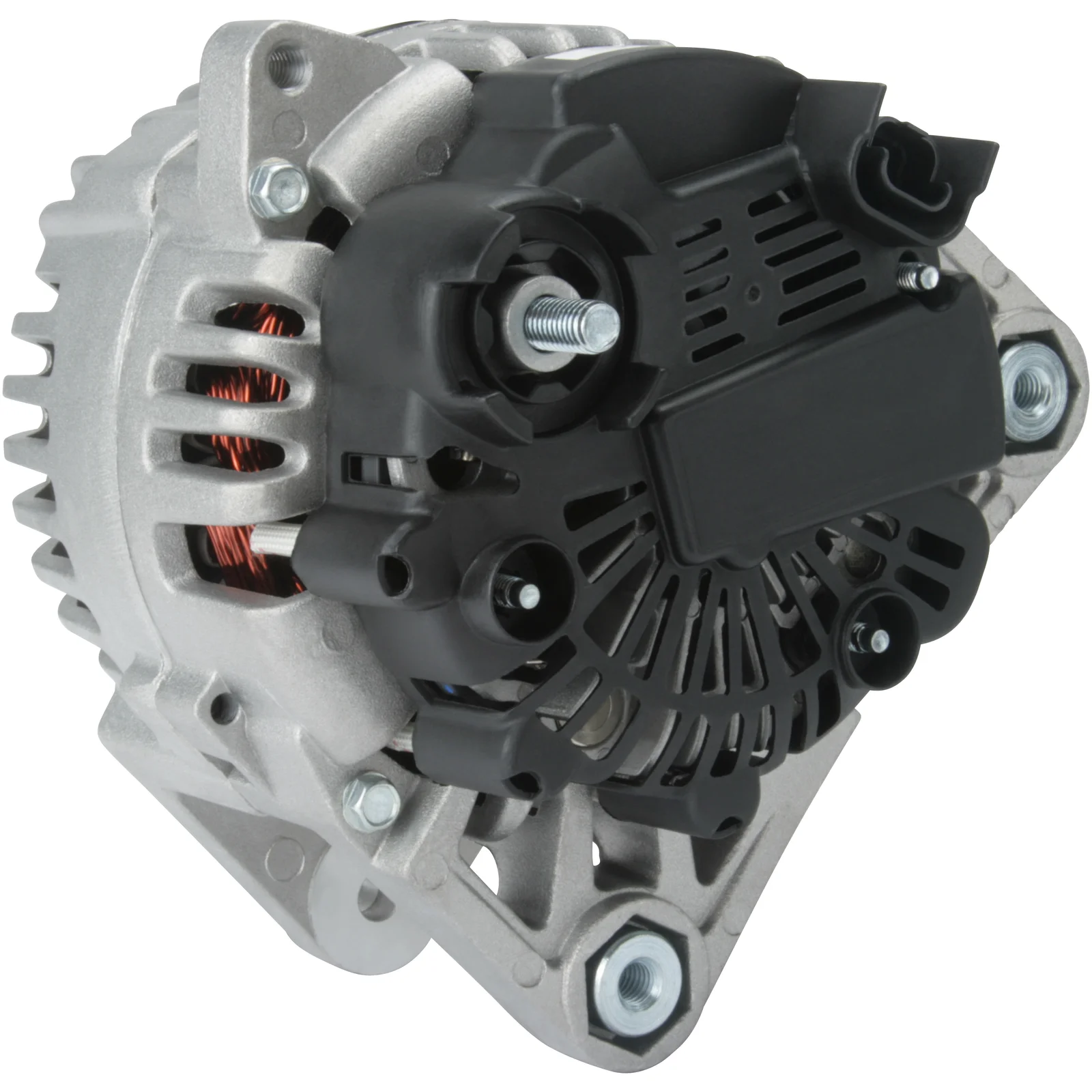

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115310

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 60.50

Description

Voltage: 14
Amp: 110
Pulley dist.: 32.50
Width/holder arm: 13.80
Mount. bracket dist.: 60.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL72
Total length mm: 184.00
Pulley: SP
Alternator type: IR
Prod. info: BN

Files

  • OEM
    F032115310, tg11c010, TG11C022, TG11C049, TG11C061, 1768ir, 2542663, 2542818, 2542818D, 2543342, 2543342A, 2543552, 2543552a, 7711135332, 8200086161, 8200290215, 8200495294, 8200667618

  • Normalised article numbler
    a3068, a3068pr, cal15135, dra4286, f032115310, f042205217, tg11c010, tg11c022, tg11c049, tg11c061, 8el011710761, 1768ir, 4688, 23350r, 200087, 210472, 210472a, 284852, 437439, 439479, 746097, 746897, 2542663, 2542818, 2542818d, 2543342, 2543342a, 2543552, 2543552a, 9212989, 12090169, 32437439, 0986080330, 7711135332, 8200086161, 8200290215, 8200495294, 8200667618
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 32.50
    Width/holder arm: 13.80
    Mount. bracket dist.: 60.50
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL72
    Total length mm: 184.00
    Pulley: SP
    Alternator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115310, tg11c010, TG11C022, TG11C049, TG11C061, 1768ir, 2542663, 2542818, 2542818D, 2543342, 2543342A, 2543552, 2543552a, 7711135332, 8200086161, 8200290215, 8200495294, 8200667618

    • Normalised article numbler
      a3068, a3068pr, cal15135, dra4286, f032115310, f042205217, tg11c010, tg11c022, tg11c049, tg11c061, 8el011710761, 1768ir, 4688, 23350r, 200087, 210472, 210472a, 284852, 437439, 439479, 746097, 746897, 2542663, 2542818, 2542818d, 2543342, 2543342a, 2543552, 2543552a, 9212989, 12090169, 32437439, 0986080330, 7711135332, 8200086161, 8200290215, 8200495294, 8200667618
