HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115316

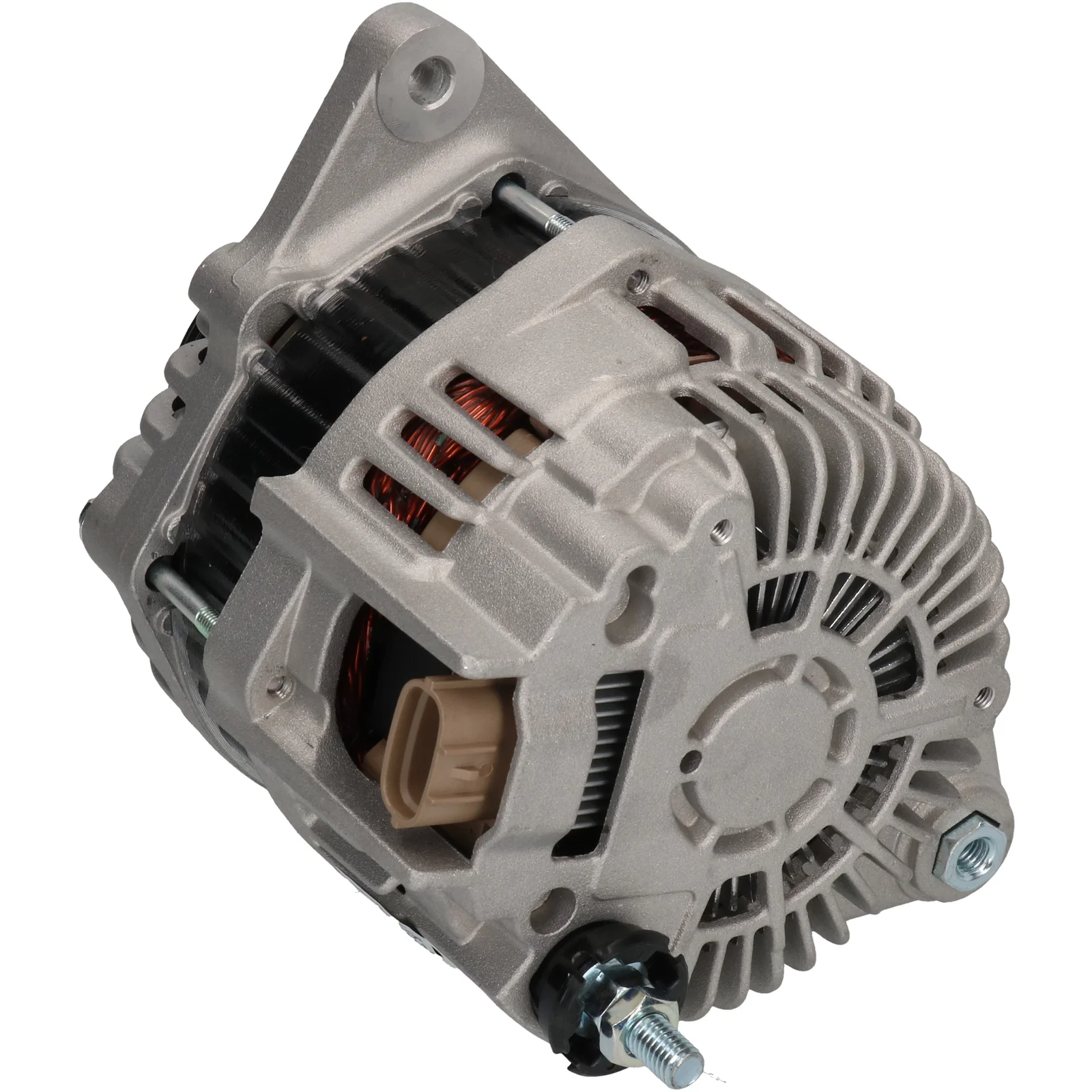

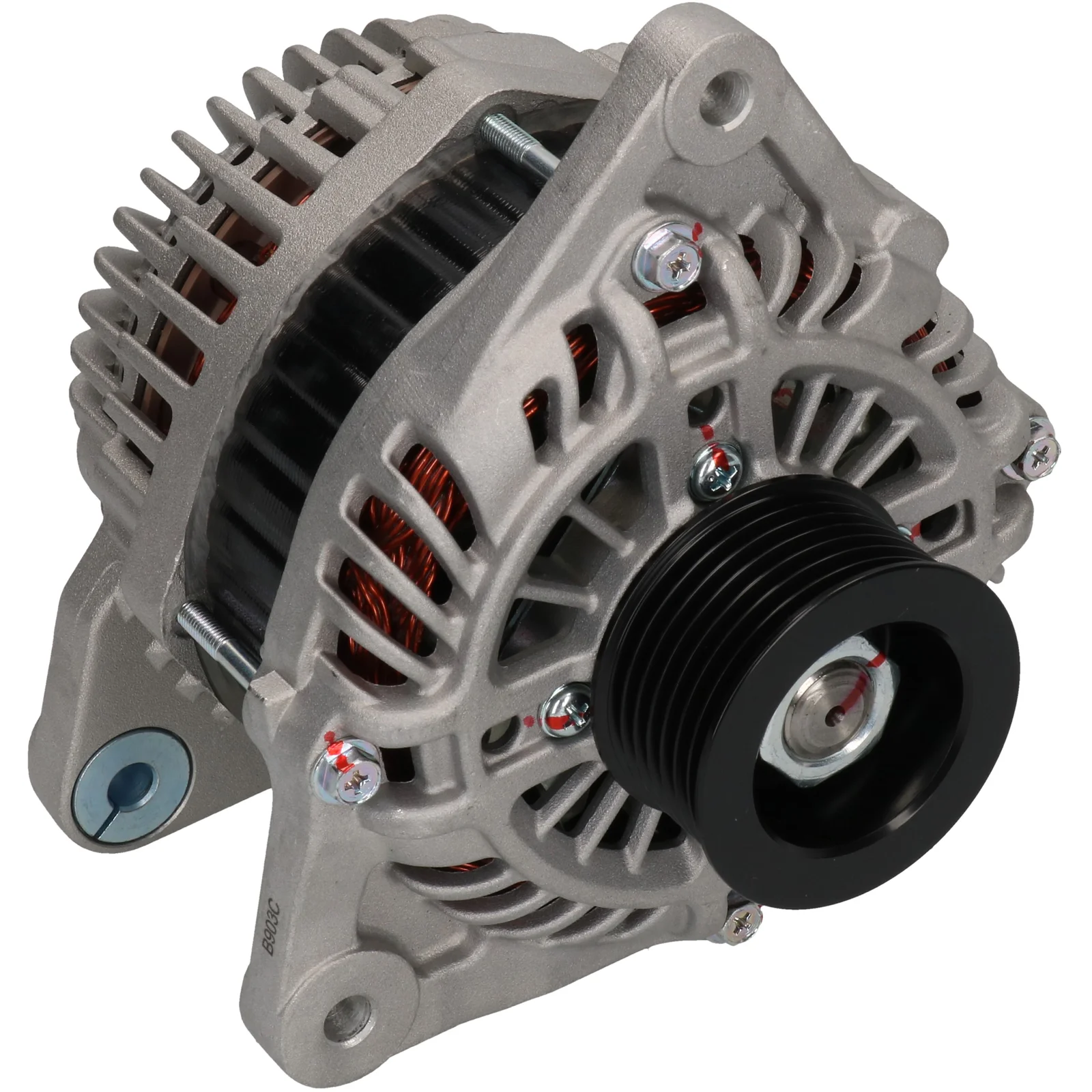

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket distributor: 59.00

Description

Voltage: 14
Amp: 100
Pulley diameter: 32.80
Width/holder arm: 13.00
Mounting bracket distance: 59.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 7
Radius: 85.00
Radius 2: 85.00
B+: M8
Position/B+ in minutes: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL163
Total length mm: 183.00
Pulley: SP
Regulator type: IR

Files

  • OEM
    A005TL0191, A005TL0191A, A5TL0191, A5TL0191A, A5TL0191AM, F032115316, 23100-1HH1A, 23100-1HN1A

  • Normalised article numbler
    a005tl0191, a005tl0191a, a5334, a5tl0191, a5tl0191a, a5tl0191am, cal15572, cal35317, dra0863, f032115316, lra03664, 8el011713641, 20081n, 20081noe, 209449, 209449a, 231001hh1a, 231001hn1a, 286804, 444350, 446752, 554133ri, 12061125, 165587100, 0986084020, 2273261002
  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 32.80
    Width/holder arm: 13.00
    Mounting bracket distance: 59.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 7
    Radius: 85.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in minutes: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL163
    Total length mm: 183.00
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A005TL0191, A005TL0191A, A5TL0191, A5TL0191A, A5TL0191AM, F032115316, 23100-1HH1A, 23100-1HN1A

    • Normalised article numbler
      a005tl0191, a005tl0191a, a5334, a5tl0191, a5tl0191a, a5tl0191am, cal15572, cal35317, dra0863, f032115316, lra03664, 8el011713641, 20081n, 20081noe, 209449, 209449a, 231001hh1a, 231001hn1a, 286804, 444350, 446752, 554133ri, 12061125, 165587100, 0986084020, 2273261002
