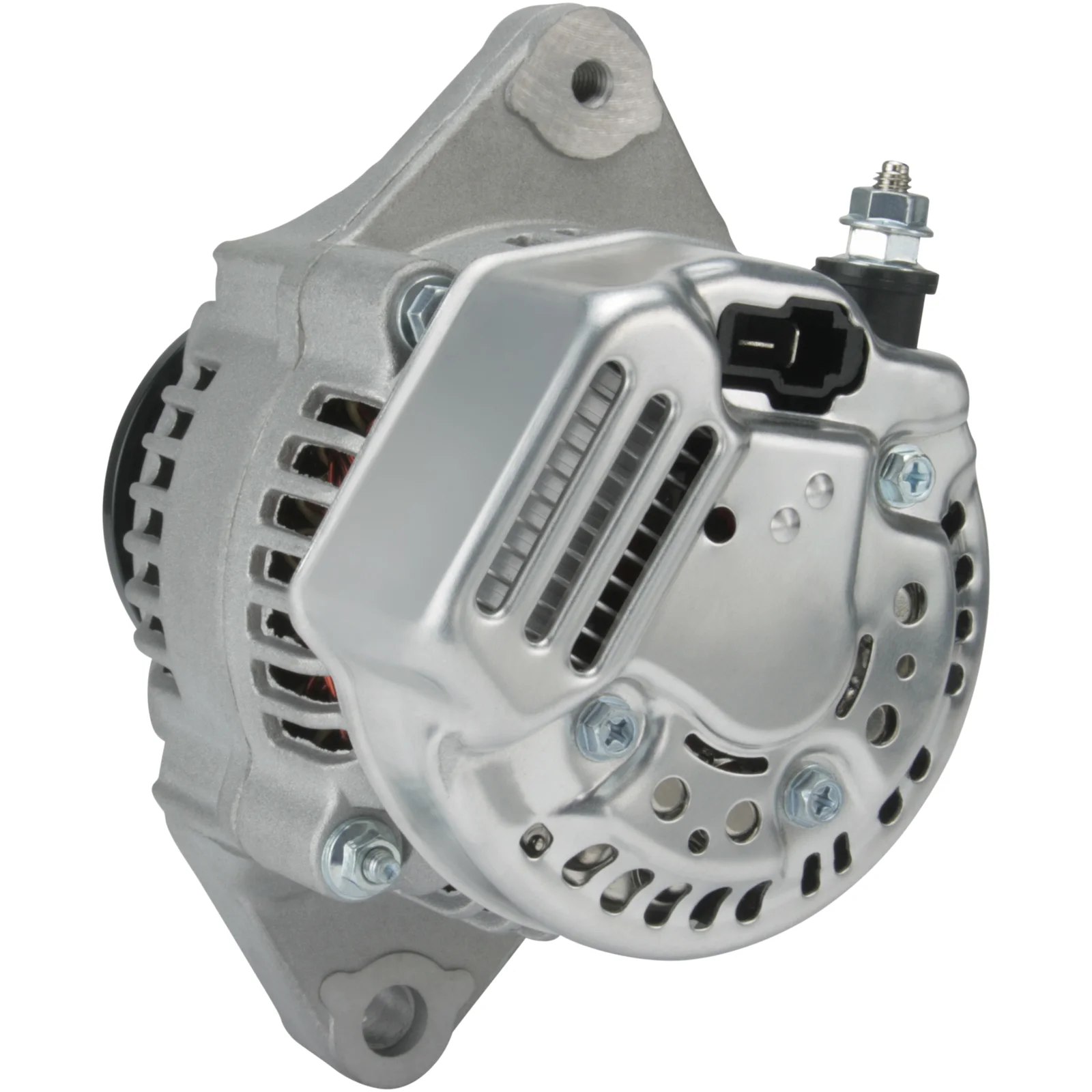

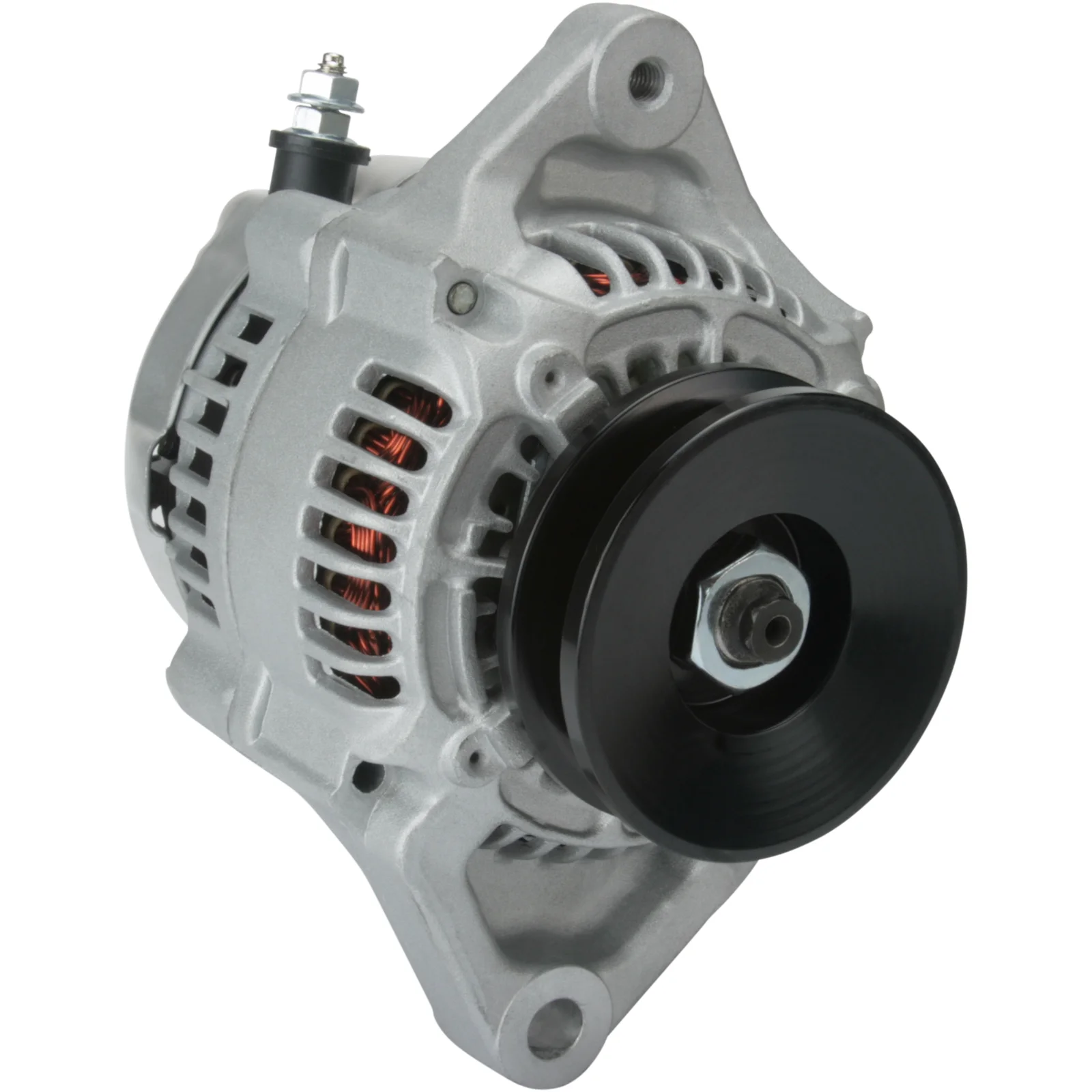

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115320

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 45, Rotation: CW, Pulley diameter: 75.50

Description

Voltage: 14
Amp: 45
Pulley dist.: 43.00
Width/holder arm: 20.70
Bracket hole: 10.00
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Pulley diameter: 75.50
Grooves/pulleys: 1
Radius: 75.00
Radius 2: 77.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 141.00
Pulley: P
Alternator type: IR
Prod. info: BN

Files

  • OEM
    F032115320, 101211-2590, 101211-2591, 101211-2840, 129961-77200, 1599869

  • Normalised article numbler
    cal40587, f032115320, 11559, 11559n, 11691n, 554415ri, 1599869, 635526055, 1012112590, 1012112591, 1012112840, 12996177200
  • Description
    Voltage: 14
    Amp: 45
    Pulley dist.: 43.00
    Width/holder arm: 20.70
    Bracket hole: 10.00
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 75.50
    Grooves/pulleys: 1
    Radius: 75.00
    Radius 2: 77.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 141.00
    Pulley: P
    Alternator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115320, 101211-2590, 101211-2591, 101211-2840, 129961-77200, 1599869

    • Normalised article numbler
      cal40587, f032115320, 11559, 11559n, 11691n, 554415ri, 1599869, 635526055, 1012112590, 1012112591, 1012112840, 12996177200
