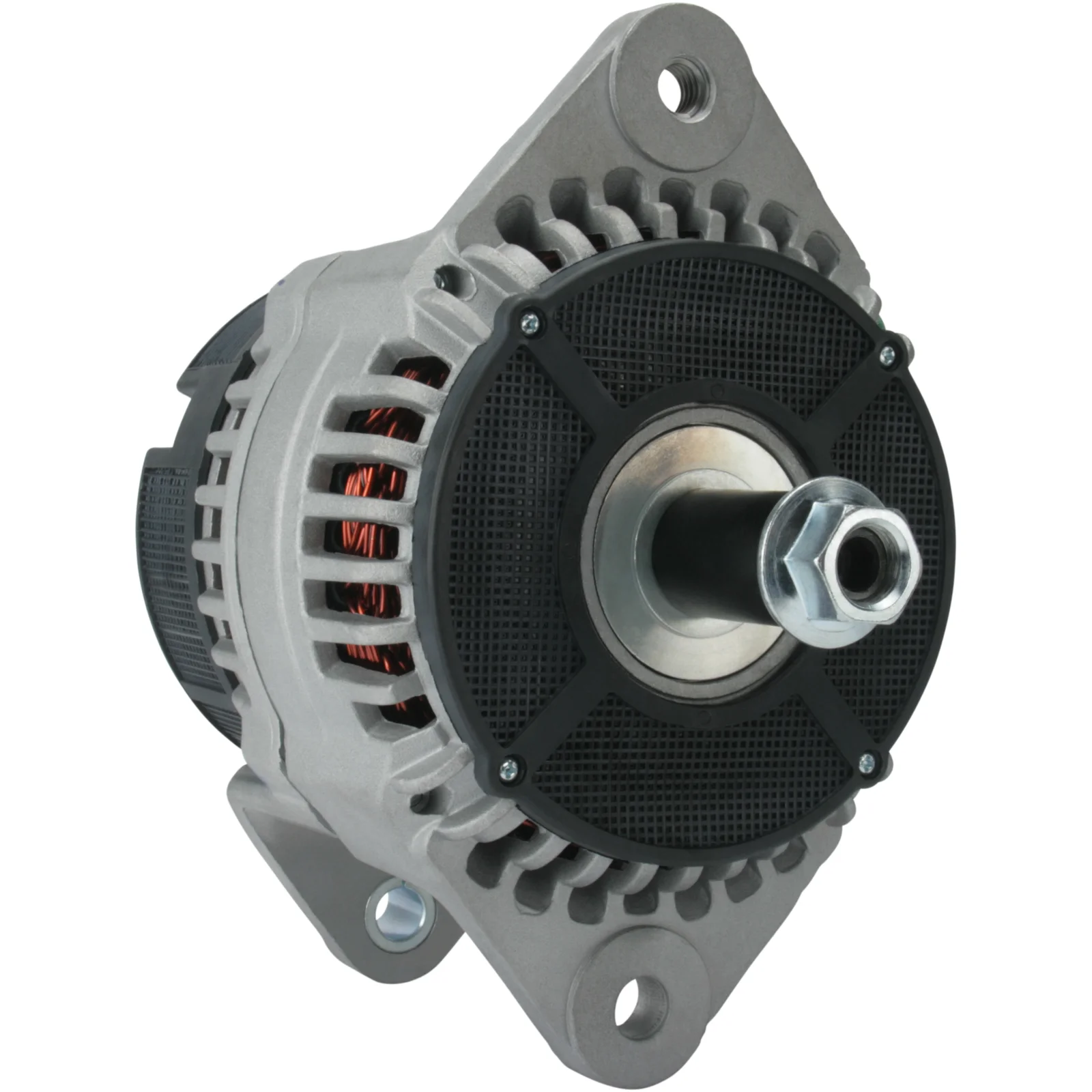

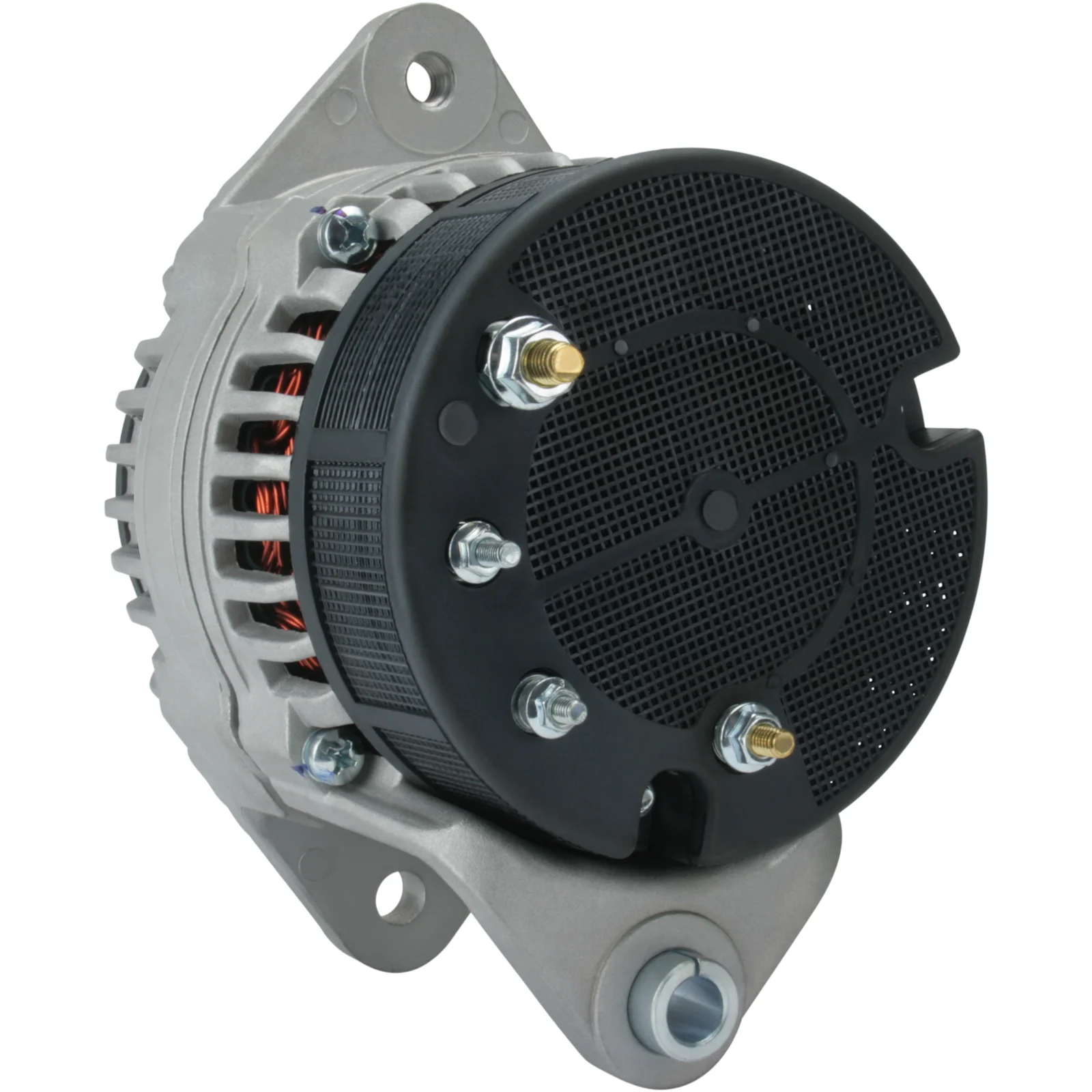

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115343

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 175, Rotation: CW, Mounting bracket distributor: 103.00

Description

Voltage: 14
Amp: 175
Terminal: W
Width/holder arm: 14.00
Mounting bracket dist.: 103.00
Bracket hole: 13.00
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: 1/2" UNC
Radius: 99.00
Radius 2: 99.00
B+: M8
Position/B+ in min.: 50
D+ Size: M5
Rotation: CW
W plug type: M5
Total length mm: 235.00
Pulley: without
Alternator type: IR

Files

  • OEM
    AAN5193, AAN8164, F032115343, 11.203.340, 11.204.252, 10646521, 7700074533

  • Normalised article numbler
    aan5193, aan8164, cal21193, f032115343, ia1196, mg484, 10646521, 11203340, 11204252, 745501175, 7700074533
  • Description
    Voltage: 14
    Amp: 175
    Terminal: W
    Width/holder arm: 14.00
    Mounting bracket dist.: 103.00
    Bracket hole: 13.00
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Radius: 99.00
    Radius 2: 99.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: M5
    Rotation: CW
    W plug type: M5
    Total length mm: 235.00
    Pulley: without
    Alternator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      AAN5193, AAN8164, F032115343, 11.203.340, 11.204.252, 10646521, 7700074533

    • Normalised article numbler
      aan5193, aan8164, cal21193, f032115343, ia1196, mg484, 10646521, 11203340, 11204252, 745501175, 7700074533
