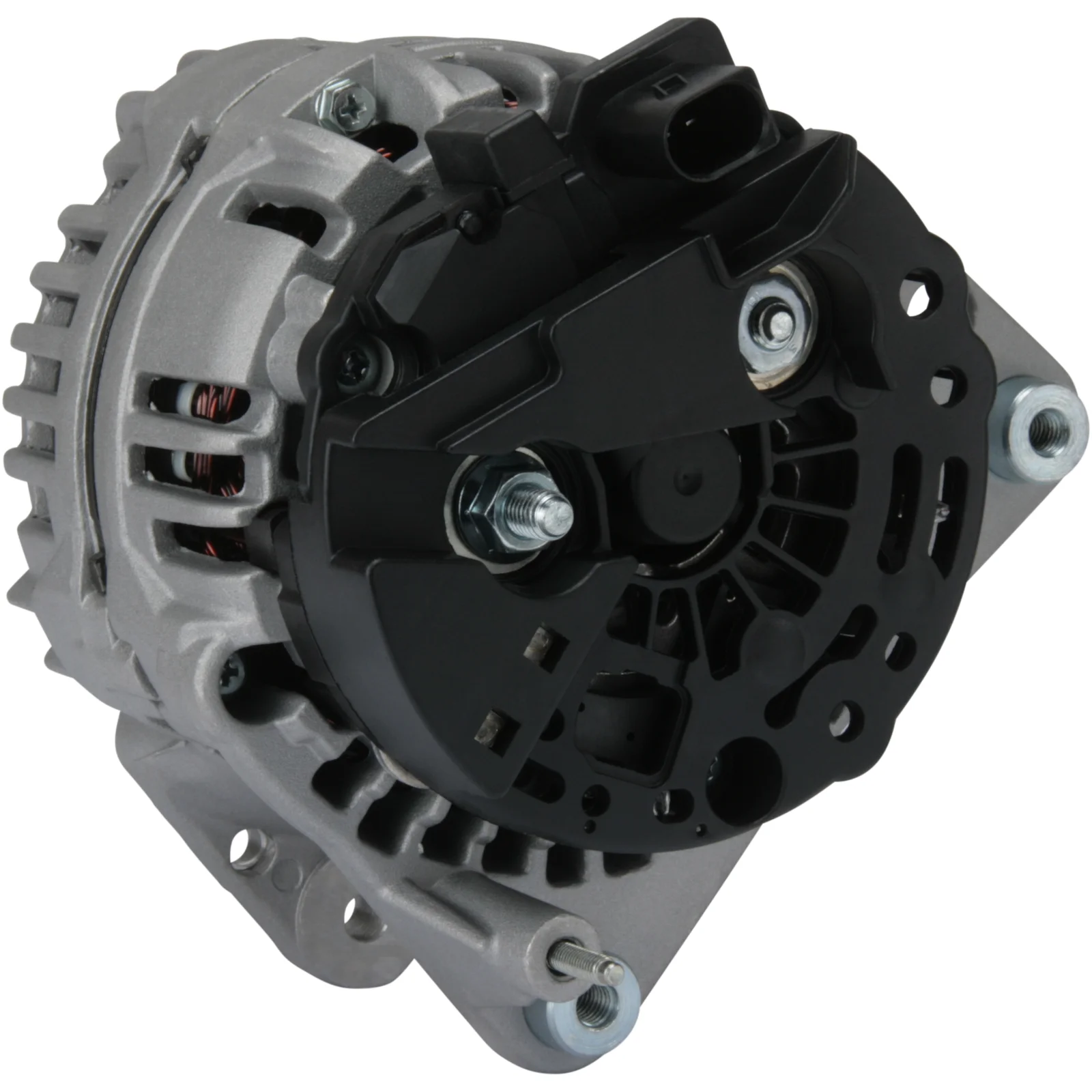

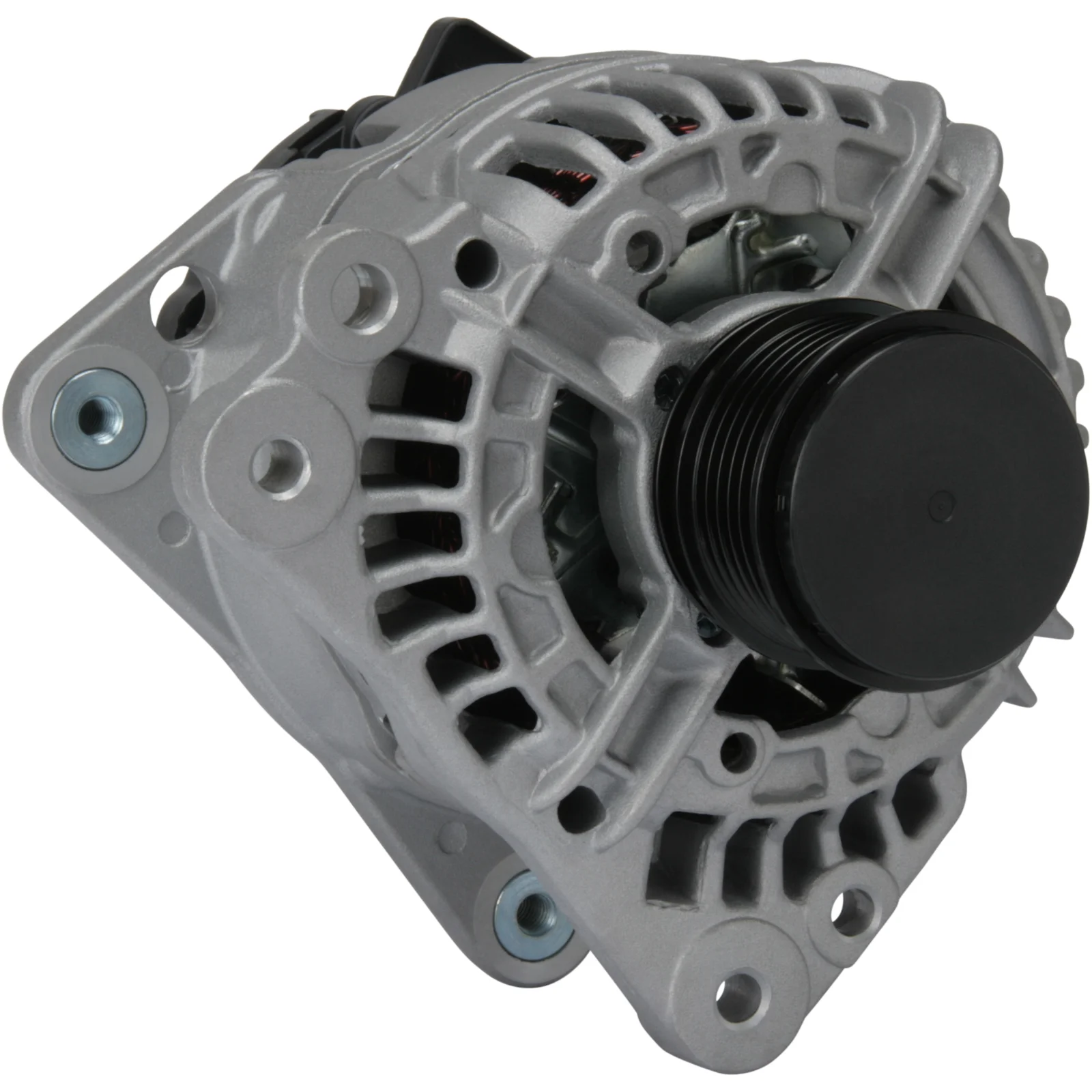

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115370

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 62.00

Description

HC-Cargo Alternator 14V - 110A, 6grooves

Voltage: 14
Amps: 110
Pulley diameter: 39.50
Width/holder arm: 14.50
Mounting bracket distance: 62.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 52
D+ Size: Plug
Rotation: CW
Plug number: PL61
Total length mm: 190.00
Pulley: SP/FW
Regulator type: IR
Product info: BN

Files

  • OEM
    A0421(BOSCH), A0421PR, A0583S, A3097, A3097SR, ALT14332, CAL15379, DRB5390, F000 BL0 615, F000BL0615, F000BL06ZB, F032115370, HVW0001540002, LR1120701, TG11C017, 03L 903 023G, 03L903023G, 06F 903 023D, 06F 903 023E, 06F903023D, 06F903023DX, 06F903023E, 06F903023EX, 6F903023D, 6F903023DX, 6F903023E, 6F903023EX, 8EL012428-771, 28-4862, 98VW10300EA, 0124 325 083, 0124 325 092, 0124 325 130, 1986A00797, 1986A01070, 23358, 23358N, 115370, 200048, 210497, 210497A, 301810RI, 439501, 747133, 1253624, 2542730, 9045390, 12045390, 028903028E, 028903029G, 028903029GX, 028903030, 028903030A, 038903018Q, 038903018QX, 038903023S, 038903024F, 038903024G, 038903024GX, 045903023AX, 0124325083, 0124325092, 0124325130, 0986045390, 0986045397, 063533250830

  • Normalised article numbler
    a0421bosch, a0421pr, a0583s, a3097, a3097sr, alt14332, cal15379, drb5390, f000bl0615, f000bl06zb, f032115370, hvw0001540002, lr1120701, tg11c017, 03l903023g, 06f903023d, 06f903023dx, 06f903023e, 06f903023ex, 6f903023d, 6f903023dx, 6f903023e, 6f903023ex, 8el012428771, 98vw10300ea, 1986a00797, 1986a01070, 23358, 23358n, 115370, 200048, 210497, 210497a, 284862, 301810ri, 439501, 747133, 1253624, 2542730, 9045390, 12045390, 028903028e, 028903029g, 028903029gx, 028903030, 028903030a, 038903018q, 038903018qx, 038903023s, 038903024f, 038903024g, 038903024gx, 045903023ax, 0124325083, 0124325092, 0124325130, 0986045390, 0986045397, 063533250830
  • Description
    HC-Cargo Alternator 14V - 110A, 6grooves

    Voltage: 14
    Amps: 110
    Pulley diameter: 39.50
    Width/holder arm: 14.50
    Mounting bracket distance: 62.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 52
    D+ Size: Plug
    Rotation: CW
    Plug number: PL61
    Total length mm: 190.00
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A0421(BOSCH), A0421PR, A0583S, A3097, A3097SR, ALT14332, CAL15379, DRB5390, F000 BL0 615, F000BL0615, F000BL06ZB, F032115370, HVW0001540002, LR1120701, TG11C017, 03L 903 023G, 03L903023G, 06F 903 023D, 06F 903 023E, 06F903023D, 06F903023DX, 06F903023E, 06F903023EX, 6F903023D, 6F903023DX, 6F903023E, 6F903023EX, 8EL012428-771, 28-4862, 98VW10300EA, 0124 325 083, 0124 325 092, 0124 325 130, 1986A00797, 1986A01070, 23358, 23358N, 115370, 200048, 210497, 210497A, 301810RI, 439501, 747133, 1253624, 2542730, 9045390, 12045390, 028903028E, 028903029G, 028903029GX, 028903030, 028903030A, 038903018Q, 038903018QX, 038903023S, 038903024F, 038903024G, 038903024GX, 045903023AX, 0124325083, 0124325092, 0124325130, 0986045390, 0986045397, 063533250830

    • Normalised article numbler
      a0421bosch, a0421pr, a0583s, a3097, a3097sr, alt14332, cal15379, drb5390, f000bl0615, f000bl06zb, f032115370, hvw0001540002, lr1120701, tg11c017, 03l903023g, 06f903023d, 06f903023dx, 06f903023e, 06f903023ex, 6f903023d, 6f903023dx, 6f903023e, 6f903023ex, 8el012428771, 98vw10300ea, 1986a00797, 1986a01070, 23358, 23358n, 115370, 200048, 210497, 210497a, 284862, 301810ri, 439501, 747133, 1253624, 2542730, 9045390, 12045390, 028903028e, 028903029g, 028903029gx, 028903030, 028903030a, 038903018q, 038903018qx, 038903023s, 038903024f, 038903024g, 038903024gx, 045903023ax, 0124325083, 0124325092, 0124325130, 0986045390, 0986045397, 063533250830
