HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115373

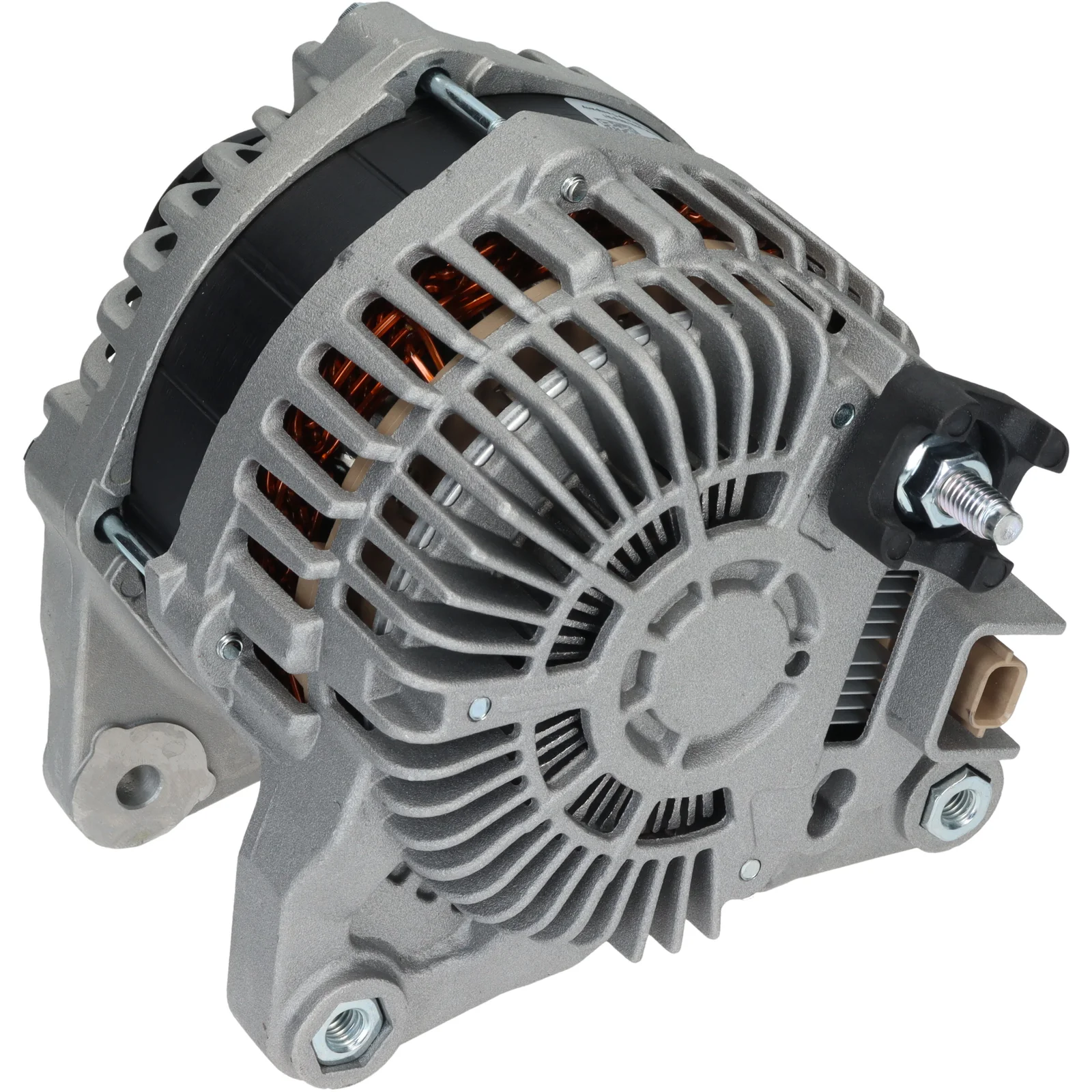

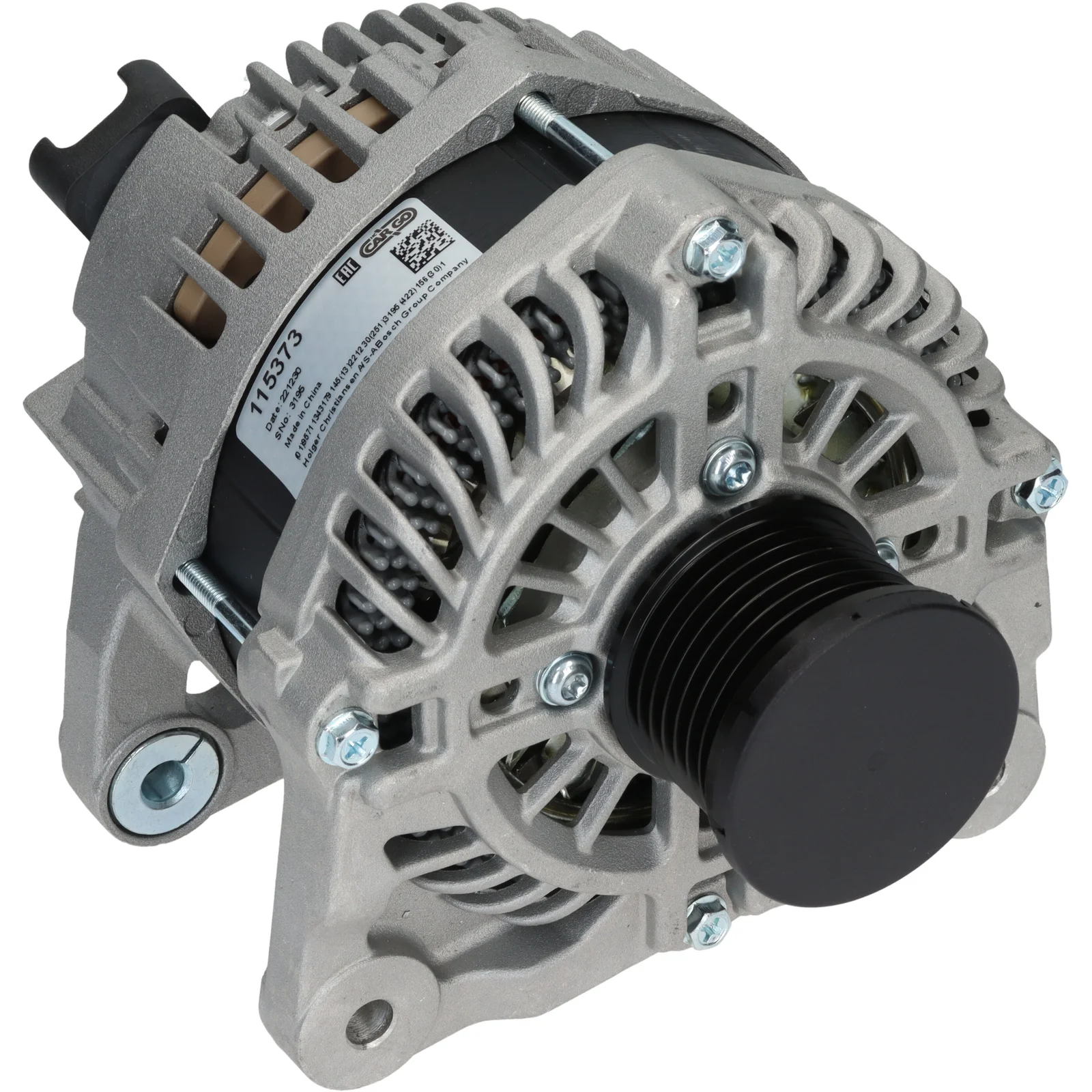

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 62.00

Description

Voltage: 14
Amp: 150
Pulley → Pulley
dist.: 33.00
Width/holder arm: 14.50
Mount. bracket dist.: 62.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 2
Rotation: CW
Plug no.: PL124
Total length mm: 194.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A002TX0481, A2TX0481, F032115373, 23100-0024r, 231000024R, 7711497596

  • Normalised article numbler
    a002tx0481, a2tx0481, f032115373, 24252n, 286847, 231000024r, 2303581502, 7711497596
  • Description
    Voltage: 14
    Amp: 150
    Pulley → Pulley
    dist.: 33.00
    Width/holder arm: 14.50
    Mount. bracket dist.: 62.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 2
    Rotation: CW
    Plug no.: PL124
    Total length mm: 194.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A002TX0481, A2TX0481, F032115373, 23100-0024r, 231000024R, 7711497596

    • Normalised article numbler
      a002tx0481, a2tx0481, f032115373, 24252n, 286847, 231000024r, 2303581502, 7711497596
