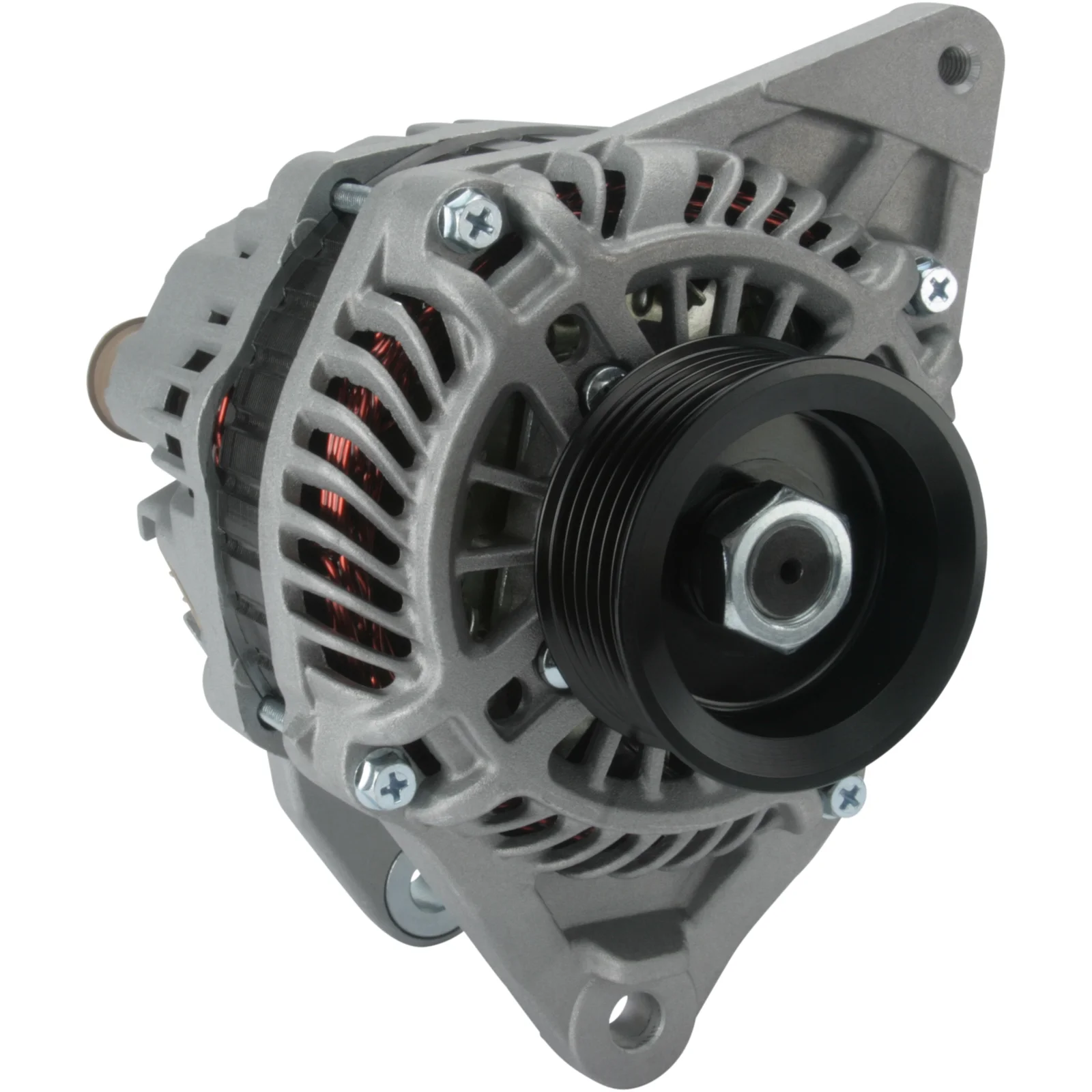

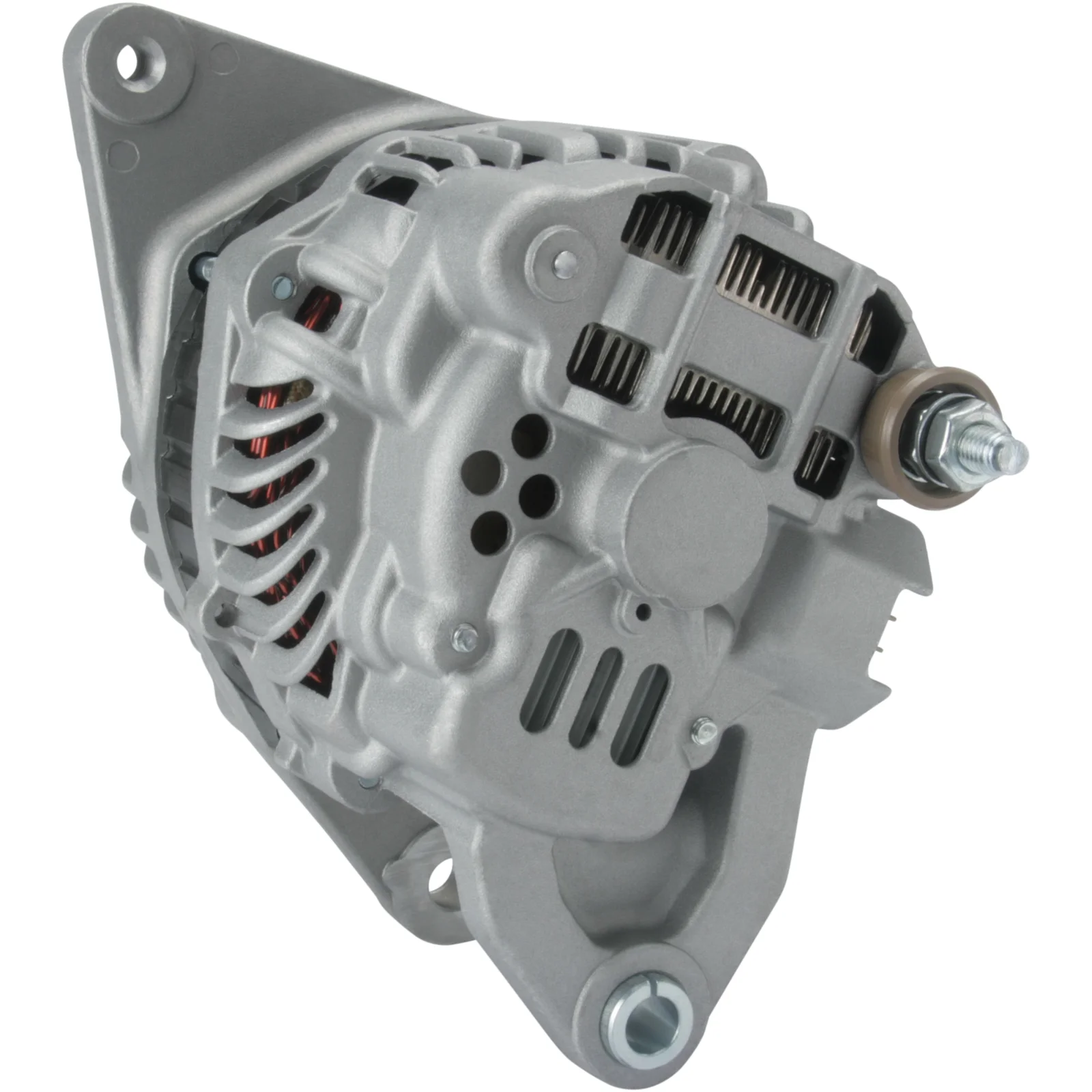

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115477

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 90, Rotation: CW, Mounting bracket distributor: 66.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 38.50
Width/holder arm: 13.00
Mount. bracket dist.: 66.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 7
Belt. adj. bracket hole 1: M8
Pulley dia.: 64.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW
Plug no.: PL68
Total length mm: 177.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A005TG0491, A005TG0491ZT, A5TG0491, A5TG0491ZT, F032115477, 1800a007

  • Normalised article numbler
    a005tg0491, a005tg0491zt, a5079, a5tg0491, a5tg0491zt, cal35222, dra0908, dra0908n, f032115477, lra03337, 1800a007, 11415n, 11415rw, 210952, 210952a, 285949, 444247, 12061009, 155584090, 226187902, 0986083630
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 38.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 66.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 7
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 64.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 13
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL68
    Total length mm: 177.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A005TG0491, A005TG0491ZT, A5TG0491, A5TG0491ZT, F032115477, 1800a007

    • Normalised article numbler
      a005tg0491, a005tg0491zt, a5079, a5tg0491, a5tg0491zt, cal35222, dra0908, dra0908n, f032115477, lra03337, 1800a007, 11415n, 11415rw, 210952, 210952a, 285949, 444247, 12061009, 155584090, 226187902, 0986083630
