HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115526

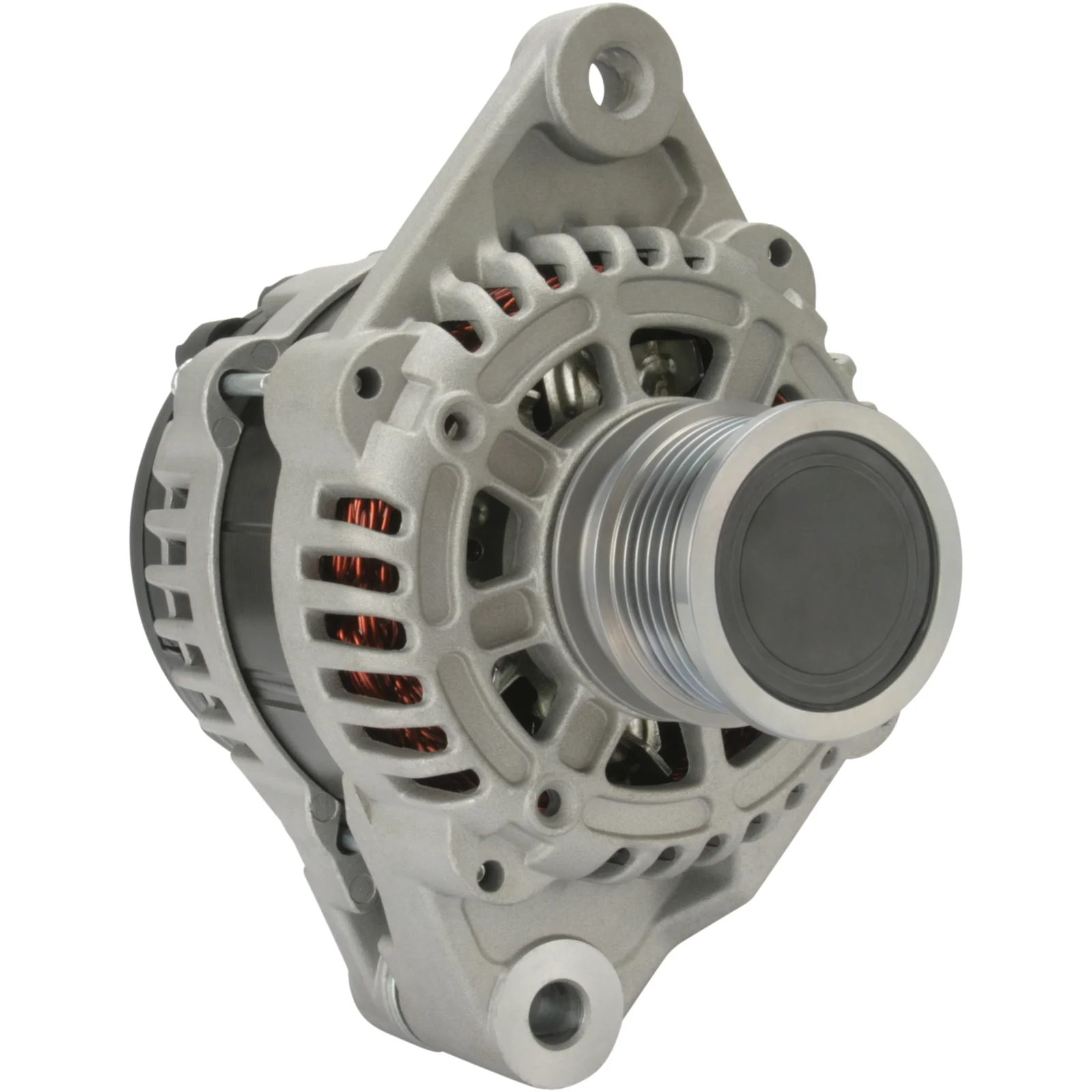

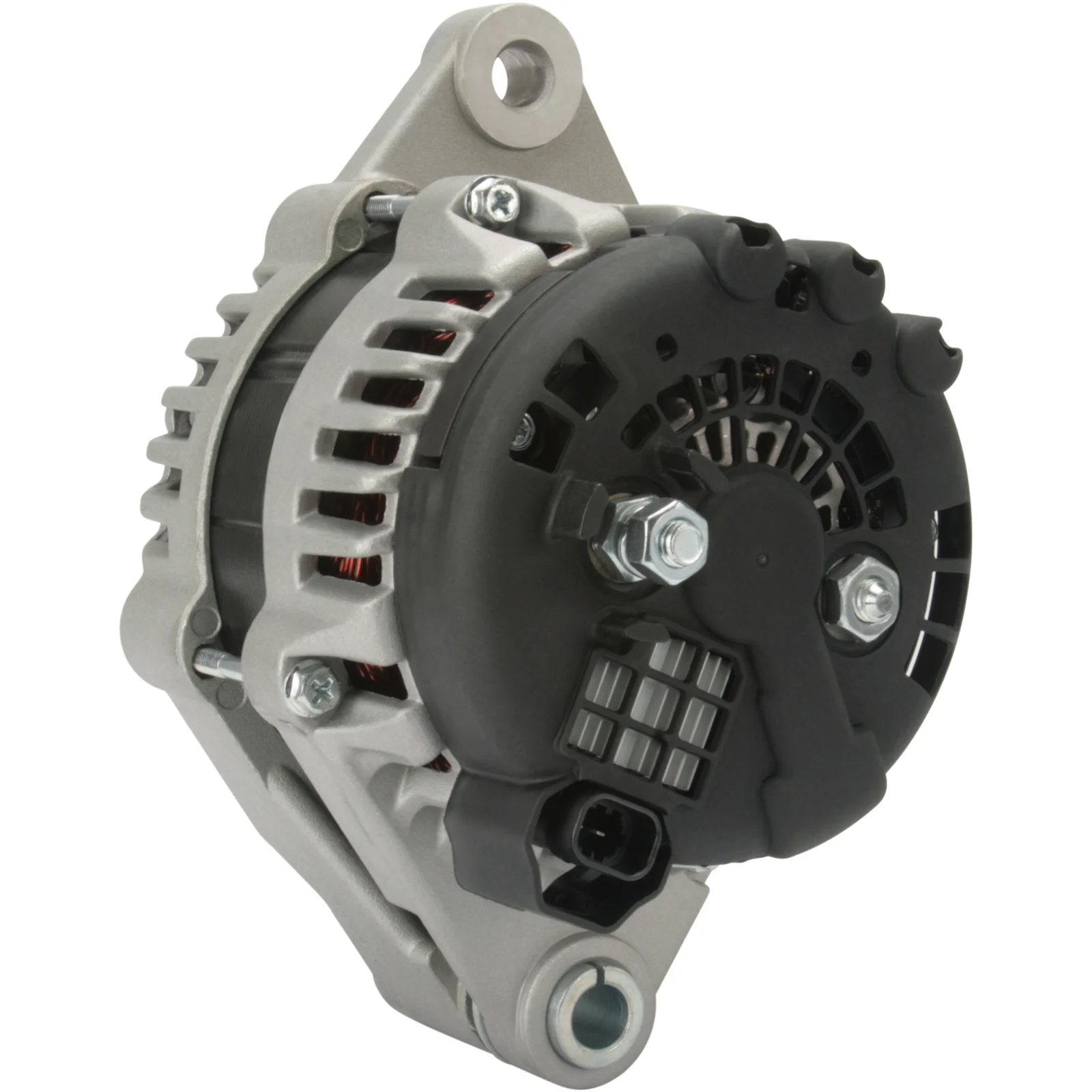

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 100, Rotation: CW, Pulley diameter: 53.00

Description

Voltage: 14
Amps: 100
Pulley dist.: 57.00
Width/holder arm: 18.00
Bracket hole: 12.00
Belt. adjust. bracket hole position.: 60
Belt. adjust. bracket hole 1: 12.00
Pulley diameter.: 53.00
Grooves/pulley: 6
Radius: 83.00
Radius 2: 81.00
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug no.: PL180
Total length mm: 196.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115526, 1202236, 1204643, 13502583, 13579668, 95519835

  • Normalised article numbler
    a1029pr, cal42110, dra1373, f032115526, lra03357, 8el012430581, 4746, 112891, 113299, 285969, 302005ri, 440989, 443068, 443144, 1202236, 1204643, 12090720, 13502583, 13579668, 32004024, 95519835, 135593100, 0986083450, 0986086710, 2281831002, 2281921002
  • Description
    Voltage: 14
    Amps: 100
    Pulley dist.: 57.00
    Width/holder arm: 18.00
    Bracket hole: 12.00
    Belt. adjust. bracket hole position.: 60
    Belt. adjust. bracket hole 1: 12.00
    Pulley diameter.: 53.00
    Grooves/pulley: 6
    Radius: 83.00
    Radius 2: 81.00
    B+: M8
    Position/B+ in min.: 40
    Rotation: CW
    Plug no.: PL180
    Total length mm: 196.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115526, 1202236, 1204643, 13502583, 13579668, 95519835

    • Normalised article numbler
      a1029pr, cal42110, dra1373, f032115526, lra03357, 8el012430581, 4746, 112891, 113299, 285969, 302005ri, 440989, 443068, 443144, 1202236, 1204643, 12090720, 13502583, 13579668, 32004024, 95519835, 135593100, 0986083450, 0986086710, 2281831002, 2281921002
