HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115529

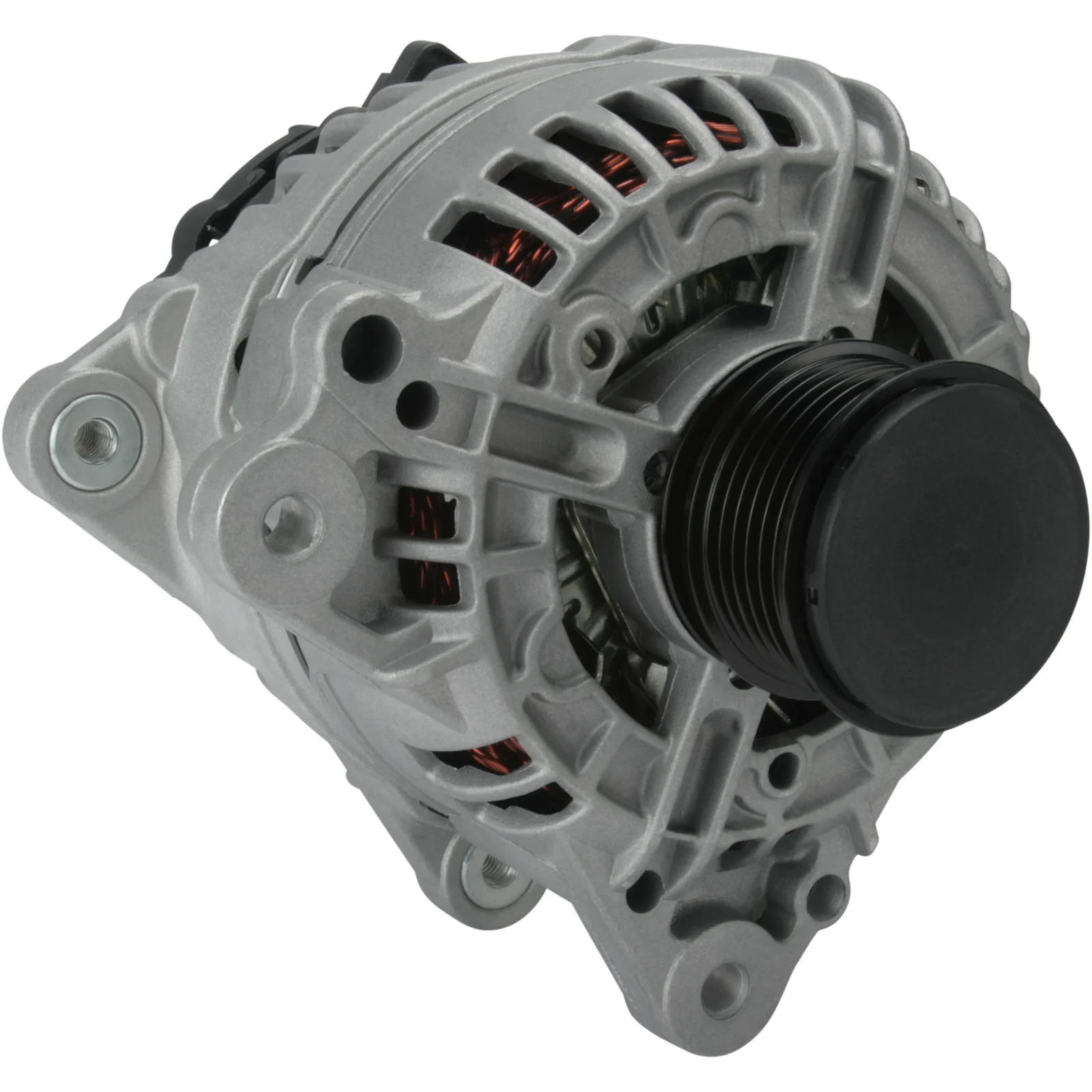

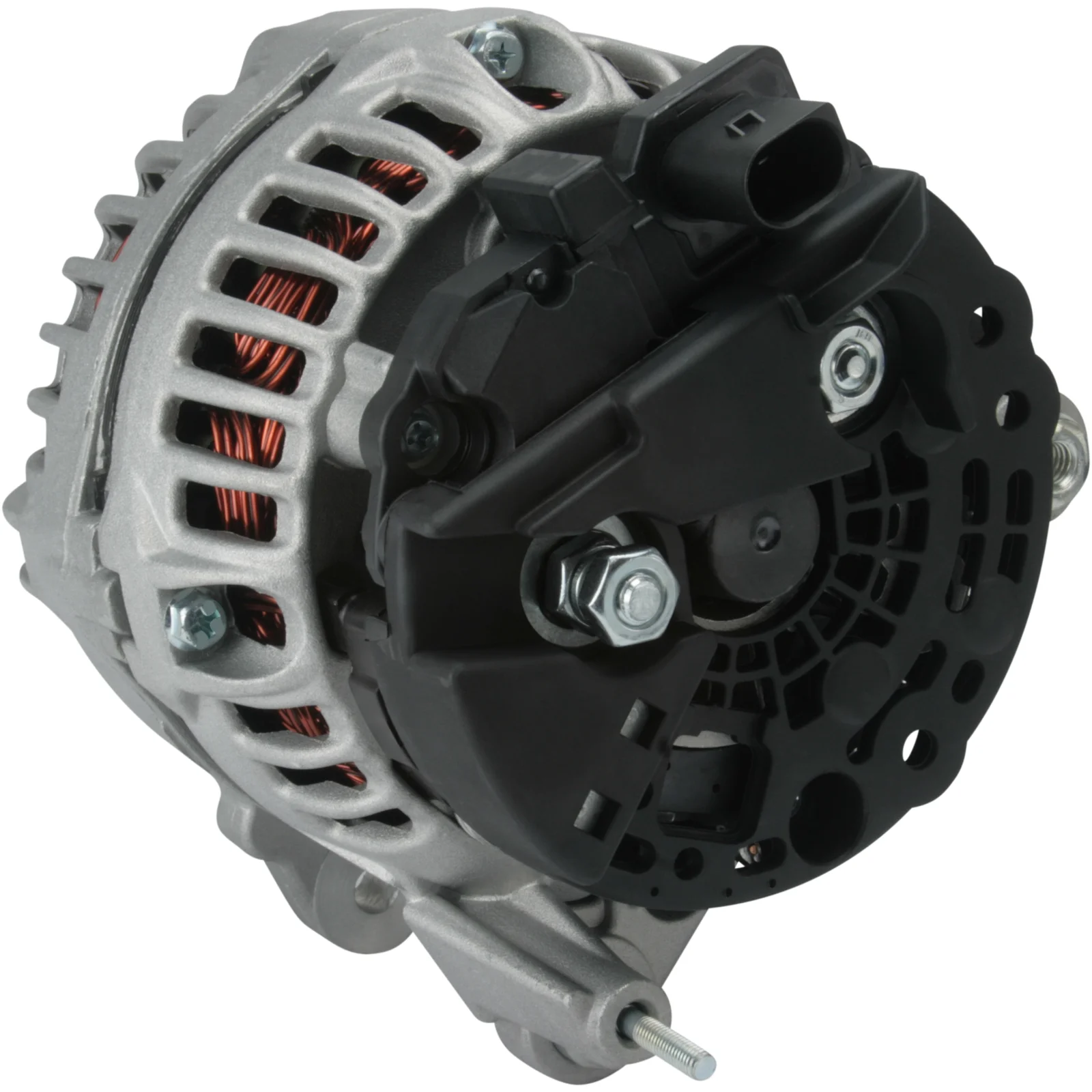

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 140, Mounting bracket distance: 62.00, Pulley diameter: 57.00

Description

Voltage: 14
Amp: 140
Pulley dist.: 39.00
Width/holder arm: 14.00
Mount. bracket dist.: 62.00
Bracket hole: 8.80
Bracket hole 2: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.80
Belt. adj. bracket hole 2: 8.50
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 44
D+ Size: Plug
Plug no.: PL61
Total length mm: 200.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115529, TG14C036, 03P903023D, 2610086A

  • Normalised article numbler
    a0322, dra0985, f032115529, tg14c036, 03p903023d, 8el012240191, 209424, 209424a, 439734, 440324, 2610086a, 9090615
  • Description
    Voltage: 14
    Amp: 140
    Pulley dist.: 39.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 62.00
    Bracket hole: 8.80
    Bracket hole 2: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.80
    Belt. adj. bracket hole 2: 8.50
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 44
    D+ Size: Plug
    Plug no.: PL61
    Total length mm: 200.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115529, TG14C036, 03P903023D, 2610086A

    • Normalised article numbler
      a0322, dra0985, f032115529, tg14c036, 03p903023d, 8el012240191, 209424, 209424a, 439734, 440324, 2610086a, 9090615
