HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115551

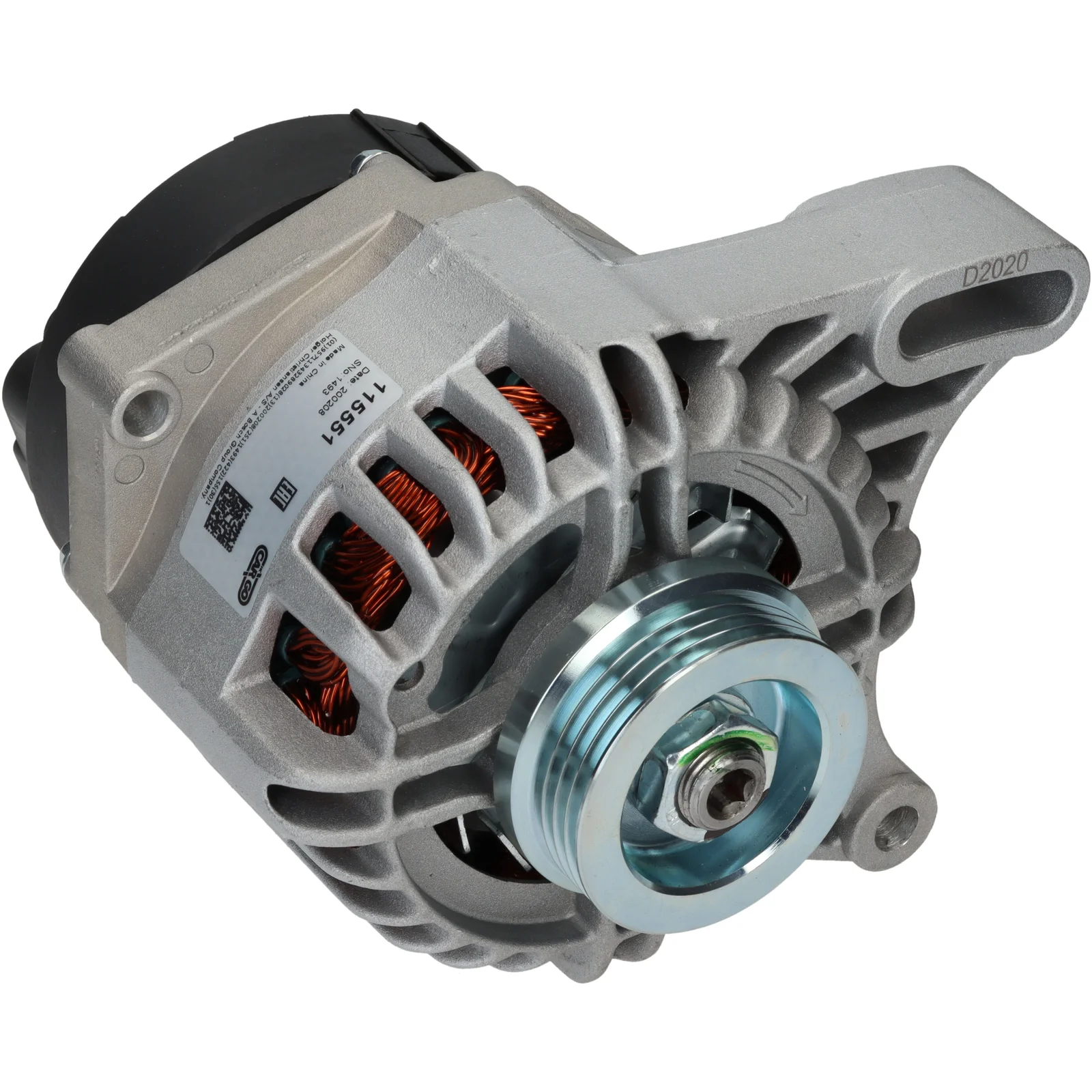

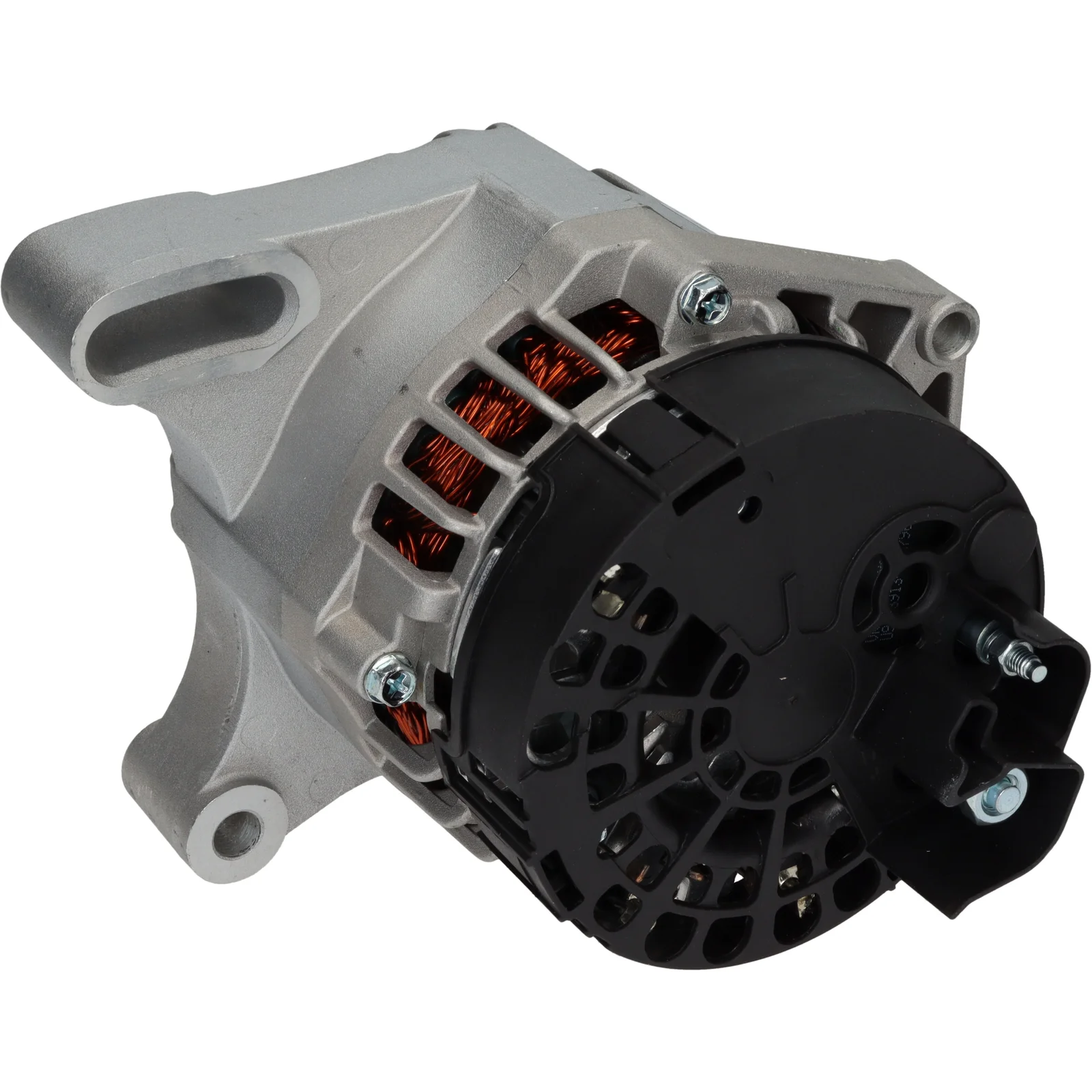

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley diameter: 60.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 54.60
Width/holder arm: 33.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 18
Belt. adj. bracket hole 1: 11.50
Pulley diameter: 60.00
Grooves/pulley: 4
Radius: 92.50
Radius 2: 110.00
B+: M8
Position/B+ in min.: 12
D+ Size: M5
Rotation: CW
Total length mm: 187.50
Pulley: SP
Fan: IF
Voltage regulator type: IR

Files

  • OEM
    F032115551, 1986A02066, 2059ir, 101210-1480, 46736968, 51859049, 63321760

  • Normalised article numbler
    a4104, a4104denso, cal30183, dan631, dra0141, f032115551, lra02828, 8el012240811, 1986a02066, 2059ir, 23828n, 210666, 210666a, 440803, 443198, 12090621, 46736968, 51859049, 63321760, 0986087080, 1012101480
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 54.60
    Width/holder arm: 33.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 18
    Belt. adj. bracket hole 1: 11.50
    Pulley diameter: 60.00
    Grooves/pulley: 4
    Radius: 92.50
    Radius 2: 110.00
    B+: M8
    Position/B+ in min.: 12
    D+ Size: M5
    Rotation: CW
    Total length mm: 187.50
    Pulley: SP
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032115551, 1986A02066, 2059ir, 101210-1480, 46736968, 51859049, 63321760

    • Normalised article numbler
      a4104, a4104denso, cal30183, dan631, dra0141, f032115551, lra02828, 8el012240811, 1986a02066, 2059ir, 23828n, 210666, 210666a, 440803, 443198, 12090621, 46736968, 51859049, 63321760, 0986087080, 1012101480
