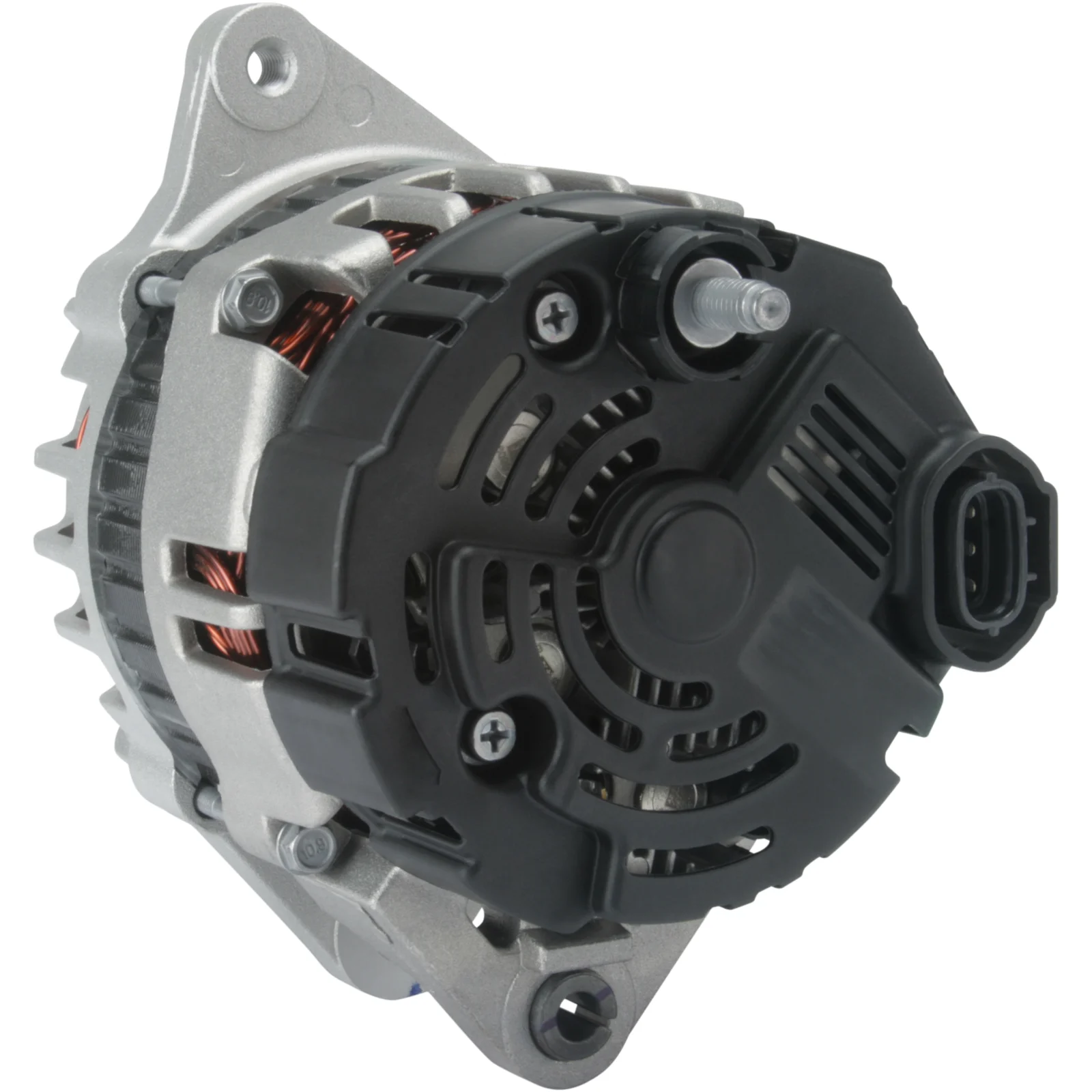

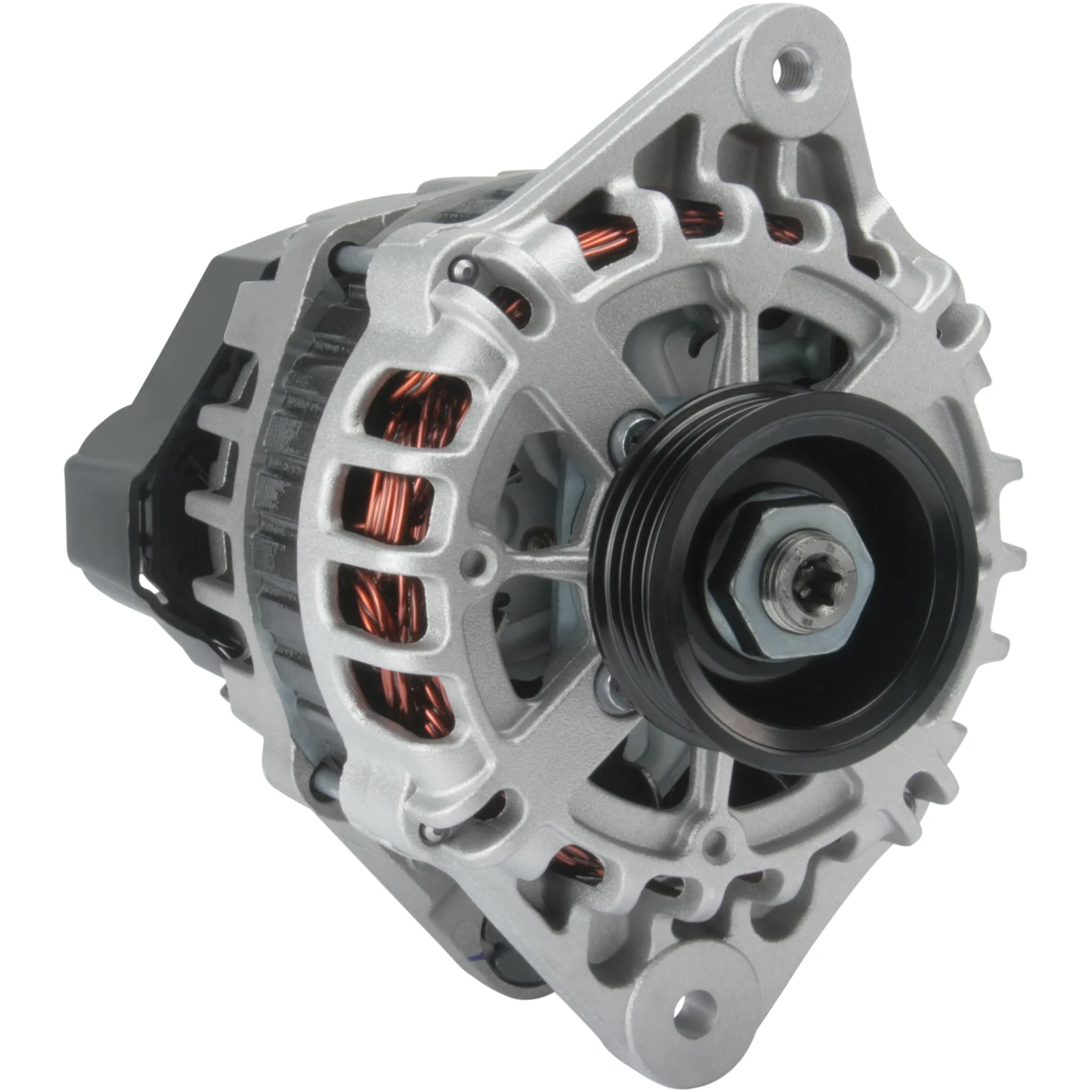

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115654

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mounting bracket distributor: 48.00

Description

Voltage: 14
Amp: 70
Pulley dist.: 38.00
Width/holder arm: 13.00
Mounting bracket dist.: 48.00
Bracket hole: 8.20
Belt adjustment bracket hole position.: 3
Belt adjustment bracket hole 1: M8
Pulley diameter: 55.00
Grooves/pulley: 4
Radius: 78.00
Radius 2: 80.00
B+: M8
Position/B+ in minutes.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL176
Total length mm: 169.00
Pulley: SP
Fan: IF
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F000BL0105, F000BL0122, F032115654, 2124ir, 37300-02600, 37300-02605, 37300-02850, 2607052, 2613777

  • Normalised article numbler
    a0809s, a3315s, a3315valeo, cal32149, dra0793, dra0793n, f000bl0105, f000bl0122, f032115654, lra03367, 8el011713061, 2124ir, 209030, 209030a, 285979, 444335, 600321, 600741, 2607052, 2613777, 12061045, 155576080, 155585070, 224303702, 0986083510, 3730002600, 3730002605, 3730002850
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 38.00
    Width/holder arm: 13.00
    Mounting bracket dist.: 48.00
    Bracket hole: 8.20
    Belt adjustment bracket hole position.: 3
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 55.00
    Grooves/pulley: 4
    Radius: 78.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in minutes.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL176
    Total length mm: 169.00
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0105, F000BL0122, F032115654, 2124ir, 37300-02600, 37300-02605, 37300-02850, 2607052, 2613777

    • Normalised article numbler
      a0809s, a3315s, a3315valeo, cal32149, dra0793, dra0793n, f000bl0105, f000bl0122, f032115654, lra03367, 8el011713061, 2124ir, 209030, 209030a, 285979, 444335, 600321, 600741, 2607052, 2613777, 12061045, 155576080, 155585070, 224303702, 0986083510, 3730002600, 3730002605, 3730002850
