HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115655

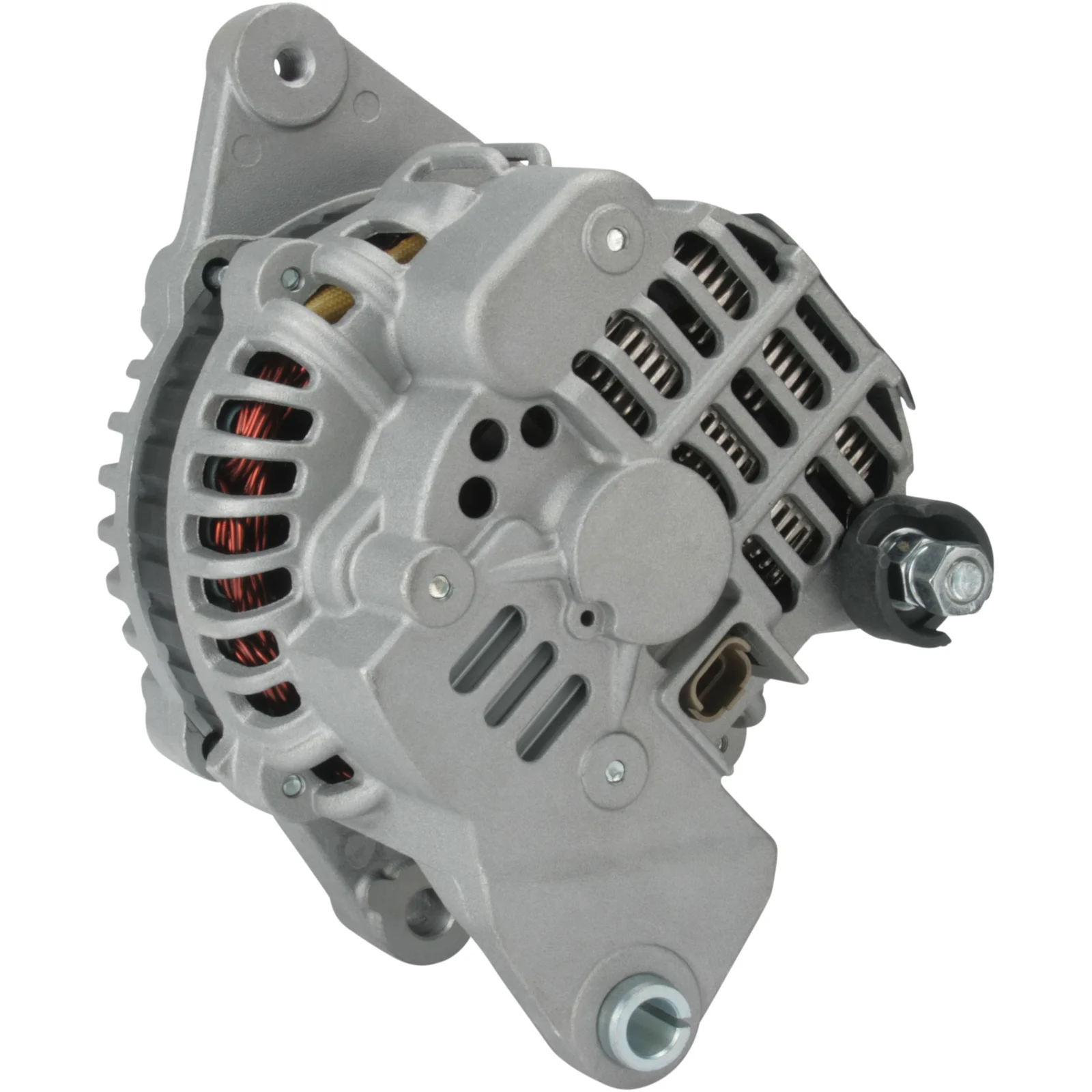

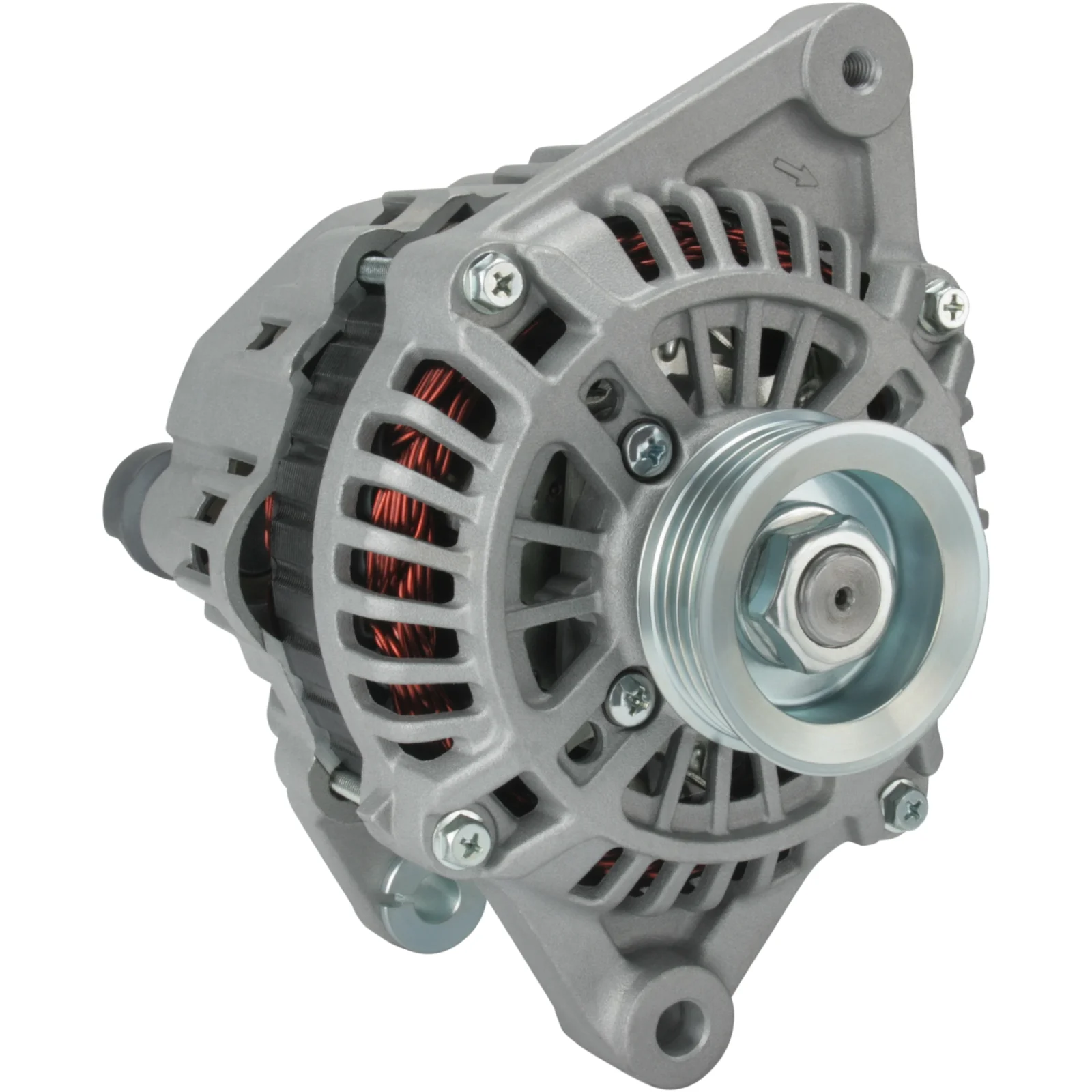

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 110, Rotation: CW, Mounting bracket distributor: 67.50

Description

Voltage: 14
Amp: 110
Pulley dist.: 52.00
Width/holder arm: 27.00
Mounting bracket dist.: 67.50
Bracket hole: 10.40
Belt adjustment bracket hole position.: 3
Belt adjustment bracket hole 1: M8
Pulley diameter: 55.00
Grooves/pulley: 4
Radius: 85.00
Radius 2: 94.00
B+: M8
Position/B+ in minutes.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL55
Total length mm: 172.00
Pulley: SP
Product info: BN

Files

  • OEM
    A002TC0391, a2tc0391, F032115655, 6001549064, 8200400891, 8200660053

  • Normalised article numbler
    a002tc0391, a2tc0391, a5047, cal35303, dra1183, f032115655, lra03405, 112644, 210710, 210710a, 286517, 440902, 440931, 554310ri, 12060940, 575594110, 2303491102, 6001549064, 8200400891, 8200660053
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 52.00
    Width/holder arm: 27.00
    Mounting bracket dist.: 67.50
    Bracket hole: 10.40
    Belt adjustment bracket hole position.: 3
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 55.00
    Grooves/pulley: 4
    Radius: 85.00
    Radius 2: 94.00
    B+: M8
    Position/B+ in minutes.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL55
    Total length mm: 172.00
    Pulley: SP
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A002TC0391, a2tc0391, F032115655, 6001549064, 8200400891, 8200660053

    • Normalised article numbler
      a002tc0391, a2tc0391, a5047, cal35303, dra1183, f032115655, lra03405, 112644, 210710, 210710a, 286517, 440902, 440931, 554310ri, 12060940, 575594110, 2303491102, 6001549064, 8200400891, 8200660053
