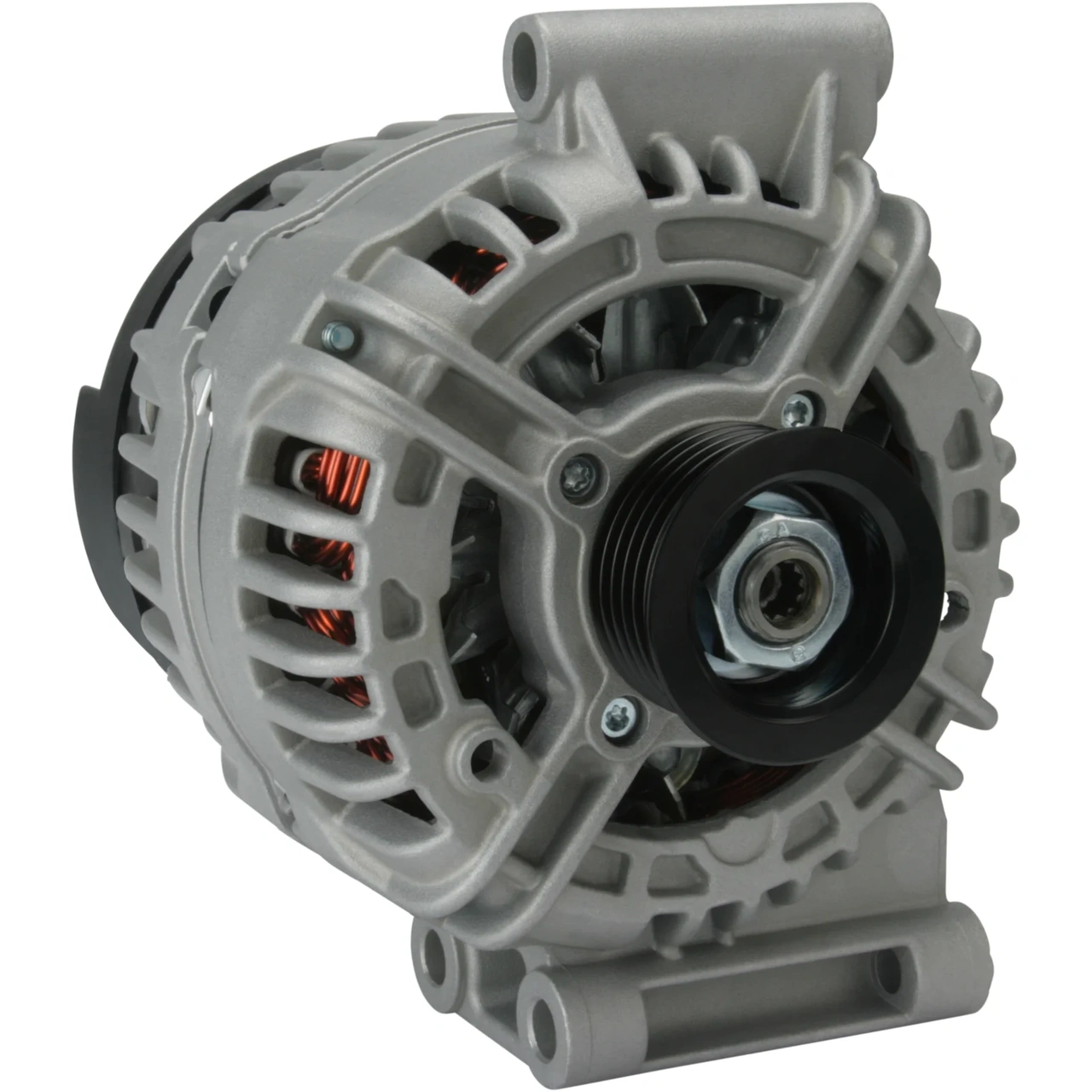

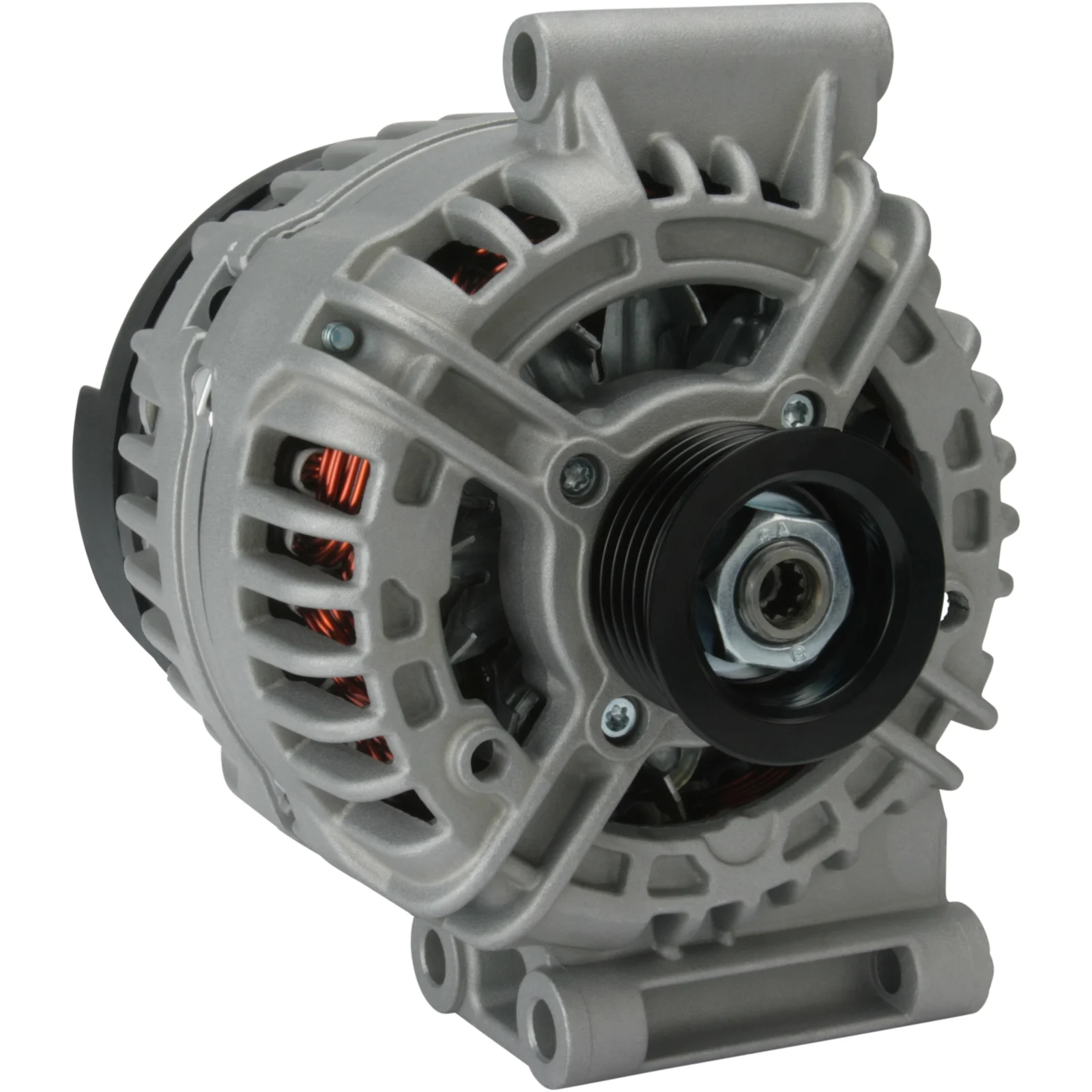

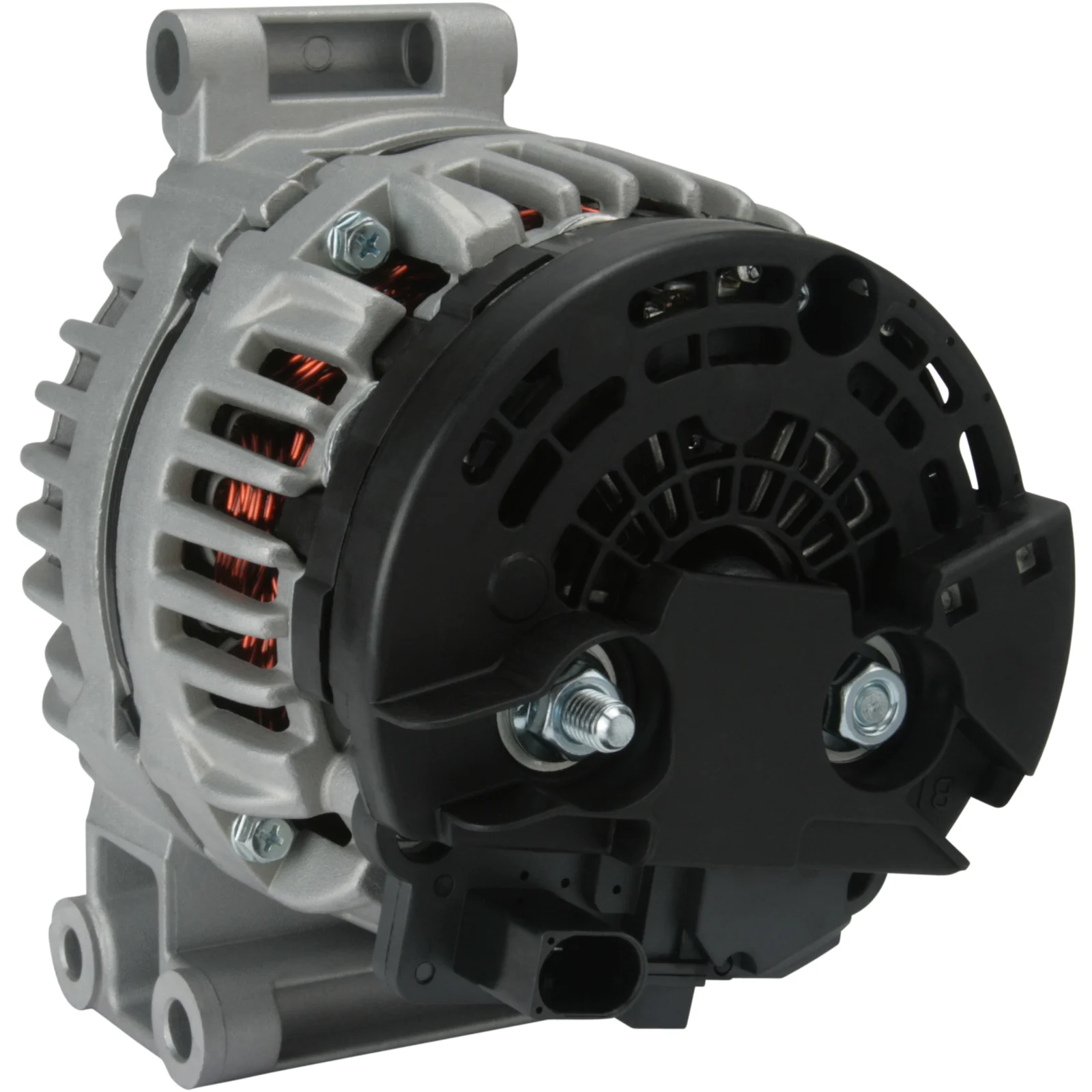

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115658

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 110, Rotation: CW, Mounting bracket dist.: 43.50

Description

Voltage: 14
Amp: 110
Pulley dist.: 19.50
Width/holder arm: 81.50
Mount. bracket dist.: 43.50
Bracket hole: 9.00
Bracket hole 2: 8.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.00
Pulley dia.: 47.50
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL103
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115658, 1868ir, 1986A00805, 7550319, 7550997, 7559223, 0124325157, 0124325158, 12317550224, 12317550319, 12317550997, 12317559223

  • Normalised article numbler
    a0210, cal10286, dra0137, f032115658, lra02908, 8el012428401, 8el738211241, 1868ir, 1986a00805, 4855, 11333n, 11333r, 112557, 209391, 209391a, 285522, 440920, 443263, 7550319, 7550997, 7559223, 12090054, 32048750, 0124325157, 0124325158, 445504110, 0986047227, 0986048750, 0986048753, 0986048757, 2151521102, 12317550224, 12317550319, 12317550997, 12317559223
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 19.50
    Width/holder arm: 81.50
    Mount. bracket dist.: 43.50
    Bracket hole: 9.00
    Bracket hole 2: 8.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.00
    Pulley dia.: 47.50
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL103
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115658, 1868ir, 1986A00805, 7550319, 7550997, 7559223, 0124325157, 0124325158, 12317550224, 12317550319, 12317550997, 12317559223

    • Normalised article numbler
      a0210, cal10286, dra0137, f032115658, lra02908, 8el012428401, 8el738211241, 1868ir, 1986a00805, 4855, 11333n, 11333r, 112557, 209391, 209391a, 285522, 440920, 443263, 7550319, 7550997, 7559223, 12090054, 32048750, 0124325157, 0124325158, 445504110, 0986047227, 0986048750, 0986048753, 0986048757, 2151521102, 12317550224, 12317550319, 12317550997, 12317559223
