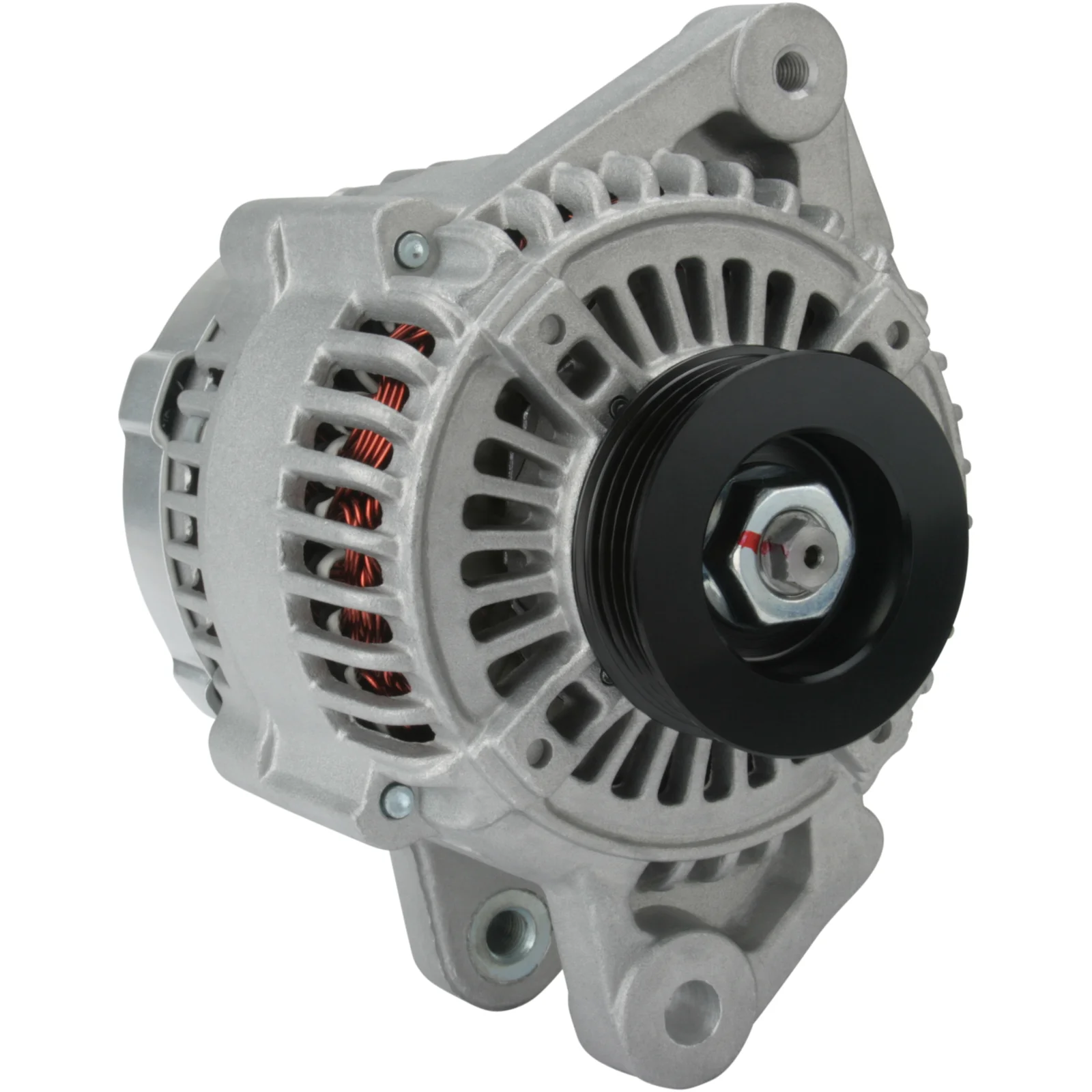

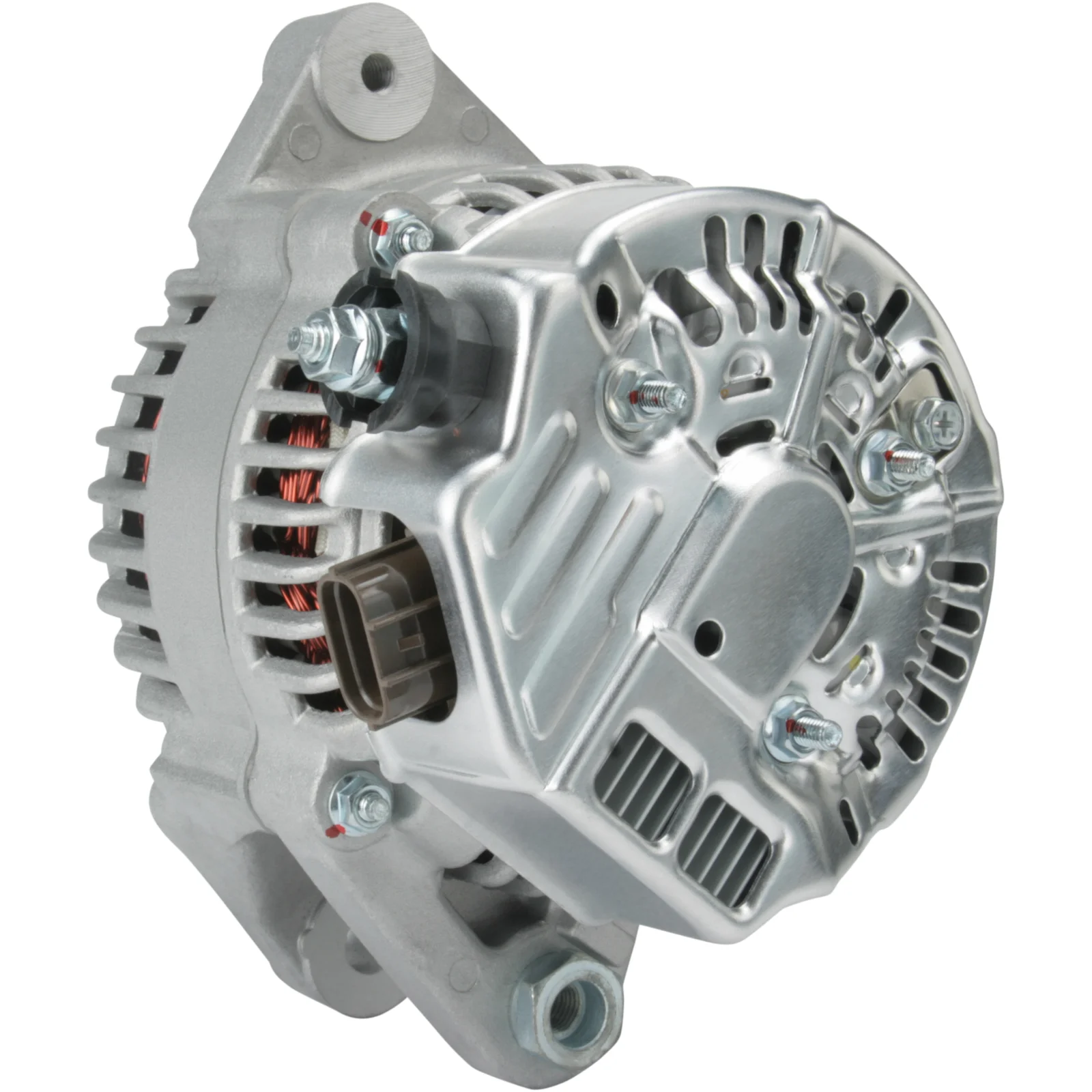

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115660

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 41.00

Description

Voltage: 14
Amperage: 70
Pulley dist.: 34.00
Width/holder arm: 18.00
Mounting bracket dist.: 41.00
Bracket hole: 11.00
Belt adjustment bracket hole position.: 3
Belt adjustment bracket hole 1: M8
Pulley diameter: 60.00
Grooves/pulley: 4
Radius: 81.00
Radius 2: 81.50
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: clockwise
Plug no.: PL67
Total length mm: 160.00
Pulley: SP
Voltage regulator type: IR
Product info: BN

Files

  • OEM
    F032115660, ja1793ir, 27060-21010, 27060-21011, 27060-21040, 27060-21041, 27060-21050, 27060-33010, 102211-5260, 102211-5380, 102211-5650

  • Normalised article numbler
    a6072, a6072denso, alt5139, cal44100, dan964, dan966, dra1614, dra4107, f032115660, f042205005, j5112106, j5112133, ja1793ir, lea0601, man7504, 8el012426671, 13896n, 111598, 209394, 209394a, 283869, 401793ri, 440293, 443173, 9045811, 9213555, 12060775, 063377442, 195540080, 235168702, 0986045811, 1022115260, 1022115380, 1022115650, 2706021010, 2706021011, 2706021040, 2706021041, 2706021050, 2706033010, 063377442010, 063377504010
  • Description
    Voltage: 14
    Amperage: 70
    Pulley dist.: 34.00
    Width/holder arm: 18.00
    Mounting bracket dist.: 41.00
    Bracket hole: 11.00
    Belt adjustment bracket hole position.: 3
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 60.00
    Grooves/pulley: 4
    Radius: 81.00
    Radius 2: 81.50
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: clockwise
    Plug no.: PL67
    Total length mm: 160.00
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115660, ja1793ir, 27060-21010, 27060-21011, 27060-21040, 27060-21041, 27060-21050, 27060-33010, 102211-5260, 102211-5380, 102211-5650

    • Normalised article numbler
      a6072, a6072denso, alt5139, cal44100, dan964, dan966, dra1614, dra4107, f032115660, f042205005, j5112106, j5112133, ja1793ir, lea0601, man7504, 8el012426671, 13896n, 111598, 209394, 209394a, 283869, 401793ri, 440293, 443173, 9045811, 9213555, 12060775, 063377442, 195540080, 235168702, 0986045811, 1022115260, 1022115380, 1022115650, 2706021010, 2706021011, 2706021040, 2706021041, 2706021050, 2706033010, 063377442010, 063377504010
