HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115666

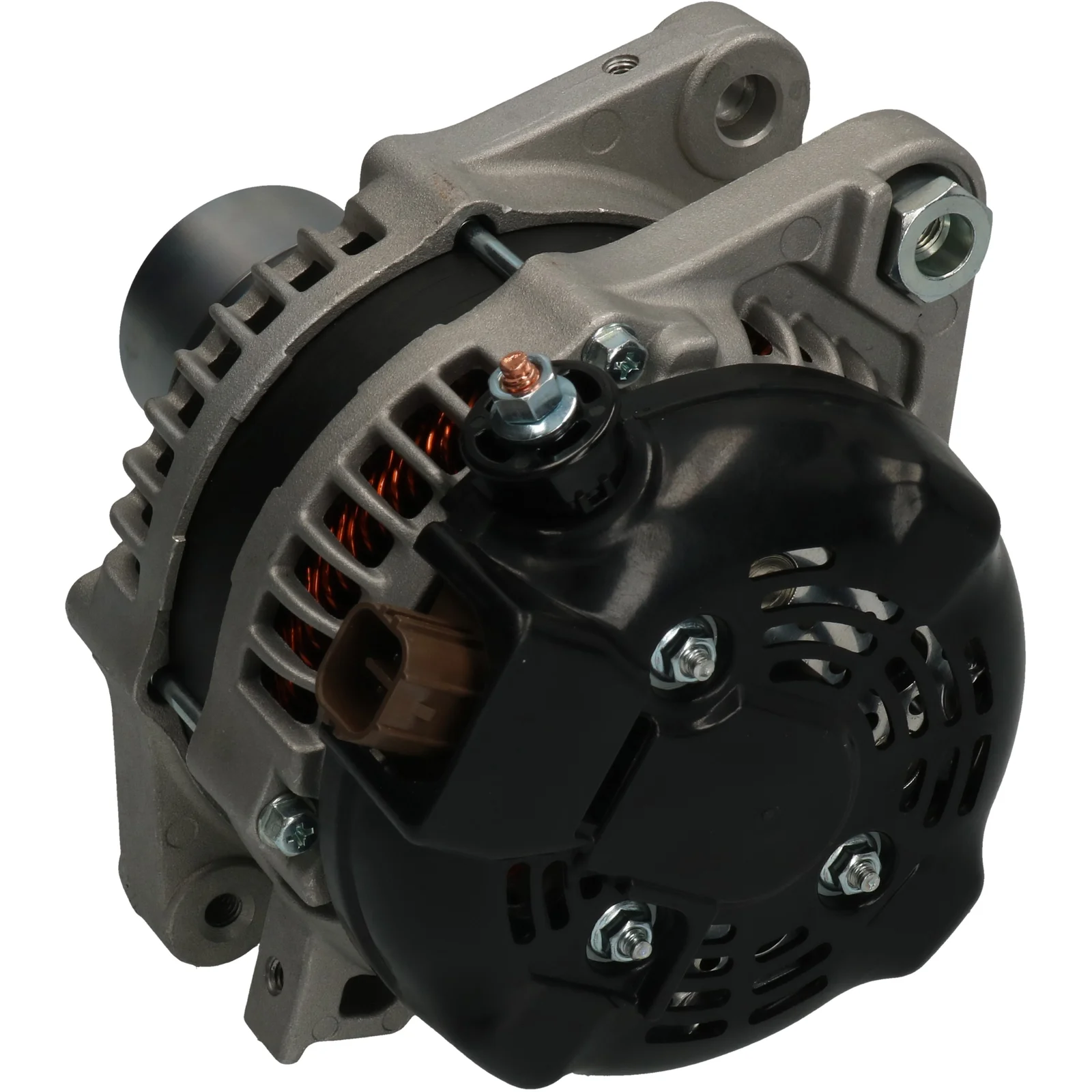

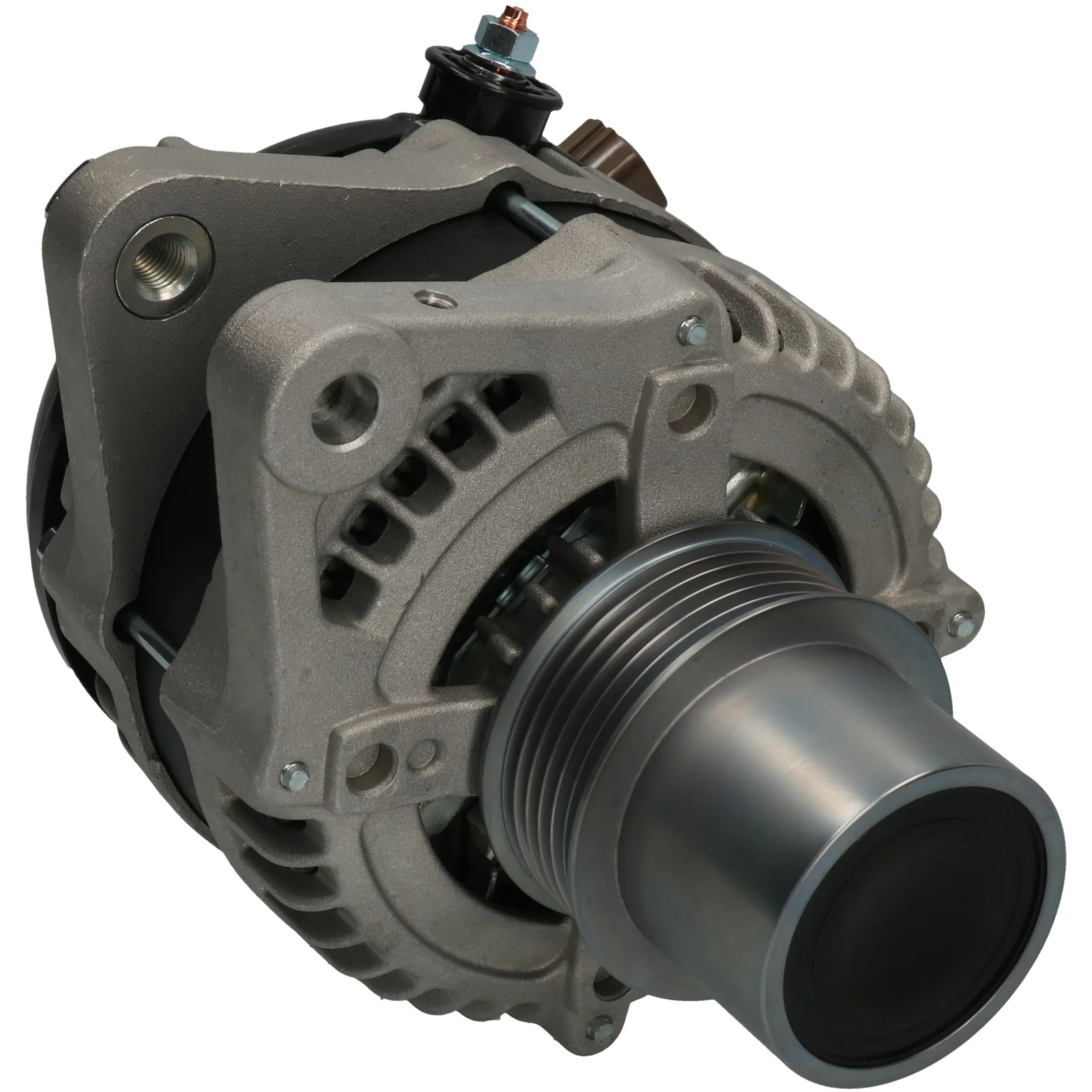

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 37.40

Description

Voltage: 14
Amp: 100
Pulley dist.: 28.50
Width/holder arm: 19.00
Mount. bracket dist.: 37.40
Bracket hole: 11.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.30
Grooves/pulley: 6
Radius: 89.00
Radius 2: 81.00
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL146
Total length mm: 196.00
Lamp type: Inactive
Communication: RLO
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032115666, 27060-0q070, 104210-2290, 104210-2291, 104210-2430

  • Normalised article numbler
    a6094, cal40301, dan1017, dra0889, f032115666, lra03370, man7538, 210773, 210773a, 270600q070, 285982, 444220, 9090834, 12060920, 195944100, 1042102290, 1042102291, 1042102430, 2353331002, 063377538010
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 28.50
    Width/holder arm: 19.00
    Mount. bracket dist.: 37.40
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 67.30
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 81.00
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL146
    Total length mm: 196.00
    Lamp type: Inactive
    Communication: RLO
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032115666, 27060-0q070, 104210-2290, 104210-2291, 104210-2430

    • Normalised article numbler
      a6094, cal40301, dan1017, dra0889, f032115666, lra03370, man7538, 210773, 210773a, 270600q070, 285982, 444220, 9090834, 12060920, 195944100, 1042102290, 1042102291, 1042102430, 2353331002, 063377538010
