HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115671

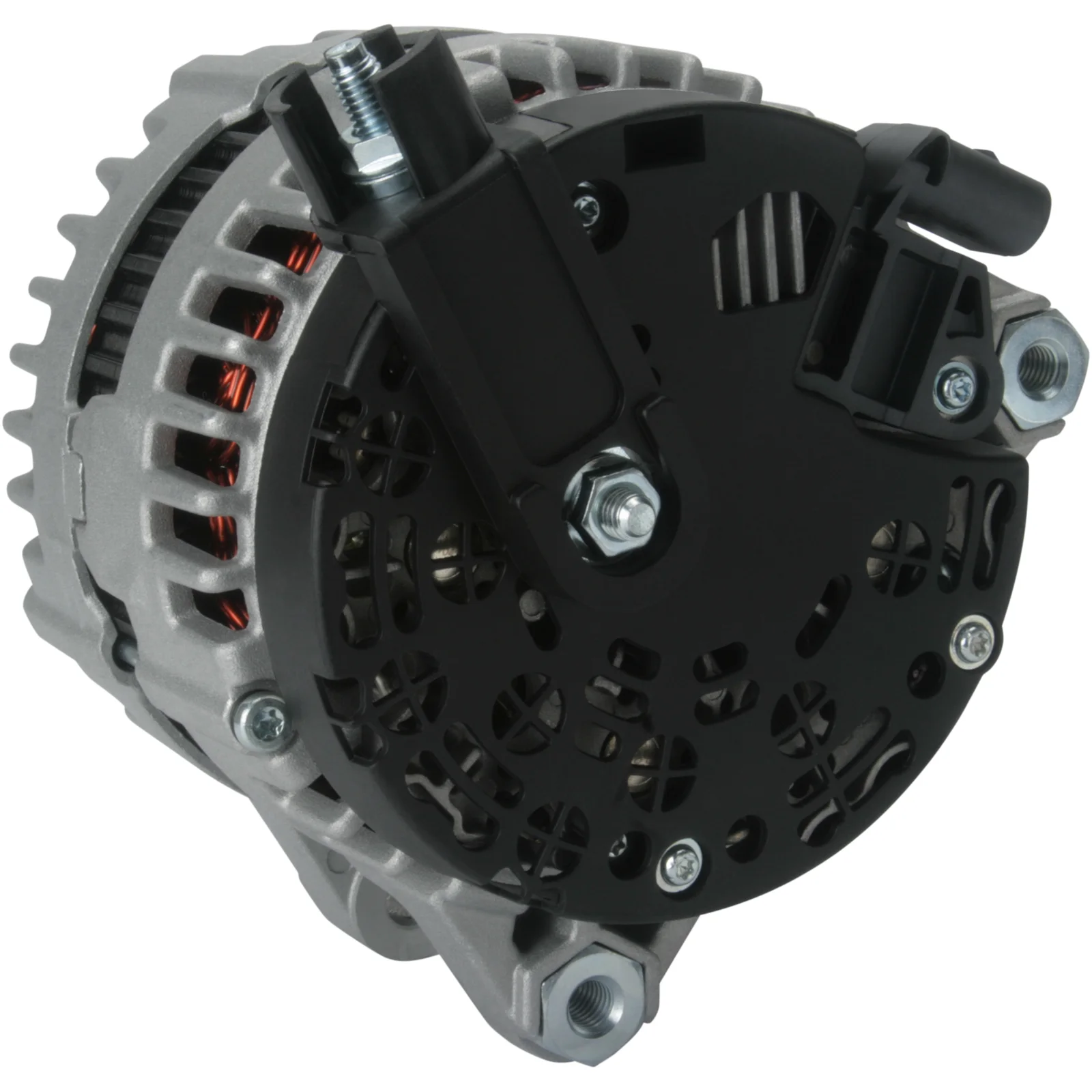

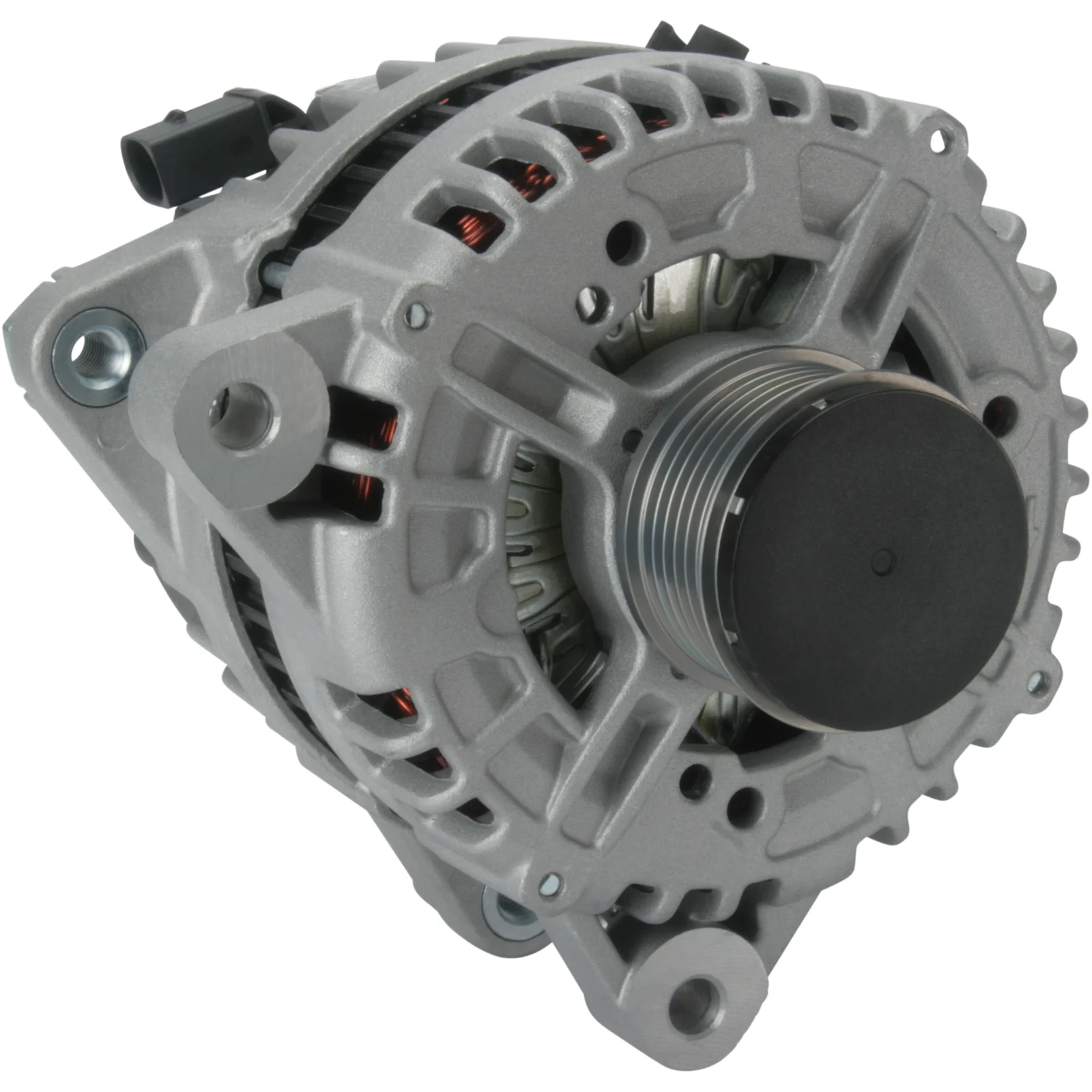

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 47.00

Description

Voltage: 14
Amp: 180
Pulley diameter: 43.00
Width/holder arm: 21.00
Mounting bracket diameter: 47.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.80
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 57
Rotation: CW
Plug number: PL174
Total length mm: 185.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Product information: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115671, lr001200, 6g9n10300yc, 1986A00675, 8697585, 36000223, 0121715024, 0121715124

  • Normalised article numbler
    a0502, a0502pr, cal10434, dra0476, f032115671, lr001200, lra03455, 6g9n10300yc, 1986a00675, 20008n, 20008r, 113053, 209100, 209100a, 286565, 444203, 8697585, 9090848, 12090345, 32081390, 36000223, 0121715024, 0121715124, 455527180, 0986081390, 2191911802
  • Description
    Voltage: 14
    Amp: 180
    Pulley diameter: 43.00
    Width/holder arm: 21.00
    Mounting bracket diameter: 47.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.80
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 57
    Rotation: CW
    Plug number: PL174
    Total length mm: 185.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Product information: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115671, lr001200, 6g9n10300yc, 1986A00675, 8697585, 36000223, 0121715024, 0121715124

    • Normalised article numbler
      a0502, a0502pr, cal10434, dra0476, f032115671, lr001200, lra03455, 6g9n10300yc, 1986a00675, 20008n, 20008r, 113053, 209100, 209100a, 286565, 444203, 8697585, 9090848, 12090345, 32081390, 36000223, 0121715024, 0121715124, 455527180, 0986081390, 2191911802
