HC-Cargo Alternator

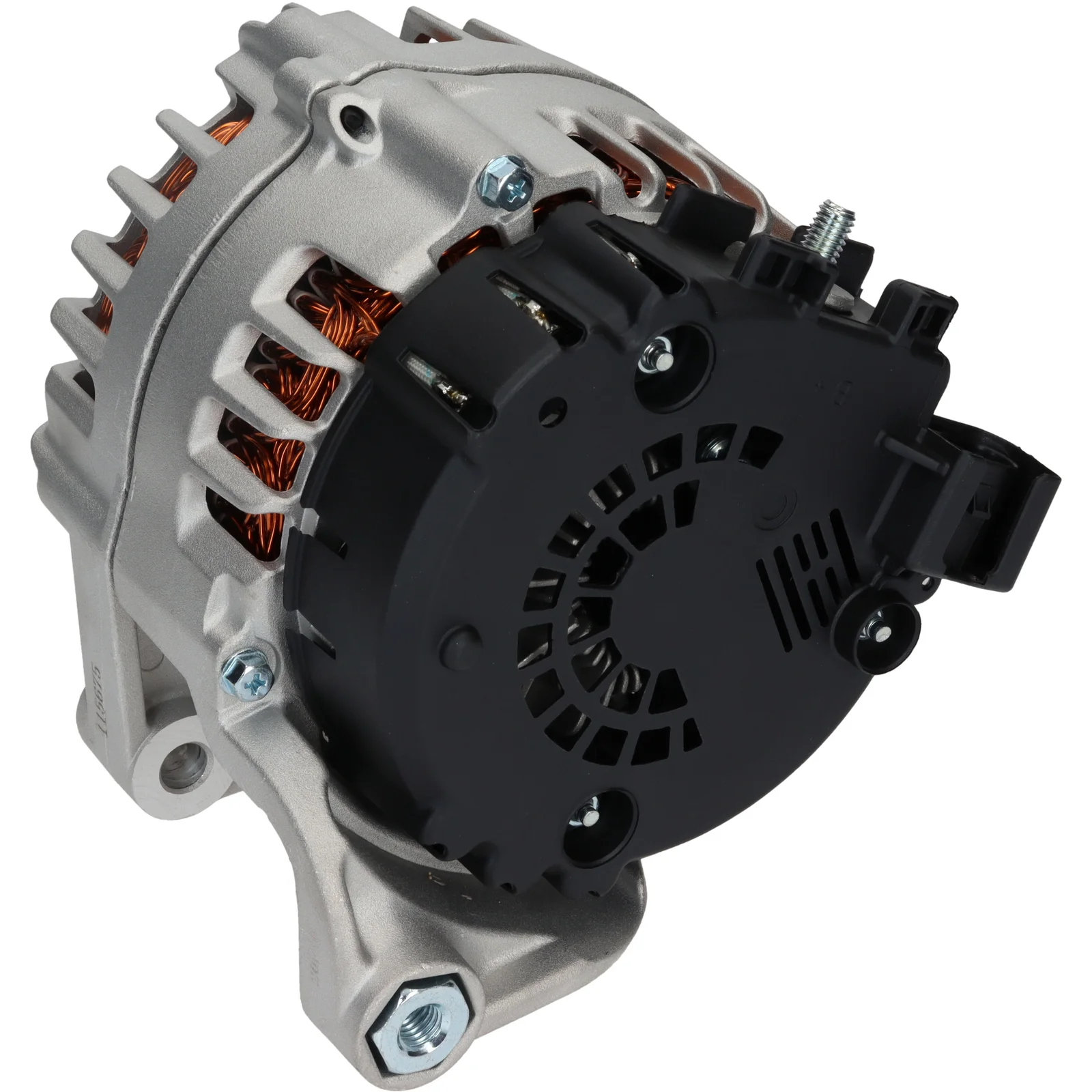

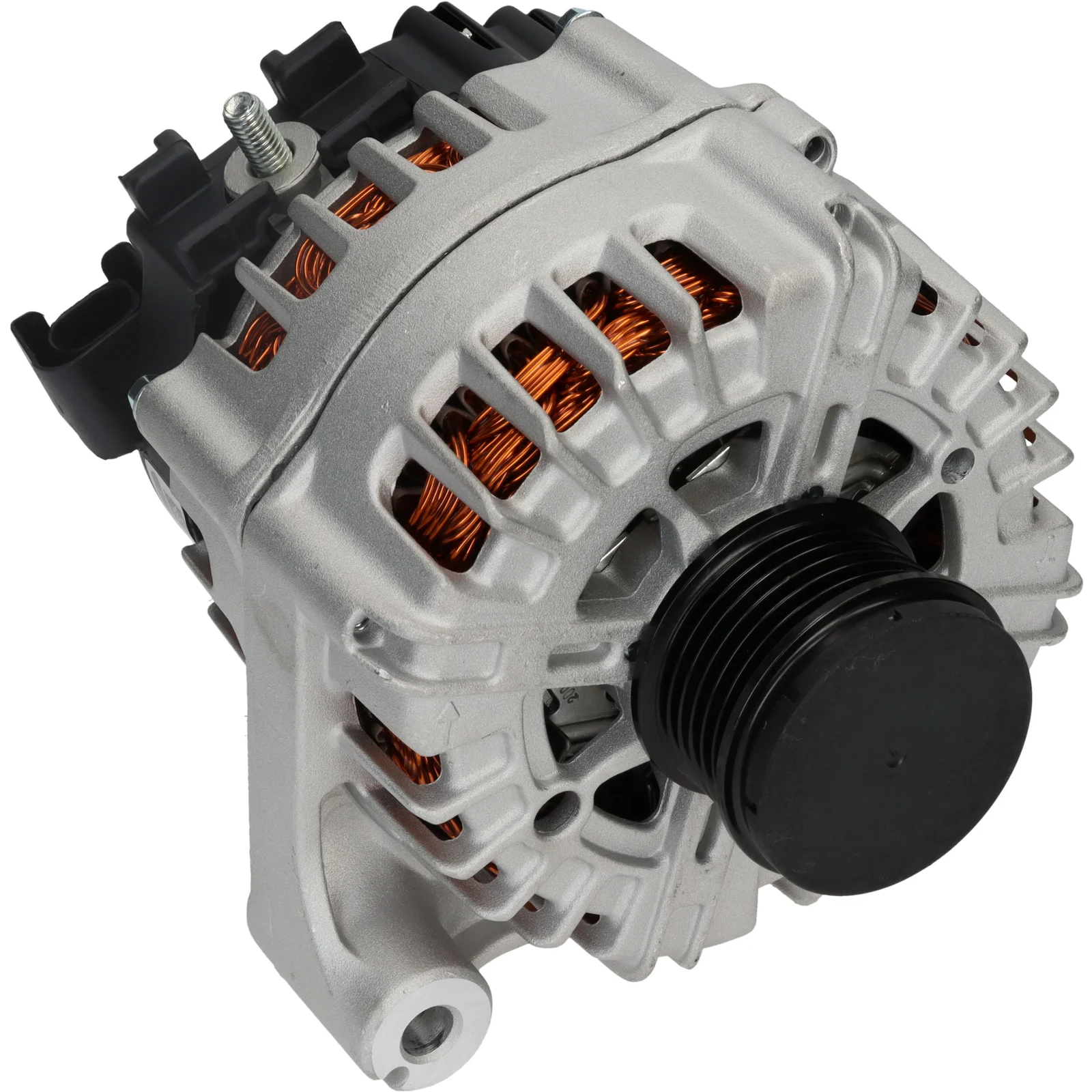

HC-Cargo Alternator
Article no.: F032115675

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 75.00

Description

Voltage: 14
Amp: 180
Pulley distance: 58.00
Width/holder arm: 28.00
Mounting bracket distance: 75.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 3
Rotation: CW
Plug number: PL125
Total length mm: 189.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115675, FG18S045, 1986A00574, 2143ir, 2607244, 2607244D, 2607244E, 2617511, 8519890, 12317823343, 12317823344

  • Normalised article numbler
    a3416pr, a3416s, cal15530, dra1054, f032115675, fg18s045, 8el011712861, 1986a00574, 2143ir, 22637noe, 209149, 209149a, 286830, 440430, 2607244, 2607244d, 2607244e, 2617511, 8519890, 12090537, 32082850, 215584180, 0986082850, 2151911802, 12317823343, 12317823344
  • Description
    Voltage: 14
    Amp: 180
    Pulley distance: 58.00
    Width/holder arm: 28.00
    Mounting bracket distance: 75.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 3
    Rotation: CW
    Plug number: PL125
    Total length mm: 189.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115675, FG18S045, 1986A00574, 2143ir, 2607244, 2607244D, 2607244E, 2617511, 8519890, 12317823343, 12317823344

    • Normalised article numbler
      a3416pr, a3416s, cal15530, dra1054, f032115675, fg18s045, 8el011712861, 1986a00574, 2143ir, 22637noe, 209149, 209149a, 286830, 440430, 2607244, 2607244d, 2607244e, 2617511, 8519890, 12090537, 32082850, 215584180, 0986082850, 2151911802, 12317823343, 12317823344
