HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115676

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 56.00

Description

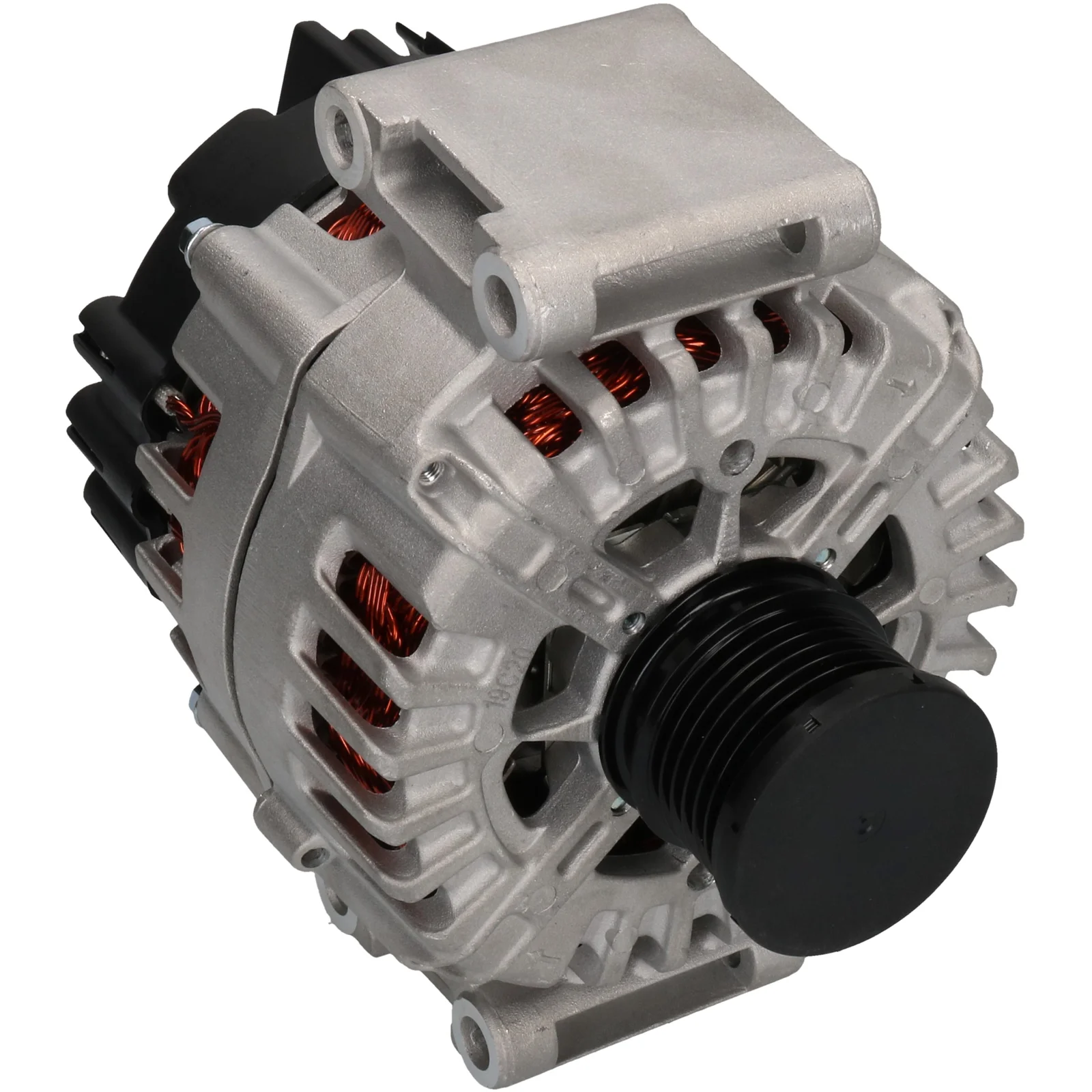

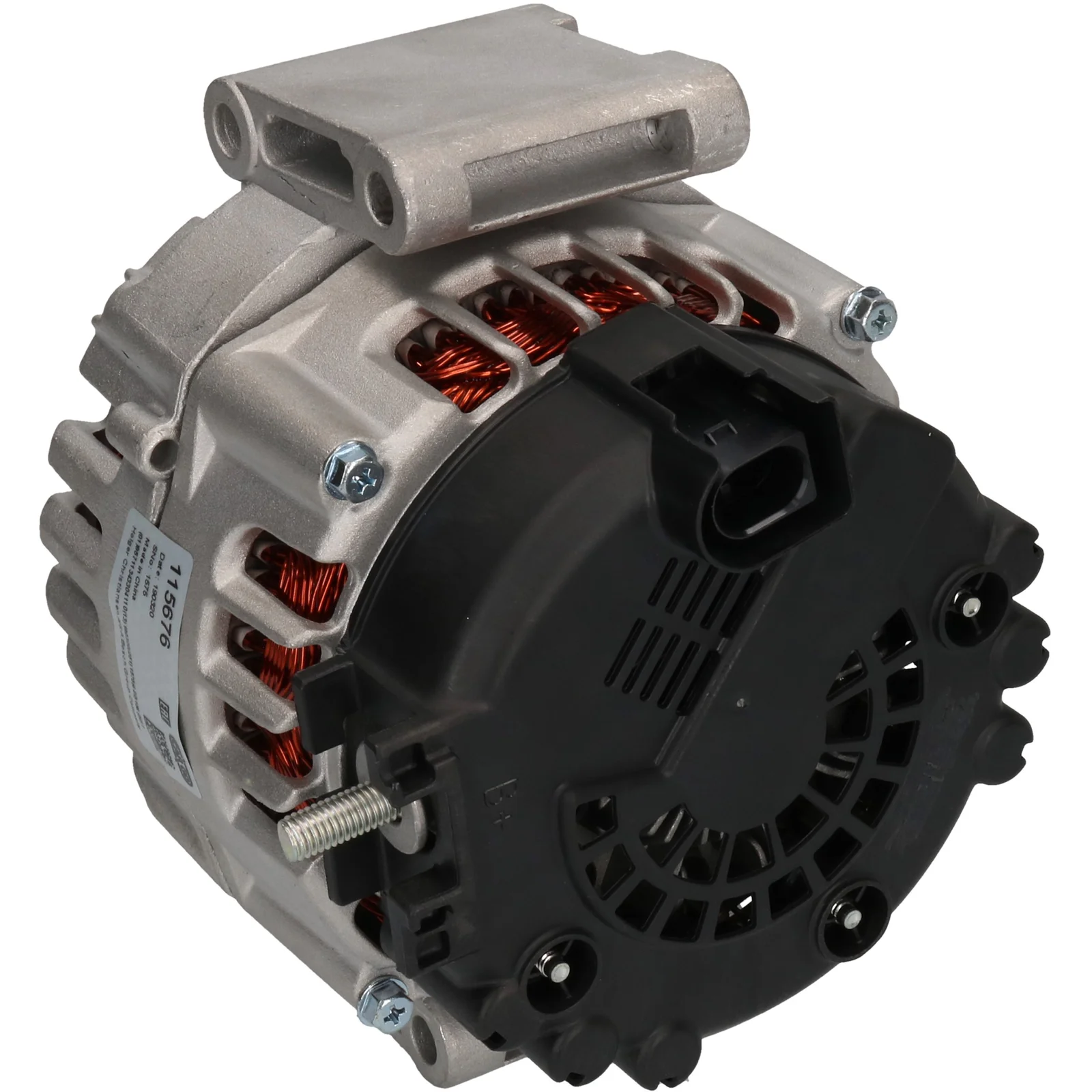

HC-Cargo Alternator 14V - 180A, 6grooves

Voltage: 14
Amp: 180
Pulley diameter: 31.00
Width/holder arm: 70.00
Mounting bracket distance: 56.00
Bracket hole: 9.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 9.30
Belt adjustment bracket hole 2: 9.60
Pulley diameter: 49.60
Grooves per pulley: 6
Radius: 80.50
Radius 2: 80.50
B+: M8
Position/B+ in minutes: 45
Rotation: clockwise
Plug number: PL125
Total length mm: 186.00
Terminal type: COM
Pulley: SP/FW
Remarks: This Alternator has a COM terminal on the Regul. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    000 906 8802, A0009068802, F032115676, FG18S130, FGN18S130, 115676, 2618301, 2618301A, 0009068802

  • Normalised article numbler
    a0009068802, a3145, a3145pr, a3145valeo, cal15540, f032115676, fg18s130, fgn18s130, 113898, 115676, 200230, 209190, 209190a, 439836, 440561, 747127, 2618301, 2618301a, 0009068802, 555921180, 0986084590
  • Description
    HC-Cargo Alternator 14V - 180A, 6grooves

    Voltage: 14
    Amp: 180
    Pulley diameter: 31.00
    Width/holder arm: 70.00
    Mounting bracket distance: 56.00
    Bracket hole: 9.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 9.30
    Belt adjustment bracket hole 2: 9.60
    Pulley diameter: 49.60
    Grooves per pulley: 6
    Radius: 80.50
    Radius 2: 80.50
    B+: M8
    Position/B+ in minutes: 45
    Rotation: clockwise
    Plug number: PL125
    Total length mm: 186.00
    Terminal type: COM
    Pulley: SP/FW
    Remarks: This Alternator has a COM terminal on the Regul. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      000 906 8802, A0009068802, F032115676, FG18S130, FGN18S130, 115676, 2618301, 2618301A, 0009068802

    • Normalised article numbler
      a0009068802, a3145, a3145pr, a3145valeo, cal15540, f032115676, fg18s130, fgn18s130, 113898, 115676, 200230, 209190, 209190a, 439836, 440561, 747127, 2618301, 2618301a, 0009068802, 555921180, 0986084590
