HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115680

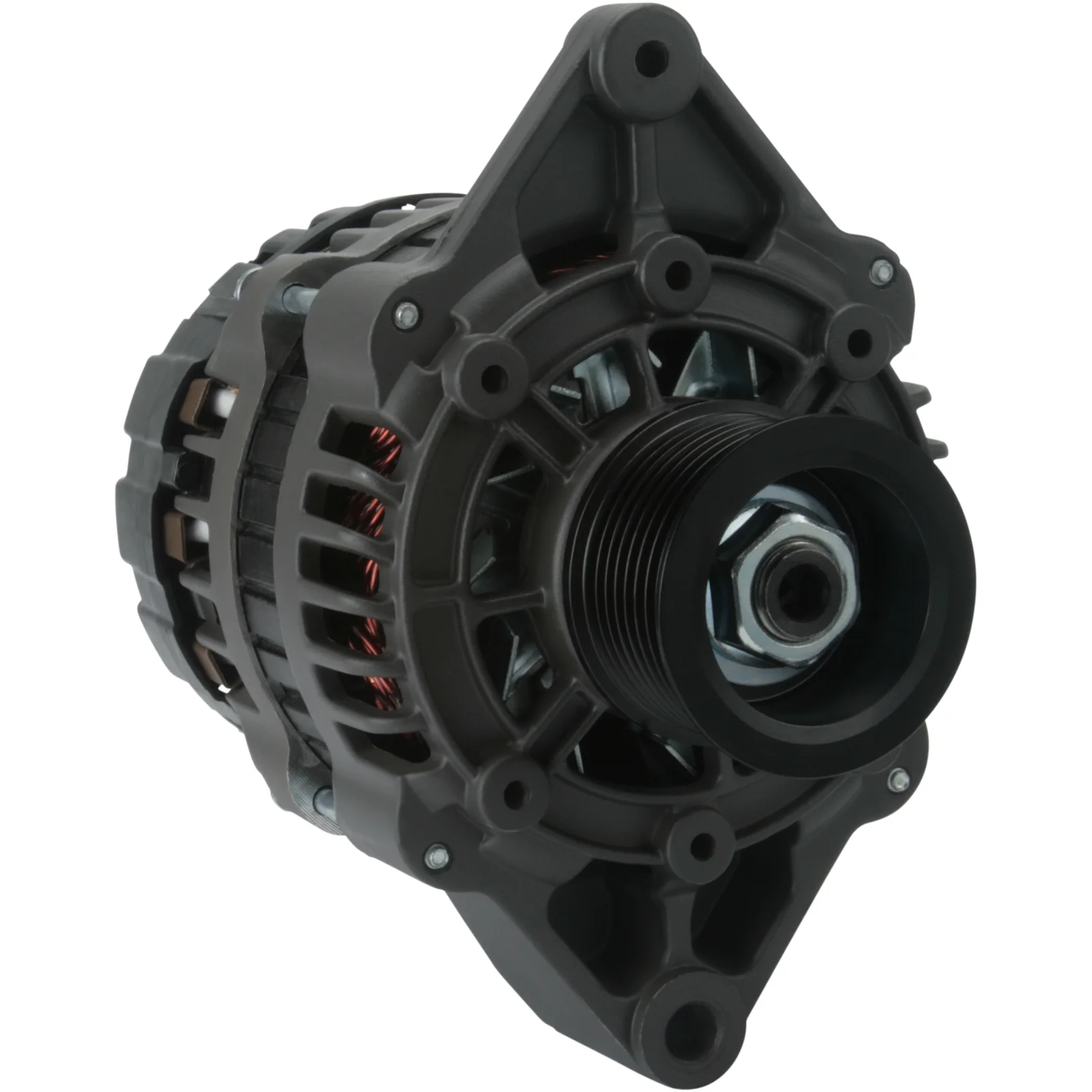

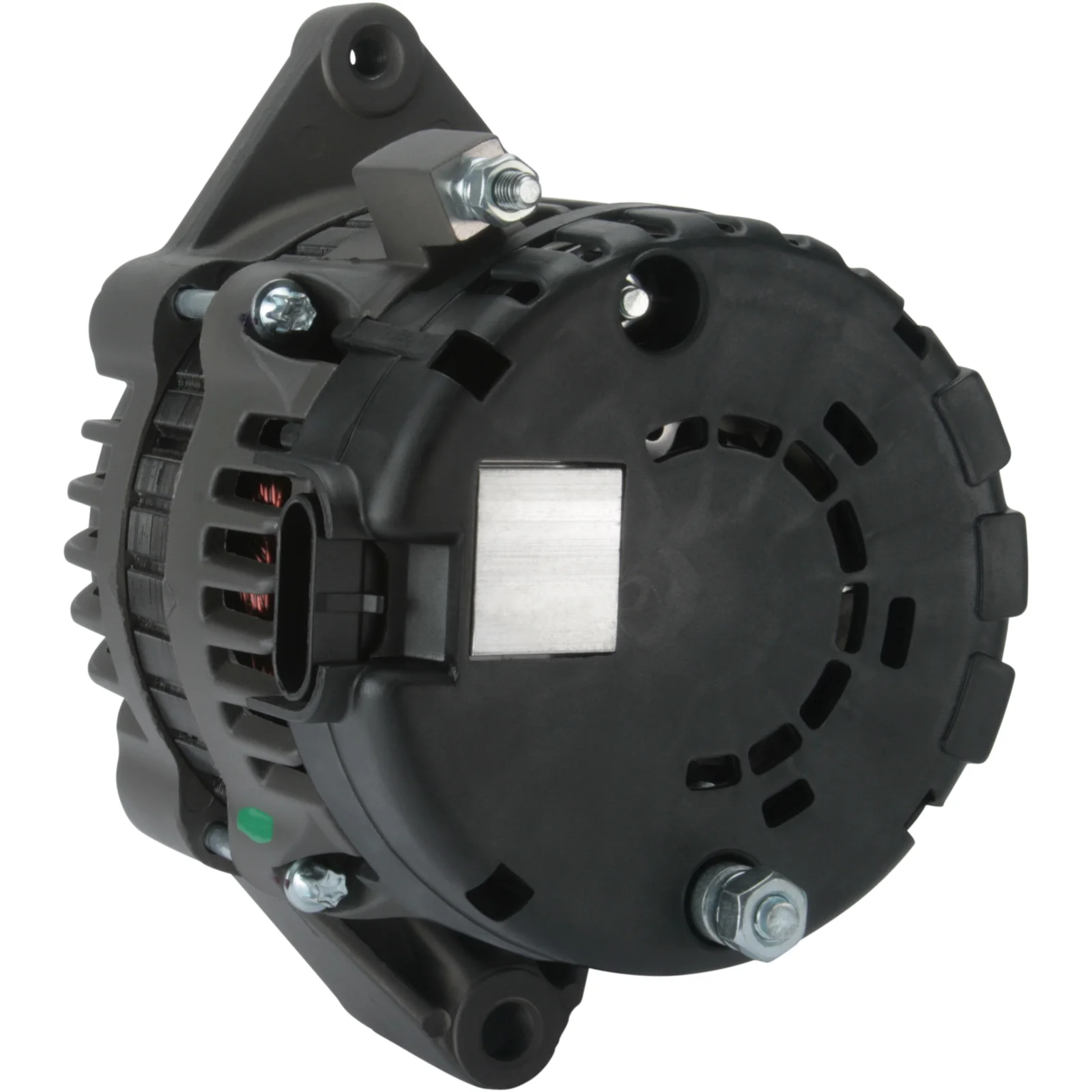

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 95, Rotation: CW, Pulley dia.: 55.00

Description

Voltage: 14
Amp: 95
Pulley length: 71.50
Width/holder arm: 50.80
Bracket hole: 10.00
Belt tensioning bracket hole position: 60
Belt tensioning bracket hole 1: M8
Pulley diameter: 55.00
Grooves/pulley: 8
Radius: 86.00
Radius 2: 87.00
B+: M8
Position/B+ in minutes: 30
D+ Size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 193.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • Description
    Voltage: 14
    Amp: 95
    Pulley length: 71.50
    Width/holder arm: 50.80
    Bracket hole: 10.00
    Belt tensioning bracket hole position: 60
    Belt tensioning bracket hole 1: M8
    Pulley diameter: 55.00
    Grooves/pulley: 8
    Radius: 86.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in minutes: 30
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL122
    Total length mm: 193.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles
