HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115693

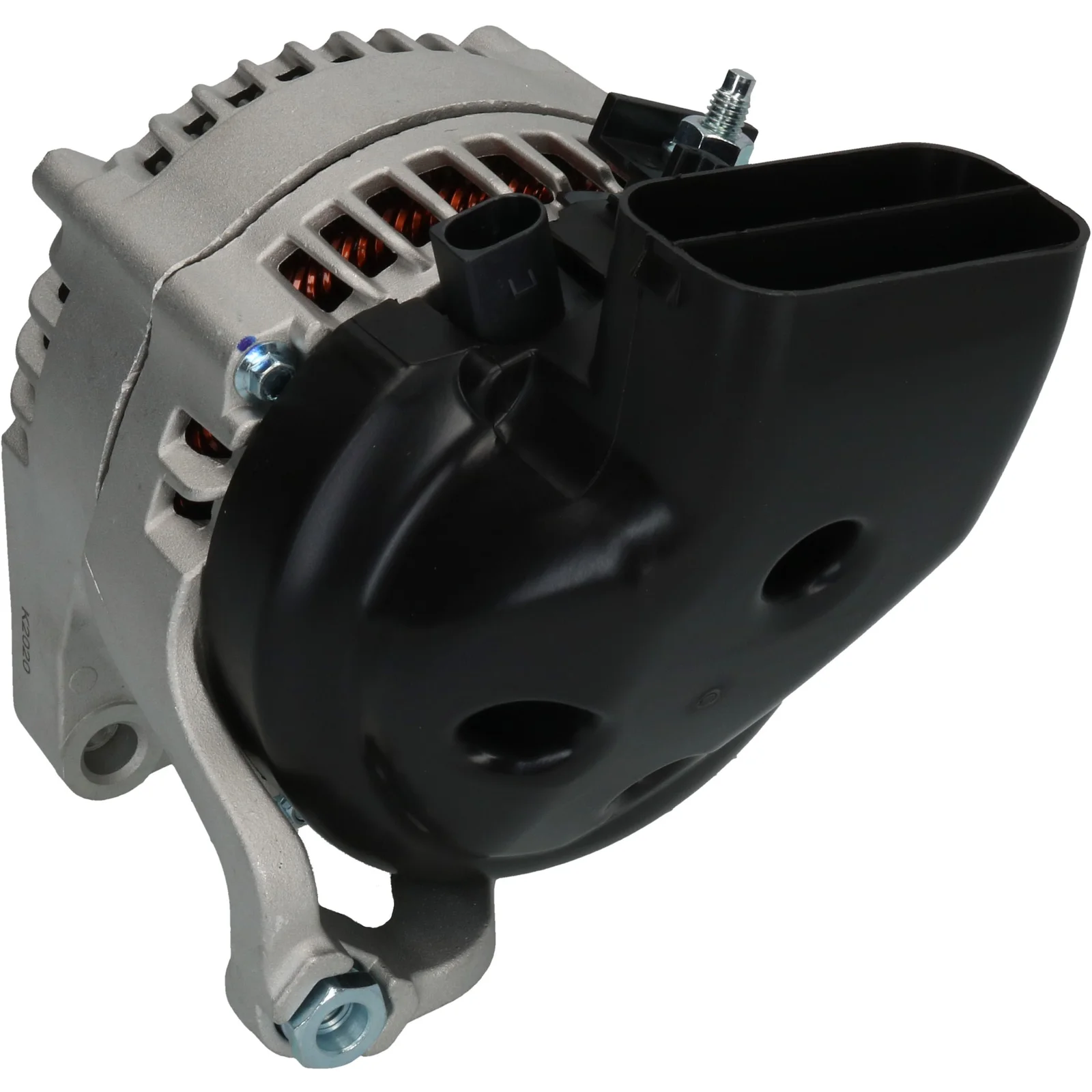

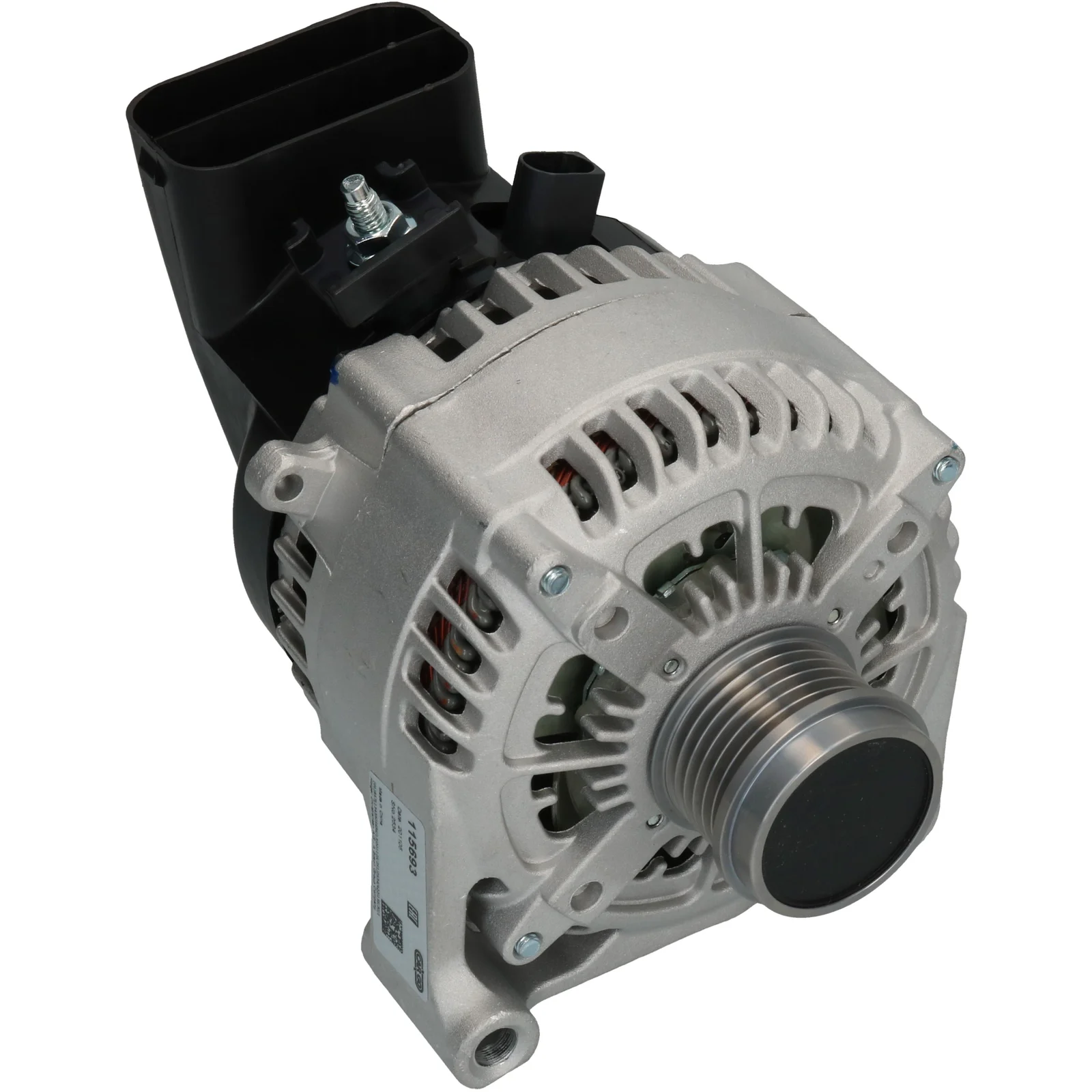

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 170, Rotation: CW, Mounting bracket distributor: 75.50

Description

Voltage: 14
Amp: 170
Pulley dist.: 49.50
Width/holder arm: 27.50
Mount. bracket dist.: 75.50
Bracket hole: 10.30
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.80
Pulley dia.: 49.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 58
Rotation: CW
Plug no.: PL181
Total length mm: 223.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115693, 1986A00610, 104210-6330, 104210-6331, 104210-6332, 104210-6333, 104210-6334, 7605060, 12317605060, 12317610260

  • Normalised article numbler
    a6346, cal40425, dan1125, dra1477, f032115693, 1986a00610, 24111, 209296, 209296a, 287605, 440961, 554455ri, 7605060, 12090620, 32084740, 215587170, 0986084740, 1042106330, 1042106331, 1042106332, 1042106333, 1042106334, 12317605060, 12317610260
  • Description
    Voltage: 14
    Amp: 170
    Pulley dist.: 49.50
    Width/holder arm: 27.50
    Mount. bracket dist.: 75.50
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 10.80
    Pulley dia.: 49.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 58
    Rotation: CW
    Plug no.: PL181
    Total length mm: 223.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115693, 1986A00610, 104210-6330, 104210-6331, 104210-6332, 104210-6333, 104210-6334, 7605060, 12317605060, 12317610260

    • Normalised article numbler
      a6346, cal40425, dan1125, dra1477, f032115693, 1986a00610, 24111, 209296, 209296a, 287605, 440961, 554455ri, 7605060, 12090620, 32084740, 215587170, 0986084740, 1042106330, 1042106331, 1042106332, 1042106333, 1042106334, 12317605060, 12317610260
