HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115694

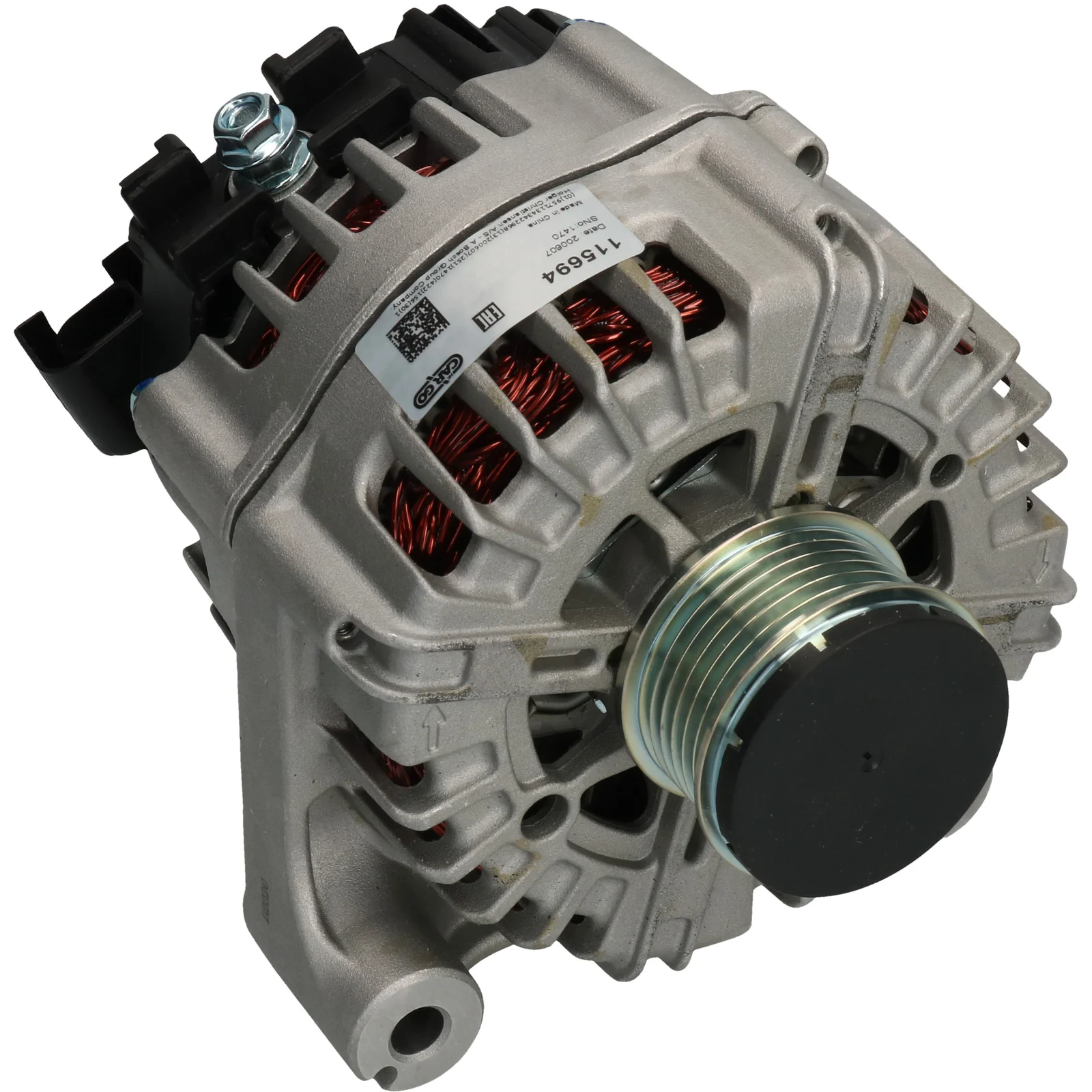

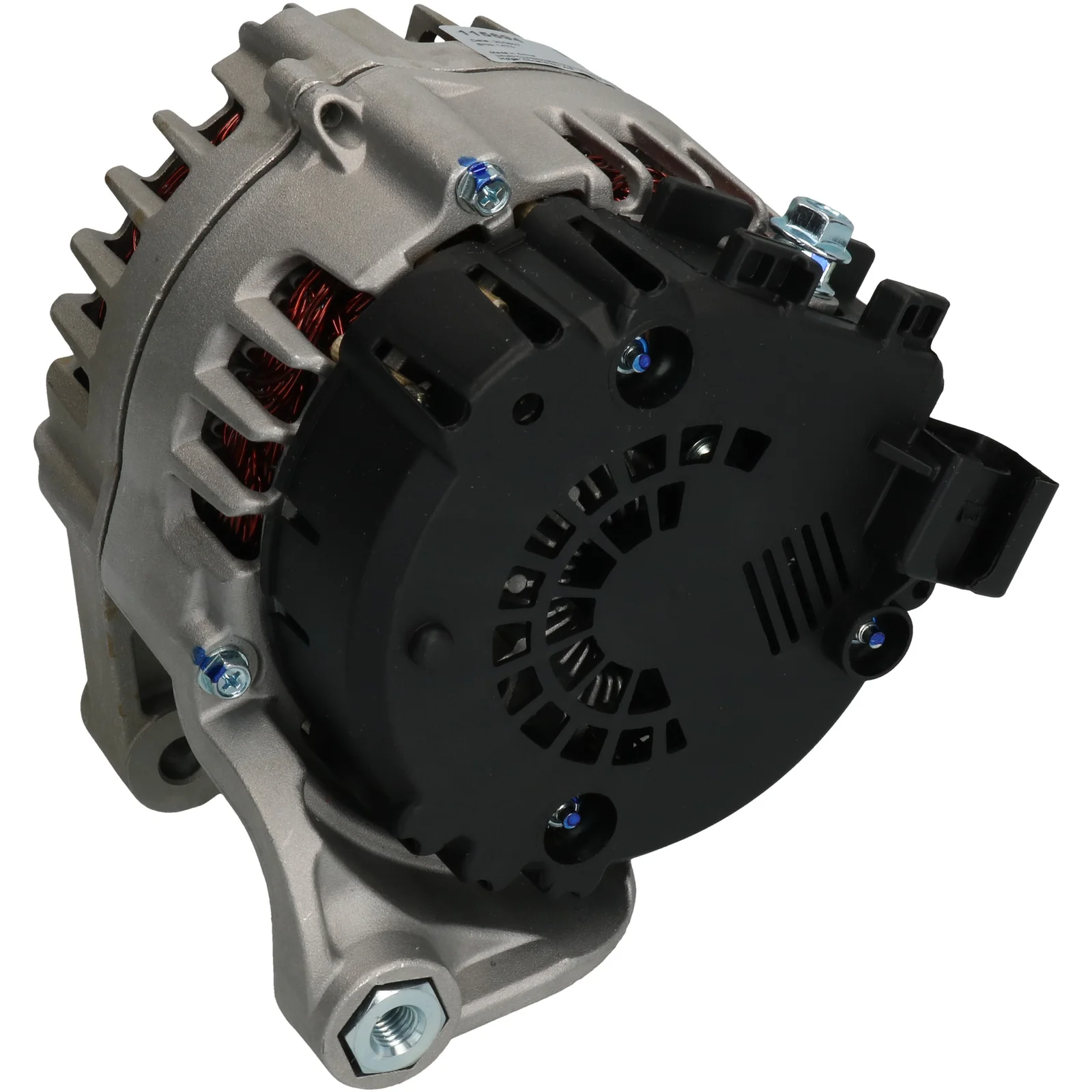

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 75.50

Description

Voltage: 14
Amp: 180
Pulley dist.: 57.00
Width/holder arm: 28.00
Mount. bracket dist.: 75.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 44
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 53.70
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 58
Rotation: CW
Plug no.: PL125
Total length mm: 187.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115694, fg18s141, FGN18S141, 1986A00638, 1986A00738, 2622129a, 12318578608, 12318578609

  • Normalised article numbler
    a3416pr, a3416s, f032115694, fg18s141, fgn18s141, 1986a00638, 1986a00738, 22637noe, 209325, 209325a, 439879, 2622129a, 215597180, 0986084660, 12318578608, 12318578609
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 57.00
    Width/holder arm: 28.00
    Mount. bracket dist.: 75.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 44
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 53.70
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 58
    Rotation: CW
    Plug no.: PL125
    Total length mm: 187.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115694, fg18s141, FGN18S141, 1986A00638, 1986A00738, 2622129a, 12318578608, 12318578609

    • Normalised article numbler
      a3416pr, a3416s, f032115694, fg18s141, fgn18s141, 1986a00638, 1986a00738, 22637noe, 209325, 209325a, 439879, 2622129a, 215597180, 0986084660, 12318578608, 12318578609
