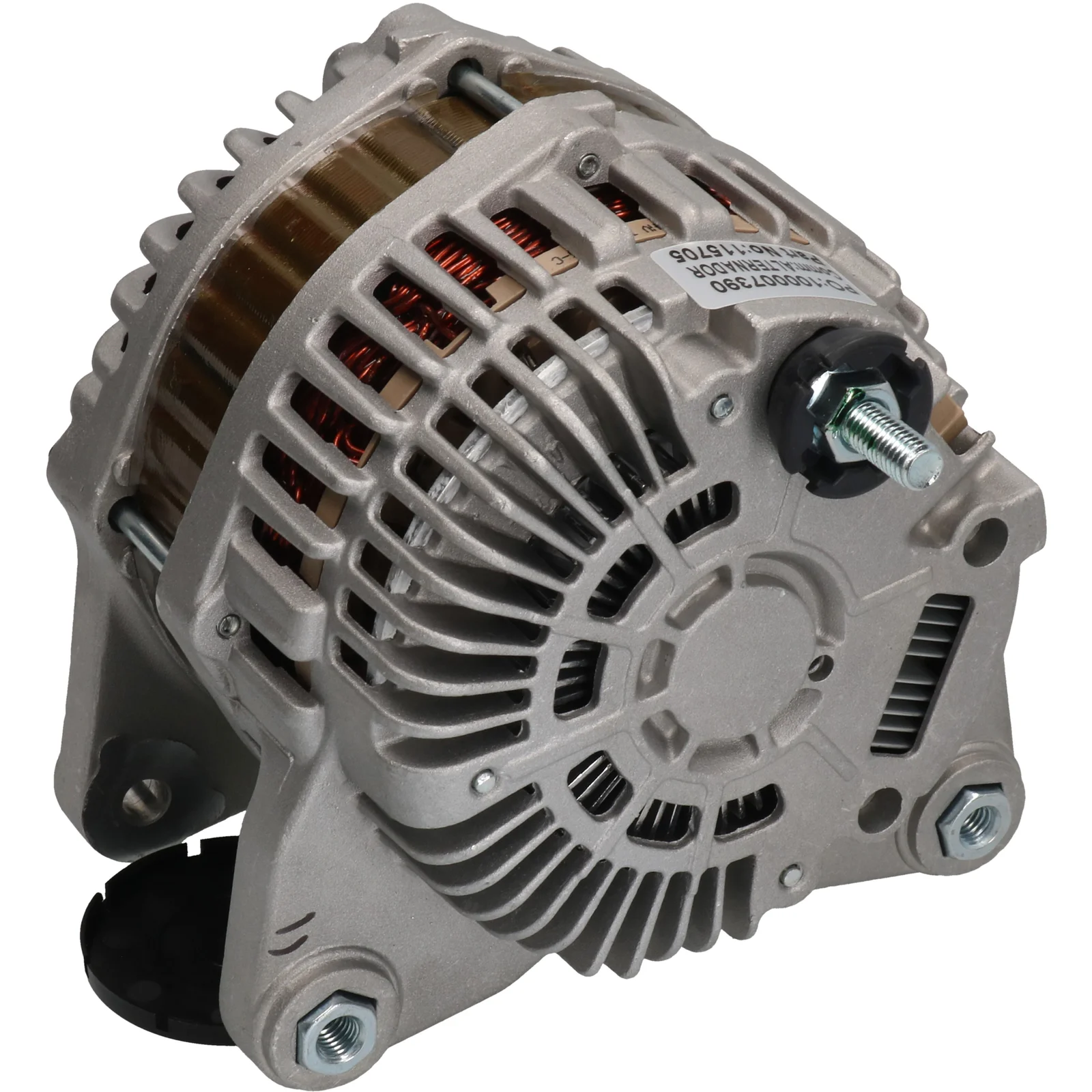

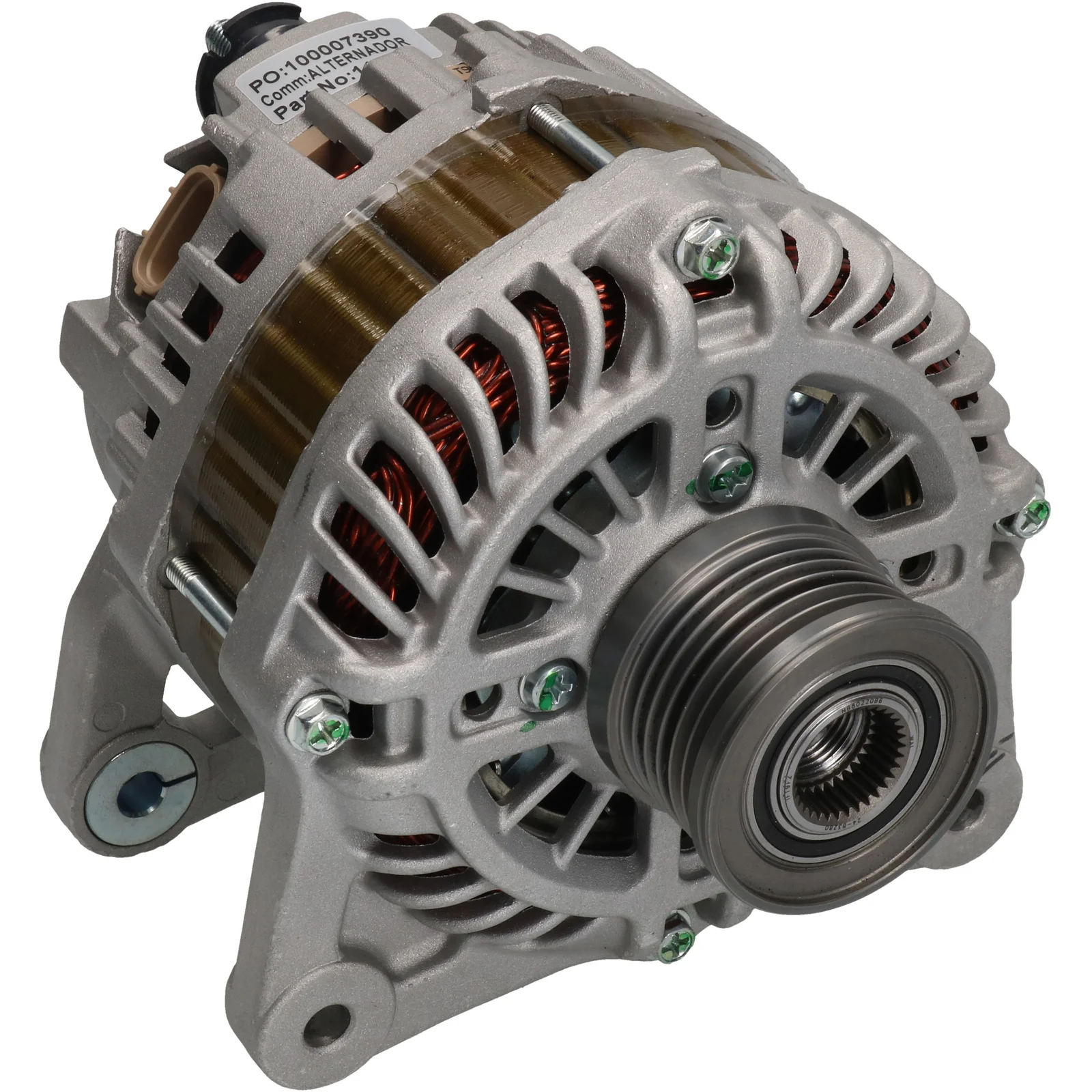

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115705

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 58.50

Description

Voltage: 14
Amp: 110
Pulley dist.: 38.50
Width/holder arm: 14.00
Mounting bracket dist.: 58.50
Bracket hole: 8.50
Belt tension adjustment bracket hole position: 45
Belt tension adjustment bracket hole 1: 8.50
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL163
Pulley: SP/FW
Fan: IF
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A002TJ0581, A002TJ0581ZE, A2TG1581AC, A2TJ0581, A2TJ0581ZE, F032115705, 2191ir, 23100-1FC1A, 23100-JD21A, 23100-ZW40B

  • Normalised article numbler
    a002tj0581, a002tj0581ze, a2tg1581ac, a2tj0581, a2tj0581ze, a5122, a5271, cal35357, dra0865, dra0865n, f032115705, lra03644, 2191ir, 11414n, 23100jd21a, 23100zw40b, 231001fc1a, 286784, 849121, 12061024, 165597110, 0986082920, 2273241102
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 38.50
    Width/holder arm: 14.00
    Mounting bracket dist.: 58.50
    Bracket hole: 8.50
    Belt tension adjustment bracket hole position: 45
    Belt tension adjustment bracket hole 1: 8.50
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL163
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A002TJ0581, A002TJ0581ZE, A2TG1581AC, A2TJ0581, A2TJ0581ZE, F032115705, 2191ir, 23100-1FC1A, 23100-JD21A, 23100-ZW40B

    • Normalised article numbler
      a002tj0581, a002tj0581ze, a2tg1581ac, a2tj0581, a2tj0581ze, a5122, a5271, cal35357, dra0865, dra0865n, f032115705, lra03644, 2191ir, 11414n, 23100jd21a, 23100zw40b, 231001fc1a, 286784, 849121, 12061024, 165597110, 0986082920, 2273241102
